2001 NISSAN X-TRAIL check engine

EC-414
[QR25(WITH EURO-OBD)]
REFRIGERANT PRESSURE SENSOR
Diagnostic Procedure
EBS00MBP
1. CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower switch “ON”.
3. Check voltage between ECM terminal 83 and ground with CON-
SULT-II or tester.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn A/C switch and blower switch “OFF”.
2. Stop engine.
3. Disconnect refrigerant pressure sensor harness connector.
4. Turn ignition switch “ON”.
5. Check voltage between refrigerant pressure sensor terminal 3
and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E61, F38
●Harness for open or short between ECM and refrigerant pressure sensor
>> Repair harness or connectors. Voltage: 1.0 - 4.0V
PBIB0659E
PBIB0503E
Voltage: Approximately 5V
SEF479Y

REFRIGERANT PRESSURE SENSOR
EC-415
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between refrigerant pressure sensor terminal 1 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E61, F38
●Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 83 and refrigerant pressure sensor terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E61, F38
●Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK INTERMITTENT INCIDENT
Refer to EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace refrigerant pressure sensor.
NG >> Repair or replace.
Removal and InstallationEBS00MBQ
REFRIGERANT PRESSURE SENSOR
Refer to ATC-129, "REFRIGERANT LINES" . Continuity should exist.
Continuity should exist.

EC-420
[QR25(WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL
5. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 52 and ground under the
following conditions.
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 53 and ground under the
following conditions.
OK or NG
OK >> GO TO 7.
NG >> GO TO 12.
7. CHECK HEATER FAN CONTROL CIRCUIT OVERALL FUNCTION
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 55 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 16.
8. CHECK REAR WINDOW DEFOGGER FUNCTION
1. Start engine.
2. Turn “ON” the rear window defogger switch.
3. Check the rear windshield. Is the rear windshield heated up?
Ye s o r N o
Yes >> GO TO 9.
No >> Refer to GW-10, "
REAR WINDOW DEFOGGER" .
Condition Voltage
Rear window defogger switch “ON” BATTERY VOLTAGE
Rear window defogger switch “OFF” 0V
PBIB0660E
Condition Voltage
Lighting switch “ON” at 2nd position BATTERY VOLTAGE
Lighting switch “OFF” 0V
PBIB0070E
Condition Voltage
Heater fan control switch “ON” 0V
heater fan control switch “OFF” Approximately 5V
PBIB0661E

ELECTRICAL LOAD SIGNAL
EC-421
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

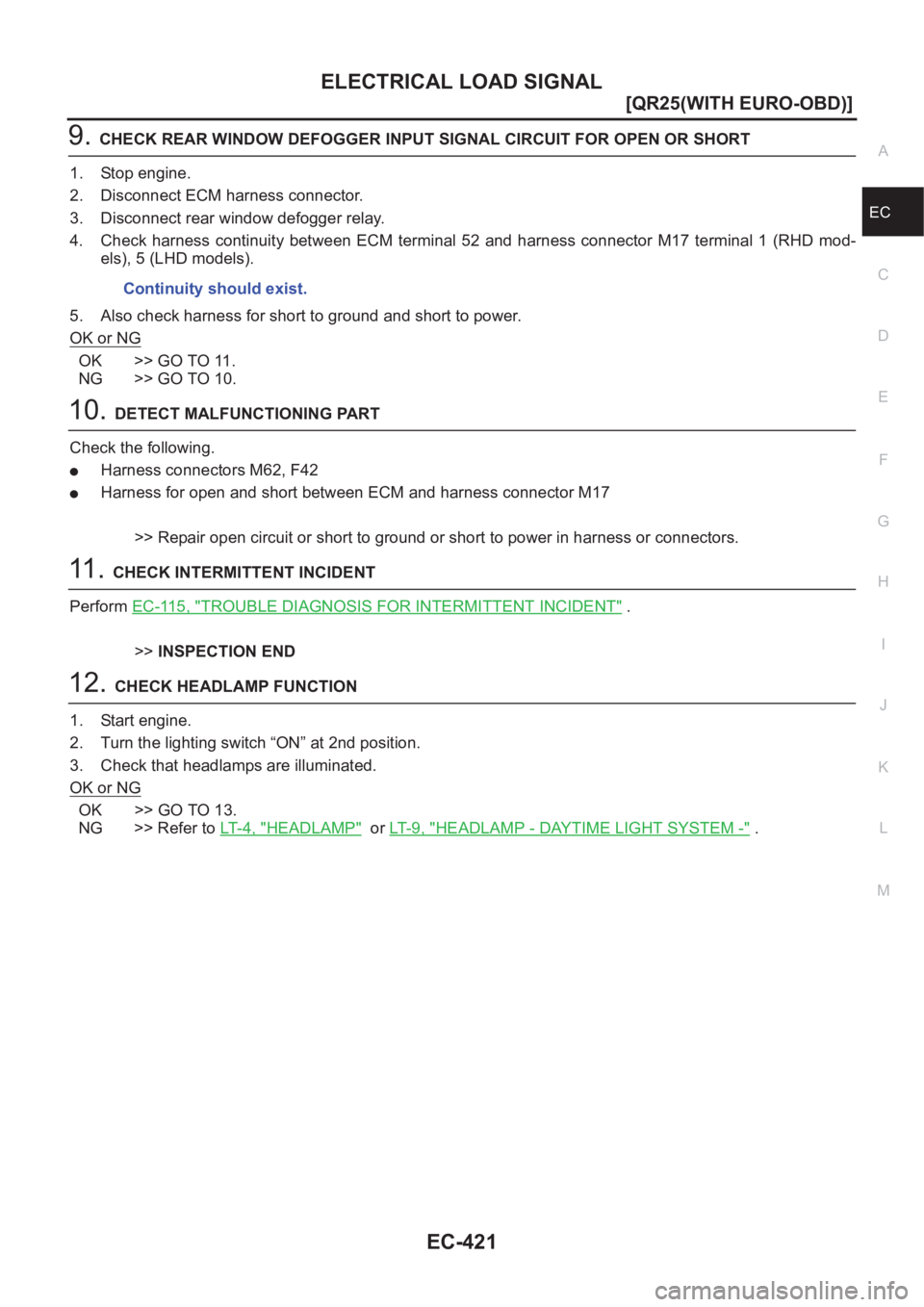

9.CHECK REAR WINDOW DEFOGGER INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect rear window defogger relay.
4. Check harness continuity between ECM terminal 52 and harness connector M17 terminal 1 (RHD mod-
els), 5 (LHD models).
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M62, F42
●Harness for open and short between ECM and harness connector M17
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK INTERMITTENT INCIDENT
Perform EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
12.CHECK HEADLAMP FUNCTION
1. Start engine.
2. Turn the lighting switch “ON” at 2nd position.
3. Check that headlamps are illuminated.
OK or NG
OK >> GO TO 13.
NG >> Refer to LT- 4 , "
HEADLAMP" or LT-9, "HEADLAMP - DAYTIME LIGHT SYSTEM -" . Continuity should exist.

EC-422
[QR25(WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL
13. CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect lighting switch harness connectors.
4. Check harness continuity between ECM terminal 53 and lighting switch terminal 9, 10 under the following
conditions.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 15.
NG >> GO TO 14.
14. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E60, F36
●Diode E123, E124
●Harness for open and short between ECM and lighting switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
15. CHECK INTERMITTENT INCIDENT
Perform EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
16. CHECK HEATER FAN CONTROL FUNCTION
1. Start engine.
2. Turn “ON” the fan control switch.
3. Check the blower fan motor. Does the blower fan motor activate?
Ye s o r N o
Yes >> GO TO 17.
No >> Refer to AT C - 3 3 , "
TROUBLE DIAGNOSIS" .
Condition Continuity
1 Should exist
2 Should not exist
PBIB0662E

ELECTRICAL LOAD SIGNAL
EC-423
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

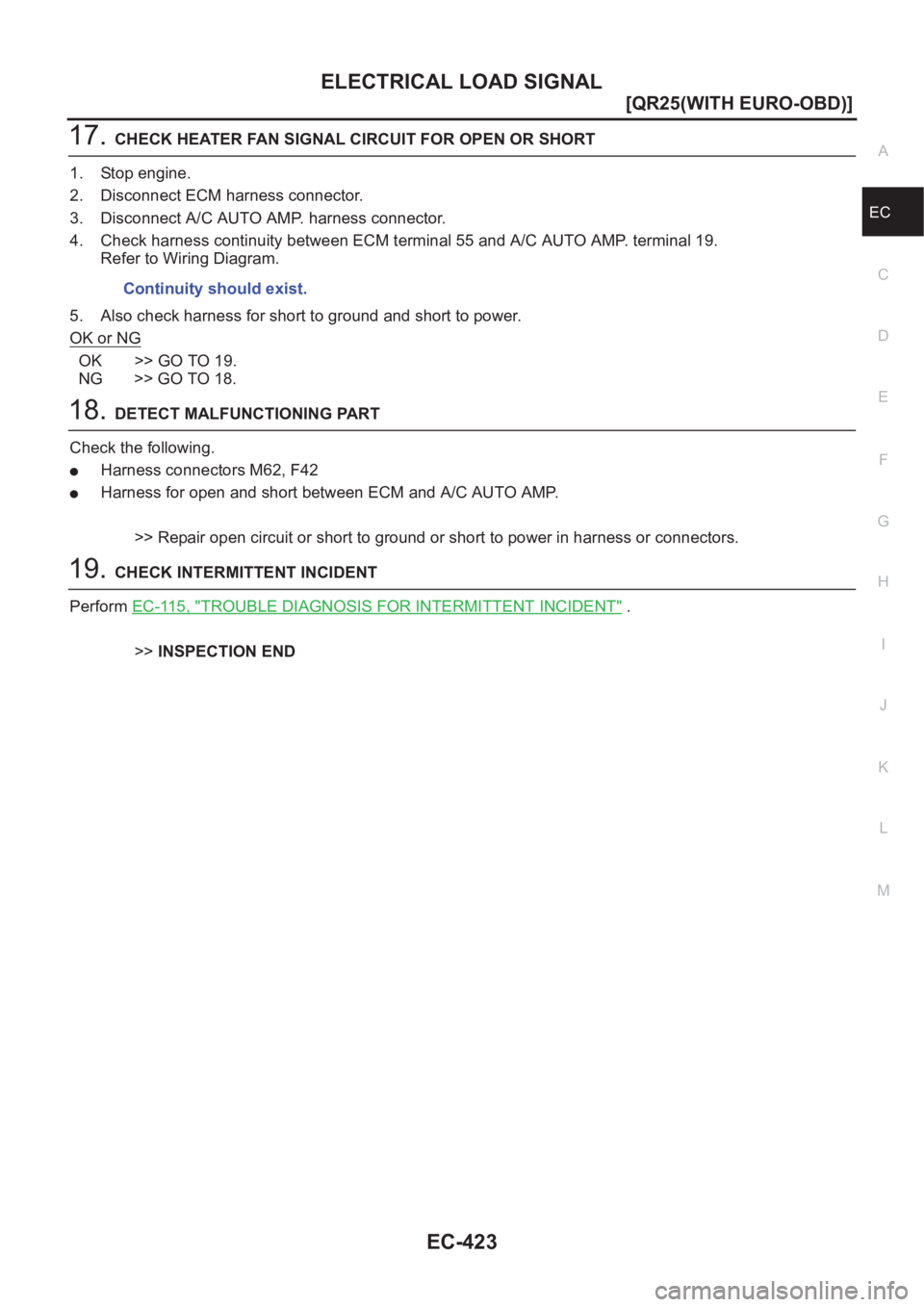

17.CHECK HEATER FAN SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect A/C AUTO AMP. harness connector.
4. Check harness continuity between ECM terminal 55 and A/C AUTO AMP. terminal 19.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 19.
NG >> GO TO 18.
18.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M62, F42
●Harness for open and short between ECM and A/C AUTO AMP.
>> Repair open circuit or short to ground or short to power in harness or connectors.
19.CHECK INTERMITTENT INCIDENT
Perform EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.

INDEX FOR DTC
EC-433
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
*1: 1st trip DTC No. is the same as DTC No.
*2: In Diagnostic Test Mode II (Self-diagnostic results), these numbers are controlled by NISSAN.
*3: When engine is running.
*4: The trouble shooting for this DTC needs CONSULT-II.
*5: For A/T models.
*6: When the fail-safe operations for both self-diagnoses occur at the same time, the MI illuminates.
DTC No. IndexEBS00NC4
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to GI-43, "
IDENTIFICATION PLATE" .
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
EC-513
.
×: Applicable –: Not applicable TP SEN 2/CIRC P0123 0123 1×EC-528
TP SENSOR P2135 2135 1×EC-644
TP SEN 1/CIRC P0222 0222 1×EC-540
TP SEN 1/CIRC P0223 0223 1×EC-540
VEH SPEED SEN/CIRC*6P0500 0500 2×EC-563
Items
(CONSULT-II screen terms)DTC*1
TripMI lighting
upReference page
CONSULT-II
ECM*2
DTC*1Items
(CONSULT-II screen terms)TripMI lighting
upReference page
CONSULT-II
ECM*
2
No DTC
Flashing*3NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.–
Flashing*3EC-59
U1000
1000*4CAN COMM CIRCUIT*51×EC-513
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.––—
P0102 0102 MAF SEN/CIRCUIT 1×EC-516
P0103 0103 MAF SEN/CIRCUIT 1×EC-516
P0117 0117 ECT SEN/CIRCUIT 1×EC-523
P0118 0118 ECT SEN/CIRCUIT 1×EC-523
P0122 0122 TP SEN 2/CIRC 1×EC-528
P0123 0123 TP SEN 2/CIRC 1×EC-528
P0134 0134 HO2S1 (B1) 2×EC-534
P0222 0222 TP SEN 1/CIRC 1×EC-540
P0223 0223 TP SEN 1/CIRC 1×EC-540
P0327 0327 KNOCK SEN/CIRC-B1 2 –EC-546
P0328 0328 KNOCK SEN/CIRC-B1 2 –EC-546
P0335 0335 CKP SEN/CIRCUIT 2×EC-551
P0340 0340 CMP SEN/CIRCUIT 2×EC-557
P0500 0500
VEH SPEED SEN/CIRC*62×EC-563
P0550 0550 PW ST P SEN/CIRC 2 –EC-568
P0605 0605 ECM 1 or 2× or –EC-573
P0650 0650 MIL/CIRC 2 –EC-576
P1065 1065 ECM BACK UP/CIRC 2×EC-580
P1121 1121 ETC ACTR 1 or 2×EC-584

PREPARATION
EC-439
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PREPARATIONPFP:00002
Special Service ToolsEBS00NDP
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsEBS00NDQ
Tool number
Tool nameDescription
KV10117100
Heated oxygen
sensor wrenchLoosening or tightening heated oxygen sensors
with 22 mm (0.87 in) hexagon nut
KV10114400
Heated oxygen
sensor wrenchLoosening or tightening heated oxygen sensors
a: 22 mm (0.87 in)
S-NT379
S-NT636
Tool name Description
Quick connector
releaseRemoving fuel tube quick connectors in engine
room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)
Fuel filler cap adapter Checking fuel tank vacuum relief valve opening
pressure
Socket wrench Removing and installing engine coolant
temperature sensor
PBIC0198E
S-NT653
S-NT705
