2001 NISSAN X-TRAIL check engine

DTC P2138 APP SENSOR
EC-377
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4.CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between APP sensor terminal 1, 3 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M61, F41
●Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 75 and APP sensor terminal 5, ECM terminal 76 and
APP sensor terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M61, F41
●Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK APP SENSOR
Refer to EC-378, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-39, "
Accelerator Pedal Released Position Learning" .
>>INSPECTION END Continuity should exist.
Continuity should exist.

EC-378
[QR25(WITH EURO-OBD)]
DTC P2138 APP SENSOR
10. CHECK INTERMITTENT INCIDENT
Refer to EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00MRF
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-39, "
Accelerator Pedal Released Position Learning" .
3. Turn ignition switch “ON”.
4. Check voltage between ECM terminals 75 (APP sensor 1 sig-
nal), 76 (APP sensor 2 signal) and engine ground under the fol-
lowing conditions.
5. If NG, replace accelerator pedal assembly and go to next step.
6. Perform EC-39, "
Accelerator Pedal Released Position Learning" .
7. Perform EC-39, "
Throttle Valve Closed Position Learning" .
8. Perform EC-39, "
Idle Air Volume Learning" .
Remove and InstallationEBS00MRG
ACCELERATOR PEDAL
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
75
(Accelerator pedal position
sensor 1)Fully released 0.41 - 0.72V
Fully depressed More than 3200mV
76
(Accelerator pedal position
sensor 2)Fully released 0.15 - 0.48V
Fully depressed More than 1490mV
PBIB0561E

EC-382
[QR25(WITH EURO-OBD)]

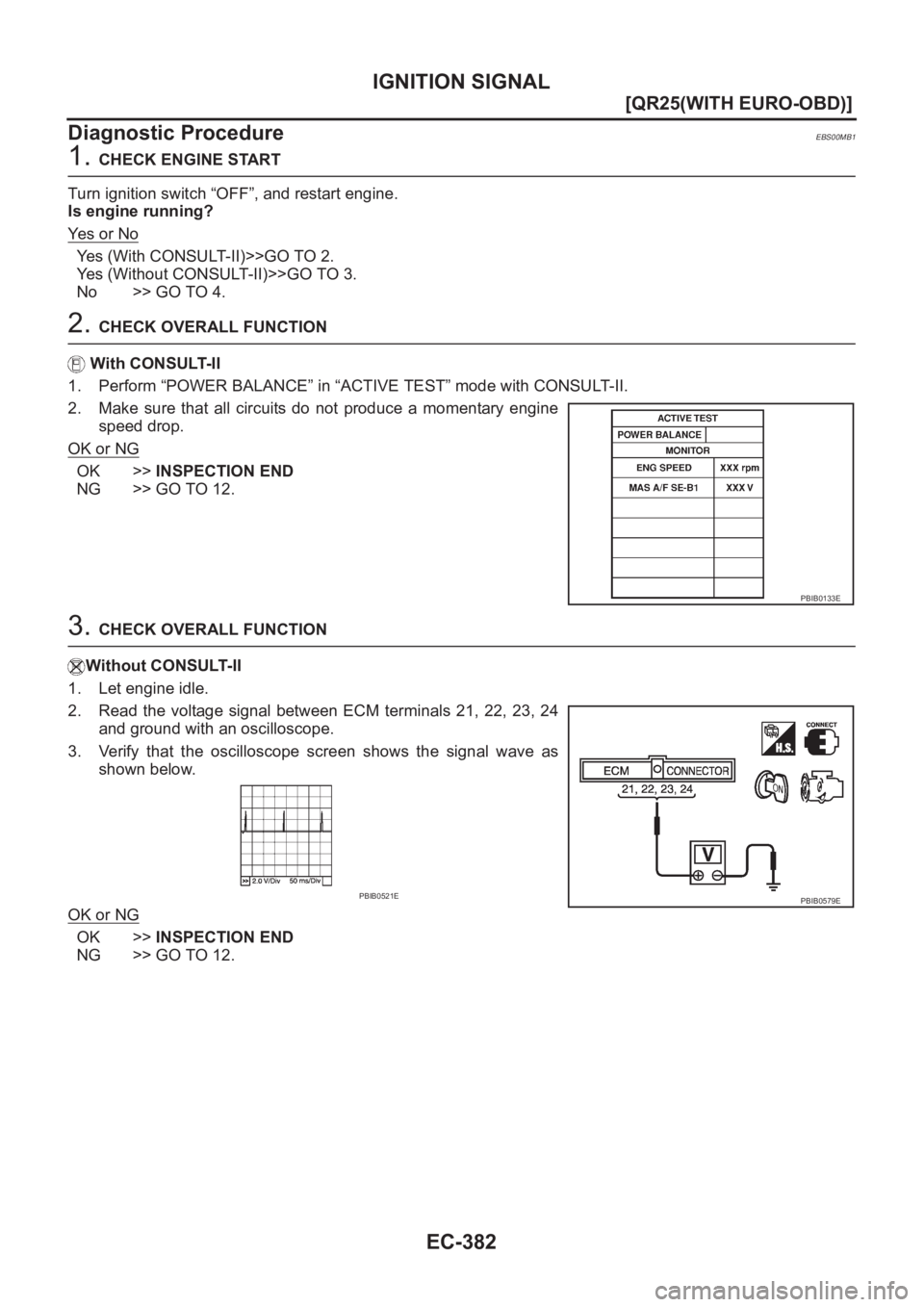

IGNITION SIGNAL
Diagnostic Procedure
EBS00MB1
1. CHECK ENGINE START
Turn ignition switch “OFF”, and restart engine.
Is engine running?
Ye s o r N o
Yes (With CONSULT-II)>>GO TO 2.
Yes (Without CONSULT-II)>>GO TO 3.
No >> GO TO 4.
2. CHECK OVERALL FUNCTION
With CONSULT-II
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II.
2. Make sure that all circuits do not produce a momentary engine
speed drop.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
3. CHECK OVERALL FUNCTION
Without CONSULT-II
1. Let engine idle.
2. Read the voltage signal between ECM terminals 21, 22, 23, 24
and ground with an oscilloscope.
3. Verify that the oscilloscope screen shows the signal wave as
shown below.
OK or NG
OK >>INSPECTION END
NG >> GO TO 12.
PBIB0133E
PBIB0579EPBIB0521E

EC-384
[QR25(WITH EURO-OBD)]
IGNITION SIGNAL
8. DETECT MALFUNCTIONING PART
Check the following.
●20A fuse
●Harness or connectors E61, F38
●Harness for open and short between ECM relay and fuse
>> Repair or replace harness or connectors.
9. CHECK ECM RELAY
Refer to EC-121, "
Component Inspection" .
OK or NG
OK >> GO TO 17.
NG >> Replace ECM relay.
10. CHECK CONDENSER CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Check harness continuity between ECM terminal 12 and con-
denser terminal 1, condenser terminal 2 and engine ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
11 . CHECK CONDENSER
Refer to EC-386, "
Component Inspection" .
OK or NG
OK >> GO TO 12.
NG >> Replace condenser.Continuity should exist.
PBIB0509E

IGNITION SIGNAL
EC-385
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

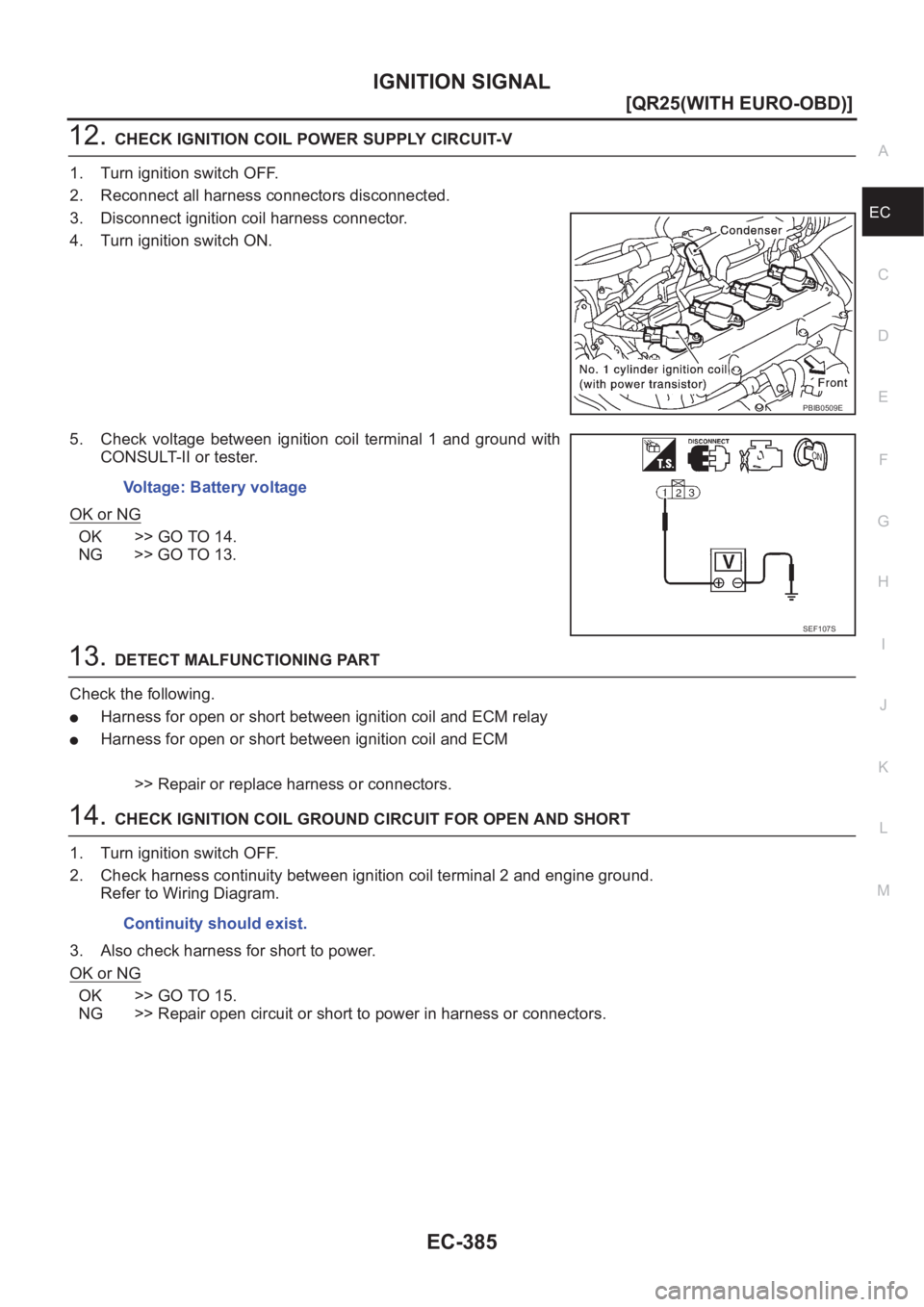

12.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect ignition coil harness connector.
4. Turn ignition switch ON.
5. Check voltage between ignition coil terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13.DETECT MALFUNCTIONING PART
Check the following.
●Harness for open or short between ignition coil and ECM relay
●Harness for open or short between ignition coil and ECM
>> Repair or replace harness or connectors.
14.CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ignition coil terminal 2 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 15.
NG >> Repair open circuit or short to power in harness or connectors.
PBIB0509E
Voltage: Battery voltage
SEF107S
Continuity should exist.

EC-390
[QR25(WITH EURO-OBD)]
INJECTOR CIRCUIT
Diagnostic Procedure
EBS00MB8
1. INSPECTION START
Turn ignition switch to “START”.
Is any cylinder ignited?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 3.
2. CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
3. Make sure that each circuit produces a momentary engine
speed drop.
Without CONSULT-II
1. Start engine.
2. Listen to each injector operating sound.
Clicking noise should be heard.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
PBIB0133E
MEC703B

EC-396
[QR25(WITH EURO-OBD)]
VIAS
Diagnostic Procedure
EBS00NBN
1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode with CON-
SULT-II.
3. Turn VIAS control solenoid valve “ON” and “OFF”, and make
sure that power valve actuator rod moves.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Rev engine quickly up to above 5,000 rpm and make sure that
power valve actuator rod moves.
OK or NG
OK >>INSPECTION END
NG (With CONSULT-II) >>GO TO 2.
NG (Without CONSULT-II) >>GO TO 3.
PBIB0844E
PBIB0949E
PBIB0949E

VIAS
EC-397
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.CHECK VACUUM EXISTENCE
With CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Start engine and let it idle.
3. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode with CON-
SULT-II.
4. Turn VIAS control solenoid valve “ON” and “OFF”, and check
vacuum existence under the following conditions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
3.CHECK VACUUM EXISTENCE
Without CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Disconnect VIAS control solenoid valve harness connector.
3. Start engine and let it idle.
4. Apply 12V of direct current between VIAS control solenoid valve
terminals 1 and 2.
5. Check vacuum existence under the following conditions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
4.CHECK VACUUM HOSE
1. Stop engine.
2. Check hoses and tubes between intake manifold and power
valve actuator for crack, clogging, improper connection or dis-
connection. Refer to EC-32, "
Vacuum Hose Drawing" .
OK or NG
OK >> GO TO 5.
NG >> Repair hoses or tubes.
VIAS SOL VALVE Vacuum
ON Should exist.
OFF Should not exist.
PBIB0844E
Condition Vacuum
12V direct current supply Should exist.
No supply Should not exist.
PBIB0845E
SEF109L
