TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
PFP:00000
Symptom ChartECS004QU
Numbers are arranged in order of inspection.
Perform inspections starting with number one and work up.
Symptom Condition Diagnostic ItemReference Page
EURO-OBD
Engine cannot start in “P” and “N”
positions.
AT- 2 11 , "
Engine Cannot Be Started
In “P” and “N” Position"
ON vehicle1. Ignition switch and starterPG-2, "
POWER SUPPLY
ROUTING",SC-20,
"STARTING SYSTEM"
2. Control cable adjustmentAT-416, "Control Cable
Adjustment"
3. PNP switchAT- 11 0 , "
DTC P0705
PARK/NEUTRAL POSI-
TION (PNP) SWITCH"
Engine starts in position other than
“N” and “P” positions.
AT- 2 11 , "
Engine Cannot Be Started
In “P” and “N” Position"
ON vehicle1. Control cable adjustmentAT-416, "
Control Cable
Adjustment"
2. PNP switchAT- 11 0 , "
DTC P0705
PARK/NEUTRAL POSI-
TION (PNP) SWITCH"
Transaxle noise in “P” and “N” posi-
tions.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Line pressure testAT- 6 7 , "Line Pressure Test"
3. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",
AT-199, "
DTC VEHICLE
SPEED SENSOR MTR"
OFF vehicle5. Oil pumpAT-444, "
Oil Pump"
6. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Vehicle moves when changing into
“P” position, or parking gear does
not disengage when shifted out of
“P” position.
AT- 2 1 2 , "
In “P” Position, Vehicle
Moves Forward Or Backward When
Pushed"
ON vehicle 1. Control cable adjustmentAT-416, "Control Cable
Adjustment"
OFF vehicle 2. Parking componentsAT-421, "
Components",AT-
441, "REPAIR FOR COM-
PONENT PARTS"
Vehicle runs in “N” position.
AT- 2 1 3 , "
In “N” Position, Vehicle
Moves"
ON vehicle 1. Control cable adjustmentAT-416, "Control Cable
Adjustment"
OFF vehicle2. Forward clutchAT-471, "
Forward and
Overrun Clutches"
3. Reverse clutchAT-463, "Reverse Clutch"
4. Overrun clutchAT-471, "Forward and
Overrun Clutches"

AT-88
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Sharp shock in shifting from “N” to
“D” position.ON vehicle1. Engine idling rpmEC-38
[QR25 (WITH
EURO-OBD)], EC-448
[QR25 (WITHOUT EURO-
OBD)], EC-771
[QR20
(WITH EURO-OBD)], EC-
1135 [QR20 (WITHOUT
EURO-OBD)]
2. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. A/T fluid temperature sensorAT-193, "
DTC BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT
AND TCM POWER
SOURCE)"
5. Engine speed signalAT-127, "DTC P0725
ENGINE SPEED SIGNAL"
6. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
7. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
8. Accumulator N-DAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 9. Forward clutchAT-471, "Forward and
Overrun Clutches"
Vehicle will not run in “D” and “2”
positions (but runs in “1” and “R”
positions).ON vehicle 1. Control cable adjustmentAT-416, "
Control Cable
Adjustment"
OFF vehicle 2. Low one-way clutchAT-421, "
OVERHAUL",AT-
425, "Locations of Adjust-
ing Shims, Needle Bear-
ings, Thrust Washers and
Snap Rings"
Vehicle will not run in “D”, “1”, “2”
positions (but runs in “R” position).
Clutch slips. Very poor acceleration.
AT- 2 1 8 , "
Vehicle Does Not Creep
Forward In “D”,“2” Or “1” Position"
ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Stall testAT- 6 4 , "Stall
Te s t"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
5. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
6. Accumulator N-DAT-414, "
Control Valve
Assembly and Accumula-
tors"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-89
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Vehicle will not run in “D”, “1”, “2”
positions (but runs in “R” position).
Clutch slips. Very poor acceleration.
AT-218, "
Vehicle Does Not Creep
Forward In “D”,“2” Or “1” Position"
OFF vehicle7. Reverse clutchAT-463, "
Reverse Clutch"
8. High clutchAT-466, "High Clutch"
9. Forward clutchAT-471, "Forward and
Overrun Clutches"
10. Forward one-way clutchAT-421, "OVERHAUL"
11. Low one-way clutchAT-421, "
OVERHAUL",AT-
425, "Locations of Adjust-
ing Shims, Needle Bear-
ings, Thrust Washers and
Snap Rings"
Clutches or brakes slip somewhat in
starting.ON vehicle1. Fluid levelAT-63, "
FLUID LEVEL
CHECK"
2. Control cable adjustmentAT-416, "Control Cable
Adjustment"
3. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
4. Line pressure testAT-67, "Line Pressure Test"
5. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
6. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
7. Accumulator N-DAT-414, "
Control Valve
Assembly and Accumula-
tors"
8. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
9. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
10. Overrun clutch solenoid valveAT-185, "
DTC P1760
OVERRUN CLUTCH
SOLENOID VALVE"
11. Torque converter clutch solenoid valveAT-158, "
DTC P0740
TORQUE CONVERTER
CLUTCH SOLENOID
VA LV E"
OFF vehicle12. Forward clutchAT-471, "
Forward and
Overrun Clutches"
13. Reverse clutchAT-463, "Reverse Clutch"
14. Low & reverse brakeAT-476, "Low & Reverse
Brake"
15. Oil pumpAT-444, "Oil Pump"
16. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

AT-90
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Excessive creep. ON vehicle 1. Engine idling rpmEC-38
[QR25 (WITH
EURO-OBD)], EC-448
[QR25 (WITHOUT EURO-
OBD)], EC-771
[QR20
(WITH EURO-OBD)], EC-
1135 [QR20 (WITHOUT
EURO-OBD)]
No creep at all.
AT- 2 1 5 , "
Vehicle Does Not Creep
Backward In “R” Position" and AT-
218, "Vehicle Does Not Creep For-
ward In “D”,“2” Or “1” Position"
ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Line pressure testAT-396, "LINE PRES-
SURE SOLENOID VALVE"
3. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle4. Forward clutchAT-471, "
Forward and
Overrun Clutches"
5. Oil pumpAT-444, "Oil Pump"
6. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Failure to change gear from “D1 ” to
“D
2 ”.ON vehicle1. Control cable adjustmentAT-416, "
Control Cable
Adjustment"
2. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
3. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT- 1 9 9 , "DTC
VEHICLE SPEED SEN-
SOR MTR"
5. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
OFF vehicle 6. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-91
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

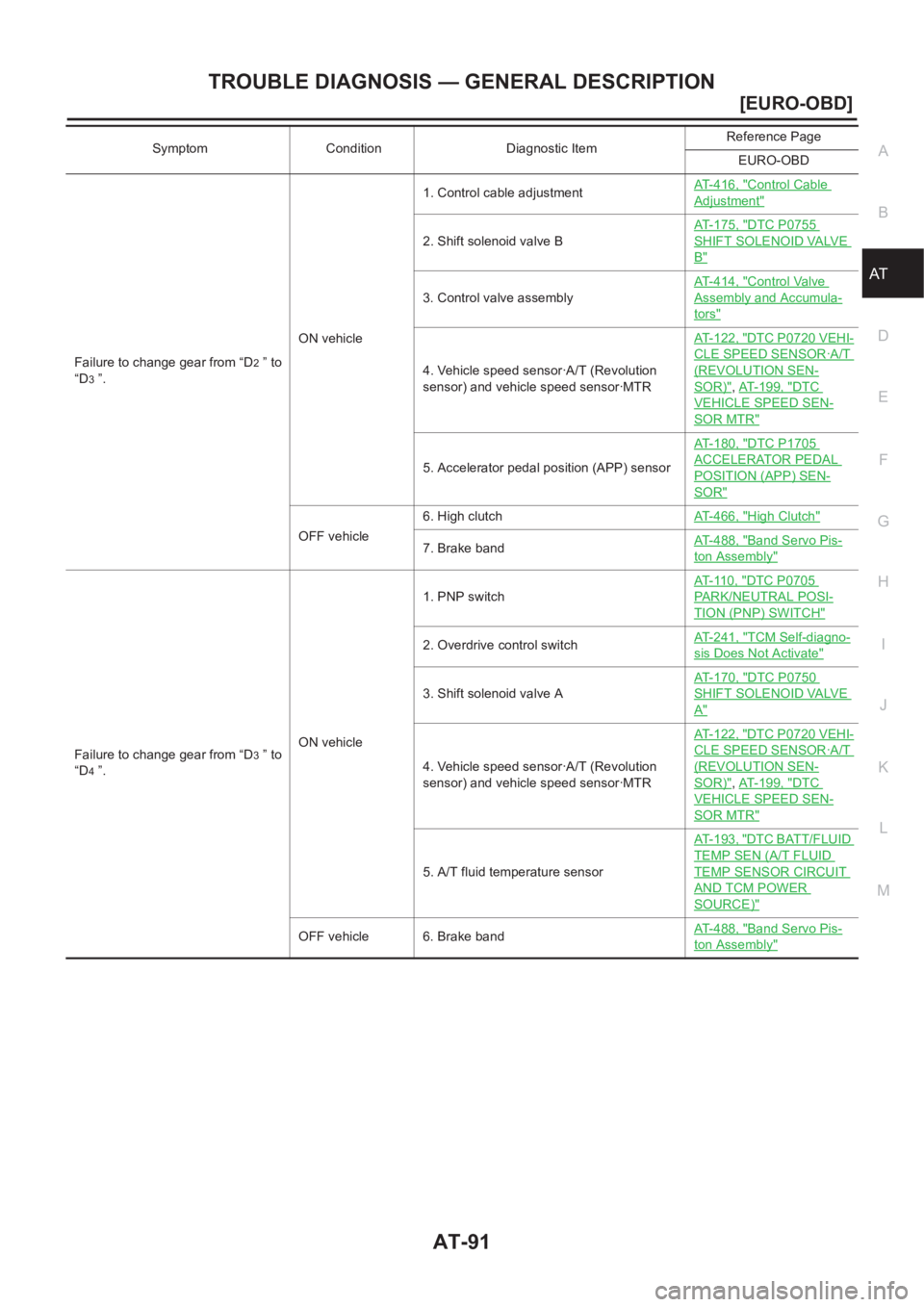

Failure to change gear from “D2 ” to
“D
3 ”.ON vehicle1. Control cable adjustmentAT-416, "
Control Cable
Adjustment"
2. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
3. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT-199, "DTC
VEHICLE SPEED SEN-
SOR MTR"
5. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
OFF vehicle6. High clutchAT-466, "
High Clutch"
7. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Failure to change gear from “D3 ” to
“D
4 ”.ON vehicle1. PNP switchAT-110, "
DTC P0705
PARK/NEUTRAL POSI-
TION (PNP) SWITCH"
2. Overdrive control switchAT-241, "TCM Self-diagno-
sis Does Not Activate"
3. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT-199, "DTC
VEHICLE SPEED SEN-
SOR MTR"
5. A/T fluid temperature sensorAT-193, "
DTC BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT
AND TCM POWER
SOURCE)"
OFF vehicle 6. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

AT-92
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Too high a gear change point from
“D
1 ” to “D2 ”, from “D2 ” to “D3 ”,
from “D
3 ” to “D4 ”.
AT- 2 2 3 , "
A/T Does Not Shift: D1→
D2 Or Does Not Kickdown: D4→
D2",AT-225, "A/T Does Not Shift: D2
→ D3" and AT-227, "A/T Does Not
Shift: D3→ D4"
ON vehicle1. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT- 1 9 9 , "DTC
VEHICLE SPEED SEN-
SOR MTR"
3. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
4. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
Gear change directly from “D1 ” to
“D
3 ” occurs.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Accumulator servo releaseAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 3. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Engine stops when shifting lever
into “R”, “D”, “2” and “1”.ON vehicle1. Engine idling rpmEC-38
[QR25 (WITH
EURO-OBD)], EC-448
[QR25 (WITHOUT EURO-
OBD)], EC-771
[QR20
(WITH EURO-OBD)], EC-
1135 [QR20 (WITHOUT
EURO-OBD)]
2. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
3. Torque converter clutch solenoid valveAT-158, "
DTC P0740
TORQUE CONVERTER
CLUTCH SOLENOID
VA LV E"
4. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 5. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

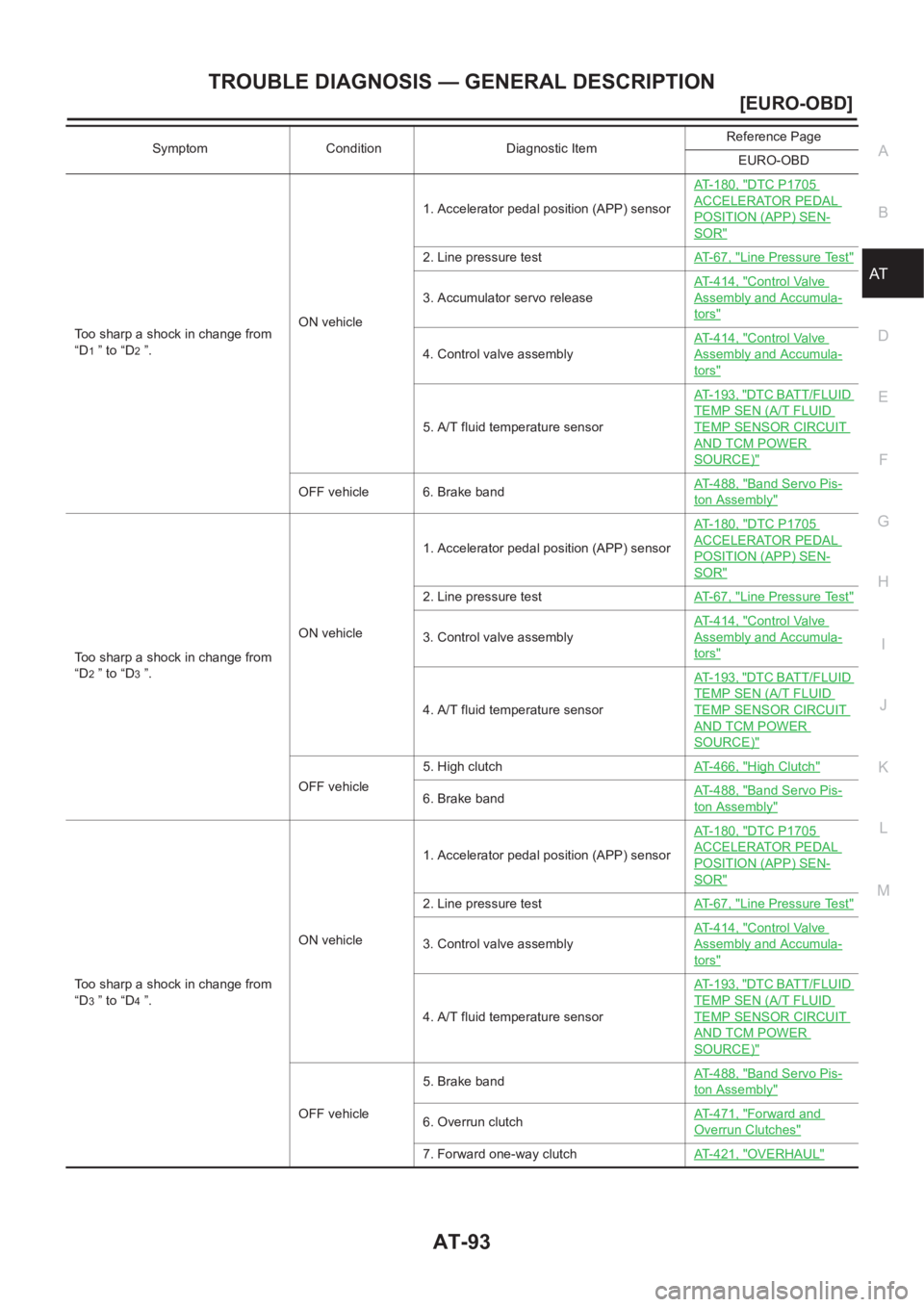

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-93
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Too sharp a shock in change from
“D
1 ” to “D2 ”.ON vehicle1. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Line pressure testAT-67, "Line Pressure Test"
3. Accumulator servo releaseAT-414, "
Control Valve
Assembly and Accumula-
tors"
4. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
5. A/T fluid temperature sensorAT-193, "
DTC BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT
AND TCM POWER
SOURCE)"
OFF vehicle 6. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Too sharp a shock in change from
“D
2 ” to “D3 ”.ON vehicle1. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Line pressure testAT-67, "Line Pressure Test"
3. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
4. A/T fluid temperature sensorAT-193, "
DTC BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT
AND TCM POWER
SOURCE)"
OFF vehicle5. High clutchAT-466, "
High Clutch"
6. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Too sharp a shock in change from
“D
3 ” to “D4 ”.ON vehicle1. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Line pressure testAT-67, "Line Pressure Test"
3. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
4. A/T fluid temperature sensorAT-193, "
DTC BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT
AND TCM POWER
SOURCE)"
OFF vehicle5. Brake bandAT-488, "
Band Servo Pis-
ton Assembly"
6. Overrun clutchAT-471, "Forward and
Overrun Clutches"
7. Forward one-way clutchAT-421, "OVERHAUL"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

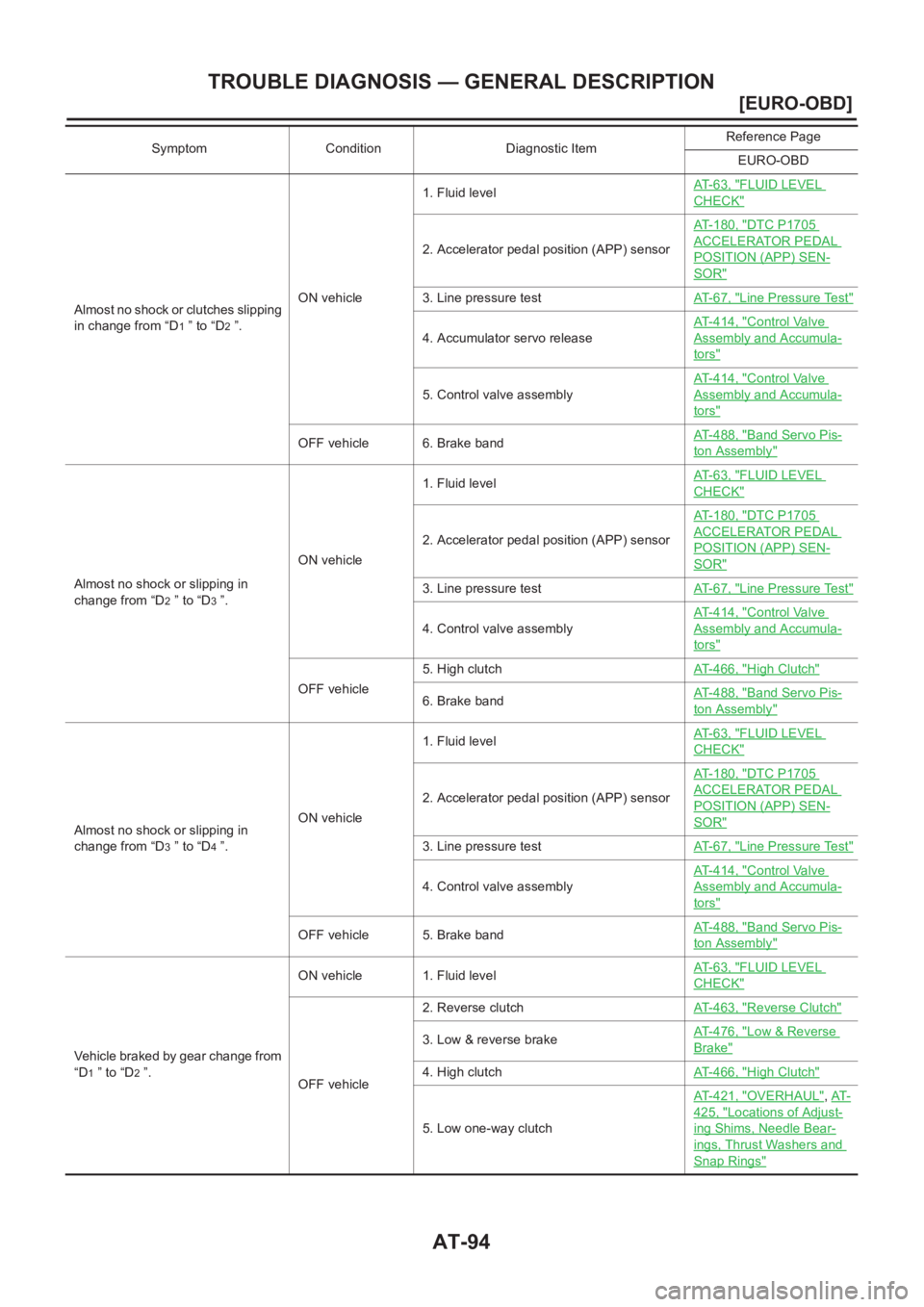

AT-94
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Almost no shock or clutches slipping
in change from “D
1 ” to “D2 ”.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. Accumulator servo releaseAT-414, "
Control Valve
Assembly and Accumula-
tors"
5. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 6. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Almost no shock or slipping in
change from “D
2 ” to “D3 ”.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle5. High clutchAT-466, "
High Clutch"
6. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Almost no shock or slipping in
change from “D
3 ” to “D4 ”.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 5. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Vehicle braked by gear change from
“D
1 ” to “D2 ”.ON vehicle 1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
OFF vehicle2. Reverse clutchAT-463, "
Reverse Clutch"
3. Low & reverse brakeAT-476, "Low & Reverse
Brake"
4. High clutchAT-466, "High Clutch"
5. Low one-way clutchAT-421, "
OVERHAUL",AT-
425, "Locations of Adjust-
ing Shims, Needle Bear-
ings, Thrust Washers and
Snap Rings"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD
