2001 NISSAN X-TRAIL App sensor

EC-222
[QR25(WITH EURO-OBD)]

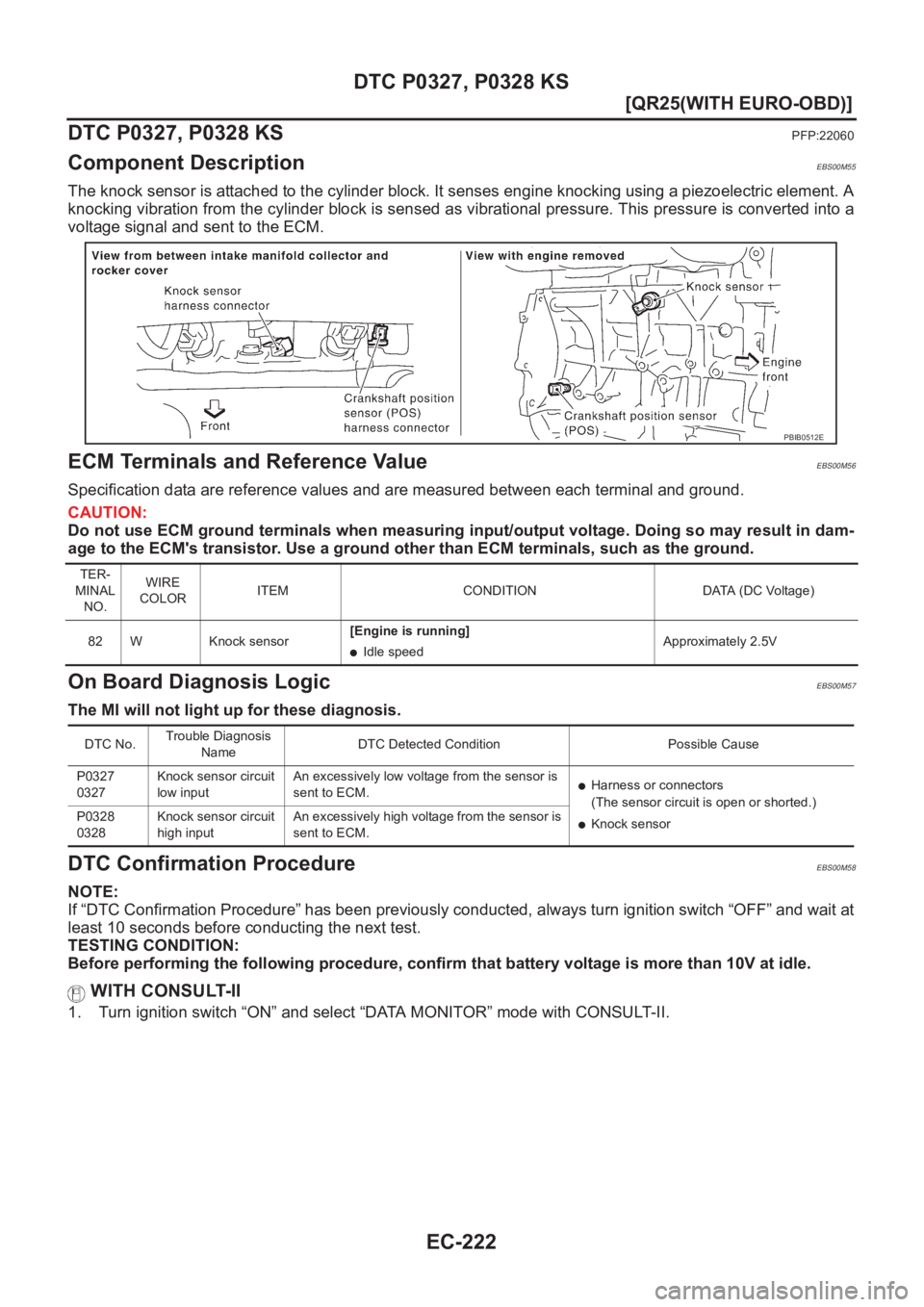

DTC P0327, P0328 KS
DTC P0327, P0328 KS
PFP:22060
Component DescriptionEBS00M55
The knock sensor is attached to the cylinder block. It senses engine knocking using a piezoelectric element. A
knocking vibration from the cylinder block is sensed as vibrational pressure. This pressure is converted into a
voltage signal and sent to the ECM.
ECM Terminals and Reference ValueEBS00M56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00M57
The MI will not light up for these diagnosis.
DTC Confirmation ProcedureEBS00M58
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode with CONSULT-II.
PBIB0512E
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
82 W Knock sensor[Engine is running]
●Idle speedApproximately 2.5V
DTC No.Trouble Diagnosis
NameDTC Detected Condition Possible Cause
P0327
0327Knock sensor circuit
low inputAn excessively low voltage from the sensor is
sent to ECM.
●Harness or connectors
(The sensor circuit is open or shorted.)
●Knock sensor P0328
0328Knock sensor circuit
high inputAn excessively high voltage from the sensor is
sent to ECM.

DTC P0327, P0328 KS
EC-225
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00M5A
1.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check resistance between ECM terminal 82 and engine ground. Refer to Wiring Diagram.
NOTE:
It is necessary to use an ohmmeter which can measure more than 10 MΩ.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect knock sensor harness connector.
2. Check harness continuity between ECM terminal 82 and knock sensor terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK KNOCK SENSOR
Refer to EC-226, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace knock sensor.Resistance: Approximately 530 - 590kΩ [at 20°C (68°F)]
Continuity should exist.
PBIB0512E

EC-226
[QR25(WITH EURO-OBD)]
DTC P0327, P0328 KS
4. RETIGHTEN GROUND SCREWS
Loosen and retighten engine ground screws.
>> GO TO 5.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00M5B
KNOCK SENSOR
Check resistance between knock sensor terminal 1 and ground.
NOTE:
It is necessary to use an ohmmeter which can measure more
than 10 MΩ.
CAUTION:
Do not use any knock sensors that have been dropped or phys-
ically damaged. Use only new ones.
Removal and InstallationEBS00M5C
KNOCK SENSOR
Refer to EM-73, "CYLINDER BLOCK" .
PBIB0494E
Resistance: Approximately 530 - 590kΩ [at 20°C (68°F)]
SEF478Y

DTC P0335 CKP SENSOR (POS)
EC-227
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

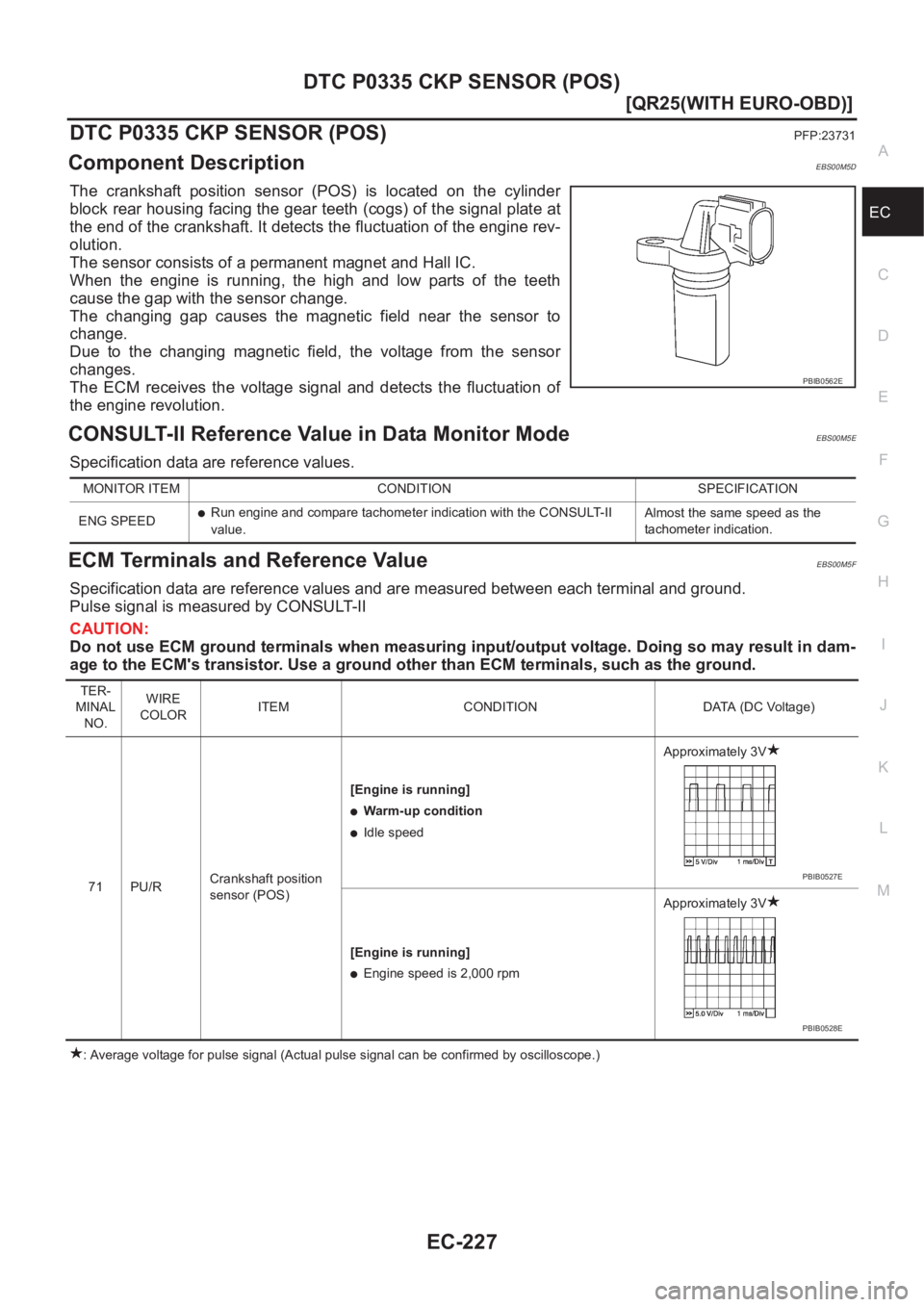

DTC P0335 CKP SENSOR (POS)PFP:23731
Component DescriptionEBS00M5D
The crankshaft position sensor (POS) is located on the cylinder
block rear housing facing the gear teeth (cogs) of the signal plate at
the end of the crankshaft. It detects the fluctuation of the engine rev-
olution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
CONSULT-II Reference Value in Data Monitor ModeEBS00M5E
Specification data are reference values.
ECM Terminals and Reference ValueEBS00M5F
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
PBIB0562E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
●Run engine and compare tachometer indication with the CONSULT-II
value.Almost the same speed as the
tachometer indication.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
71 PU/RCrankshaft position
sensor (POS)[Engine is running]
●Warm-up condition
●Idle speedApproximately 3V
[Engine is running]
●Engine speed is 2,000 rpmApproximately 3V
PBIB0527E
PBIB0528E

DTC P0420 THREE WAY CATALYST FUNCTION
EC-239
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0420 THREE WAY CATALYST FUNCTIONPFP:20905
On Board Diagnosis LogicEBS00M5U
The ECM monitors the switching frequency ratio of heated oxygen
sensors 1 and 2.
A three way catalyst (Manifold) with high oxygen storage capacity
will indicate a low switching frequency of heated oxygen sensor 2.
As oxygen storage capacity decreases, the heated oxygen sensor 2
switching frequency will increase.
When the frequency ratio of heated oxygen sensors 1 and 2
approaches a specified limit value, the three way catalyst (Manifold)
malfunction is diagnosed.
DTC Confirmation ProcedureEBS00M5V
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
TESTING CONDITION:
●Open engine hood before conducting the following procedure.
●Do not hold engine speed for more than the specified minutes below.
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch ″OFF″ and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least one minute under no
load.
4. Let engine idle for one minute.
5. Select “DTC & SRT CONFIRMATION” then “SRT WORK SUP-
PORT” mode with CONSULT-II.
6. Rev engine up to 2,000 to 3,000 rpm and hold it for 3 consecu-
tive minutes then release the accelerator pedal completely.
If “INCMP” of “CATALYST” changed to “COMPLT”, go to step 9
7. Wait 5 seconds at idle.
SEF484YF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0420
0420Catalyst system effi-
ciency below threshold
●Three way catalyst (Manifold) does not oper-
ate properly.
●Three way catalyst (Manifold) does not have
enough oxygen storage capacity.
●Three way catalyst (Manifold)
●Exhaust tube
●Intake air leaks
●Fuel injectors
●Fuel injector leaks
●Spark plug
●Improper ignition timing
PBIB0822E

EC-250
[QR25(WITH EURO-OBD)]
DTC P0500 VSS
DTC P0500 VSS
PFP:32702
Component DescriptionEBS00M67
The vehicle speed signal is sent to the combination meter from the 4WD/ABS control unit. The combination
meter then sends a signal to the ECM.
ECM Terminals and Reference ValueEBS00M68
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS00M69
DTC Confirmation ProcedureEBS00M6A
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
This procedure may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
2. Read “VHCL SPEED SE” in “DATA MONITOR” mode with CON-
SULT-II. The vehicle speed on CONSULT-II should exceed 10
km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to EC-254, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Warm engine up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
81 L/B Vehicle speed sensor[Engine is running]
●Lift up the vehicle
●Vehicle speed is 40 km/h (25MPH)Approximately 2.3V
PBIB0531E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0500
0500Vehicle speed sensorThe almost 0 km/h (0 MPH) signal from
combination meter is sent to ECM even
when vehicle is being driven.
●Harness or connectors
(The sensor circuit is open or shorted)
●Wheel sensor
●4WD/ABS control unit
●Combination meter
SEF196Y

DTC P0550 PSP SENSOR
EC-255
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

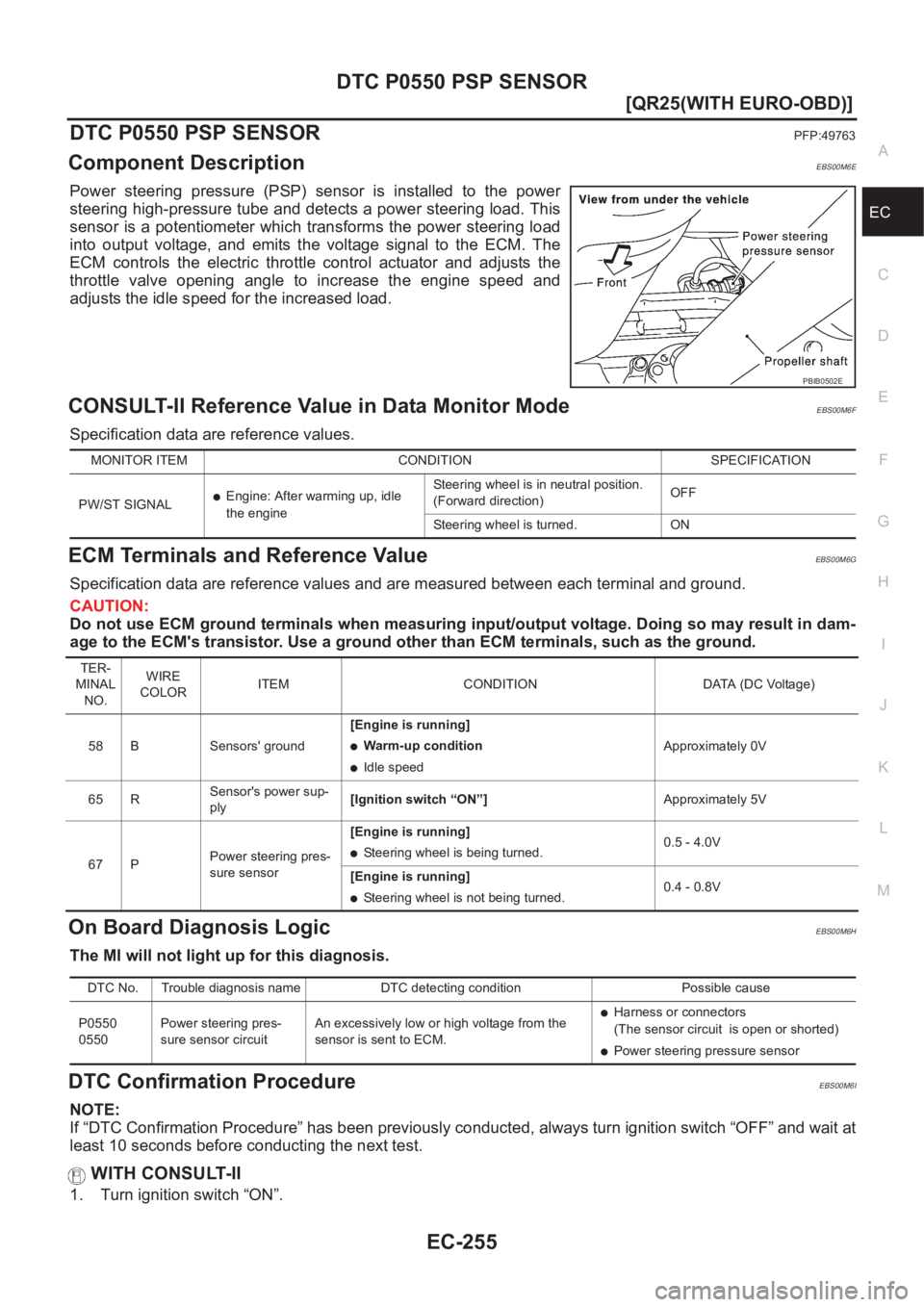

DTC P0550 PSP SENSORPFP:49763
Component DescriptionEBS00M6E
Power steering pressure (PSP) sensor is installed to the power
steering high-pressure tube and detects a power steering load. This
sensor is a potentiometer which transforms the power steering load
into output voltage, and emits the voltage signal to the ECM. The
ECM controls the electric throttle control actuator and adjusts the
throttle valve opening angle to increase the engine speed and
adjusts the idle speed for the increased load.
CONSULT-II Reference Value in Data Monitor ModeEBS00M6F
Specification data are reference values.
ECM Terminals and Reference ValueEBS00M6G
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00M6H
The MI will not light up for this diagnosis.
DTC Confirmation ProcedureEBS00M6I
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
PBIB0502E
MONITOR ITEM CONDITION SPECIFICATION
PW/ST SIGNAL
●Engine: After warming up, idle
the engineSteering wheel is in neutral position.
(Forward direction)OFF
Steering wheel is turned. ON
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
65 RSensor's power sup-
ply[Ignition switch “ON”]Approximately 5V
67 PPower steering pres-
sure sensor[Engine is running]
●Steering wheel is being turned.0.5 - 4.0V
[Engine is running]
●Steering wheel is not being turned.0.4 - 0.8V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0550
0550Power steering pres-
sure sensor circuitAn excessively low or high voltage from the
sensor is sent to ECM.
●Harness or connectors
(The sensor circuit is open or shorted)
●Power steering pressure sensor

EC-258
[QR25(WITH EURO-OBD)]

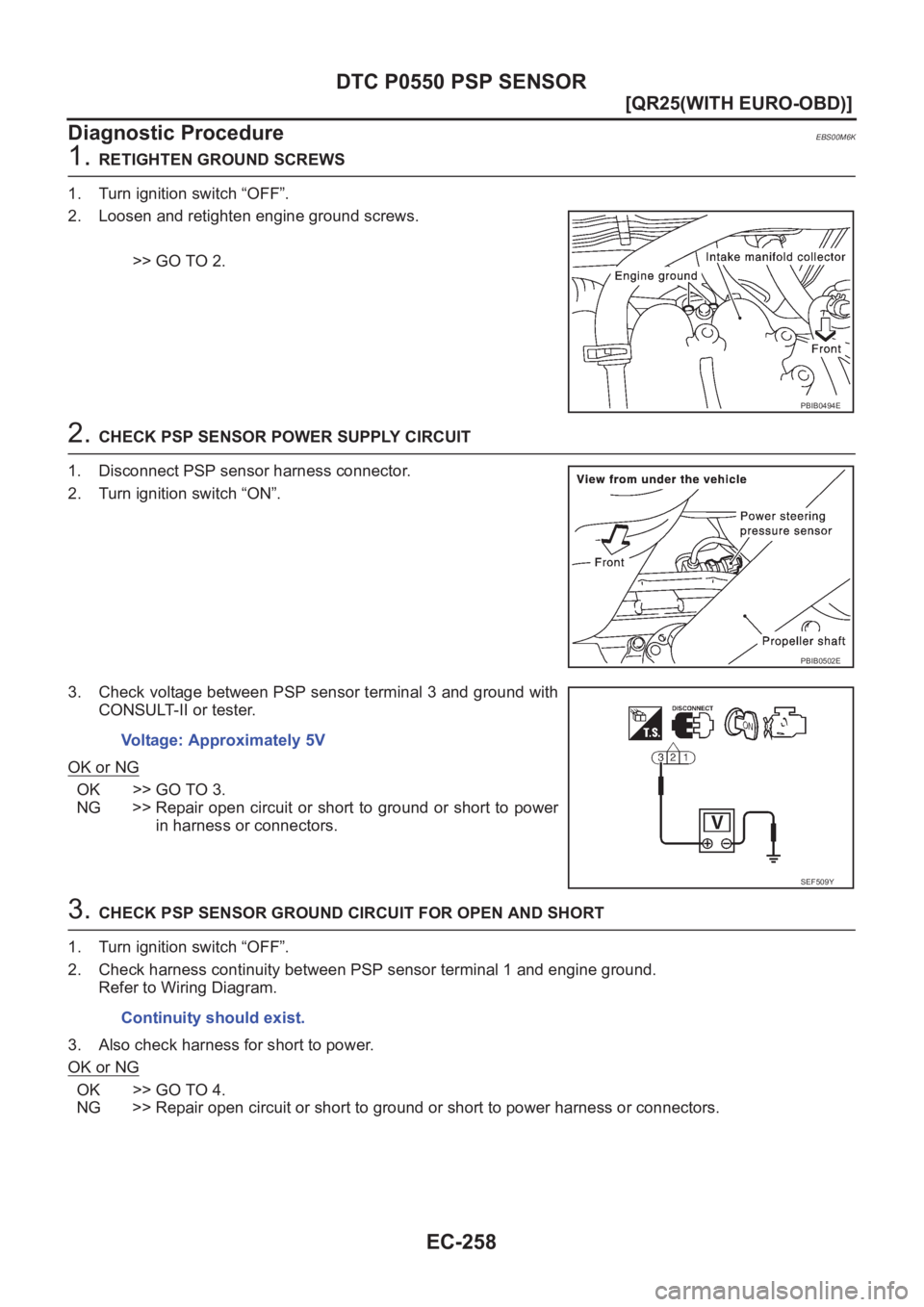

DTC P0550 PSP SENSOR
Diagnostic Procedure
EBS00M6K
1. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
2. CHECK PSP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect PSP sensor harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between PSP sensor terminal 3 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK PSP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between PSP sensor terminal 1 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power harness or connectors.
PBIB0494E
PBIB0502E
Voltage: Approximately 5V
SEF509Y
Continuity should exist.
