Page 217 of 273

Model Variation
Destina-
tionSteering
positionEngineModel Hardtop Station Wagon
Rear seat arrangement2nd seat 2nd center split bench seat
Forward facingSide facing or
Seatless3rd seat
Seatless Forward facing Side facing
Front differential H233B
Rear differential
H233B/H260
Transmis-
sionTransfer Grade
EuropeRHD
ZD30DDTiFS5R50B
TX12ASKWSSREFY61UEA Ð Ð TWSSREFY61UEA Ð
RE4R03A Ð Ð Ð TWSSREAY61UEA Ð
FS5R50B
SEKWSSRFFY61UEA Ð Ð TWSSRFFY61UEA Ð
RE4R03A KWSSRFAY61UEA Ð Ð TWSSRFAY61UEA Ð
FS5R50B
SEÐ Ð Ð TWSSRHFY61UEA Ð
RE4R03A Ð Ð Ð TWSSRHAY61UEA Ð
LHDFS5R50B
SKWSSLEFY61UGA KWSSLEFY61USP TWSSLEFY61USP TWSSLEFY61UGA Ð
RE4R03A Ð Ð Ð TWSSLEAY61UGA Ð
FS5R50B
SEKWSSLFFY61UGA Ð TWSSLFFY61USP TWSSLFFY61UGA Ð
Ð Ð Ð TWSSLFFY61USA Ð
RE4R03AKWSSLFAY61UGA Ð Ð TWSSLFAY61UGA Ð
Ð Ð Ð TWSSLFAY61USA Ð
FS5R50B
SEÐ Ð Ð TWSSLHFY61UGA Ð
Ð Ð Ð TWSSLHFY61USA Ð
RE4R03AÐ Ð Ð TWSSLHAY61UGA Ð
Ð Ð Ð TWSSLHAY61USA Ð
Prefix and suffix designations
TGNSLAFY61 EKA
A: 3rd seat forward facing
Q: 3rd seat side facing
P: 3rd seat/Rear seat seatless
K: Middle East
E: RHD for Europe
G: Central/South Europe
S: North Europe
E: Multiport fuel injection system engine
N: Diesel engine
U: Turbocharger engine
F: 5-speed floor shift manual transmission
A: 4-speed floor shift automatic transmission
A: S E: GL (SGL), S F: SAFARI, SE
H: S-SAFARI, SE
L: LH drive R: RH drive
S: Long wheelbase (4WD)
GN: TB45E engine VT: TD42 engine
WS: ZD30DDTi engine
GP: TB48DE engine
T: Station Wagon
K: Hardtop
IDENTIFICATION INFORMATION
GI-2002
Page 218 of 273
Identification Number

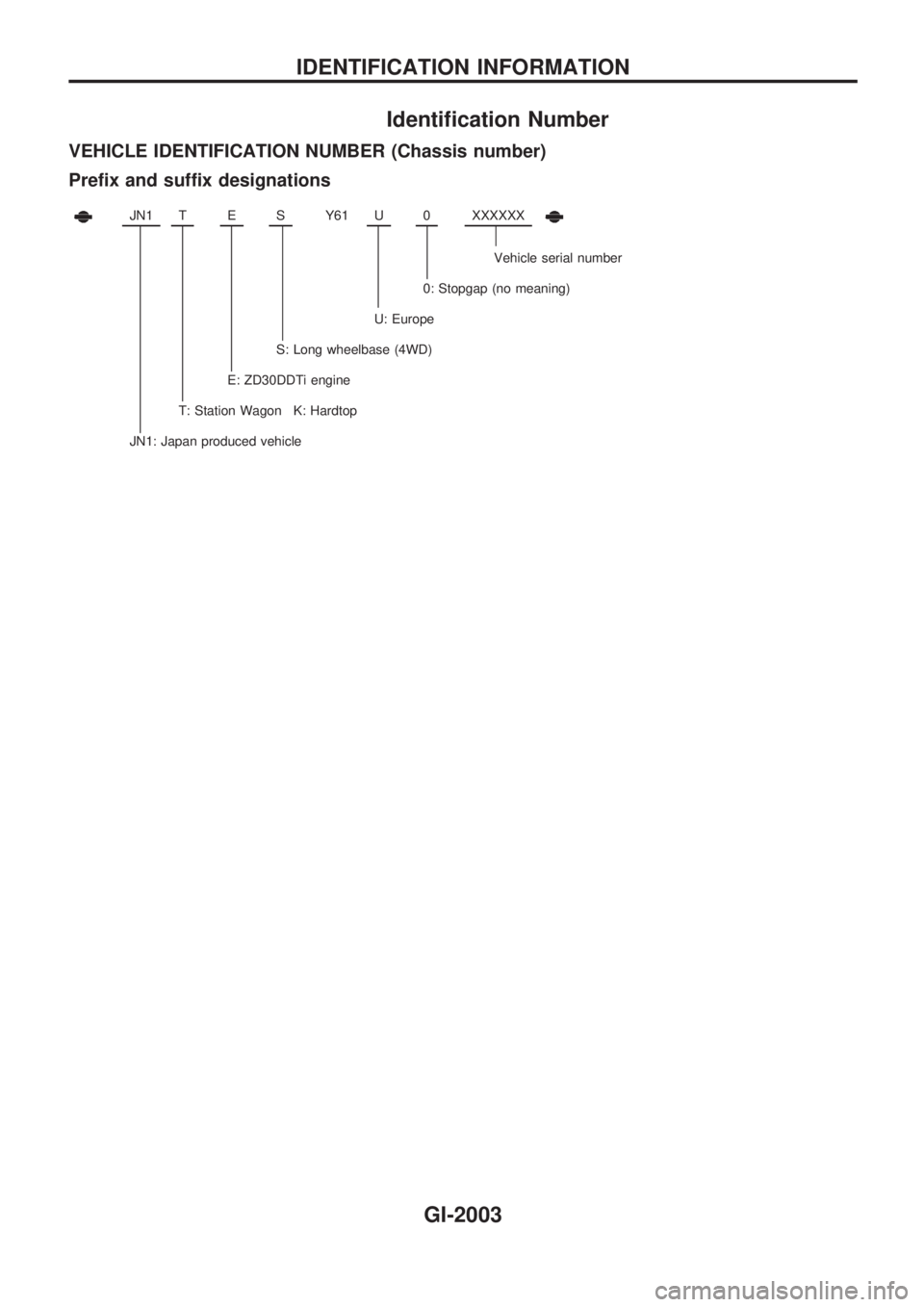

VEHICLE IDENTIFICATION NUMBER (Chassis number)
Prefix and suffix designations
JN1TESY61 U0XXXXXX
Vehicle serial number
0: Stopgap (no meaning)
U: Europe
S: Long wheelbase (4WD)
E: ZD30DDTi engine
T: Station Wagon K: Hardtop
JN1: Japan produced vehicle
IDENTIFICATION INFORMATION
GI-2003
Page 219 of 273
IDENTIFICATION INFORMATION
GI-2004
Page 220 of 273
HEATER &
AIR CONDITIONER
SECTION
HA
MODIFICATION NOTICE:
+Wiring diagram has been changed.
CONTENTS
PRECAUTIONS AND PREPARATION............... 2002
Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº ... 2002
REAR HEATER
TROUBLE DIAGNOSES..................................... 2003
Wiring Diagram Ð R/HEAT Ð/LHD Models ... 2003
Wiring Diagram Ð R/HEAT Ð/RHD Models... 2004
MANUAL
TROUBLE DIAGNOSES..................................... 2005Wiring Diagram Ð A/C, M Ð/Wagon and
Hardtop Models................................................ 2005
AUTO
TROUBLE DIAGNOSES..................................... 2007
Circuit Diagram Ð A/C, A Ð ........................... 2007
Wiring Diagram Ð A/C, A Ð ........................... 2008
COOL BOX
TROUBLE DIAGNOSES..................................... 2011
Wiring Diagram Ð COOL/B Ð ........................ 2011
HA
Page 221 of 273

Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº used along
with a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. The SRS system composition which is available to NISSAN MODEL Y61 is as follows (The
composition varies according to the destination and optional equipment.):
+For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the
steering wheel), front passenger air bag module (located on the instrument panel on passenger side),
seat belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
+For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of
front seat), satellite sensor, diagnosis sensor unit (one of components of air bags for a frontal collision),
wiring harness, warning lamp (one of components of air bags for a frontal collision).
Information necessary to service the system safely is included in theRS sectionof this Service Manual.
WARNING:
+To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
+Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and
Air Bag Module, see the RS section.
+Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.
PRECAUTIONS AND PREPARATION
HA-2002
Page 222 of 273
Wiring Diagram Ð R/HEAT Ð/LHD Models
THA055M
TROUBLE DIAGNOSES
HA-2003
Page 223 of 273
Wiring Diagram Ð R/HEAT Ð/RHD Models
THA056M
TROUBLE DIAGNOSES
HA-2004
Page 224 of 273
Wiring Diagram Ð A/C, M Ð/Wagon and
Hardtop Models
THA027M
TROUBLE DIAGNOSES
HA-2005
