2001 MAZDA MODEL TRIBUTE 4WD Owners Manual

PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will respond if unauthorized entry is
attempted.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL key fobs (remote entry transmitters) are brought to
authorized Mazda dealership, to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
headlamps, parking lamps and will sound the horn.
The system is ready to arm whenever key is removed from the ignition.
Either of the following actions will prearm the alarm system:
² Press the remote entry lock
control
² Lock the doors using the key
NOTE: If a door is open, the system is not armed.
The system will become prearmed, when all doors are closed. When the
system becomes prearmed the flashers will flash to confirm the
prearming.
Once the system is prearmed, the system will arm in 20 seconds. If any
door is opened during these 20 seconds, the arming will be canceled.
Controls and features
65

Disarming the system
You can disarm the system by any of the following actions:
²Unlock the doors by using your
remote entry transmitter.
² Unlock the doors with a key.
² Press the panic control on the
remote entry transmitter. This
will disarm the system only if the
alarm is sounding.
Controls and features
66

SEATING
Adjusting the front manual seatWARNING: Never adjust the driver's seat or seatback when the
vehicle is moving. Sudden braking or a collision could cause
serious injury. Adjust the seat only when the vehicle is stopped.
WARNING: Do not pile cargo higher than the seatbacks to
reduce the risk of injuring people in a collision or sudden stop.
WARNING: Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING: Sitting in a reclined position while the vehicle is
moving is dangerous because you don't get the full protection
from seat belts. During sudden braking or a collision, you can
slide under the lap belt and suffer serious internal injuries. For
maximum protection, sit well back and upright.
Lift handle to move seat forward or
backward.
Seating and safety restraints
67

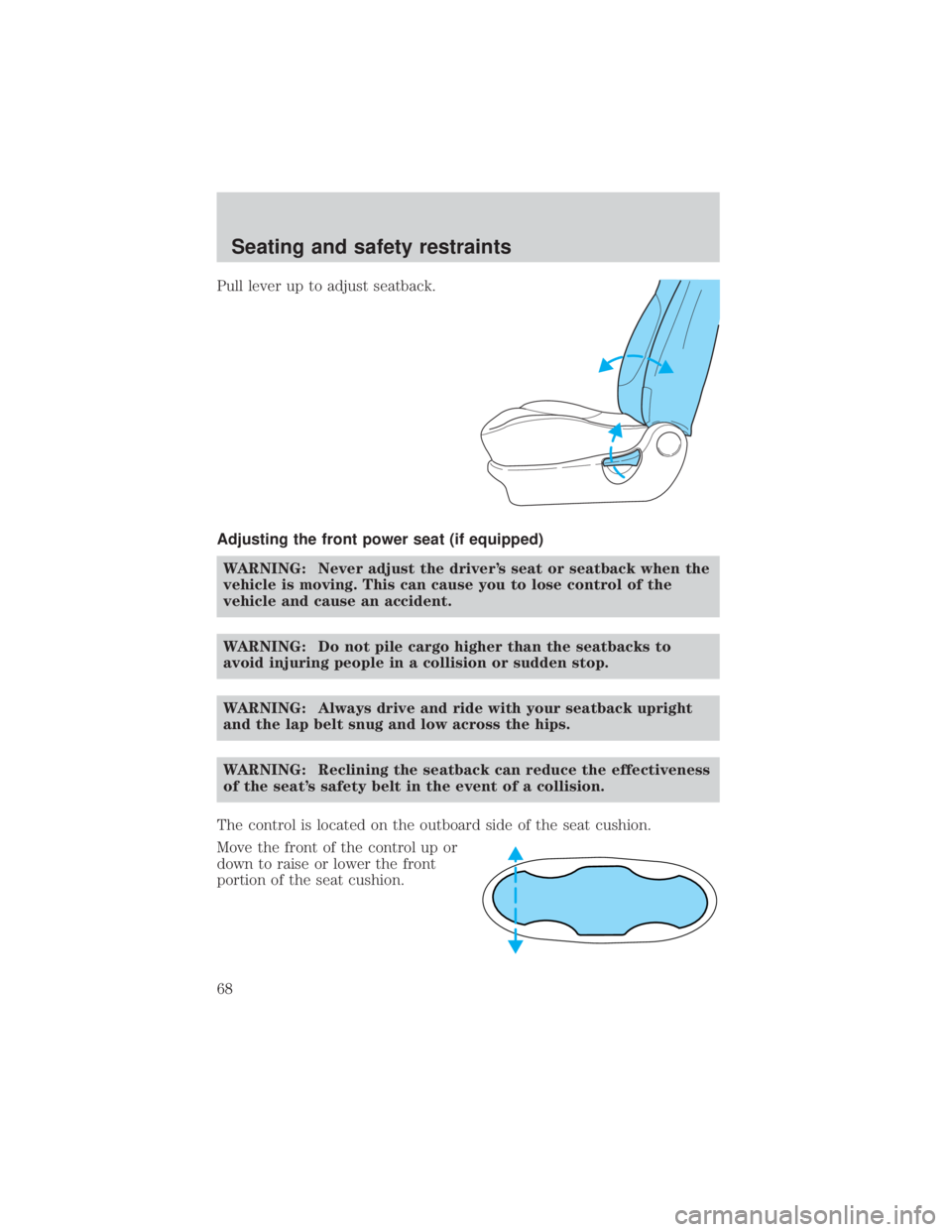

Pull lever up to adjust seatback.
Adjusting the front power seat (if equipped)WARNING: Never adjust the driver's seat or seatback when the
vehicle is moving. This can cause you to lose control of the
vehicle and cause an accident.
WARNING: Do not pile cargo higher than the seatbacks to
avoid injuring people in a collision or sudden stop.
WARNING: Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING: Reclining the seatback can reduce the effectiveness
of the seat's safety belt in the event of a collision.
The control is located on the outboard side of the seat cushion.
Move the front of the control up or
down to raise or lower the front
portion of the seat cushion.
Seating and safety restraints
68

Move the rear of the control up or
down to raise or lower the rear
portion of the seat cushion.
Move the control in the directions
shown to move the seat forward,
backward, up or down.
REAR SEATS
Head restraints (if equipped)
Your vehicle's seats may be equipped with head restraints which are
vertically adjustable. The purpose of these head restraints is to help limit
head motion in the event of a rear collision. To properly adjust your head
restraints, lift the head restraint so that it is located directly behind your
head or as close to that position as possible. Refer to the following to
raise and lower the head restraints.
The head restraints can be moved
up and down.
Seating and safety restraints
69

Push control to lower head restraint.
Folding down rear seats1. Raise the rear seat head restraint and remove.
2. Place the head restraints under the front passenger seat for storage.
3. Pull the seat release control.
Seating and safety restraints
70

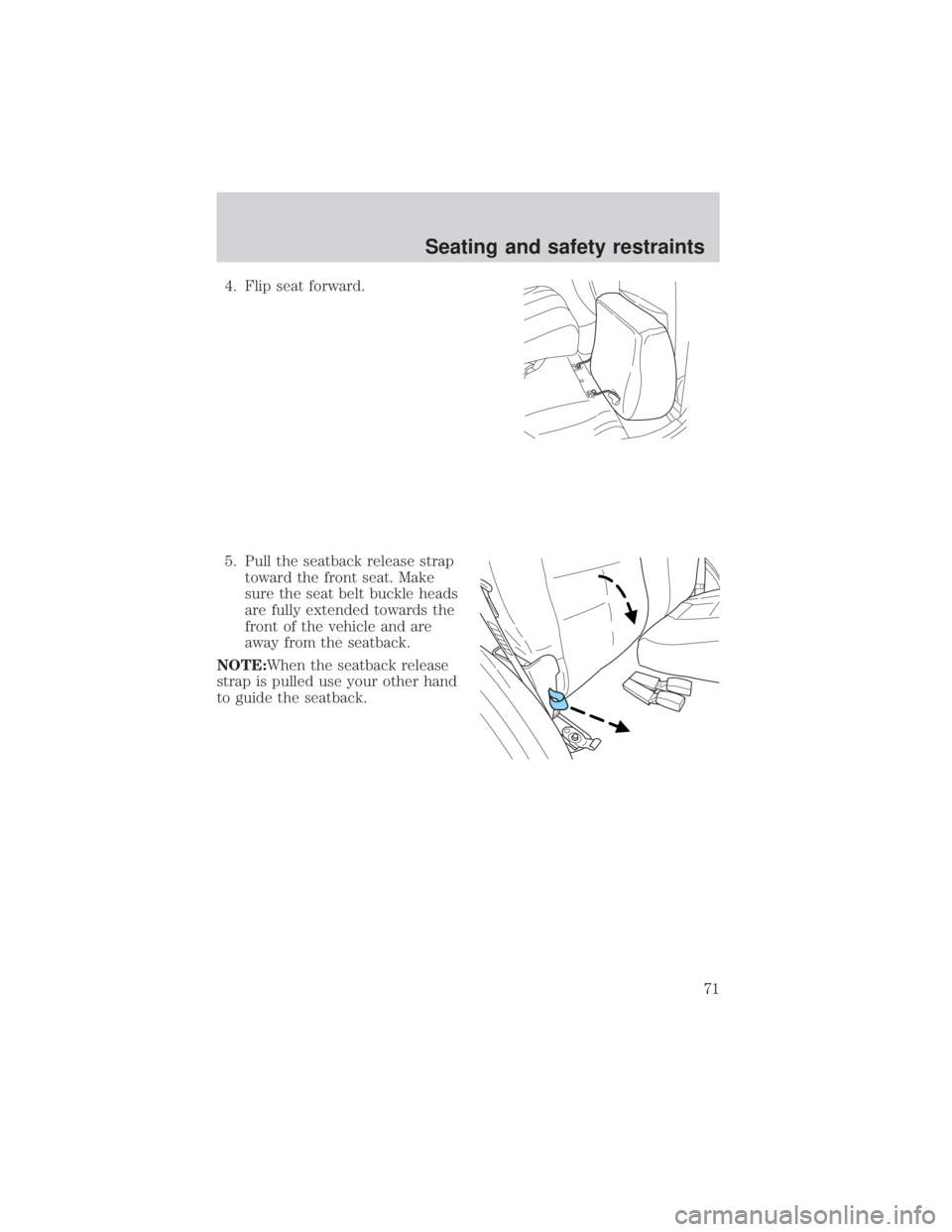

4. Flip seat forward.
5. Pull the seatback release straptoward the front seat. Make
sure the seat belt buckle heads
are fully extended towards the
front of the vehicle and are
away from the seatback.
NOTE:When the seatback release
strap is pulled use your other hand
to guide the seatback.
Seating and safety restraints
71

6. Rotate seatback down into loadfloor position.
WARNING: Make sure seat
belt buckle heads are not
trapped underneath the
seatback and that the seat belt
buckle heads are fully
extended towards the front of
the vehicle. Seat belt buckle
heads may break if they are
trapped underneath the
seatback as the seatback is
rotated down.
NOTE:Make sure the floor is clear of all objects before folding the
seatback.
Returning the rear seats to upright position
1. Pull seatback up and into upright position making sure
seatback locks into place. While
holding the seatback, pull the
release and push seatback
backward into the desired
position.
Seating and safety restraints
72
