2001 MAZDA MODEL TRIBUTE 4WD Owners Manual

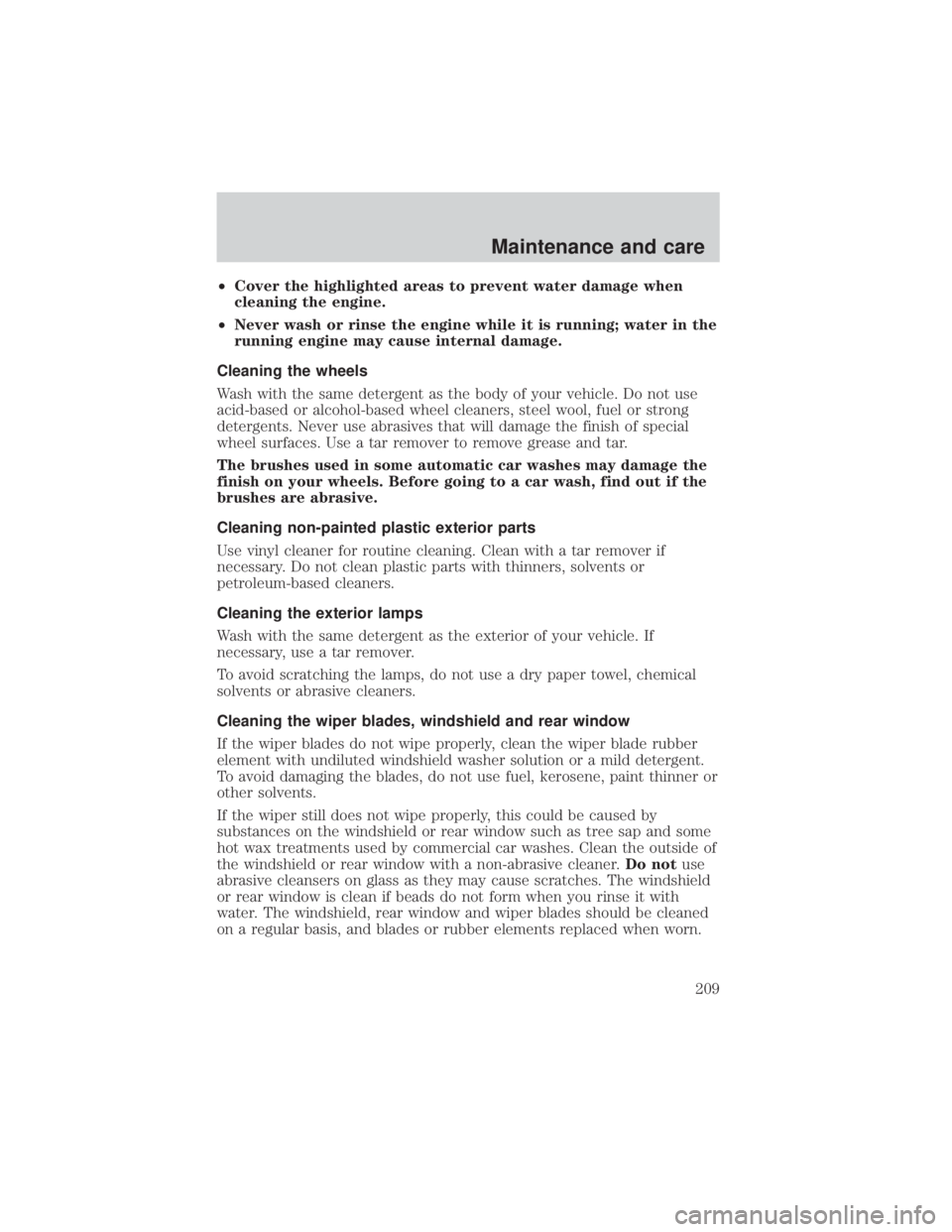

²Cover the highlighted areas to prevent water damage when
cleaning the engine.
² Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
Cleaning the wheels
Wash with the same detergent as the body of your vehicle. Do not use
acid-based or alcohol-based wheel cleaners, steel wool, fuel or strong
detergents. Never use abrasives that will damage the finish of special
wheel surfaces. Use a tar remover to remove grease and tar.
The brushes used in some automatic car washes may damage the
finish on your wheels. Before going to a car wash, find out if the
brushes are abrasive.
Cleaning non-painted plastic exterior parts
Use vinyl cleaner for routine cleaning. Clean with a tar remover if
necessary. Do not clean plastic parts with thinners, solvents or
petroleum-based cleaners.
Cleaning the exterior lamps
Wash with the same detergent as the exterior of your vehicle. If
necessary, use a tar remover.
To avoid scratching the lamps, do not use a dry paper towel, chemical
solvents or abrasive cleaners.
Cleaning the wiper blades, windshield and rear window
If the wiper blades do not wipe properly, clean the wiper blade rubber
element with undiluted windshield washer solution or a mild detergent.
To avoid damaging the blades, do not use fuel, kerosene, paint thinner or
other solvents.
If the wiper still does not wipe properly, this could be caused by
substances on the windshield or rear window such as tree sap and some
hot wax treatments used by commercial car washes. Clean the outside of
the windshield or rear window with a non-abrasive cleaner. Do notuse
abrasive cleansers on glass as they may cause scratches. The windshield
or rear window is clean if beads do not form when you rinse it with
water. The windshield, rear window and wiper blades should be cleaned
on a regular basis, and blades or rubber elements replaced when worn.
Maintenance and care
209

Cleaning seats equipped with side air bags
Remove dust and loose dirt with a whisk broom or a vacuum cleaner.
Remove fresh spots immediately. Follow the directions that come with
the cleaner. Do not saturate the seat cover with upholstery cleaner.WARNING: Do not use chemical solvents or strong detergents
when cleaning the seat where the side air bag is mounted. Such
products could contaminate the side air bag system and affect
performance of the side air bag in a collision. The air bag may
not function correctly and not provide injury reduction
benefits.
Cleaning the instrument panel
Clean with a damp cloth, then dry with a dry cloth.
Avoid cleaner or polish that increases the gloss of the upper portion of
the instrument panel. The dull finish in this area helps protect the driver
from undesirable windshield reflection. WARNING: Do not use chemical solvents or strong detergents
when cleaning the steering wheel or instrument panel to avoid
contamination of the air bag system. The air bag may not
function correctly and not provide the injury reduction
benefits.
Cleaning the overhead console
Clean with a damp cloth, then wipe dry with a dry cloth.
Avoid cleaner or polish that increases the gloss of the console. The dull
finish in this area helps protect the driver from undesirable windshield
reflection.
Cleaning the interior fabric
Remove dust and loose dirt with a whisk broom or a vacuum cleaner.
Remove fresh spots immediately. Do not use household or glass cleaners.
These agents can stain and discolor the fabric. Use a mild soap and
water solution if necessary.
Maintenance and care
210

Cleaning and maintaining the safety belts
Clean the safety belts with a mild soap solution recommended for
cleaning upholstery or carpets.WARNING: Do not bleach or dye the belts, because these
actions may weaken the belt webbing.
Check the safety belt system periodically to make sure there are no
nicks, wear or cuts. If your vehicle has been involved in an accident,
refer to the Safety belt maintenance section in theSeating and safety
restraints chapter.
Woodtone trim
Wipe stains with a soft cloth and a multi-purpose cleaning solution.
Inside windows
Use glass cleaner for the inside windows if they become fogged.
Cleaning mirrors
Do not clean your mirrors with a dry cloth or abrasive materials. Use a
soft cloth and mild detergent and water. Be careful when removing ice
from outside mirrors because you may damage the reflective surface.
Maintenance and care
211

REFILL CAPACITIES
FluidClassification Application Capacity
Brake fluid High Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine oil
(including filter
change) API service SJ,
SAE 5W-20,
5W-30 Super
Premium Motor
Oil2.0L I4 Zetec
engine
4.25L (4.5
quarts)
API service SH
or SJ, SAE
5W-20, 5W-30,
10W-30, ACEA
A1/B1 Super
Premium Motor
Oil 3.0L V6 Duratec
engine
5.2L (5.5
quarts)
Fuel tank N/A 2.0L I4 Zetec engine57L (15 gallons)
3.0L V6 Duratec
engine 61L (16 gallons)
Power steering
fluid MERCONt
All Fill to line on
reservoir
Transmission
fluid
1API service GL-4
or GL-5, SAE
75W-90 Manual transaxle
(2WD)
2.7L (2.85
quarts)2
Manual transaxle
(4X4)2.2L (2.32
quarts)2
MERCONt
ATF 3.0L engine with
Automatic
transaxle and oil
cooler 12.7L (13.4
quarts)3
Capacities and specifications
212

FluidClassification Application Capacity
Transfer Case SAE 75W-140 Synthetic
Lubricant4X4 (Automatic) 0.35L (12
ounces)
API service
GL-5, SAE
80W-90 4X4 (Manual) 0.35L (12
ounces)
Engine coolant
4Use only
ethylene-glycol-
based coolant 2.0L I4 Zetec
engine with
manual
transaxle5.0L (5.3
quarts)
3.0L V6 Duratec
engine with
automatic
transaxle 10.0L (10.6
quarts)
Rear axle
lubricant SAE 80W-90
Premium Rear
Axle Lubricant4X4 1.4L (2.96 pints)
5
Windshield
washer fluid
n/a All 2.6L (2.7
quarts)
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCON tand MERCON tV are not interchangeable. DO NOT
mix MERCON tand MERCON tV. Refer to your scheduled maintenance
section to determine the correct service interval.
2Service refill capacity is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface.
3Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick's normal operating range.
4Use Premium Engine Coolant (green in color). DO NOT USE Extended
Life Engine Coolant (orange in color). Refer to Adding engine coolant,
in the Maintenance and Care chapter.
5Fill to 6 mm to 14 mm (1/4 inch to 9/16 inch) below bottom of fill hole.
Capacities and specifications
213

For further information on your lubrication specifications, see your
authorized Mazda dealer.
WHEEL AND TIRE SIZES
Vehicle
GradeWheel Tire Spare
WheelSpare Tire
DX/DX-V6 6.5JJx16 215/70R16 17x4T 135/90R17
LX-V6/ES-V6 7.0JJx16 235/70R16 17x4T 145/90R17
ENGINE SPECIFICATIONS
Engine 2.0L DOHC I4 Zetec
engine 3.0L DOHC V6
Duratec engine
Cubic inches 121 181
Required fuel 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6
Spark plug gap 1.22-1.32 mm (0.048-0.052 inch) 1.3-1.4 mm
(0.052-00.056 inch)
Ignition system DIS Coil on plug
Compression ratio 9.6:1 10.0:1
VEHICLE DIMENSIONS
Dimensions 4 Door mm (in.)
(1) Vehicle height/ Maximum
height* 1,681 (66.2)/1,744 (68.7)*
(2) Front track / rear 1,550 (61.0)/1,530 (60.2)
(3)Overall width (body) 1,783 (70.2)
(4) Wheelbase 2,620 (103.1)
(5)Overall length 4,394 (173.0)
Capacities and specifications
214

* Denotes a 4x4 vehicle with optional 16º tires
3
2
1
5
4
Capacities and specifications
215

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety Administration Regulations require
that a Certification Label be affixed to a vehicle and prescribe where the
Certification Label may be located. The Certification Label is located on
the front door latch pillar on the driver's side.
Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
Capacities and specifications
216
