Driving Your Mazda
V Multipath noise
Since FM signals can be reflected by
obstructions, ii is possible to receive both
the direci signal and rhe reflecred signal
at the sane time. This causes a slight
delay in reception and may be heard as a
broken sound or a distortion. Thisproblem may also be encountered whenjn close proximity to tbe transmittrer.
V trlutter^kip noise
Sjgnals from an FM transmitlermove in
straighl lines and become weal( in valleys
between tall buildings, mountains. and
other obstacles. Wlen a vehicle passes
lhrough such an area. lhe recepiion
conditions may change suddenly.
resulting in annoying noise.
V Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from
the lransmitter. Reception in such fringe
areas is chaJacterized by sound breatup.
5-5-t

Driiing Your Mazda
Safety Certification
This CD player is made and lested to
meel exacting safety standards.
It meets FCC requirements and complies
wiih safety perfonnance standards of the
U.S- Deparlment ofHea h and Human
Services.
V Stmng signal nois€
This occurs very close to a transmilter
tower The broadcast signals are
extremely slrong, so the result is noise
and sound breakup at the radio receivet
V Station drift nois€
When a vehicle reaches the area of two
slrong stations broadcasting at similar
frequencies. the original siadon may be
temporaJily lost and ihe second station
picked up. At this tine tbe.e will b€ some
noise from this disturbance.
5-54

Driving Your Mazda

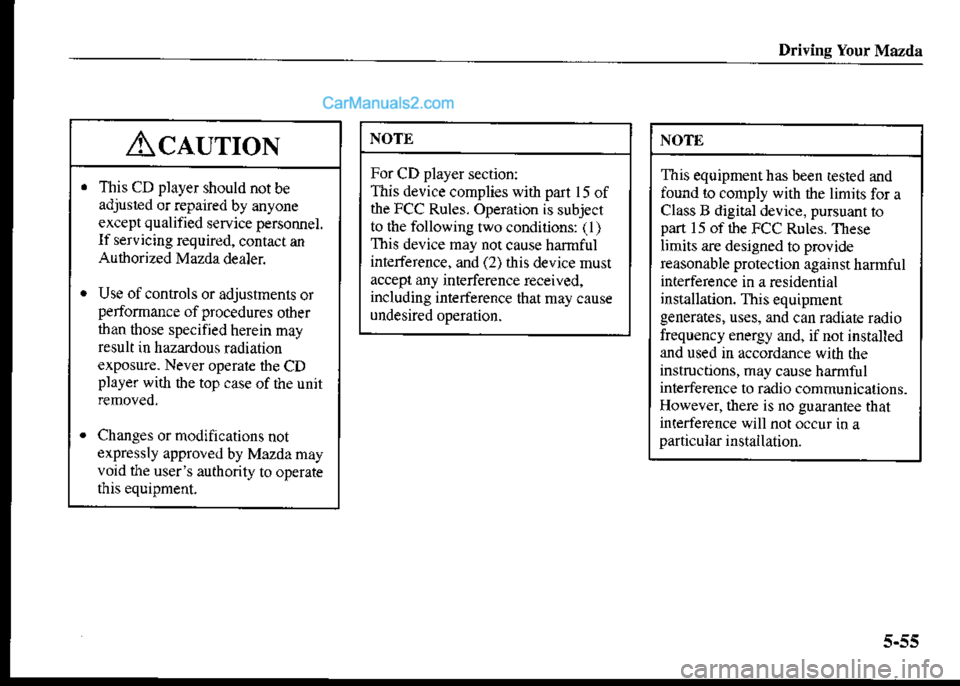

AclurroN
This CD player should not beadjusr€d or repaired by anyone
except qualified service personnel.
If serv icing required, contacr an
Authorized Mazda dealer.
Use of controls or adjustmenls orperformance of procedures otherthan those specified herein may
result in hazardous radiation
exposur€- Never operal€ the CDplayer with the top case of the unit
Changes or modifications notexpressly approved by Maz da rnay
void the user's authority to operate
this equipment.
NOTE
For CD player section:
This device complies with part 15 ofthe FCC Rules. Operarion is subject
to the following two condilions: ( I )This device may nor cause harmfut
inierference, and (2) this device must
accept any interference received,
including interference that may cause
undesired op€ration.
NOTT]
This equipmenthas been rested and
found to comply with rhe limits for a
Class B digital device. pursuant topart 1 5 of rhe FCC Rules. These
limits are designed to proyide
reasonable protection againsr harmful
incrference in a rcsidenlial
installation. This equipmenrgenelates, uses, and can ndiate radio
frequency energy and, if not insialled
and used in accordance with the
mstruchons, may cause harmful
interfbrence to radio communicaaions.
However, there is no guaraniee that
inrertarence will not occur in aparticular installation.

Driving Your Mazda
AM/FM Radio+
Illustration is ofa Eprcsenrative audio unit.
SeeIL tuning/Ttuk down* r/
*r Use tbh buton if a cassete tape player, MD player, cD player or cD changer is connecred ro this unit.
flifl&9ffi8lHffffiE &ffi trB,K"
5-56 .s....oaet'.

Driving Your Mazda
AM/FM Radio with ComDact Disc Plaver*
Illustration is of a representative audio unit.
/ Dis trpbuuon. Repeat butron
Progranlr/R$dom button Fast lorwdd buuon*r Use ftis bunon if 3 cassette tape player, MD plaler or CD changer is connected to this unit.
urlstst'8,ffiHHs.Bgg.B"
'Some nodek. 5-5/

Driving Your Mazda
f$l_lI PaPowEi \
A
Y
I Power ON/OFF
Tum the ignilion swirh !o the ACC or ON
Press the power/volum€ knob to lum tbe
audio slstem on. Press the power/volume
knob again 1<) tum the audio system off.
V Volume adjustment
Turn the power/volume knob to adjusi
V Audio sound adjustment
1. Press the audio control knob to select
bars, mid range, treble, fade ot
balance control. The selected funclion
will be indicated.
9r i-r l
I
9
9
NOTE
To prevent the baitery from being
discharged. do not leave the audio
syscm on for a long period when the
engine is not running.
5.58

Driving You. Mazda
NOTE
About 5 seconds after selecting any
mode, ihe volume funciion will be
automatically selected. To reset bass,
mid-range, a€ble, fade, and balance,press the audio control knob for 2
seconds. The unit will beep and "CL"
will be displayed.
Bass control
To adjusl the bass, selectBASS by
prcssing the audio conlrol knob. "BASS"
will be dnplayed.
Tum lhe audio control knob to the right
to increase bass, to the l€ft 10 decrease it,
The level will be displayed.
R€lease ihe audio conirol knob wben the
desired level bas been reached.
Mid-rang€ conhol
To adjust the mid-range, selecl MID bypressing the audio control knob. "MID"
will be displayed.
Turn the audio control knob to the right
to increas€ mid-range, to the left to
decrease it. The level will be displayed.
Release the audio control knob when the
desired level has been reached.
2. Tum the audio control knob to adjust
the selecled tunction; bass, mid raflge,
treble, fade or batance.
s-59

Ddving Your Mazda
Tr€ble conlrol
To adjust the treble. select TREB by
pressing the audio controi knob. "TREB '
will be displayed.
Tum the audio contol knob io ihe right
to increase rreble, to the left lo decrease
it. The level will be displayed.
Release the audio control knob when the
desired level has been reached.
Fader control
To adjust the sound distribution between
fiont and rear speakers. select FADE by
pressing ihe audio control knob. "FADE'
will be dispiayed.
Turn the audio control knob to the right
to shift the sound to the rear, to the left ro
shift $e sound to the front. The level will
be displayed.
Rel€ase the audio control knob when lhe
desired level has been reached.
Balance control
To adjusr the sound dislribuiion belween
left and right speakers, select BALby
pressing the audio control knob. 'BAL"
will be displayed.
Turn tbe audio conrol knob to the rigbt
to shift the sound to the righl, to the left
to shift the sound !o lhe left. The level
will be displayed.
Release the audio control knob when lhe
desired level has been reached-I Clock
V Setting the time
The clock cln be set at any time when lhe
ignition switch is in lhe ACC or ON
I . To adjusr the lime, press the clock
butlon for about 2 seconds until abeep
2. Tbe clock s cunenitime will flash
unlil the time is set.
5-60
