DODGE TOWN AND COUNTRY 2001 Service Manual 8W-51 REAR LIGHTING
Component Page
Back-Up Lamp Switch............... 8Wa-51-5
Battery........................... 8Wa-51-5
Body Control Module........... 8Wa-51-2, 3, 4, 5
Brake Lamp Switch...........

Page 975 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Component Page
C326............................. 8W-80-41
C327............................. 8W-80-41
C327............................. 8W-80-41
C329 (Diesel)....................... 8W-80-42
C329 (Dies

Component Page
C326............................. 8W-80-41
C327............................. 8W-80-41
C327............................. 8W-80-41
C329 (Diesel)....................... 8W-80-42
C329 (Diesel)....................... 8W-80-42
C330 (Diesel)....................... 8W-80-42
C330 (Diesel)....................... 8W-80-42
C331 (Diesel)....................... 8W-80-42
C331 (Diesel)....................... 8W-80-43
C332 (ATC)........................ 8W-80-43
C332 (ATC)........................ 8W-80-43
Cabin Heater Assist C1 (Diesel)........ 8W-80-43
Cabin Heater Assist C2 (Diesel)........ 8W-80-44
Camshaft Position Sensor (Gas)........ 8W-80-44
Camshaft Position Sensor (Diesel)...... 8W-80-44
CD Changer....................... 8W-80-44
Center Dome Lamp (Base/High Line).... 8W-80-45
Center High Mounted Stop Lamp....... 8W-80-45
Clockspring C1..................... 8W-80-45
Clockspring C2..................... 8W-80-45
Clockspring C3..................... 8W-80-45
Clockspring C4..................... 8W-80-46
Clockspring C5..................... 8W-80-46
Clutch Departure Switch (Diesel)....... 8W-80-46
Clutch Interlock/Upstop Switch (MTX) . . . 8W-80-46
Controller Antilock Brake............. 8W-80-47
Crank Case Ventilation Heater (Diesel) . . 8W-80-47
Crankshaft Position Sensor (Diesel)..... 8W-80-48
Crankshaft Position Sensor (Gas)....... 8W-80-48
Data Link Connector................. 8W-80-48
Diagnostic Junction Port.............. 8W-80-49
Dosing Pump....................... 8W-80-49
Driver Airbag C1.................... 8W-80-49
Driver Airbag C2.................... 8W-80-49
Driver Blend Door Actuator (ATC)...... 8W-80-50
Driver Blend Door Actuator (MTC)...... 8W-80-50
Driver Door Courtesy Lamp........... 8W-80-50
Driver Door Lock Switch.............. 8W-80-50
Driver Heated Seat Back............. 8W-80-50
Driver Heated Seat Cushion........... 8W-80-51
Driver Heated Seat Module C1......... 8W-80-51
Driver Heated Seat Module C2......... 8W-80-51
Driver Heated Seat Module C3......... 8W-80-51
Driver Power Seat Front Riser Motor.... 8W-80-52
Driver Power Seat Horizontal Motor..... 8W-80-52
Driver Power Seat Rear Riser Motor.... 8W-80-52
Driver Power Seat Recliner Motor...... 8W-80-52
Driver Power Seat Switch............. 8W-80-52
Driver Power Window Motor........... 8W-80-53
Driver Power Window Switch (LHD)..... 8W-80-53
Driver Power Window Switch (RHD).... 8W-80-53
Driver Seat Belt Switch.............. 8W-80-54
Driver Seat Belt Tensioner............ 8W-80-54
EGR Solenoid (Diesel)................ 8W-80-54Component Page
EGR Solenoid (Gas)................. 8W-80-54
Electric Wiper De-Icer C1............. 8W-80-54
Electric Wiper De-Icer C2............. 8W-80-55
Engine Control Module C1 (Diesel)...... 8W-80-55
Engine Control Module C2 (Diesel)...... 8W-80-57
Engine Coolant Temp Sensor (Diesel).... 8W-80-57
Engine Coolant Temp Sensor (Gas)...... 8W-80-58
Engine Oil Pressure Sensor (Diesel)..... 8W-80-58
Engine Oil Pressure Switch (Gas)....... 8W-80-58
Engine Oil Temperature Sensor (Diesel) . . 8W-80-58
EVAP/Purge Solenoid (Gas)............ 8W-80-58
Evaporator Temperature Sensor........ 8W-80-59
Floor Console Lamp................. 8W-80-59
Floor Console Power Outlet........... 8W-80-59
Front Blower Module C1 (ATC)......... 8W-80-59
Front Blower Module C2 (ATC)......... 8W-80-59
Front Cigar Lighter................. 8W-80-60
Front Reading Lamps/Switch.......... 8W-80-60
Front Washer Pump Motor............ 8W-80-60
Fuel Heater (Diesel)................. 8W-80-60
Fuel Injector No. 1 (2.4L/3.3L/3.8L)..... 8W-80-60
Fuel Injector No. 1 (Diesel)............ 8W-80-61
Fuel Injector No. 2 (2.4L/3.3L/3.8L)..... 8W-80-61
Fuel Injector No. 2 (Diesel)............ 8W-80-61
Fuel Injector No. 3 (2.4L/3.3L/3.8L)..... 8W-80-61
Fuel Injector No. 3 (Diesel)............ 8W-80-61
Fuel Injector No. 4 (2.4L/3.3L/3.8L)..... 8W-80-62
Fuel Injector No. 4 (Diesel)............ 8W-80-62
Fuel Injector No. 5 (3.3L/3.8L)......... 8W-80-62
Fuel Injector No. 6 (3.3L/3.8L)......... 8W-80-62
Fuel Pressure Sensor (Diesel).......... 8W-80-62
Fuel Pressure Solenoid (Diesel)......... 8W-80-63
Fuel Pump Module.................. 8W-80-63
Generator......................... 8W-80-63
Glove Box Lamp.................... 8W-80-63
Glow Plug Relay (Diesel).............. 8W-80-63
Halo Lamp........................ 8W-80-64
Headlamp Switch................... 8W-80-64
Headlamp Washer Pump Motor
(Built-Up-Export)................. 8W-80-64
High Note Horn.................... 8W-80-64
Hood Ajar Switch................... 8W-80-65
Idle Air Control Motor (2.4L).......... 8W-80-65
Idle Air Control Motor (3.3L/3.8L)....... 8W-80-65
Ignition Coil (2.4L).................. 8W-80-65
Ignition Coil (3.3L/3.8L).............. 8W-80-65
Ignition Switch..................... 8W-80-66
Inlet Air Temperature Sensor.......... 8W-80-66
Instrument Cluster.................. 8W-80-66
Instrument Panel Switch Bank......... 8W-80-67
Intelligent Power Module C1.......... 8W-80-67
Intelligent Power Module C2.......... 8W-80-68
Intelligent Power Module C3 (Diesel).... 8W-80-68
Intelligent Power Module C3 (Gas)...... 8W-80-69
8Wa - 80 - 2 8W-80 CONNECTOR PIN-OUTSRG
ProCarManuals.com

Page 991 of 2321

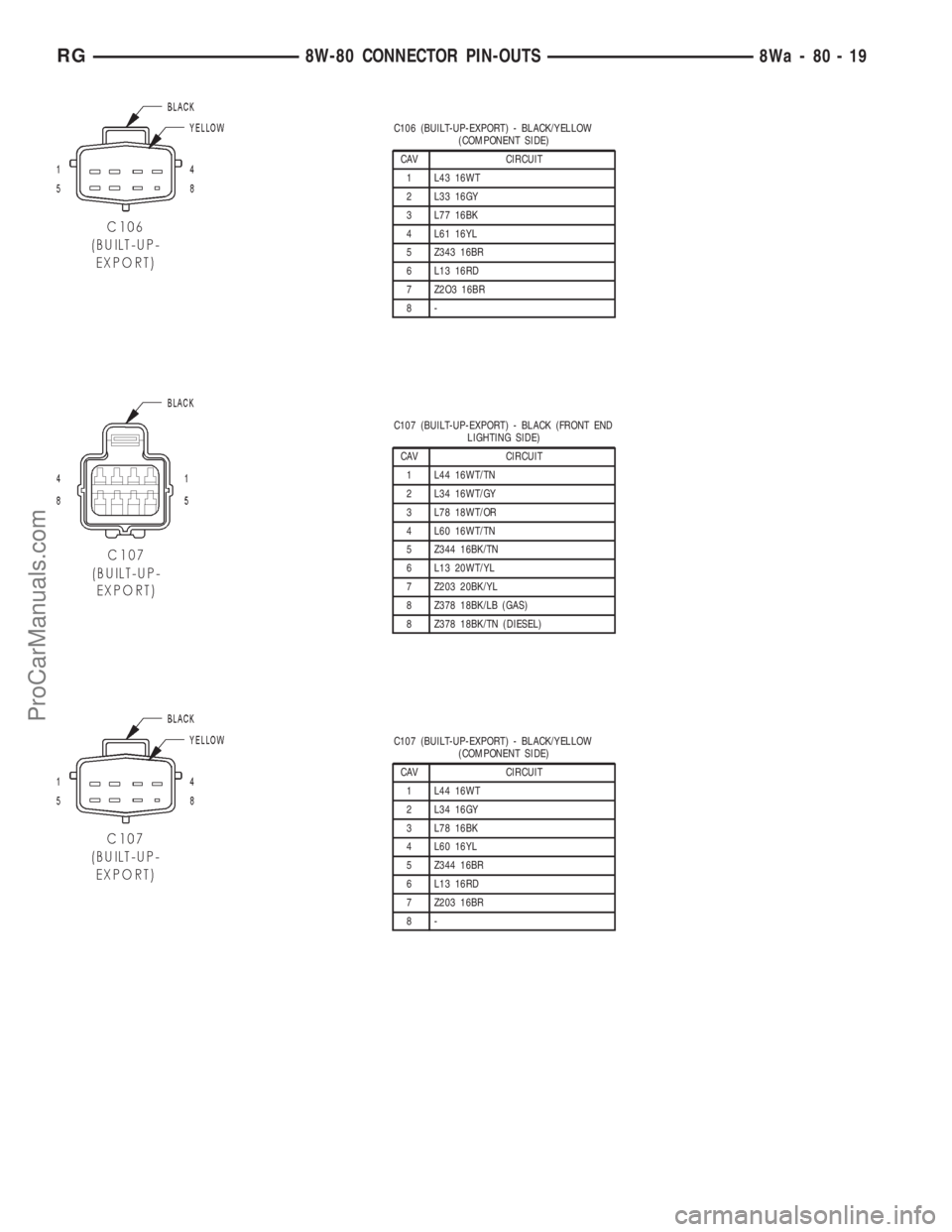

DODGE TOWN AND COUNTRY 2001 Service Manual C102 (3.3L/3.8L) - BLACK (POWERTRAIN SIDE)
CAV CIRCUIT
1 K342 16BR/WT
2 K1 18VT/BR
3 K11 16BR/YL
4 K12 16BR/DB
5 K13 16BR/LB
6 K14 16BR/TN
7 K900 18DB/DG
8 K38 16BR/OR
9 K58 16BR/VT
10 F855 18PK/YL
C1

Page 992 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual C106 (BUILT-UP-EXPORT) - BLACK/YELLOW
(COMPONENT SIDE)
CAV CIRCUIT
1 L43 16WT
2 L33 16GY
3 L77 16BK
4 L61 16YL
5 Z343 16BR
6 L13 16RD
7 Z2O3 16BR
8-
C107 (BUILT-UP-EXPORT) - BLACK (FRONT END
LIGHTING

Page 1033 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual FRONT CIGAR LIGHTER - RED/NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
1 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
2 E14 20OR/TN (BUILT-UP-EXPORT) PANEL LAMPS DRIVER

Page 1099 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Component/Ground Color Location Fig.
Driver Heated Seat Module C3 GN At Seat N/S
Driver Power Seat Front Riser
MotorRD At Seat N/S
Driver Power Seat Horizontal
MotorBK At Seat N/S
Driver Power Seat Re

Page 1140 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual Splice Number Location Fig.
S204 Near T/O to Instrument Panel Speaker 9, 10
S205 Near T/O for C201 9
S206 Near T/O for Instrument Cluster 9
S207 In A/C Unit Assembly N/S
S208 (RHD) Between T/O for Ant

Page 1161 of 2321

DODGE TOWN AND COUNTRY 2001 Service Manual the cylinder in question.The recommended com-
pression pressures are to be used only as a
guide to diagnosing engine problems. An engine
should not be disassembled to determine the
cause of low compre

the cylinder in question.The recommended com-
pression pressures are to be used only as a
guide to diagnosing engine problems. An engine
should not be disassembled to determine the
cause of low compression unless some malfunc-
tion is present.
DIAGNOSIS AND TESTING - ENGINE OIL LEAK
Begin with a thorough visual inspection of the
engine, particularly at the area of the suspected leak.
If an oil leak source is not readily identifiable, the
following steps should be followed:
(1) Do not clean or degrease the engine at this
time because some solvents may cause rubber to
swell, temporarily stopping the leak.
(2) Add an oil soluble dye (use as recommended by
manufacturer). Start the engine and let idle for
approximately 15 minutes. Check the oil dipstick to
make sure the dye is thoroughly mixed as indicated
with a bright yellow color under a black light.
(3) Using a black light, inspect the entire engine
for fluorescent dye, particularly at the suspected area
of oil leak. If the oil leak is found and identified,
repair as necessary.
(4) If dye is not observed, drive the vehicle at var-
ious speeds for approximately 24 km (15 miles), and
repeat inspection.
(5)If the oil leak source is not positively
identified at this time, proceed with the air leak
detection test method as follows:
²Disconnect the fresh air hose (make-up air) at
the cylinder head cover and plug or cap the nipple on
the cover.
²Remove the PCV valve hose from the cylinder
head cover. Cap or plug the PCV valve nipple on the
cover.
²Attach an air hose with pressure gauge and reg-
ulator to the dipstick tube.
CAUTION: Do not subject the engine assembly to
more than 20.6 kpa (3 PSI) of test pressure.
²Gradually apply air pressure from 1 psi to 2.5
psi maximum while applying soapy water at the sus-
pected source. Adjust the regulator to the suitable
test pressure that provides the best bubbles which
will pinpoint the leak source. If the oil leak is
detected and identified, repair per service manual
procedures.
²If the leakage occurs at the crankshaft rear oil
seal area, refer to the section, Inspection for Rear
Seal Area Leak.
(6) If no leaks are detected, turn off the air supply.
Remove the air hose, all plugs, and caps. Install the
PCV valve and fresh air hose (make-up air). Proceed
to next step.(7) Clean the oil off the suspect oil leak area using
a suitable solvent. Drive the vehicle at various
speeds approximately 24 km (15 miles). Inspect the
engine for signs of an oil leak by using a black light.
NOTE: If oil leakage is observed at the dipstick tube
to block location; remove the tube, clean and reseal
using MoparTStud & Bearing Mount (press fit tube
applications only), and for O-ring style tubes,
remove tube and replace the O-ring seal.
INSPECTION FOR REAR SEAL AREA LEAKS
Since it is sometimes difficult to determine the
source of an oil leak in the rear seal area of the
engine, a more involved inspection is necessary. The
following steps should be followed to help pinpoint
the source of the leak.
If the leakage occurs at the crankshaft rear oil seal
area:
(1) Disconnect the battery.
(2) Raise the vehicle.
(3) Remove torque converter or clutch housing
cover and inspect rear of block for evidence of oil.
Use a black light to check for the oil leak. If a leak is
present in this area, remove transmission for further
inspection.
(a) Circular spray pattern generally indicates
seal leakage or crankshaft damage.
(b) Where leakage tends to run straight down,
possible causes are a porous block, oil gallery cup
plug, bedplate to cylinder block mating surfaces
and seal bore. See proper repair procedures for
these items.
(4) If no leaks are detected, pressurize the crank-
case as previously described.
CAUTION: Do not exceed 20.6 kPa (3 psi).
(5) If the leak is not detected, very slowly turn the
crankshaft and watch for leakage. If a leak is
detected between the crankshaft and seal while
slowly turning the crankshaft, it is possible the
crankshaft seal surface is damaged. The seal area on
the crankshaft could have minor nicks or scratches
that can be polished out with emery cloth.
CAUTION: Use extreme caution when crankshaft
polishing is necessary to remove minor nicks and
scratches. The crankshaft seal flange is especially
machined to complement the function of the rear oil
seal.
(6) For bubbles that remain steady with shaft
rotation, no further inspection can be done until dis-
assembled.
9 - 4 ENGINE 2.4LRS
ENGINE 2.4L (Continued)
ProCarManuals.com

Load next 8 pages

Page: < prev 1-10 ... 81-88 89-96 97-104 105-112 113-120 121-128 129-136 137-144 145-152 ... 192 next >

ad blue diagram oil level ground clearance jump start warning light
