OPERATION - A/C LINE COUPLERS
The spring-lock coupler is held together by a garter
spring inside a circular cage on the male half of the
fitting (Fig. 1). When the two coupler halves are con-
nected, the flared end of the female fitting slips
behind the garter spring inside the cage on the male
fitting. The garter spring and cage prevent the flared
end of the female fitting from pulling out of the cage.
Two O-rings on the male half of the fitting are
used to seal the connection. These O-rings are com-
patible with R-134a refrigerant and must be replaced
with O-rings made of the same material.
Secondary clips are installed over the two con-
nected coupler halves at the factory for added blowoff
protection. In addition, some models have a plastic
ring that is used at the factory as a visual indicator
to confirm that these couplers are connected. After
the coupler is connected, the plastic indicator ring is
no longer needed; however, it will remain on the
refrigerant line near the coupler cage.
OPERATION
High pressures are produced in the refrigerant sys-
tem when the air conditioning compressor is operat-
ing. Extreme care must be exercised to make sure
that each of the refrigerant system connections is
pressure-tight and leak free. It is a good practice to
inspect all flexible hose refrigerant lines at least once
a year to make sure they are in good condition and
properly routed.The refrigerant lines and hoses are coupled with
other components of the HVAC system with peanut-
block style fittings. A stat-O seal type flat steel gas-
ket with a captured compressible O-ring, is used to
mate plumbing lines with A/C components to ensure
the integrity of the refrigerant system.
The refrigerant lines and hoses cannot be repaired
and, if faulty or damaged, they must be replaced.
WARNING:
THE AIR CONDITIONING SYSTEM CONTAINS
REFRIGERANT UNDER HIGH PRESSURE. SEVERE
PERSONAL INJURY MAY RESULT FROM IMPROPER
SERVICE PROCEDURES. REPAIRS SHOULD ONLY
BE PERFORMED BY QUALIFIED SERVICE PERSON-
NEL.
AVOID BREATHING THE REFRIGERANT AND
REFRIGERANT OIL VAPOR OR MIST. EXPOSURE
MAY IRRITATE THE EYES, NOSE, AND/OR THROAT.
WEAR EYE PROTECTION WHEN SERVICING THE
AIR CONDITIONING REFRIGERANT SYSTEM. SERI-
OUS EYE INJURY CAN RESULT FROM DIRECT
CONTACT WITH THE REFRIGERANT. IF EYE CON-
TACT OCCURS, SEEK MEDICAL ATTENTION IMME-
DIATELY.
DO NOT EXPOSE THE REFRIGERANT TO OPEN
FLAME. POISONOUS GAS IS CREATED WHEN
REFRIGERANT IS BURNED. AN ELECTRONIC LEAK
DETECTOR IS RECOMMENDED.
IF ACCIDENTAL SYSTEM DISCHARGE OCCURS,
VENTILATE THE WORK AREA BEFORE RESUMING
SERVICE. LARGE AMOUNTS OF REFRIGERANT
RELEASED IN A CLOSED WORK AREA WILL DIS-
PLACE THE OXYGEN AND CAUSE SUFFOCATION.
THE EVAPORATION RATE OF R-134a REFRIGER-
ANT AT AVERAGE TEMPERATURE AND ALTITUDE
IS EXTREMELY HIGH. AS A RESULT, ANYTHING
THAT COMES IN CONTACT WITH THE REFRIGER-
ANT WILL FREEZE. ALWAYS PROTECT THE SKIN
OR DELICATE OBJECTS FROM DIRECT CONTACT
WITH THE REFRIGERANT.
THE R-134a SERVICE EQUIPMENT OR THE VEHI-
CLE REFRIGERANT SYSTEM SHOULD NOT BE
PRESSURE TESTED OR LEAK TESTED WITH COM-
PRESSED AIR. SOME MIXTURES OF AIR AND
R-134a HAVE BEEN SHOWN TO BE COMBUSTIBLE
AT ELEVATED PRESSURES. THESE MIXTURES ARE
POTENTIALLY DANGEROUS, AND MAY RESULT IN
FIRE OR EXPLOSION CAUSING INJURY OR PROP-
ERTY DAMAGE.

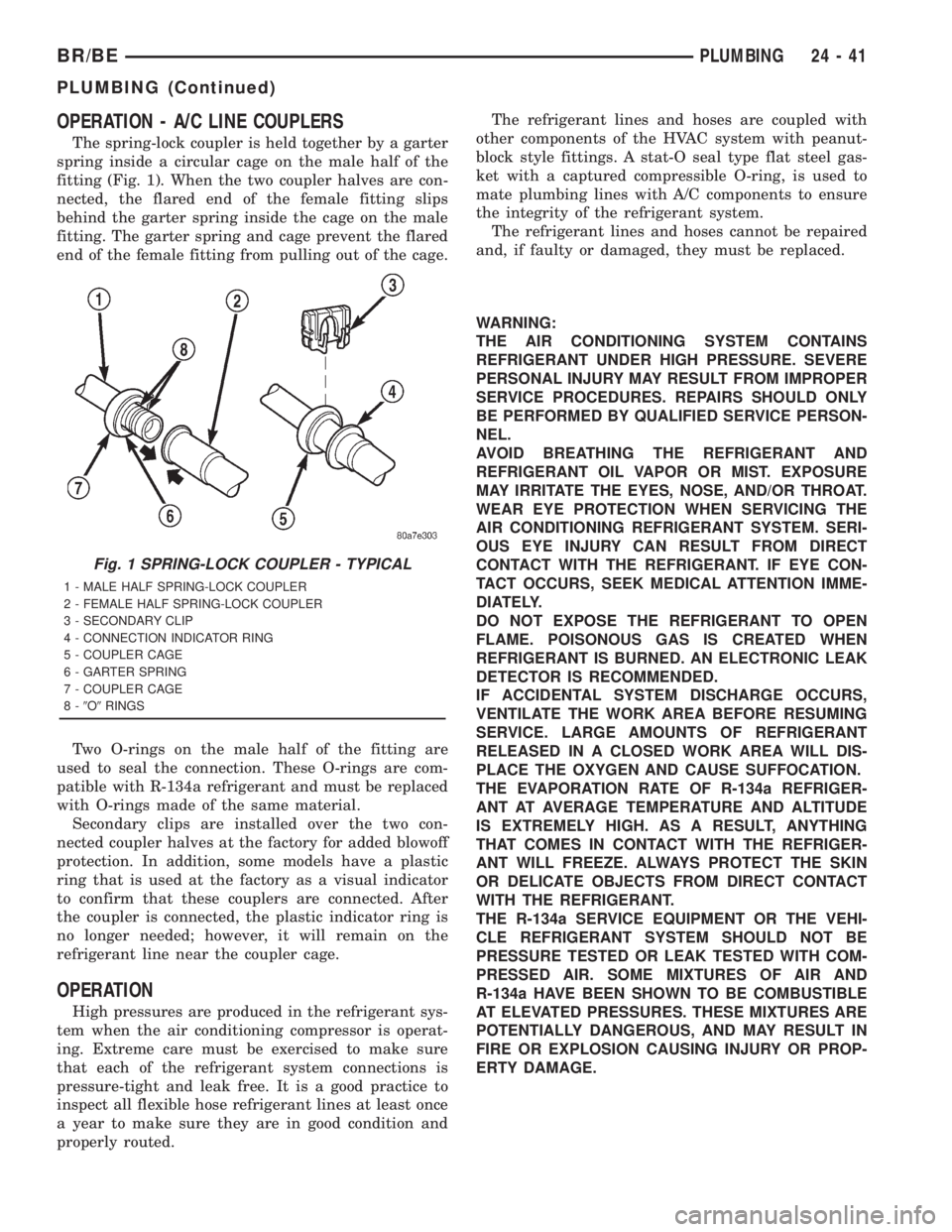

Fig. 1 SPRING-LOCK COUPLER - TYPICAL
1 - MALE HALF SPRING-LOCK COUPLER
2 - FEMALE HALF SPRING-LOCK COUPLER
3 - SECONDARY CLIP
4 - CONNECTION INDICATOR RING
5 - COUPLER CAGE
6 - GARTER SPRING
7 - COUPLER CAGE
8-9O9RINGS
BR/BEPLUMBING 24 - 41
PLUMBING (Continued)

(M)Malfunction Indicator Lamp (MIL) illuminated during engine operation if this DTC was recorded
(depending if required by CARB and/or EPA). MIL is displayed as an engine icon on instrument panel.
(G)Generator lamp illuminated
Generic Scan
Tool P-CodeDRB Scan Tool Display Brief Description of DTC
P1691 Fuel Injection Pump Controller
Calibration ErrorInternal fuel injection pump failure. Low power, engine
derated, or engine stops.
P1692 DTC Set In ECM A9Companion DTC9was set in both the ECM and PCM.
P1693 (M) DTC Detected in Companion Module A fault has been generated in the companion engine
control module.
P1693 (M) DTC Detected in PCM/ECM or DTC
Detected in ECMA9Companion DTC9was set in both the ECM and PCM.
P1694 Fault In Companion Module No CCD/J1850 messages received from the powertrain
control module-Aisin transmission
P1694 (M) No CCD Messages received from
ECMBus communication failure to PCM.
P1695 No CCD/J1850 Message From Body
Control ModuleNo CCD/J1850 messages received from the body control
module.
P1696 PCM Failure EEPROM Write Denied Unsuccessful attempt to write to an EEPROM location by
the control module.
P1697 PCM Failure SRI Mile Not Stored Unsuccessful attempt to update Service Reminder
Indicator (SRI or EMR) mileage in the control module
EEPROM.
P1698 No CCD/J1850 Message From TCM No CCD/J1850 messages received from the electronic
transmission control module (EATX) or the Aisin
transmission controller.
P1698 No CCD Messages received from
PCMBus communication failure to PCM. A9Companion DTC9
was set in both the ECM and PCM.
P1719 Skip Shift Solenoid Circuit An open or shorted condition detected in the transmission
2-3 gear lock-out solenoid control circuit.
P1740 TCC or OD Sol Perf A rationality error has been detected in either the TCC
solenoid or overdrive solenoid systems.
P1740 (M) TCC OR O/D Solenoid Performance Problem detected in transmission convertor clutch and/or
overdrive circuits (diesel engine with 4-speed auto. trans.
only).
P1756 (M) GOV Press Not Equal to Target @
15-20 PSIThe requested pressure and the actual pressure are not
within a tolerance band for the Governor Control System
which is used to regulate governor pressure to control
shifts for 1st, 2nd, and 3rd gear. (Mid Pressure
Malfunction)
P1756 (M) Governor Pressure Not Equal to
Target @ 15-20 PSIGovernor sensor input not between 10 and 25 psi when
requested (4-speed auto. trans. only).
P1757 GOV Press Not Equal to Target @
15-20 PSIThe requested pressure and the actual pressure are not
within a tolerance band for the Governor Control System
which is used to regulate governor pressure to control
shifts for 1st, 2nd, and 3rd gear (Zero Pressure
Malfunction)
P1757 (M) Governor Pressure Above 3 PSI In
Gear With 0 MPHGovernor pressure greater than 3 psi when requested to
be 0 psi (4-speed auto. trans. only).
25 - 14 EMISSIONS CONTROLBR/BE
EMISSIONS CONTROL (Continued)

INSPECTION - BATTERY
When battery is easily accessible, check the test
indicator (green dot), terminal tightness and felt
(grease) washer on battery posts. Recharge battery as
required to assure that the green dot is visible.
When battery is not easily accessible check battery
condition with a voltmeter at the jump start loca-
tions, or check the voltmeter on the instrument panel
(Fig. 11) or (Fig. 12). The reading should be at least
12.4 volts. Recharge battery as required.
NOTE: Refer to service information for proper bat-
tery charging rates and times.
INSPECTION - WIRING
The assembly plant has shipped all vehicles with
the interior lights and most electronic memories non-
functional by way of an Ignition Off Draw (IOD) fuse
removed. The purpose is to reduce the possibility of
battery run-down during shipping and storage.
Vehicles stored after prep should have the IOD
fuse that activates the accessories pulled to prevent
battery drain.
NOTE: Ensure that the IOD fuse is removed to pre-
vent battery drain and possible damage. Vehicles
stored for extended periods after prep should be
washed frequently, to prevent environmental dam-age, and reinspected for storage-related problems
before delivery.
(1) Install the IOD fuse as equipped. (ON vehicles
being delivered, remember to reset radio, clock, com-
pass, etc., as required.)
(2) Check routing and connections of all underhood
wiring-reroute and connect as required.
(3) Make sure the starter, generator and air condi-
tioning clutch wiring are correctly installed, routed,
and in the clips where provided.
(4) For predelivery storage, always pull the IOD
fuse that activates accessories.

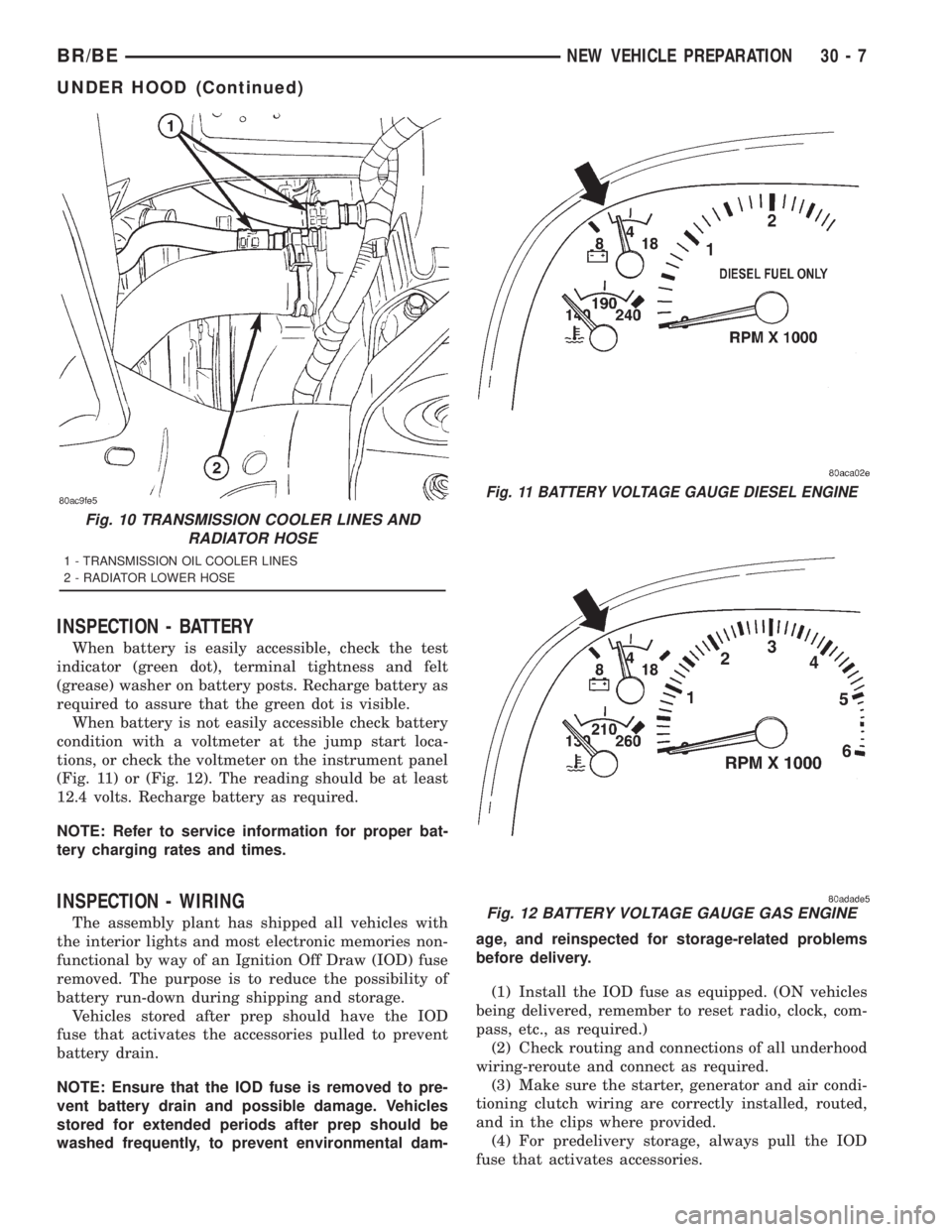

Fig. 10 TRANSMISSION COOLER LINES AND
RADIATOR HOSE
1 - TRANSMISSION OIL COOLER LINES
2 - RADIATOR LOWER HOSE
Fig. 11 BATTERY VOLTAGE GAUGE DIESEL ENGINE
Fig. 12 BATTERY VOLTAGE GAUGE GAS ENGINE
BR/BENEW VEHICLE PREPARATION 30 - 7
UNDER HOOD (Continued)

ROAD TEST
DESCRIPTION - ROAD TEST INSPECTION
The following items must be inspected during the
road test portion of the new vehicle inspection.
²Check neutral safety switch operation
²Check operation of shift/clutch interlock system
²Check operation of gauges and warning lights
²Check horn operation
²Check operation of turn signals and emergency
flashers
²Check all mirror adjustments, including day/
night function
²Check windshield wipers for proper wipe pattern
and intermittent mode (if equipped)
²Check washer spray pattern
²Check heater, defroster and air conditioning for
proper operation
²Check that the fan operates quietly
²Check the rear window defroster (if equipped)
²Leave air selection lever in the fresh air position
²Check the rear heater and air conditioning for
proper operation
²Check the rear air register locations
²Check that the indicator lamps operate properly
²Check the operation of the radio, cassette and/or
compact disc player, and that sound quality is good
²Ensure that the clock displays the correct time
²Check that the trip computer/maintenance
reminder operates in all modes
²Check all speed control functions
²Check the service brakes to ensure that they
stop the vehicle in a straight line, without noise,
shudder or vibration
²Check the brake warning light
²Check the parking brake operation
²Check the engine's performance
²Check the transmission's performance for
smooth, quiet operation. If the vehicle is a 4x4, check
that the transfer case shifts easily among all ranges
²Check Autostick function (if equipped)
²Check the vehicle's steering and handling
²The steering wheel should be centered when
traveling in a straight line
²The vehicle should not pull or vibrate
²Check for squeaks, rattles and wind noise
²Check any other vehicle aspects you believe are
important, but that may not be included on the New
Vehicle Preparation Form
²Fill fuel tank with specified grade of fuel
INSPECTION - FUEL
Fill fuel tank with specified grade of gasoline (reg-
ular, midgrade or premium).
INSPECTION - OTHER
As part of DaimlerChrysler's Customer One philos-
ophy, the ªOtherº blank is provided on the New Vehi-
cle Preparation Form. This is designed to encourage
you to check any aspects of vehicle operation that
you believe are important to your customers, but that
do not appear elsewhere on the form.
INSPECTION - SQUEAKS, RATTLES AND WIND
NOISE
(1) Make sure that the instrument panel, glove
box, seats, steering wheel and column are free from
squeaks and rattles. Tighten any obvious loose fas-
teners.
(2) Check that the windows and doors are free
from squeaks, rattles and wind noise.
(3) Check that the vehicle exterior is free from
squeaks, rattles and noise, front and rear.
(4) Make sure that all interior panels are free from
squeaks and rattles.
INSPECTION - STEERING AND HANDLING
(1) Check that the power assist works properly (if
equipped). Steering should not require excessive
effort.
(2) Make sure the steering wheel does not vibrate
at idle or road speed.
(3) Ensure that the steering wheel is centered
when traveling straight ahead.
(4) Check that the vehicle does not drift to one
side.
(5) Make sure that the vehicle does not vibrate/
shake.
INSPECTION - TRANSMISSION/TRANSFER
CASE
AUTOMATIC TRANSMISSION
(1) Make sure that the park lock holds the vehicle
With the vehicle on a grade, put automatic trans-
mission in PARK and slowly release the service
brake to see if park lock holds. If it does not hold, the
transmission requires further service.
(2) Make sure shift lever operates easily/ smoothly
(Fig. 36).
Check for smooth shifting. Check for proper
upshifting and downshifting.
MANUAL TRANSMISSION
(1) Check that the shifter operates easily (Fig. 38).
(2) Make sure that the clutch operates smoothly
(Fig. 37).
(3) Look for proper synchronization.
The gears should not grind.
BR/BENEW VEHICLE PREPARATION 30 - 15

ABS INDICATOR - DESCRIPTION.........8J-14
ABS INDICATOR - OPERATION..........8J-14
A/C APPLICATION TABLE,
SPECIFICATIONS......................24-8
A/C COMPRESSOR - DESCRIPTION......24-46
A/C COMPRESSOR - DIAGNOSIS AND
TESTING...........................24-46
A/C COMPRESSOR - INSTALLATION......24-47
A/C COMPRESSOR - OPERATION........24-46
A/C COMPRESSOR - REMOVAL.........24-47
A/C COMPRESSOR CLUTCH -
DESCRIPTION.......................24-13
A/C COMPRESSOR CLUTCH -
INSPECTION........................24-16
A/C COMPRESSOR CLUTCH -
INSTALLATION.......................24-16
A/C COMPRESSOR CLUTCH -
OPERATION.........................24-13
A/C COMPRESSOR CLUTCH - REMOVAL . . 24-14
A/C COMPRESSOR CLUTCH BREAK-IN -
STANDARD PROCEDURE...............24-13
A/C COMPRESSOR CLUTCH COIL -
DIAGNOSIS AND TESTING.............24-13
A/C COMPRESSOR CLUTCH RELAY -
DESCRIPTION.......................24-17
A/C COMPRESSOR CLUTCH RELAY -
DIAGNOSIS AND TESTING.............24-17
A/C COMPRESSOR CLUTCH RELAY -
INSTALLATION.......................24-18
A/C COMPRESSOR CLUTCH RELAY -
OPERATION.........................24-17
A/C COMPRESSOR CLUTCH RELAY -
REMOVAL..........................24-18
A/C CONDENSER - DESCRIPTION........24-48
A/C CONDENSER - INSTALLATION.......24-49
A/C CONDENSER - OPERATION..........24-48
A/C CONDENSER - REMOVAL...........24-49
A/C EVAPORATOR - DESCRIPTION.......24-52
A/C EVAPORATOR - INSTALLATION......24-53
A/C EVAPORATOR - OPERATION.........24-53
A/C EVAPORATOR - REMOVAL..........24-53
A/C HEATER CONTROL - DESCRIPTION . . . 24-18
A/C HEATER CONTROL - DIAGNOSIS
AND TESTING.......................24-19
A/C HEATER CONTROL - INSTALLATION . . . 24-20
A/C HEATER CONTROL - OPERATION.....24-18
A/C HEATER CONTROL - REMOVAL......24-19
A/C HIGH PRESSURE SWITCH -
DESCRIPTION.......................24-20
A/C HIGH PRESSURE SWITCH -
DIAGNOSIS AND TESTING.............24-20
A/C HIGH PRESSURE SWITCH -
INSTALLATION.......................24-21
A/C HIGH PRESSURE SWITCH -
OPERATION.........................24-20
A/C HIGH PRESSURE SWITCH -
REMOVAL..........................24-21
A/C LINE COUPLERS - DESCRIPTION.....24-40
A/C LINE COUPLERS - OPERATION......24-41
A/C LINE COUPLERS - STANDARD
PROCEDURE........................24-43
A/C LOW PRESSURE SWITCH -
DESCRIPTION.......................24-21
A/C LOW PRESSURE SWITCH -
DIAGNOSIS AND TESTING.............24-21
A/C LOW PRESSURE SWITCH -
INSTALLATION.......................24-22
A/C LOW PRESSURE SWITCH -
OPERATION.........................24-21
A/C LOW PRESSURE SWITCH -
REMOVAL..........................24-21
A/C ORIFICE TUBE - DESCRIPTION.......24-53
A/C ORIFICE TUBE - OPERATION........24-53
A/C ORIFICE TUBE - REMOVAL..........24-54
A/C PERFORMANCE - DIAGNOSIS AND
TESTING............................24-2
ACCELERATOR PEDAL - INSTALLATION . . . 14-37
ACCELERATOR PEDAL - REMOVAL.......14-37
ACCELERATOR PEDAL POSITION
SENSOR - DESCRIPTION
...............14-91
ACCELERATOR PEDAL POSITION
SENSOR - INSTALLATION
..............14-93
ACCELERATOR PEDAL POSITION
SENSOR - OPERATION
................14-91
ACCELERATOR PEDAL POSITION
SENSOR - REMOVAL
..................14-91
ACCESSORY DRIVE BELT - DIAGNOSIS
AND TESTING
................7-24,7-27,7-31ACCUMULATOR - DESCRIPTION.........24-54
ACCUMULATOR - DESCRIPTION . 21-191,21-362,
21-537,21-707
ACCUMULATOR - INSPECTION . . 21-192,21-363,
21-538,21-708
ACCUMULATOR - INSTALLATION........24-55
ACCUMULATOR - OPERATION..........24-54
ACCUMULATOR - OPERATION . . . 21-191,21-362,
21-537,21-708
ACCUMULATOR - REMOVAL............24-54
ACTUATION TEST MODE - DESCRIPTION,
CIRCUIT.............................25-1
ACTUATOR - INSTALLATION, BLEND
DOOR.............................24-26
ACTUATOR - INSTALLATION, HEAT/
DEFROST DOOR.....................24-27
ACTUATOR - INSTALLATION, INSIDE
HANDLE.......................23-71,23-80
ACTUATOR - INSTALLATION, PANEL/
DEFROST DOOR.....................24-27
ACTUATOR - INSTALLATION,
RECIRCULATION DOOR................24-28
ACTUATOR - REMOVAL, BLEND DOOR....24-25
ACTUATOR - REMOVAL, HEAT/DEFROST
DOOR.............................24-26
ACTUATOR - REMOVAL, INSIDE HANDLE . 23-71,
23-80
ACTUATOR - REMOVAL, PANEL/DEFROST
DOOR.............................24-27
ACTUATOR - REMOVAL, RECIRCULATION
DOOR.............................24-27
ADAPTER - INSTALLATION, DEFROSTER
AND DEMISTER DUCT.................24-35
ADAPTER - REMOVAL, DEFROSTER AND
DEMISTER DUCT.....................24-35
ADAPTER BRACKET - INSTALLATION,
CAB CHASSIS........................13-9
ADAPTER BRACKET - REMOVAL, CAB
CHASSIS............................13-9
ADAPTER HOUSING SEAL -
INSTALLATION.................21-132,21-87
ADAPTER HOUSING SEAL - REMOVAL . . 21-132,
21-87
ADDING ADDITIONAL COOLANT -
STANDARD PROCEDURE................7-16
ADDITIONAL COOLANT - STANDARD
PROCEDURE, ADDING..................7-16
ADHESIVE LOCATIONS, SPECIFICATIONS
- STRUCTURAL......................23-44
ADJUSTER - DIAGNOSIS & TESTING,
POWER LUMBAR....................8N-18
ADJUSTER - INSTALLATION, SEAT BELT
TURNING LOOP.....................8O-29
ADJUSTER - INSTALLATION, SEAT
TRACK............................23-143
ADJUSTER - REMOVAL, SEAT BELT
TURNING LOOP.....................8O-29
ADJUSTER - REMOVAL, SEAT TRACK....23-143
ADJUSTER ASSEMBLY - INSTALLATION,
ROCKER ARM........................9-85
ADJUSTER ASSEMBLY - REMOVAL,
ROCKER ARM........................9-85
ADJUSTER ASSY - CLEANING, ROCKER
ARM ..............................9-262
ADJUSTER ASSY - DESCRIPTION,
ROCKER ARM.......................9-261
ADJUSTER ASSY - INSPECTION,
ROCKER ARM.......................9-262
ADJUSTER ASSY - INSTALLATION,
ROCKER ARM.............9-142,9-200,9-263
ADJUSTER ASSY - REMOVAL, ROCKER
ARM ....................9-142,9-200,9-261
ADJUSTER KNOB - INSTALLATION,
TURNING LOOP HEIGHT...............8O-30
ADJUSTER KNOB - REMOVAL, TURNING
LOOP HEIGHT.......................8O-30
ADJUSTMENT - STANDARD
PROCEDURE, COMPASS VARIATION......8M-4
ADJUSTMENT AND VERIFICATION -
STANDARD PROCEDURE, VALVE LASH....9-256
ADJUSTMENT, BANDS . . . 21-193,21-364,21-539,
21-709
ADJUSTMENT, CABLE TENSIONER
........5-40
ADJUSTMENT, CARGO DOOR
...........23-78
ADJUSTMENT, CENTER BEARING -
CENTER BEARING
.....................3-10
ADJUSTMENT, FRONT DOOR FORE/AFT
. . . 23-68
ADJUSTMENT, FRONT DOOR IN/OUT
.....23-69ADJUSTMENT, FRONT DOOR LATCH......23-72
ADJUSTMENT, FRONT DOOR UP/DOWN . . . 23-69
ADJUSTMENT, FRONT FASCIA...........13-2
ADJUSTMENT, HOOD................23-100
ADJUSTMENT, LATCH................23-100
ADJUSTMENT, LATCH STRIKER........23-102
ADJUSTMENT, REAR BRAKE DRUM.......5-34
ADJUSTMENT, SHIFT LEVER....21-853,21-888,
21-925
ADJUSTMENT, SHIFT MECHANISM.....21-252,
21-423,21-596,21-769
ADJUSTMENTS, FOG LAMP UNIT........8L-12
ADJUSTMENTS, FRONT AXLE - 216FBI....3-17
ADJUSTMENTS, FRONT AXLE - 248FBI....3-50
ADJUSTMENTS, GEAR.................19-16
ADJUSTMENTS, HEADLAMP UNIT.......8L-21
ADJUSTMENTS, REAR AXLE - 248RBI....3-114
ADJUSTMENTS, REAR AXLE - 267RBI....3-145
ADJUSTMENTS, REAR AXLE - 286RBI....3-174
ADJUSTMENTS, REAR AXLE - 9 1/4 .......3-84
ADJUSTMENTS, TRANSMISSION
THROTTLE VALVE CABLE . 21-254,21-425,21-598,
21-771
ADJUSTMENTS, VALVE BODY . . . 21-304,21-476,
21-646,21-818
AFTER AN AIRBAG DEPLOYMENT -
STANDARD PROCEDURE, SERVICE.......8O-4
AIR BLEED - STANDARD PROCEDURE....14-57
AIR CHECKING TRANSMISSION CLUTCH
AND BAND OPERATION - DIAGNOSIS
AND TESTING................21-147,21-318
AIR CLEANER ELEMENT - INSTALLATION . . 9-245
AIR CLEANER ELEMENT - REMOVAL.....9-244
AIR CONDITIONER - DESCRIPTION,
HEATER .............................24-1
AIR CONDITIONER - OPERATION,
HEATER .............................24-1
AIR CONDITIONING - INSTALLATION,
WATER PUMP BYPASS HOSE WITH.......7-77
AIR CONDITIONING - INSTALLATION,
WATER PUMP BYPASS HOSE
WITHOUT............................7-78
AIR CONDITIONING - REMOVAL, WATER
PUMP BYPASS HOSE WITH.............7-74
AIR CONDITIONING - REMOVAL, WATER
PUMP BYPASS HOSE WITHOUT..........7-77
AIR CONTROL MOTOR - DESCRIPTION,
IDLE...............................14-41
AIR CONTROL MOTOR - OPERATION,
IDLE...............................14-41
AIR COOLER AND PLUMBING -
CLEANING, CHARGE..................11-18
AIR COOLER AND PLUMBING -
DESCRIPTION, CHARGE...............11-17
AIR COOLER AND PLUMBING -
INSPECTION, CHARGE.................11-18
AIR COOLER AND PLUMBING -
INSTALLATION, CHARGE...............11-18
AIR COOLER AND PLUMBING -
OPERATION, CHARGE.................11-17
AIR COOLER AND PLUMBING -
REMOVAL, CHARGE..................11-17
AIR DAM - INSTALLATION, FRONT........13-2
AIR DAM - REMOVAL, FRONT...........13-1
AIR EXHAUSTER - INSTALLATION.......23-77
AIR EXHAUSTER - REMOVAL...........23-77
AIR HEATER - DESCRIPTION, INTAKE....14-100
AIR HEATER - INSTALLATION, INTAKE . . . 14-101
AIR HEATER - OPERATION, INTAKE.....14-100
AIR HEATER - REMOVAL, INTAKE.......14-100
AIR HEATER RELAY - DESCRIPTION,
INTAKE............................14-101
AIR HEATER RELAY - INSTALLATION,
INTAKE............................14-102
AIR HEATER RELAY - OPERATION,
INTAKE............................14-102
AIR HEATER RELAY - REMOVAL, INTAKE . 14-102
AIR IN FUEL SYSTEM - DIAGNOSIS AND
TESTING...........................14-56
AIR INJECTION PUMP - DESCRIPTION....25-28
AIR INJECTION PUMP - DIAGNOSIS AND
TESTING...........................25-28
AIR INJECTION PUMP - INSTALLATION . . . 25-29
AIR INJECTION PUMP - OPERATION
.....25-28
AIR INJECTION PUMP - REMOVAL
.......25-29
AIR INJECTION SYSTEM - DESCRIPTION
. . 25-25
AIR INJECTION SYSTEM - OPERATION
....25-27
AIR INJECTION SYSTEM - TORQUE
......25-28
BR/BEINDEX 1
Description Group-Page Description Group-Page Description Group-Page

AIR PUMP FILTER - INSTALLATION......25-29
AIR PUMP FILTER - REMOVAL..........25-29
AIR TESTING TRANSMISSION CLUTCH
AND BAND OPERATION - DIAGNOSIS
AND TESTING................21-490,21-661
AIR TO OIL COOLER - INSTALLATION.....7-88
AIR TO OIL COOLER - REMOVAL.........7-87
AIRBAG - ASSEMBLY, DRIVER..........8O-17
AIRBAG - DESCRIPTION, DRIVER........8O-14
AIRBAG - DESCRIPTION, PASSENGER....8O-21
AIRBAG - DISASSEMBLY, DRIVER.......8O-15
AIRBAG - INSTALLATION, DRIVER.......8O-18
AIRBAG - INSTALLATION, PASSENGER . . . 8O-23
AIRBAG - OPERATION, DRIVER.........8O-14
AIRBAG - OPERATION, PASSENGER......8O-21
AIRBAG - REMOVAL, DRIVER...........8O-14
AIRBAG - REMOVAL, PASSENGER.......8O-21
AIRBAG CONTROL MODULE -
DESCRIPTION........................8O-6
AIRBAG CONTROL MODULE -
INSTALLATION.......................8O-8
AIRBAG CONTROL MODULE -
OPERATION..........................8O-6
AIRBAG CONTROL MODULE - REMOVAL . . . 8O-7
AIRBAG DEPLOYMENT - STANDARD
PROCEDURE, SERVICE AFTER AN........8O-4
AIRBAG INDICATOR - DESCRIPTION......8J-15
AIRBAG INDICATOR - OPERATION.......8J-15
AIRBAG ON/OFF SWITCH -
DESCRIPTION, PASSENGER............8O-23
AIRBAG ON/OFF SWITCH -
INSTALLATION, PASSENGER...........8O-25
AIRBAG ON/OFF SWITCH - OPERATION,
PASSENGER........................8O-24
AIRBAG ON/OFF SWITCH - REMOVAL,
PASSENGER........................8O-24
AIRBAG SYSTEM - DIAGNOSIS AND
TESTING............................8O-4
AIRBAG SYSTEM - SPECIAL TOOLS.......8O-6
AIRBAGS - STANDARD PROCEDURE,
HANDLING NON-DEPLOYED.............8O-4
AIRFLOW - DESCRIPTION, HVAC
SYSTEM............................24-31
AJAR SWITCH - DESCRIPTION, DOOR....8L-34
AJAR SWITCH - DIAGNOSIS AND
TESTING, DOOR.....................8L-34
AJAR SWITCH - INSTALLATION, DOOR . . . 8L-35
AJAR SWITCH - REMOVAL, DOOR.......8L-35
ALIGNMENT - DESCRIPTION, WHEEL.......2-1
ALIGNMENT - OPERATION, WHEEL........2-2
ALIGNMENT I.F.S. - STANDARD
PROCEDURES.........................2-2
ALIGNMENT LINK/COIL SUSPENSION -
STANDARD PROCEDURES...............2-5
ALIGNMENT, SPECIAL TOOLS -
HEADLAMP..........................8L-4
ALIGNMENT, SPECIFICATIONS............2-6
ALUMINUM THREAD REPAIR -
STANDARD
PROCEDURE.....21-159,21-330,21-502,21-673
AMBIENT TEMP SENSOR - DESCRIPTION . 8M-11
AMBIENT TEMP SENSOR -
INSTALLATION......................8M-13
AMBIENT TEMP SENSOR - OPERATION . . 8M-11
AMBIENT TEMP SENSOR - REMOVAL
....8M-12
AMBIENT TEMPERATURE SENSOR -
DIAGNOSIS & TESTING
...............8M-12
AMPERAGE TEST - DIAGNOSIS AND
TESTING, FUEL PUMP
.................14-10
AN AIRBAG DEPLOYMENT - STANDARD
PROCEDURE, SERVICE AFTER
...........8O-4
ANTENNA - DIAGNOSIS AND TESTING
.....8A-5
ANTENNA BODY & CABLE -
DESCRIPTION
........................8A-4
ANTENNA BODY & CABLE - OPERATION
. . . 8A-4
ANTENNA CABLE - INSTALLATION,
INSTRUMENT PANEL
.................8A-10
ANTENNA CABLE - REMOVAL,
INSTRUMENT PANEL
..................8A-9
ANTILOCK BRAKE - DESCRIPTION,
CONTROLLER
.......................8E-11
ANTILOCK BRAKE - INSTALLATION,
CONTROLLER
.......................8E-12
ANTILOCK BRAKE - OPERATION,
CONTROLLER
.......................8E-11
ANTILOCK BRAKE - REMOVAL,
CONTROLLER
.......................8E-12A-PILLAR GRAB HANDLE -
INSTALLATION......................23-119
A-PILLAR GRAB HANDLE - REMOVAL . . . 23-119
A-PILLAR TRIM - INSTALLATION.......23-119
A-PILLAR TRIM - REMOVAL...........23-119
A-PILLAR TWEETER SPEAKER -
INSTALLATION.......................8A-19
A-PILLAR TWEETER SPEAKER -
REMOVAL..........................8A-19
APPEARANCE TIPS - CLEANING.........30-21
APPLICATION TABLE, SPECIFICATIONS -
A/C ................................24-8
APPLIQUE - INSTALLATION........23-62,23-67
APPLIQUE - REMOVAL...........23-62,23-67
AREA LEAKS - DIAGNOSIS AND
TESTING, REAR SEAL..................9-10
ARM / ADJUSTER ASSEMBLY -
INSTALLATION, ROCKER................9-85
ARM / ADJUSTER ASSEMBLY -
REMOVAL, ROCKER...................9-85
ARM / ADJUSTER ASSY - CLEANING,
ROCKER............................9-262
ARM / ADJUSTER ASSY - DESCRIPTION,
ROCKER............................9-261
ARM / ADJUSTER ASSY - INSPECTION,
ROCKER............................9-262
ARM / ADJUSTER ASSY -
INSTALLATION, ROCKER.....9-142,9-200,9-263
ARM / ADJUSTER ASSY - REMOVAL,
ROCKER.................9-142,9-200,9-261
ARM - DESCRIPTION, WIPER...........8R-11
ARM - INSTALLATION, LOWER
CONTROL.......................2-10,2-20
ARM - INSTALLATION, UPPER
CONTROL.......................2-13,2-24
ARM - INSTALLATION, WIPER..........8R-12
ARM - OPERATION, WIPER............8R-12
ARM - REMOVAL, LOWER CONTROL . . 2-10,2-20
ARM - REMOVAL, UPPER CONTROL . . 2-13,2-23
ARM - REMOVAL, WIPER..............8R-12
ARMREST/CONSOLE - INSTALLATION,
CENTER SEAT......................23-132
ARMREST/CONSOLE - REMOVAL,
CENTER SEAT......................23-132
ARMREST/LATCH COVER -
INSTALLATION, CENTER SEAT.........23-132
ARMREST/LATCH COVER - REMOVAL,
CENTER SEAT......................23-132
ASD AND FUEL PUMP RELAYS -
DIAGNOSIS AND TESTING...............8I-3
ASD SENSE - PCM INPUT - OPERATION....8I-3
ASH RECEIVER - INSTALLATION........23-109
ASH RECEIVER - REMOVAL...........23-108
ASSEMBLE, OIL PUMP...........9-109,9-165
ASSEMBLY - INSTALLATION, ROCKER
ARM / ADJUSTER.....................9-85
ASSEMBLY - REMOVAL, ROCKER ARM /
ADJUSTER...........................9-85
ASSEMBLY, AUTOMATIC
TRANSMISSION - 42RE...............21-166
ASSEMBLY, AUTOMATIC
TRANSMISSION - 44RE...............21-337
ASSEMBLY, AUTOMATIC
TRANSMISSION - 46RE...............21-510
ASSEMBLY, AUTOMATIC
TRANSMISSION - 47RE...............21-681
ASSEMBLY, AXLE VACUUM MOTOR . . . 3-33,3-65
ASSEMBLY, DIFFERENTIAL . . . 3-128,3-159,3-188,
3-37,3-69,3-98
ASSEMBLY, DIFFERENTIAL - POWR-LOK . . 3-163
ASSEMBLY, DIFFERENTIAL - TRAC-LOK . . . 3-101,
3-132,3-190
ASSEMBLY, DISC BRAKE CALIPERS.......5-12
ASSEMBLY, DRIVER AIRBAG...........8O-17
ASSEMBLY, FLYWHEEL.................6-17
ASSEMBLY, FRONT CLUTCH.....21-206,21-376,
21-550,21-721
ASSEMBLY, FRONT SERVO......21-208,21-379,
21-553,21-723
ASSEMBLY, GLOVE BOX..............23-112
ASSEMBLY, HVAC HOUSING............24-36
ASSEMBLY, INSTRUMENT CLUSTER......8J-13
ASSEMBLY, MANUAL - NV3500
.........21-17
ASSEMBLY, MANUAL - NV4500
.........21-65
ASSEMBLY, MANUAL - NV5600
........21-110
ASSEMBLY, OIL PUMP
.................9-51
ASSEMBLY, OIL PUMP
. . . 21-212,21-382,21-558,
21-729ASSEMBLY, OVERDRIVE UNIT . . . 21-225,21-395,
21-569,21-742
ASSEMBLY, OVERHEAD CONSOLE -
OVERHEAD CONSOLE.................8M-7
ASSEMBLY, OVERRUNNING CLUTCH
CAM/OVERDRIVE PISTON
RETAINER.......21-236,21-406,21-581,21-752
ASSEMBLY, PLANETARY GEARTRAIN/
OUTPUT SHAFT . . . 21-241,21-412,21-588,21-760
ASSEMBLY, REAR CLUTCH......21-248,21-419,
21-593,21-766
ASSEMBLY, REAR SERVO.......21-251,21-422,
21-595,21-768
ASSEMBLY, TRANS COOLER -
3.9L/5.2L/5.9L........................7-82
ASSEMBLY, TRANSFER CASE - NV231HD . 21-834
ASSEMBLY, TRANSFER CASE - NV241HD . 21-904
ASSEMBLY, TRANSFER CASE - NV241LD . 21-869
ASSEMBLY, VALVE BODY . 21-294,21-466,21-638,
21-810
ASSEMBLY, WHEEL CYLINDERS..........5-31
ASSIST HANDLE - INSTALLATION.......23-124
ASSIST HANDLE - REMOVAL..........23-124
ASSY - CLEANING, ROCKER ARM /
ADJUSTER..........................9-262
ASSY - DESCRIPTION, ROCKER ARM /
ADJUSTER..........................9-261
ASSY - INSPECTION, ROCKER ARM /
ADJUSTER..........................9-262
ASSY - INSTALLATION, ROCKER ARM /
ADJUSTER................9-142,9-200,9-263
ASSY - REMOVAL, ROCKER ARM /
ADJUSTER................9-142,9-200,9-261
AUDIO - DESCRIPTION.................8A-1
AUDIO - DIAGNOSIS AND TESTING.......8A-2
AUDIO - OPERATION...................8A-2
AUDIO SYSTEMS, SPECIAL TOOLS.......8A-4
AUGAT - INSTALLATION, CONNECTOR . . 8W-01-8
AUGAT - REMOVAL, CONNECTOR.....8W-01-8
AUTO. TRANS. - INSTALLATION, DIESEL
WITH..........................8P-11,8P-4
AUTO. TRANS. - REMOVAL, DIESEL
WITH...........................8P-4,8P-8
AUTOMATIC DAY / NIGHT MIRROR -
DESCRIPTION.......................8N-10
AUTOMATIC DAY / NIGHT MIRROR -
INSTALLATION......................8N-12
AUTOMATIC DAY / NIGHT MIRROR -
OPERATION.........................8N-11
AUTOMATIC DAY / NIGHT MIRROR -
REMOVAL..........................8N-12
AUTOMATIC DAY/NIGHT MIRROR -
DIAGNOSIS AND TESTING.............8N-11
AUTOMATIC SHUT DOWN RELAY -
INSTALLATION........................8I-5
AUTOMATIC SHUT DOWN RELAY -
REMOVAL............................8I-4
AUTOMATIC TRANSMISSION - 42RE -
ASSEMBLY.........................21-166
AUTOMATIC TRANSMISSION - 42RE -
CLEANING.........................21-165
AUTOMATIC TRANSMISSION - 42RE -
DESCRIPTION
......................21-135
AUTOMATIC TRANSMISSION - 42RE -
DISASSEMBLY
......................21-160
AUTOMATIC TRANSMISSION - 42RE -
INSPECTION
.......................21-165
AUTOMATIC TRANSMISSION - 42RE -
INSTALLATION
......................21-173
AUTOMATIC TRANSMISSION - 42RE -
OPERATION
........................21-137
AUTOMATIC TRANSMISSION - 42RE -
REMOVAL
.........................21-159
AUTOMATIC TRANSMISSION - 44RE -
ASSEMBLY
.........................21-337
AUTOMATIC TRANSMISSION - 44RE -
CLEANING
.........................21-336
AUTOMATIC TRANSMISSION - 44RE -
DESCRIPTION
......................21-306
AUTOMATIC TRANSMISSION - 44RE -
DISASSEMBLY
......................21-331
AUTOMATIC TRANSMISSION - 44RE -
INSPECTION
.......................21-337
AUTOMATIC TRANSMISSION - 44RE -
INSTALLATION
......................21-344
AUTOMATIC TRANSMISSION - 44RE -
OPERATION
........................21-308
2 INDEXBR/BE
Description Group-Page Description Group-Page Description Group-Page

BODY CONTROL/CENTRAL TIMER
MODULE - INSTALLATION...............8E-6
BODY CONTROL/CENTRAL TIMER
MODULE - OPERATION.................8E-3
BODY CONTROL/CENTRAL TIMER
MODULE - REMOVAL..................8E-5
BODY GAP AND FLUSH
MEASUREMENTS, SPECIFICATIONS......23-56
BODY OPENING DIMENSIONS,
SPECIFICATIONS.....................23-60
BODY SEALER LOCATIONS,
SPECIFICATIONS.....................23-47
BODY SEALING - INSPECTION..........30-10
BODY SIDE MOLDINGS - INSTALLATION . . 23-87
BODY SIDE MOLDINGS - REMOVAL......23-87
BODY STRIPES AND DECALS -
INSTALLATION.......................23-87
BODY STRIPES AND DECALS -
REMOVAL..........................23-87
BODY VENT - INSTALLATION..........23-126
BODY VENT - REMOVAL..............23-126
BOOST PRESSURE - DIAGNOSIS AND
TESTING...........................14-89
BOOSTER - DIAGNOSIS AND TESTING,
HYDRAULIC..........................5-17
BOOSTER - DIAGNOSIS AND TESTING,
MASTER CYLINDER/POWER.............5-29
BOOSTER - INSTALLATION, POWER
BRAKE..............................5-20
BOOSTER - REMOVAL, POWER BRAKE....5-19
BOOT - INSTALLATION, 4WD FLOOR
SHIFT..............................23-122
BOOT - MANUAL TRANSMISSION -
INSTALLATION, SHIFT................23-122
BOOT - MANUAL TRANSMISSION -
REMOVAL, SHIFT....................23-122
BOOT - REMOVAL, 4WD FLOOR SHIFT . . . 23-122
BORE, DE-GLAZE - STANDARD
PROCEDURE-CYLINDER...............9-264
BORE HONING - STANDARD
PROCEDURE, CYLINDER . . 9-10,9-126,9-180,9-69
BORE REPAIR - STANDARD
PROCEDURE, CAM...................9-267
BORE REPAIR - STANDARD
PROCEDURE, CYLINDER...............9-265
BOX - ASSEMBLY, GLOVE.............23-112
BOX - DISASSEMBLY, GLOVE..........23-112
BOX - INSTALLATION, CARGO..........23-97
BOX - INSTALLATION, GLOVE..........23-113
BOX - REMOVAL, CARGO..............23-96
BOX - REMOVAL, GLOVE.............23-112
BOX LAMP AND SWITCH -
INSTALLATION, GLOVE................8L-35
BOX LAMP AND SWITCH - REMOVAL,
GLOVE.............................8L-35
BOX LATCH STRIKER - INSTALLATION,
GLOVE............................23-113
BOX LATCH STRIKER - REMOVAL,
GLOVE............................23-113
BOX OPENING UPPER TRIM -
INSTALLATION, GLOVE...............23-114
BOX OPENING UPPER TRIM - REMOVAL,
GLOVE............................23-114
B-PILLAR DOOR SEAL - INSTALLATION . . 23-152
B-PILLAR DOOR SEAL - REMOVAL......23-152
B-PILLAR TRIM - INSTALLATION
.......23-120
B-PILLAR TRIM - REMOVAL
...........23-120
BR PAINT COLOR CODES,
SPECIFICATIONS - 2001
..............23-129
BRACKET - INSTALLATION, CAB
CHASSIS ADAPTER
....................13-9
BRACKET - INSTALLATION, REARVIEW
MIRROR SUPPORT
..................23-126
BRACKET - REMOVAL, CAB CHASSIS
ADAPTER
............................13-9
BRAKE - DESCRIPTION, CONTROLLER
ANTILOCK
..........................8E-11
BRAKE - INSPECTION, PARKING
.........30-17
BRAKE - INSTALLATION, CONTROLLER
ANTILOCK
..........................8E-12
BRAKE - OPERATION, CONTROLLER
ANTILOCK
..........................8E-11
BRAKE - REMOVAL, CONTROLLER
ANTILOCK
..........................8E-12
BRAKE BOOSTER - INSTALLATION,
POWER
.............................5-20
BRAKE BOOSTER - REMOVAL, POWER
....5-19BRAKE CABLE - 2500/3500 WITH REAR
DISC BRAKES - INSTALLATION, REAR
PARK...............................5-38
BRAKE CABLE - 2500/3500 WITH REAR
DISC BRAKES - REMOVAL, REAR
PARK...............................5-37
BRAKE CABLE - INSTALLATION, FRONT
PARKING............................5-39
BRAKE CABLE - REMOVAL, FRONT
PARKING............................5-37
BRAKE CABLE 2500/3500 SERIES WITH
DRUM BRAKES - INSTALLATION, REAR
PARK...............................5-39
BRAKE CABLES - 1500 SERIES -
INSTALLATION, REAR PARK.............5-39
BRAKE CABLES - 1500 SERIES -
REMOVAL, REAR PARK.................5-37
BRAKE CABLES 2500/3500 SERIES WITH
DRUM BRAKES - REMOVAL, REAR
PARK...............................5-38
BRAKE CALIPERS - ASSEMBLY, DISC......5-12
BRAKE CALIPERS - CLEANING, DISC......5-12
BRAKE CALIPERS - DISASSEMBLY, DISC . . . 5-11
BRAKE CALIPERS - INSPECTION, DISC....5-12
BRAKE DRUM - ADJUSTMENT, REAR......5-34
BRAKE DRUM - DIAGNOSIS AND
TESTING............................5-33
BRAKE DRUM MACHINING - STANDARD
PROCEDURE.........................5-33
BRAKE FLUID CONTAMINATION -
DIAGNOSIS AND TESTING..............5-14
BRAKE FLUID LEVEL - STANDARD
PROCEDURE.........................5-14
BRAKE FLUID, SPECIFICATIONS..........5-15
BRAKE INDICATOR - DESCRIPTION,
BRAKE/PARK........................8J-16
BRAKE INDICATOR - DIAGNOSIS AND
TESTING...........................8J-16
BRAKE INDICATOR - OPERATION,
BRAKE/PARK........................8J-16
BRAKE LAMP SWITCH - DESCRIPTION....8L-4
BRAKE LAMP SWITCH - DIAGNOSIS
AND TESTING........................8L-5
BRAKE LAMP SWITCH - INSTALLATION....8L-5
BRAKE LAMP SWITCH - OPERATION......8L-4
BRAKE LAMP SWITCH - REMOVAL.......8L-5
BRAKE ROTOR - DIAGNOSIS AND
TESTING, DISC.......................5-20
BRAKE SHOES - 2500/3500 -
INSTALLATION, REAR DRUM IN HAT
PARK...............................5-42
BRAKE SHOES - 2500/3500 - REMOVAL,
REAR DRUM IN HAT PARK..............5-41
BRAKE SHOES-11 INCH - INSTALLATION,
REAR...............................5-27
BRAKE SHOES-11 INCH - REMOVAL,
REAR...............................5-25
BRAKE, SPECIFICATIONS - BASE..........5-2
BRAKE SYSTEM - DIAGNOSIS AND
TESTING, BASE........................5-5
BRAKE/PARK BRAKE INDICATOR -
DESCRIPTION
.......................8J-16
BRAKE/PARK BRAKE INDICATOR -
OPERATION
.........................8J-16
BRAKES - DESCRIPTION, 2500/3500
WITH REAR DISC
.....................5-35
BRAKES - INSPECTION, SERVICE
........30-17
BRAKES - INSTALLATION, REAR PARK
BRAKE CABLE - 2500/3500 WITH
REAR DISC
..........................5-38
BRAKES - INSTALLATION, REAR PARK
BRAKE CABLE 2500/3500 SERIES
WITH DRUM
.........................5-39
BRAKES - OPERATION, 2500/3500 WITH
REAR DISC
..........................5-36
BRAKES - REMOVAL, REAR PARK
BRAKE CABLE - 2500/3500 WITH
REAR DISC
..........................5-37
BRAKES - REMOVAL, REAR PARK
BRAKE CABLES 2500/3500 SERIES
WITH DRUM
.........................5-38
BRAKES, SPECIAL TOOLS - BASE
.........5-4
BREAKER - DESCRIPTION, CIRCUIT
....8W-97-4
BREAKER - DIAGNOSIS & TESTING,
CIRCUIT
.........................8W-97-4
BREAK-IN - STANDARD PROCEDURE,
A/C COMPRESSOR CLUTCH
............24-13BREATHER VAPOR CANISTER -
INSTALLATION, CRANKCASE............9-242
BREATHER VAPOR CANISTER -
REMOVAL, CRANKCASE...............9-241
BUCKLE - INSTALLATION, FRONT SEAT
BELT ..............................8O-20
BUCKLE - INSTALLATION, REAR SEAT
BELT ..............................8O-27
BUCKLE - REMOVAL, FRONT SEAT BELT . . 8O-20
BUCKLE - REMOVAL, REAR SEAT BELT . . . 8O-27
BUILT-IN INDICATOR TEST - STANDARD
PROCEDURE........................8F-11
BUMPER - DESCRIPTION, JOUNCE....2-28,2-9
BUMPER - INSTALLATION, FRONT........13-4
BUMPER - INSTALLATION, REAR.........13-5
BUMPER - INSTALLATION, SLAM........23-66
BUMPER - OPERATION, JOUNCE......2-28,2-9
BUMPER - REMOVAL, FRONT............13-3
BUMPER - REMOVAL, REAR.............13-5
BUMPER - REMOVAL, SLAM...........23-66
BUMPERS - DESCRIPTION..............13-1
BUMPER-SPORT - INSTALLATION,
FRONT..............................13-4
BUMPER-SPORT - REMOVAL, FRONT......13-4
BURNT FLUID - DIAGNOSIS AND
TESTING, CAUSES OF . . . 21-199,21-370,21-545,
21-715
BUS - DESCRIPTION, CCD DATA..........8E-6
BUS - DIAGNOSIS AND TESTING, CCD
D ATA................................8E-11
BUS - OPERATION, CCD DATA...........8E-7
BUSHING - INSTALLATION,
DISTRIBUTOR...............9-150,9-37,9-94
BUSHING - INSTALLATION, EXTENSION
HOUSING........21-198,21-369,21-544,21-714
BUSHING - REMOVAL, DISTRIBUTOR....9-150,
9-37,9-94
BUSHING - REMOVAL, EXTENSION
HOUSING........21-198,21-369,21-544,21-714
BUSHING AND SEAL - INSTALLATION,
EXTENSION HOUSING....21-850,21-885,21-921
BUSHING AND SEAL - REMOVAL,
EXTENSION HOUSING....21-850,21-885,21-921
BUSHINGS - INSTALLATION.............2-28
BUSHINGS - REMOVAL.................2-28
BYPASS HOSE WITH AIR CONDITIONING
- INSTALLATION, WATER PUMP..........7-77
BYPASS HOSE WITH AIR CONDITIONING
- REMOVAL, WATER PUMP..............7-74
BYPASS HOSE WITHOUT AIR
CONDITIONING - INSTALLATION,
WATER PUMP........................7-78
BYPASS HOSE WITHOUT AIR
CONDITIONING - REMOVAL, WATER
PUMP..............................7-77
CAB - INSTALLATION, CLUB/QUAD.......8O-20
CAB - INSTALLATION, STANDARD.......8O-19
CAB - REMOVAL, CLUB/QUAD..........8O-19
CAB - REMOVAL, STANDARD...........8O-18
CAB CHASSIS ADAPTER BRACKET -
INSTALLATION........................13-9
CAB CHASSIS ADAPTER BRACKET -
REMOVAL...........................13-9
CAB SIDE PANEL SPEAKER -
INSTALLATION, REAR.................8A-21
CAB SIDE PANEL SPEAKER - REMOVAL,
REAR..............................8A-20
CABLE - 2500/3500 WITH REAR DISC
BRAKES - INSTALLATION, REAR PARK
BRAKE..............................5-38
CABLE - 2500/3500 WITH REAR DISC
BRAKES - REMOVAL, REAR PARK
BRAKE..............................5-37
CABLE - ADJUSTMENTS,
TRANSMISSION THROTTLE VALVE.....21-254,
21-425,21-598,21-771
CABLE - DESCRIPTION.................8P-4
CABLE - DESCRIPTION, ANTENNA BODY . . . 8A-4
CABLE - DESCRIPTION, BATTERY........8F-19
CABLE - DESCRIPTION, SPARK PLUG.....8I-19
CABLE - DESCRIPTION, THROTTLE
VALVE
..........21-253,21-424,21-597,21-770
CABLE - INSTALLATION, CHECK
.........23-63
CABLE - INSTALLATION, FRONT
PARKING BRAKE
......................5-39
CABLE - INSTALLATION, INSTRUMENT
PANEL ANTENNA
.....................8A-10
CABLE - INSTALLATION, LATCH RELEASE
. 23-101
BR/BEINDEX 5
Description Group-Page Description Group-Page Description Group-Page

COVER(S) - INSPECTION, CYLINDER
HEAD............9-138,9-194,9-24,9-253,9-81
COVER(S) - INSTALLATION, CYLINDER
HEAD............9-138,9-194,9-24,9-253,9-81
COVER(S) - INSTALLATION, TIMING
BELT / CHAIN.........9-113,9-169,9-226,9-56
COVERS - INSTALLATION, WHEEL.......30-10
COVER(S) - REMOVAL, CYLINDER HEAD . 9-138,
9-194,9-24,9-253,9-81
COVER(S) - REMOVAL, TIMING BELT /
CHAIN...............9-113,9-169,9-225,9-56
COWL GRILLE - INSTALLATION.........23-90
COWL GRILLE - REMOVAL.............23-90
COWL TRIM COVER - INSTALLATION....23-120
COWL TRIM COVER - REMOVAL.......23-119
COWL WEATHERSTRIP - INSTALLATION . 23-153
COWL WEATHERSTRIP - REMOVAL.....23-153
C-PILLAR TRIM - INSTALLATION.......23-128
C-PILLAR TRIM - REMOVAL...........23-128
CRANKCASE BREATHER VAPOR
CANISTER - INSTALLATION.............9-242
CRANKCASE BREATHER VAPOR
CANISTER - REMOVAL................9-241
CRANKCASE VENT HOSE - OPERATION . . . 25-32
CRANKSHAFT - DESCRIPTION . 9-145,9-275,9-31,
9-88
CRANKSHAFT - INSTALLATION....9-145,9-203,
9-32,9-89
CRANKSHAFT - OPERATION....9-145,9-31,9-88
CRANKSHAFT - REMOVAL . . 9-145,9-202,9-31,9-88
CRANKSHAFT JOURNAL CLEARANCE -
STANDARD PROCEDURE, CONNECTING
ROD BEARING.......................9-274
CRANKSHAFT MAIN BEARING FITTING -
STANDARD PROCEDURE...........9-146,9-90
CRANKSHAFT MAIN BEARINGS -
DESCRIPTION...............9-146,9-32,9-90
CRANKSHAFT MAIN BEARINGS -
INSTALLATION.........9-147,9-204,9-34,9-90
CRANKSHAFT MAIN BEARINGS -
OPERATION.................9-146,9-32,9-90
CRANKSHAFT MAIN BEARINGS -
REMOVAL.............9-147,9-204,9-33,9-90
CRANKSHAFT OIL SEAL - FRONT -
DESCRIPTION...............9-147,9-34,9-91
CRANKSHAFT OIL SEAL - FRONT -
INSTALLATION.........9-148,9-277,9-34,9-91
CRANKSHAFT OIL SEAL - FRONT -
OPERATION.................9-147,9-34,9-91
CRANKSHAFT OIL SEAL - FRONT -
REMOVAL.............9-147,9-276,9-34,9-91
CRANKSHAFT OIL SEAL - REAR -
DESCRIPTION...............9-148,9-34,9-91
CRANKSHAFT OIL SEAL - REAR -
INSTALLATION....9-149,9-206,9-278,9-35,9-92
CRANKSHAFT OIL SEAL - REAR -
OPERATION.................9-148,9-34,9-92
CRANKSHAFT OIL SEAL - REAR -
REMOVAL........9-149,9-206,9-278,9-35,9-92
CRANKSHAFT REAR OIL SEAL RETAINER
- INSTALLATION................9-206,9-279
CRANKSHAFT REAR OIL SEAL RETAINER
- REMOVAL....................9-206,9-278
CROSSHEADS - CLEANING.............9-249
CROSSHEADS - INSPECTION...........9-250
CRUISE INDICATOR - DESCRIPTION......8J-18
CRUISE INDICATOR - OPERATION.......8J-18
CUBBY BIN - INSTALLATION...........23-110
CUBBY BIN - REMOVAL..............23-110
CUMMINS TURBO DIESEL -
DESCRIPTION, MAINTENANCE
SCHEDULES - 24-VALVE................0-22
CUP HOLDER - INSTALLATION.........23-111
CUP HOLDER - REMOVAL.............23-110
CUSHION - INSTALLATION, SEAT.......23-138
CUSHION - REMOVAL, SEAT...........23-138
CUSHION COVER - INSTALLATION, SEAT . 23-139
CUSHION COVER - REMOVAL, SEAT.....23-139
CUSHION COVER - SPLIT BENCH -
INSTALLATION, SEAT.................23-140
CUSHION COVER - SPLIT BENCH -
REMOVAL, SEAT....................23-139
CYLINDER - DESCRIPTION, MASTER
......5-29
CYLINDER - DIAGNOSIS AND TESTING,
IGNITION SWITCH AND KEY LOCK
.......19-10
CYLINDER - INSTALLATION, LOCK
.......23-73
CYLINDER - INSTALLATION, MASTER
.....5-30
CYLINDER - OPERATION, MASTER
........5-29CYLINDER - REMOVAL, LOCK...........23-73
CYLINDER - REMOVAL, MASTER.........5-30
CYLINDER BLEEDING - STANDARD
PROCEDURE, MASTER.................5-30
CYLINDER BORE HONING - STANDARD
PROCEDURE...........9-10,9-126,9-180,9-69
CYLINDER BORE REPAIR - STANDARD
PROCEDURE........................9-265
CYLINDER COMBUSTION PRESSURE
LEAKAGE - DIAGNOSIS AND TESTING....9-124,
9-179,9-67,9-9
CYLINDER COMPRESSION PRESSURE -
DIAGNOSIS AND TESTING . 9-124,9-179,9-67,9-9
CYLINDER COVER GASKET -
DESCRIPTION........................9-79
CYLINDER HEAD - CLEANING . 9-137,9-193,9-23,
9-248,9-80
CYLINDER HEAD - DESCRIPTION . . 9-136,9-191,
9-22,9-246,9-79
CYLINDER HEAD - INSPECTION....9-137,9-193,
9-23,9-250,9-80
CYLINDER HEAD - INSTALLATION . . 9-137,9-193,
9-23,9-250,9-80
CYLINDER HEAD - OPERATION . . 9-136,9-22,9-79
CYLINDER HEAD - REMOVAL . 9-137,9-192,9-23,
9-246,9-80
CYLINDER HEAD COVER GASKET -
DESCRIPTION........................9-22
CYLINDER HEAD COVER GASKET -
OPERATION..........................9-22
CYLINDER HEAD COVER(S) - CLEANING . . 9-138,
9-194,9-24,9-253,9-81
CYLINDER HEAD COVER(S) -
DESCRIPTION.......................9-194
CYLINDER HEAD COVER(S) -
INSPECTION......9-138,9-194,9-24,9-253,9-81
CYLINDER HEAD COVER(S) -
INSTALLATION....9-138,9-194,9-24,9-253,9-81
CYLINDER HEAD COVER(S) - REMOVAL . . 9-138,
9-194,9-24,9-253,9-81
CYLINDER HEAD GASKET FAILURE -
DIAGNOSIS AND TESTING....9-136,9-191,9-22,
9-79
CYLINDER HOUSING - INSTALLATION,
LOCK..............................19-11
CYLINDER HOUSING - REMOVAL, LOCK . . 19-10
CYLINDER LOCK SWITCH -
DESCRIPTION, DOOR..................8N-5
CYLINDER LOCK SWITCH - DIAGNOSIS
& TESTING, DOOR....................8N-5
CYLINDER LOCK SWITCH -
INSTALLATION, DOOR.................8N-6
CYLINDER LOCK SWITCH - OPERATION,
DOOR..............................8N-5
CYLINDER LOCK SWITCH - REMOVAL,
DOOR..............................8N-6
CYLINDER/POWER BOOSTER -
DIAGNOSIS AND TESTING, MASTER......5-29
CYLINDERS - ASSEMBLY, WHEEL.........5-31
CYLINDERS - CLEANING, WHEEL.........5-31
CYLINDERS - DESCRIPTION, LOCK.......23-1
CYLINDERS - DISASSEMBLY, WHEEL......5-31
CYLINDERS - INSPECTION, WHEEL.......5-31
CYLINDERS - INSTALLATION, WHEEL.....5-32
CYLINDERS - REMOVAL, WHEEL.........5-31
DAM - INSTALLATION, FRONT AIR........13-2
DAM - REMOVAL, FRONT AIR...........13-1
DAMAGED OR WORN THREADS -
STANDARD PROCEDURE,
REPAIR ..........9-11,9-125,9-181,9-238,9-68
DAMPER - INSPECTION, VIBRATION.....9-289
DAMPER - INSTALLATION,
VIBRATION.......9-156,9-212,9-289,9-42,9-99
DAMPER - REMOVAL,
VIBRATION.......9-155,9-212,9-289,9-42,9-99
DATA BUS - DESCRIPTION, CCD..........8E-6
DATA BUS - DIAGNOSIS AND TESTING,
CCD ...............................8E-11
DATA BUS - OPERATION, CCD...........8E-7
DATA LINK CONNECTOR - DESCRIPTION . . 8E-12
DATA LINK CONNECTOR - OPERATION
....8E-12
DATA PLATE - DESCRIPTION, ENGINE
....9-244
DATA PLATE, SPECIFICATIONS - FUEL
INJECTION PUMP
....................14-73
DAY / NIGHT MIRROR - DESCRIPTION,
AUTOMATIC
........................8N-10
DAY / NIGHT MIRROR - INSTALLATION,
AUTOMATIC
........................8N-12DAY / NIGHT MIRROR - OPERATION,
AUTOMATIC........................8N-11
DAY / NIGHT MIRROR - REMOVAL,
AUTOMATIC........................8N-12
DAY/NIGHT MIRROR - DIAGNOSIS AND
TESTING, AUTOMATIC................8N-11
DAYTIME RUNNING LAMP MODULE -
DESCRIPTION........................8L-9
DAYTIME RUNNING LAMP MODULE -
INSTALLATION........................8L-9
DAYTIME RUNNING LAMP MODULE -
OPERATION..........................8L-9
DAYTIME RUNNING LAMP MODULE -
REMOVAL...........................8L-9
DECALS - INSTALLATION..............23-63
DECALS - INSTALLATION, BODY
STRIPES...........................23-87
DECALS - REMOVAL..................23-63
DECALS - REMOVAL, BODY STRIPES.....23-87
DEFINITION - DESCRIPTION, TRIP.......25-18
DEFROSTER AND DEMISTER DUCT
ADAPTER - INSTALLATION.............24-35
DEFROSTER AND DEMISTER DUCT
ADAPTER - REMOVAL.................24-35
DEFROSTER AND DEMISTER DUCTS -
INSTALLATION.......................24-35
DEFROSTER AND DEMISTER DUCTS -
REMOVAL..........................24-34
DE-GLAZE - STANDARD PROCEDURE-
CYLINDER BORE.....................9-264
DELIVERY - DIESEL - OPERATION, FUEL . . 14-56
DELIVERY - SPECIFICATIONS, TORQUE -
FUEL...............................14-4
DELIVERY STORAGE - DESCRIPTION,
PRE ...............................30-19
DELIVERY STORAGE - STANDARD
PROCEDURE, PRE....................30-20
DELIVERY SYSTEM - DESCRIPTION,
DIESEL FUEL........................14-54
DELIVERY SYSTEM - DESCRIPTION,
FUEL...............................14-2
DELIVERY SYSTEM - OPERATION, FUEL . . . 14-2
DEMAGNETIZING - STANDARD
PROCEDURE, COMPASS...............8M-5
DEMISTER DUCT ADAPTER -
INSTALLATION, DEFROSTER............24-35
DEMISTER DUCT ADAPTER - REMOVAL,
DEFROSTER.........................24-35
DEMISTER DUCTS - INSTALLATION,
DEFROSTER.........................24-35
DEMISTER DUCTS - REMOVAL,
DEFROSTER.........................24-34
DEMISTER DUCTS - REMOVAL,
INSTRUMENT PANEL..................24-37
DEMISTER GRILLES - INSTALLATION.....24-32
DEMISTER GRILLES - REMOVAL........24-31
DEPLOYMENT - STANDARD
PROCEDURE, SERVICE AFTER AN
AIRBAG.............................8O-4
DETECTION PUMP - DESCRIPTION, LEAK . 25-33
DETECTION PUMP - INSTALLATION,
LEAK..............................25-34
DETECTION PUMP - REMOVAL, LEAK....25-34
DIAGNOSIS - INTRODUCTION -
DIAGNOSIS AND TESTING, ENGINE . 9-118,9-173,
9-3
DIAGNOSIS - MECHANICAL - DIAGNOSIS
AND TESTING, ENGINE................9-232
DIAGNOSIS CHARTS - DIAGNOSIS AND
TESTING........21-149,21-320,21-492,21-663
DIAGNOSIS CHARTS - DIAGNOSIS AND
TESTING, SMOKE....................9-234
DIAGNOSIS, INTRODUCTION -
DIAGNOSIS AND TESTING-ENGINE........9-61
DIAGNOSTIC AND TESTING, CLUTCH.......6-2
DIAGNOSTIC TROUBLE CODES -
DESCRIPTION........................25-2
DIAGNOSTICS (OBD) - DIAGNOSIS AND
TESTING, ON-BOARD...................7-4
DIAGRAMS - DESCRIPTION, HOW TO
USE WIRING
......................8W-01-1
DIAGRAMS - HYDRAULIC SCHEMATICS,
SCHEMATICS
.....21-174,21-345,21-520,21-690
DIESEL - CLEANING, RADIATOR - 5.9L
....7-65
DIESEL - CLEANING, RADIATOR FAN -
5.9L
................................7-44
DIESEL - CLEANING, WATER PUMP -
5.9L
................................7-73
10 INDEXBR/BE
Description Group-Page Description Group-Page Description Group-Page
