2001 CHEVROLET VENTURE Owners Manual

5-20
9. Then fill the coolant recovery tank to the FULL
COLD mark.
10. Put the cap back on the coolant recovery tank.
If a Tire Goes Flat
It's unusual for a tire to ªblow outº while you're driving,
especially if you maintain your tires properly. If air goes
out of a tire, it's much more likely to leak out slowly.
But if you should ever have a ªblowout,º here are a few
tips about what to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot off
the accelerator pedal and grip the steering wheel firmly.
Steer to maintain lane position, and then gently brake
to a stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like
a skid and may require the same correction you'd use
in a skid. In any rear blowout, remove your foot from
the accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to go. It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop
-- well off the road if possible.
If a tire goes flat, the next part shows how to use your
jacking equipment to change a flat tire safely.

5-21

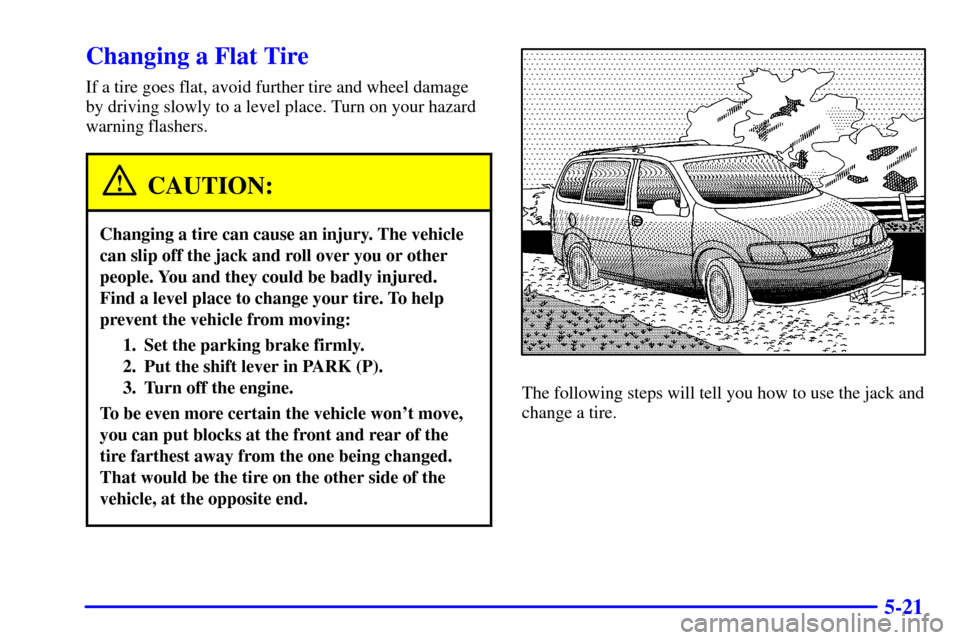

Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your hazard
warning flashers.
CAUTION:
Changing a tire can cause an injury. The vehicle
can slip off the jack and roll over you or other
people. You and they could be badly injured.
Find a level place to change your tire. To help
prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put the shift lever in PARK (P).
3. Turn off the engine.
To be even more certain the vehicle won't move,
you can put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side of the
vehicle, at the opposite end.
The following steps will tell you how to use the jack and
change a tire.

5-22 Removing the Spare Tire and Tools
The equipment you'll need
is located in the storage
compartment at the rear
of the vehicle, on the
passenger's side.
1. Remove the side convenience net.
2. Open the jack storage compartment by lifting up the
tab and pulling the cover off.
A. Jack
B. Strap
C. BracketD. Wing Nut
E. Jacking Instructions
F. Bag and Tools
Remove the jack and jacking tools by loosening the
wing nut and bracket.
Separate the plastic pouch from the jack and remove
the jacking tools (folding wrench and extension) from
the pouch.

5-23
A. Hoist Shaft
B. Hoist Assembly
C. Retainer
D. Spare TireE. Extension
(Chisel End)
F. Folding WrenchThe compact spare tire is located under the vehicle,
ahead of the rear bumper. (See ªCompact Spare Tireº
later in this section for more information about the
compact spare.) Attach the folding wrench to the
extension and insert the chisel end on an angle through
the hole in the rear bumper and into the hoist shaft.
Then, turn the folding wrench counterclockwise to
lower the spare tire to the ground. Continue to turn
the wrench so the spare tire can be pulled out from
under the vehicle.

5-24
Tilt the retainer at the end of the cable so it can be pulled
up through the wheel opening.
The tools you'll be using include the jack (A),
extension (B) and folding wrench (C).

5-25 Removing the Flat Tire and Installing the
Spare Tire
1. If your vehicle has
aluminum wheels,
use the handle of
the folding wrench
to pry the large
center cap.
Then, with the other end of the folding wrench,
loosen the nuts.
If your vehicle has the plastic ªbolt-onº wheel
covers, loosen them completely using the folding
wrench, and remove the wheel cover.

5-26
2. Loosen the wheel
nuts
-- but do not
remove them
-- using
the folding wrench.
(Turn the handle about
180 degrees, then flip
the handle back to the
starting position.
This avoids taking
the wrench off the
lug nut for each turn.)
For wheels with a wheel lock key, use the wheel lock
key between the lock nut and folding wrench. The key
is supplied in the front passenger's door pocket.NOTICE:
To help avoid damage to the lock nut or the
wheel lock key, do not use an impact wrench
with this key.

5-27
3. Near each wheel,
there is a notch in
the vehicle's body.
Position the jack
and raise the jack
head until it fits
firmly into the
notch in the
vehicle's frame
nearest the flat tire.
NOTICE:
Do not place the jack under the rear axle control
arms. Only use the areas shown for proper
jack location.
Do not raise the vehicle yet. Put the compact spare
tire near you.
CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall. To help avoid personal injury
and vehicle damage, be sure to fit the jack lift
head into the proper location before raising
the vehicle.
