2001 CHEVROLET VENTURE Owners Manual

3-24
Accessing RDS Stations:
1. Push the SEEK TYPE button or turn the P
-TYPE
LIST/AUDIO knob to display the program type list.
2. Turn the knob either clockwise or counterclockwise
to select a program type. The list is alphabetical.
If you select ANY TYPE your radio will seek to
the first PTY available.
3. Push the SEEK TYPE button to activate search.
TRAF: Press this button to receive traffic
announcements. If the current tuned station does not
broadcast traffic announcements, the radio will seek to a
station that does. The traf icon will flash on the display.
When the radio finds a station that broadcasts traffic
announcements, it will stop. If no station is found,
NO TRAF will appear on the display.
Traffic Interrupt Feature: Your radio can be
programmed to interrupt the playback of a cassette tape,
CD or FM radio by enabling the traffic interrupt feature.
Press the TRAF button once to seek to an RDS station
that supports the traffic interrupt feature if the current
tuned station does not. The traf icon will flash on the
display when seeking for a station that supports traffic
interrupt. When the traffic interrupt feature is on,
TRAF will appear on the display.When a traffic announcement comes on the tuned radio
station, you will hear it, even if the volume is muted or
a cassette tape or compact disc is playing. The traf icon
and TRAFFIC will appear on the display while the
traffic announcement plays. If the cassette tape or
compact disc player was being used, the tape or compact
disc will stay in the player and resume play at the point
where it stopped.
VOL: Turn this knob clockwise to increase volume when
RDS interrupts regular play. Turn it counterclockwise to
decrease volume.
INFO: If the current station has a message, INFO will
appear on the display. These text messages are from the
RDS broadcaster to the listening public and may be
general information such as artist and song title, call in
phone numbers, etc. Press this button to see the message.
If the whole message does not appear on the display,
parts of the message will appear every three seconds until
the message is completed. To scroll through the message
at your own speed press the INFO button again for less
than one second. A new group of words will appear
on the display. Once the complete message has been
displayed, INFO will disappear from the display until
another new message is received. The old message can
be displayed by pressing the INFO button until a new
message is received or a different station is tuned to.

3-25
P-TYPE LIST/AUDIO: Turn this knob clockwise or
counterclockwise to select the Program Type (PTY)
you want to listen to. TYPE and PTY will appear on the
display. Press the SEEK TYPE button and the radio will
seek to the first RDS broadcaster of the selected PTY.
If the radio cannot find the desired PTY, NONE will
appear on the display and the radio will return to the last
station you were listening to.
SEEK TYPE: Press this button to go to a station with
the last selected PTY. TYPE and the last selected PTY
will appear on the display, if it is not already showing.
Press SEEK TYPE a second time to seek. If a station
with the selected PTY is not found, the radio will return
to the original station and display NONE.
ALERT!: This type of announcement warns of national
or local emergencies. You will not be able to turn off alert
announcements. ALERT! appears on the display when an
alert announcement plays. When an alert announcement
comes on the tuned radio station, you will hear it, even if
the volume is muted or a cassette tape or compact disc
is playing. If the cassette tape or compact disc player is
playing, play will stop for the announcement and resume
when the announcement is finished.This function will only work during actual emergency
broadcasts, and will not work during tests of the
emergency broadcast system. This feature is not
supported by all RDS stations.
ALTERNATE FREQUENCY: This RDS feature
allows the radio to switch frequencies to the best quality
station with the same programming. Alternate frequency
is off by default from the factory. Press and hold
AM FM for two seconds to turn alternate frequency
on or off. AF ON or AF OFF will appear on the display
and the radio will beep once. The radio will not switch
to other stations when alternate frequency is off.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes longer
than that are so thin they may not work well in this
player. The longer side with the tape visible should face
to the right. If the ignition is on, but the radio is off,
the tape can be inserted and will begin playing. A tape
symbol is shown on the display whenever a tape is
inserted. If you hear nothing but a garbled sound,
the tape may not be in squarely. Press EJT to remove
the tape and start over.

3-26
While the tape is playing, use the VOL, P-TYPE
LIST/AUDIO and SEEK controls just as you do for
the radio. The display will show TAPE and an arrow
showing which side of the tape is playing.
If you want to insert a tape when the ignition is off,
first press EJT or DISP.
If CHK TAPE appears on the radio display, the tape
won't play because of an error.
CHK TAPE may be displayed when the tape is tight
and the player can't turn the tape hubs. Remove the tape.
Hold the tape with the open end down and try to turn the
right hub counterclockwise with a pencil. Turn the tape
over and repeat. If the hubs do not turn easily, your
tape may be damaged and should not be used in the
player. Try a new tape to make sure your player is
working properly.
CHK TAPE may be displayed when the tape is broken.
Try a new tape.
CHK TAPE may be displayed when the tape is wrapped
around the tape head. Attempt to get the cassette out.
Try a new tape.
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.PREV (1): Press this button or the left SEEK arrow to
go to the previous selection on the tape if the selection
has been playing for less than three seconds. If the
PREV button or the left SEEK arrow is pressed and
the current selection has been playing for more than
13 seconds, it will go to the beginning of the current
selection. If the PREV button or the left SEEK arrow
is pressed and the current selection has been playing
from three to 13 seconds, it will go to the beginning of
the previous selection or the beginning of the current
selection, depending on the position on the tape. SEEK
and a ª
-1º will appear on the display while the cassette
player is in PREV mode. If PREV or the left SEEK
arrow is pressed additional times or held, the radio will
go to displayed number of previous selections up toª9º.
SEEK and a negative number will appear on the display.
Your tape must have at least three seconds of silence
between each selection for PREV to work. The sound
will mute while seeking.

3-27
NEXT (2): Press this button to go to the next selection
on the tape. If you press the button more than once, the
player will continue moving forward through the tape.
SEEK and a positive number will appear on the display.
Your tape must have at least three seconds of silence
between each selection for NEXT to work. To forward
through each selection press the right SEEK arrow.
The sound will mute while seeking.
REV (3): Press this button to reverse the tape rapidly.
Press it again to return to playing speed. The radio
will play the last selected station while the tape reverses.
The station frequency and REV will appear on the
display. You may select stations during REV operation
by using the TUNE, SEEK and the P SCAN controls.
FWD (4): Press this button to advance quickly to
another part of the tape. Press the button again to return
to playing speed. The radio will play the last selected
station while the tape advances. The station frequency
and FWD will appear on the display. You may select
stations during FWD operation by using the TUNE,
SEEK and the P SCAN controls.
SIDE (5): Press this button to play the other side of
the tape. TAPE and an up or down arrow will appear on
the display.
(6): Press this button to reduce background noise.
NR ON will appear on the display. Press it again to turn
Dolby off. NR OFF will appear on the display.
Dolby Noise Reduction is manufactured under a
license from Dolby Laboratories Licensing Corporation.
Dolby and the double
-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
SEEK: SEEK(right arrow) is the same as NEXT,
and SEEK (left arrow) is the same as PREV. If the
button is held or pressed more than once, the player will
continue moving forward or backward through the tape.
SEEK and a positive or negative number will appear on
the display.
AM FM: Press this button to play the radio when
a tape is in the player. The tape will stop but remain in
the player.
TAPE CD: With a tape in the player and the radio
playing, press this button to play a tape. Press AM FM
to return to the radio when a tape is playing. Press
TAPE CD to switch between the tape and compact disc
if both are loaded. The inactive tape or CD will remain
safely inside the radio for future listening.

3-28
EJT: Press this button located next to the cassette
slot to remove a tape. The radio will play. EJT may be
activated with the radio off. Cassette tapes may be
loaded with the radio off if this button is pressed first.
CLEAN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you clean
the player, press and hold the cassette eject button for
five seconds to reset the CLEAN indicator. The radio
display will display CLEANED to show the indicator
was reset.
Tight/Loose Tape Sensor Defeat
With the radio off and the ignition on, press and hold the
TAPE CD button to disable the tight/loose tape sensing
feature to enable play of some tape head cleaners and
portable CD adapters. The radio will display READY
and flash the cassette icon. The tight/loose tape sensing
feature will then be disabled until the next time a
cassette is ejected.Playing a Compact Disc
Insert a disc partway into the slot, label side up.
The player will pull it in. The disc should begin playing.
The display will show the CD symbol. If you want to
insert a compact disc with the ignition off, first press
DISP or EJT.
If you're driving on a very rough road or if it's very hot,
the disc may not play and CHECK CD may appear
on the display. When the road becomes smooth or the
temperature returns to normal, the disc should play.
If the disc comes out, it could be one of the following:

The disc is upside down.

It is dirty, scratched or wet.

It is very humid. (If so, wait about an hour
and try again.)
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.

3-29
PREV (1): Press this button or the left SEEK arrow
to go to the previous track if the current selection has
been playing for less than eight seconds. If the PREV
button or the left SEEK arrow is pressed and the current
selection has been playing for more than eight seconds,
it will go to the beginning of the current selection.
TRACK and the track number will appear on the
display. If you hold the button or press it more than
once, the player will continue moving back through the
disc. The sound will mute while seeking.
NEXT (2): Press this button or the right SEEK arrow to
go to the next track. TRACK and the track number will
appear on the display. If you hold the button or the right
SEEK arrow, or press it more than once, the player will
continue moving forward through the disc. The sound
will mute while seeking.
REV (3): Press and hold this button to reverse quickly
within a track. Press and hold this button for less than
two seconds to reverse at six times the normal playing
speed. Press and hold it for more than two seconds to
reverse at 17 times the normal playing speed. Release it
to play the passage. The display will show ET and the
elapsed time.FWD (4): Press and hold this button to advance quickly
within a track. Press and hold this button for less than
two seconds to advance at six times the normal playing
speed. Press and hold it for more than two seconds to
advance at 17 times the normal playing speed. Release it
to play the passage. The display will show ET and the
elapsed time.
CD (5): With a compact disc in the player and the
radio playing, press this button to play a compact disc.
Press AM FM to return to the radio when a compact disc
is playing. The inactive CD will remain safely inside the
radio for future listening.
RDM (6): Press this button to hear the tracks in random,
rather than sequential, order. RDM ON will show on the
display. RDM T and the track number will appear on the
display when each track starts to play. Press RDM again
to turn off random play. RDM OFF will appear on
the display.
SEEK: Press the SEEK (left arrow) button to go to
the start of the current or previous track. Press the SEEK
(right arrow) button to go to the start of the next track.
If either of the SEEK buttons is held or pressed more
then once, the player will continue moving backward or
forward through the CD.

3-30
DISP: Press this button to see how long the current track
has been playing. ET and the elapsed time will appear on
the display. To change what is normally shown on the
display (track or elapsed time), press the button until
you see the display you want, then hold the button for
two seconds. The radio will produce one beep.
AM FM: Press this button to play the radio when a
disc is in the player. The disc will stop but remain in
the player.
TAPE CD: With a CD in the player and the radio
playing, press this button to play a CD. Press AM FM
to return to the radio when a CD is playing. Press TAPE
CD to switch between the tape and compact disc if both
are loaded. The inactive tape or CD will remain safely
inside the radio for future listening.
EJT: Press this button located below the CD slot
to remove the disc. The radio will play. EJT may be
activated with either the ignition or radio off.
CDs may be loaded with the radio and ignition off
if this button is pressed first.
CAL ERR: This message is displayed when the
radio has not been calibrated properly for the vehicle.
You must return to the dealership for service.
LOCKED: This message is displayed when the
THEFTLOCK

system has locked up. You must
return to the dealership for service.

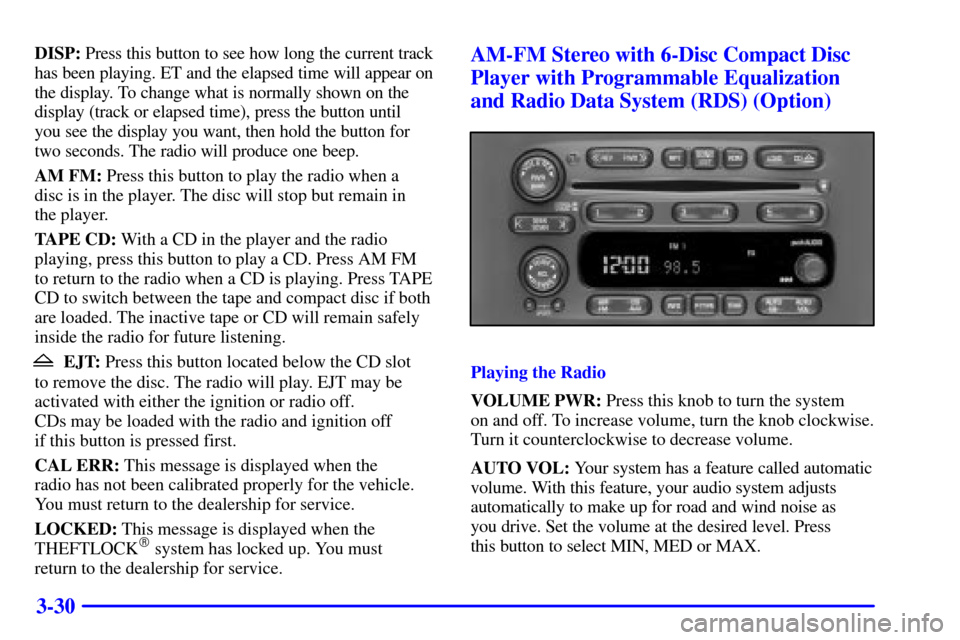

AM-FM Stereo with 6-Disc Compact Disc
Player with Programmable Equalization
and Radio Data System (RDS) (Option)
Playing the Radio
VOLUME PWR: Press this knob to turn the system
on and off. To increase volume, turn the knob clockwise.
Turn it counterclockwise to decrease volume.
AUTO VOL: Your system has a feature called automatic
volume. With this feature, your audio system adjusts
automatically to make up for road and wind noise as
you drive. Set the volume at the desired level. Press
this button to select MIN, MED or MAX.

3-31
Each choice allows for more volume compensation at
faster vehicle speeds. Then, as you drive, automatic
volume automatically increases the volume, as necessary,
to overcome noise at any particular speed. The volume
level should always sound the same to you as you drive.
If you don't want to use automatic volume, select OFF.
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to select radio stations.
SEEK: Press the right or left arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.
SCAN: Press and hold either SEEK SCAN arrow for
two seconds until SC appears on the display and you
hear a beep. Use SCAN to listen to stations for a few
seconds. The radio will go to a station, stop for a few
seconds, then go on to the next station. Press either
SEEK SCAN arrow again to stop scanning. If you
press SEEK SCAN for more than four seconds, the
radio will change to preset scan mode. The sound will
mute while scanning.PUSHBUTTONS: The six numbered pushbuttons
let you return to your favorite stations. You can set up
to 18 stations (six AM, six FM1 and six FM2) by
performing the following steps:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press AUTO EQ to select the equalization that best
suits the type of station selected.
5. Press and hold one of the six numbered buttons
until you hear a beep. Whenever you press that
numbered button, the station you set will return
and the equalization that you selected will also be
automatically selected for that button.
6. Repeat the steps for each pushbutton.
PRESET SCAN: Press and hold either SEEK SCAN
arrow for more than four seconds, PRESET SCAN will
appear on the display. You will hear a double beep and
the ªPº will blink with the preset number. Use PRESET
SCAN to listen to each of your preset stations for a few
seconds. The radio will go to a preset station stored on
your pushbuttons, stop for a few seconds, then go on to
the next preset station. Press either SEEK SCAN arrow
again to stop scanning presets.
