2001 CHEVROLET CAVALIER Owners Manual

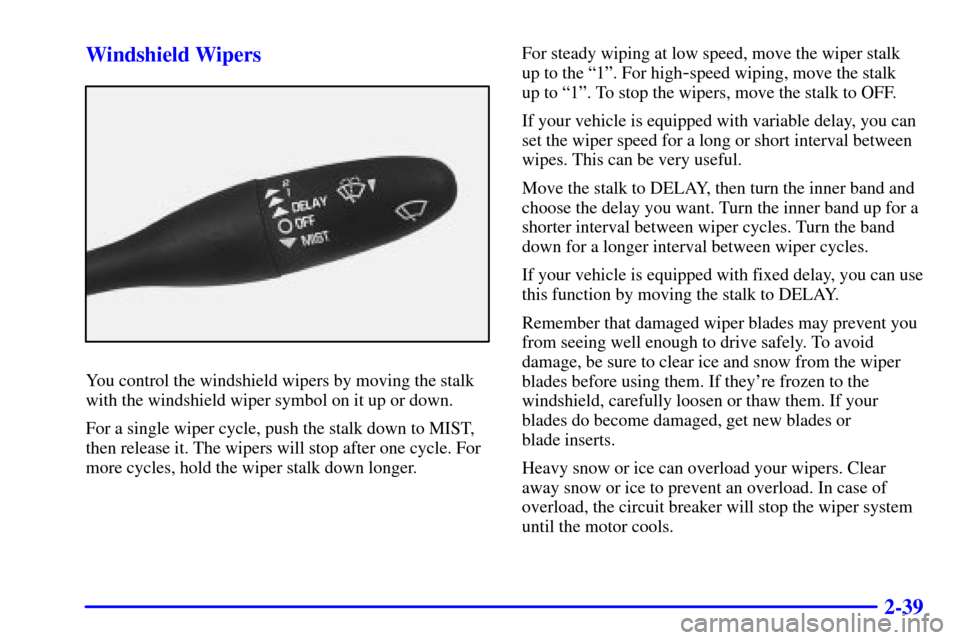

2-39 Windshield Wipers
You control the windshield wipers by moving the stalk
with the windshield wiper symbol on it up or down.
For a single wiper cycle, push the stalk down to MIST,
then release it. The wipers will stop after one cycle. For
more cycles, hold the wiper stalk down longer.For steady wiping at low speed, move the wiper stalk
up to the ª1º. For high
-speed wiping, move the stalk
up to ª1º. To stop the wipers, move the stalk to OFF.
If your vehicle is equipped with variable delay, you can
set the wiper speed for a long or short interval between
wipes. This can be very useful.
Move the stalk to DELAY, then turn the inner band and
choose the delay you want. Turn the inner band up for a
shorter interval between wiper cycles. Turn the band
down for a longer interval between wiper cycles.
If your vehicle is equipped with fixed delay, you can use
this function by moving the stalk to DELAY.
Remember that damaged wiper blades may prevent you
from seeing well enough to drive safely. To avoid
damage, be sure to clear ice and snow from the wiper
blades before using them. If they're frozen to the
windshield, carefully loosen or thaw them. If your
blades do become damaged, get new blades or
blade inserts.
Heavy snow or ice can overload your wipers. Clear
away snow or ice to prevent an overload. In case of
overload, the circuit breaker will stop the wiper system
until the motor cools.

2-40 Windshield Washer
To wash your windshield, pull the stalk with the wiper
symbol on it toward you one time. When you release the
stalk, the washers will stop. The wipers continue wiping
for approximately three cycles and will either stop or
will resume the speed you were using before.
CAUTION:
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
Cruise Control (If Equipped)
With cruise control, you can maintain a speed of about
25 mph (40 km/h) or more without keeping your foot
on the accelerator. This can really help on long trips.
Cruise control does not work at speeds below
about 25 mph (40 km/h).
When you apply your brakes, or the clutch pedal if you
have a manual transaxle, the cruise control shuts off.

2-41
CAUTION:

Cruise control can be dangerous where you
can't drive safely at a steady speed. So,
don't use your cruise control on winding
roads or in heavy traffic.

Cruise control can be dangerous on
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and you could lose control. Don't
use cruise control on slippery roads.
If your vehicle is in cruise control when the optional
enhanced traction system begins to limit wheel spin, the
cruise control will automatically disengage. See
ªEnhanced Traction Systemº in the Index. When road
conditions allow you to safely use it again, you may turn
the cruise control back on.Setting Cruise Control
CAUTION:
If you leave your cruise control switch on when
you're not using cruise, you might hit a button
and go into cruise when you don't want to. You
could be startled and even lose control. Keep the
cruise control switch off until you want to use
cruise control.
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
3. Push the SET button at the end of the lever and
release it.
4. Take your foot off the accelerator pedal.

2-42
Resuming a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake or clutch pedal. This, of
course, shuts off the cruise control. But you don't need
to reset it. Once you're going about 25 mph (40 km/h)
or more, you can briefly move the cruise control switch
from ON to R/A.
You'll go right back up to your chosen speed and
stay there.
If you hold the switch at R/A longer, the vehicle will
keep going faster until you release the switch or apply
the brake or clutch pedal. So unless you want to go
faster, don't hold the switch at R/A.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed:

Use the accelerator pedal to get to a higher speed.
Push the SET button at the end of the lever, then
release the button and the accelerator pedal. You'll
now cruise at the higher speed.
Move the cruise control switch from ON to R/A.
Hold it there until you get up to the speed you want,
and then release the switch. To increase your speed
in very small amounts, briefly move the switch to
R/A then release it. Each time you do this, your
vehicle will go about 1 mph (1.6 km/h) faster.
Reducing Speed While Using Cruise Control
There are two ways to reduce your speed while using
cruise control:

Push in the button at the end of the lever until you
reach the lower speed you want, then release it.

To slow down in very small amounts, briefly press
the button. Each time you do this, you'll go about
1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.

2-43
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness of the hills.
When going up a steep hill, you may have to step on the
accelerator pedal to maintain your speed. When going
downhill, you may have to brake or shift to a lower gear
to keep your speed down. Of course, applying the brake
or clutch pedal takes you out of cruise control. Many
drivers find this to be too much trouble and don't use
cruise control on steep hills.
Ending Cruise Control
There are several ways to turn off the cruise control:

Step lightly on the brake pedal, or push the clutch
pedal, if you have a manual transaxle, or

move the cruise switch to OFF.
Erasing Cruise Speed Memory
When you turn off the cruise control or the ignition,

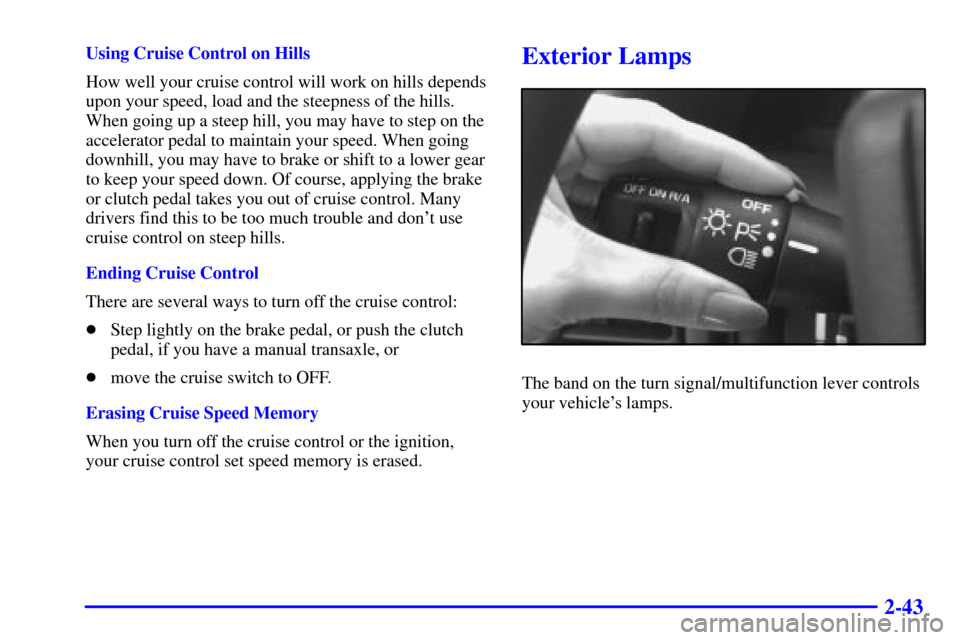

your cruise control set speed memory is erased.Exterior Lamps
The band on the turn signal/multifunction lever controls
your vehicle's lamps.

2-44 Parking Lamps
This position will turn on the following:

Parking Lamps

Sidemarker Lamps

Taillamps

Instrument Panel Lights
Headlamps
This position will turn on the following:

Headlamps

Parking Lamps

Sidemarker Lamps

Taillamps

Instrument Panel Lights
Turn the band rearward to turn the lamps off.
During periods of high humidity it may be normal for
slight condensation to build up in the lens housing. Any
condensation should dissipate after operating the lamp
for several hours.
Lamps On Reminder
If you open the driver's door with the ignition off and
the lamps on, you will hear a warning chime.
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset. Fully
functional daytime running lights are required on all
vehicles first sold in Canada.
The DRL system will make your high and low
-beam
headlamps come on at a reduced brightness in daylight
when the following conditions are met:

The ignition is on,

the headlamp switch is in OFF or parking
lamp position,

the parking brake is released, and

the transaxle is not in PARK (P) on models with an
automatic transaxle only.

2-45
This indicator light on your
instrument panel cluster
will come on when the DRL
are on.
A flashing DRL telltale indicates a possible burned out
headlamp, or that the vehicle may need service to repair
a stuck DRL relay.
When the DRL are on, your high and low
-beam
headlamps will be on at a reduced brightness. The
taillamps, sidemarker and other lamps won't be on.
Your instrument panel won't be lit up either.
When you turn on the headlamp switch, your high and
low
-beam headlamps will go out, and your low-beam
headlamps will come on. The other lamps that come on
with your headlamps will also come on.
When you turn off the headlamp switch, the regular
lamps will go off, and your high and low
-beam
headlamps will come on to the reduced brightness.
To idle your vehicle with the DRL off, set the parking
brake. The DRL will stay off until you release the
parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
Fog Lamps (If Equipped)
Use your fog lamps for
better vision in foggy or
misty conditions. The
switch for your fog lamps is
next to the instrument panel
intensity control.
Push the top of the switch to turn the fog lamps on. Push
the top of the switch again to turn the fog lamps off.
When using fog lamps, the parking lamps or low
-beam
headlamps must be on.
A light on the switch will come on when the fog lamps
are actually on. Fog lamps will go off whenever the
high
-beam headlamps come on. When the high-beam
headlamps go off, the fog lamps will come on again.

2-46
Interior Lamps
Instrument Panel Intensity Control
You can brighten or dim the
instrument panel lights by
turning the thumbwheel up
or down.
Turn the thumbwheel up all the way to turn on the
interior courtesy lamps.
Illuminated Entry
When you open either a front door or open a rear door,
the lamps inside your vehicle will go on. In addition, if
your vehicle is equipped with remote keyless entry, the
light will come on when the remote keyless entry
UNLOCK button is pressed.After you exit the vehicle and all of the doors have
been closed, the lamps will stay on for an additional
20 seconds before fading off. The lamps will also fade
to off when the key is inserted and turned to RUN or
ACCESSORY, or the lock button on the remote keyless
entry transmitter is pressed.
Front Reading Lamps (If Equipped)
These lamps are located on the rearview mirror. Turn
each one on and off by pressing its switch.
