2001 CHEVROLET CAMARO engine

6-15
5.7L V8 EngineAs in the chart shown previously, if you have the
5.7L V8 engine, SAE 5W
-30 is best for your vehicle.
However, you can use SAE 10W
-30 if it's going to be
0
F (
-18
C) or above. These numbers on an oil
container show its viscosity, or thickness. Do not use
other viscosity oils, such as SAE 20W
-50.
As shown in the following chart, if you have the
3800 V6 engine, SAE 10W
-30 is best for your vehicle.
However, you can use SAE 5W
-30 if it's going to be
colder than 60
F (16
C) before your next oil change.
When it's very cold, you should use SAE 5W
-30.
These numbers on an oil container show its viscosity, or
thickness. Do not use other viscosity oils, such
as SAE 20W
-50.

6-16
3800 V6 Engine
NOTICE:
Use only engine oil with the American Petroleum
Institute Certified For Gasoline Engines
starburst symbol. Failure to use the
recommended oil can result in engine damage not
covered by your warranty.
GM Goodwrench
oil meets all the requirements for
your vehicle.
If you are in an area where the temperature falls
below
-20F (-29C), consider using either an
SAE 5W
-30 synthetic oil or an SAE 0W-30 oil. Both
will provide easier cold starting and better protection for
your engine at extremely low temperatures.

6-17 Engine Oil Additives
Don't add anything to your oil. The recommended oils
with the starburst symbol are all you will need for good
performance and engine protection.
When to Change Engine Oil
Your vehicle has a computer that lets you know when to
change your engine oil. This is not based on mileage, but
on engine revolutions and engine operating temperature.
When the computer has calculated that the oil needs
changing, the GM Oil Life System
will indicate that a
change is necessary. The mileage between oil and filter
changes will vary depending on how you drive your
vehicle
-- usually between 3,000 miles (5 000 km) and
10,000 miles (16 000 km) since your last oil and filter
change. Under severe conditions, the system may come on
before 3,000 miles (5 000 km). Never drive your vehicle
more than 10,000 miles (16 000 km) or 12 months
(whichever occurs first) without an oil change.
The system won't detect dust in the oil. So, if you drive in
a dusty area, be sure to change your oil and filter every
3,000 miles (5 000 km) or sooner. Remember to reset the
OIL CHANGE light whenever the oil is changed.How to Reset the Oil Change Light
After changing the engine oil, the system must be reset.
1. Turn the ignition key to RUN with the engine
turned off.
2. Push the TRIP/OIL RESET button located on the
instrument panel for 12 seconds.The OIL CHANGE
light will start to flash to confirm that the system is
reset. The reset is complete when the OIL CHANGE
light goes out.
What to Do with Used Oil
Did you know that used engine oil contains certain elements
that may be unhealthy for your skin and could even cause
cancer? Don't let used oil stay on your skin for very long.
Clean your skin and nails with soap and water, or a good hand
cleaner. Wash or properly throw away clothing or rags
containing used engine oil. See the manufacturer's warnings
about the use and disposal of oil products.
Used oil can be a real threat to the environment. If you
change your own oil, be sure to drain all free
-flowing oil
from the filter before disposal. Don't ever dispose of oil by
putting it in the trash, pouring it on the ground, into
sewers, or into streams or bodies of water. Instead, recycle
it by taking it to a place that collects used oil. If you have
a problem properly disposing of your used oil, ask your
dealer, a service station or a local recycling center for help.

6-18

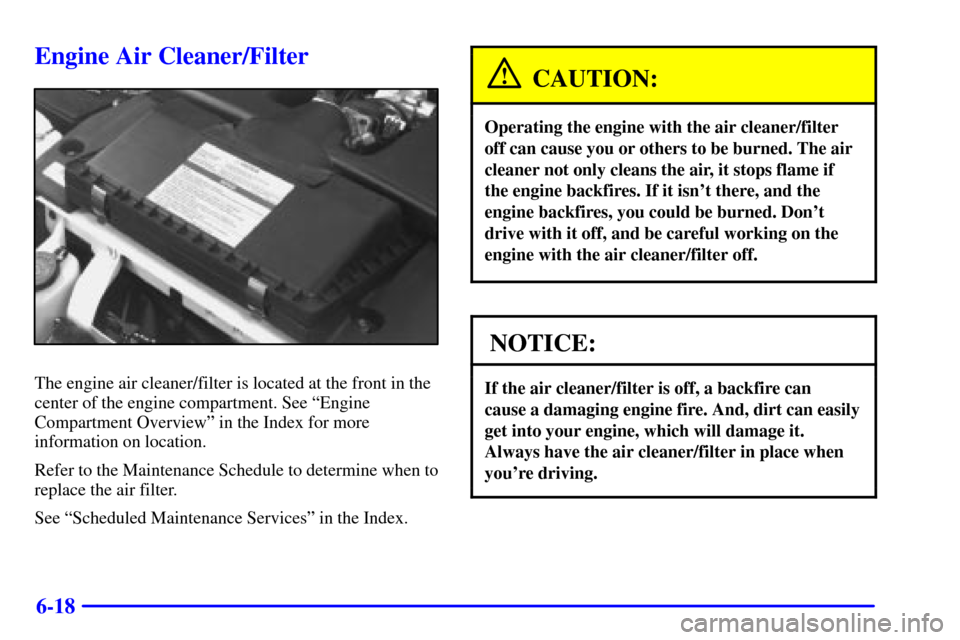

Engine Air Cleaner/Filter
The engine air cleaner/filter is located at the front in the
center of the engine compartment. See ªEngine
Compartment Overviewº in the Index for more
information on location.
Refer to the Maintenance Schedule to determine when to
replace the air filter.
See ªScheduled Maintenance Servicesº in the Index.
CAUTION:
Operating the engine with the air cleaner/filter
off can cause you or others to be burned. The air
cleaner not only cleans the air, it stops flame if
the engine backfires. If it isn't there, and the
engine backfires, you could be burned. Don't
drive with it off, and be careful working on the
engine with the air cleaner/filter off.
NOTICE:
If the air cleaner/filter is off, a backfire can
cause a damaging engine fire. And, dirt can easily
get into your engine, which will damage it.
Always have the air cleaner/filter in place when
you're driving.

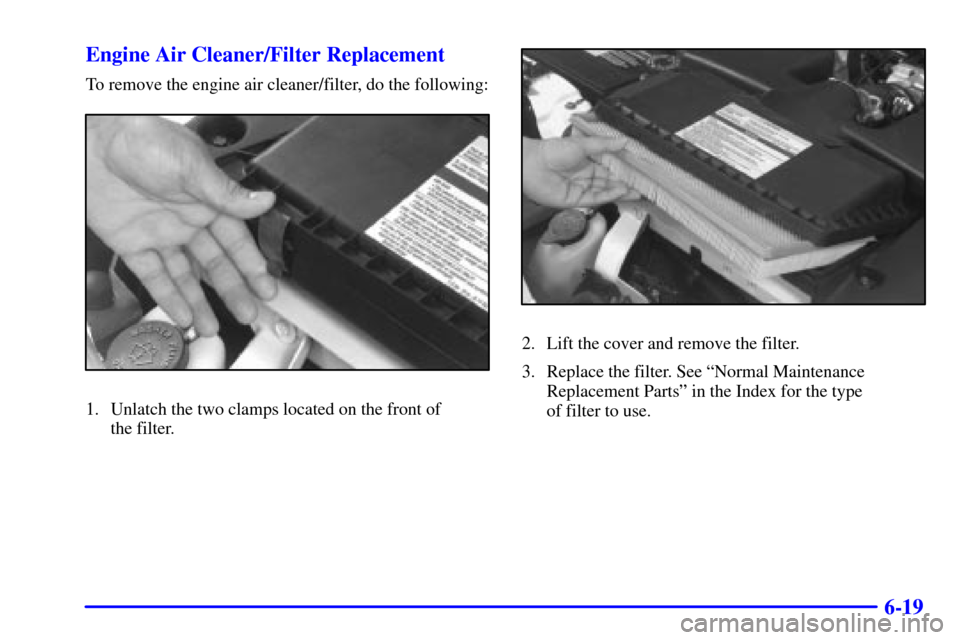

6-19 Engine Air Cleaner/Filter Replacement
To remove the engine air cleaner/filter, do the following:
1. Unlatch the two clamps located on the front of
the filter.
2. Lift the cover and remove the filter.
3. Replace the filter. See ªNormal Maintenance
Replacement Partsº in the Index for the type
of filter to use.

6-20
4. Close the cover without an overlap (clamp will not
latch with an overlap) and latch the clamps.
Automatic Transmission Fluid
When to Check and Change
A good time to check your automatic transmission fluid
level is when the engine oil is changed.
Change both the fluid and filter every 15,000 miles
(25 000 km) if the vehicle is mainly driven under one or
more of these conditions:

In heavy city traffic where the outside temperature
regularly reaches 90F (32C) or higher.

In hilly or mountainous terrain.

Uses such as high performance operation.

When doing frequent trailer towing.

Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of
these conditions, change the fluid and filter every
50,000 miles (83 000 km).
See ªScheduled Maintenance Servicesº in the Index.

6-21 How to Check
Because this operation can be a little difficult, you may
choose to have this done at the dealership service department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading on the dipstick.
NOTICE:
Too much or too little fluid can damage your
transmission. Too much can mean that some of
the fluid could come out and fall on hot engine
parts or exhaust system parts, starting a fire. Be
sure to get an accurate reading if you check your
transmission fluid.
Wait at least 30 minutes before checking the
transmission fluid level if you have been driving:

When outside temperatures are above 90F (32C).

At high speed for quite a while.

In heavy traffic
-- especially in hot weather.

While pulling a trailer.To get the right reading, the fluid should be
at normal operating temperature, which is
180F to 200F (82C to 93C).
Get the vehicle warmed up by driving about
15 miles (24 km) when outside temperatures are above
50F (10C). If it's colder than 50F (10C), drive
the vehicle in AUTOMATIC OVERDRIVE (
) until
the engine temperature gage moves and then remains
steady for 10 minutes.
A cold fluid check can be made after the vehicle has been
sitting for eight hours or more with the engine off, but
this is used only as a reference. Let the engine run at idle
for five minutes if outside temperatures are 50F (10C)
or more. If it's colder than 50F (10C), you may have to
idle the engine longer. Should the fluid level be low
during this cold check, you must check the fluid hot
before adding fluid. Checking the fluid hot will give you
a more accurate reading of the fluid level.

6-22
Checking the Fluid Level
Prepare your vehicle as follows:

Park your vehicle on a level place.
Keep the engine running.

With the parking brake applied, place the
shift lever in PARK (P).

With your foot on the brake pedal, move the
shift lever through each gear range, pausing for
about three seconds in each range. Then, position the
shift lever in PARK (P).

Let the engine run at idle for three minutes or more.Then, without shutting off the engine, follow these steps:
3800 V6 Dipstick 5.7L V8 Dipstick
The red transmission dipstick handle is located near
the back of the engine. See ºEngine Compartment
Overviewº in the Index for more information
on location.
1. Flip the handle up and then pull out the dipstick and
wipe it with a clean rag or paper towel.
2. Push it back in all the way, wait three seconds and
then pull it back out again.
