2001 BUICK PARK AVENUE Owner's Manual

6-66
Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment can
keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of damage
caused by electrical problems.
Look at the silver
-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
There are three fuse blocks in your vehicle: the
instrument panel fuse block located under the instrument
panel, the underhood fuse block located on the
passenger's side engine compartment and the rear fuse
block, located under the rear seat.

6-67
Instrument Panel Fuse Block and Bussed Electrical
Center (BEC)
The instrument panel fuse block and BEC are located
on the passenger's side of the vehicle, under the
instrument panel.
Remove the hush panel on the passenger's side to reveal
the fuses. To remove the panel, do the following:
1. Remove the two 7 mm screws located along the front
edge of the panel.
2. Lower the hush panel.
3. Remove the cover. Now you can see the fuses and
replace them.
4. Place the wide end of the fuse puller over the plastic
end of the fuse.
5. Squeeze the ends over the fuse and pull it out.
When finished, reinstall the hush panel. Reinstall lamps,
connectors, and HVAC duct temperature sensors if they
were removed.Instrument Panel Fuse Block
Fuse Usage
SBM Interior Lamps
PDM PDM Module
A/C HVAC Motor, HVAC Mix Motors

6-68
Fuse Usage
IGN SEN EC Mirror, Driver HTS Seat,
Rear Defog Relay, MEM Module,
Cool LVL Sensor,
Pass Heated Seat
ELC HVAC Flat Pk Mtrs, ELC Sensor,
ELC Sensor (R Bec)
ABS Anti
-Lock Brake System Module
HVAC HVAC Main Con Head,
HVAC Programmer, IPC
CR CONT Stepper Motor CR, Cruise Switch
HUD HUD Switch, HUD Display
CSTR/SBM HVAC Programmer,
IPC (Cluster),
SBM (275 to LCM)
(1135 to BTSI SL)Fuse Usage
LP PK L Underhood Lamp, L PK/
Sidemarker, L Park/Turn Lamp,
SBM, L Tail Signal Lamp,
L Tail/Stoplamp,
L Rear Sidemarker
LP PK R Rt Pk/Sidemarker Lamp,
Rt PK/Turn Lamp, Rt Tail/Sign
Lamp, Rt Tail/Stoplamp, Rt Rear
Sidemarker, Stop/Taillamp,
Tail/Signal Lamp,
License Lamp, RFA
RUN Run/Accessory
WSW Wiper Motor
Blank Not Used
WSW/RFA Wiper Switch, RFA, Rain Sense
B/U LP EC Mirror, Back
-Up Lamps

6-69
Instrument Panel Bussed Electrical Center (BEC)
Fuse Usage
PERIM LP Perimeter Lamps
ACCY Accessory
IGN 3 Ignition 3Underhood Fuse Block
There are additional fuses located on the passenger's
side of the engine compartment.
To check the fuses in this underhood fuse center, turn
the knob counterclockwise and remove the cover. There
is a chart inside the cover that explains the features and
controls governed by each fuse and relay.

6-70
Minifuses Usage
1 Air Sol
2 SBM, LCM
3 Turn Signal
4
Pre
-Oxygen Sensor,
Post
-Oxygen Sensor
5 Air Bag (SIR)
6 PCMMinifuses Usage
7 AC Clutch
8 Ignition Feed
9 Horn Relay
10 Spare
11 Spare
12
Injectors #1
-6
13
C
-31
14 Right High Beam
15 Spare
16 Left High Beam
17 Spare
18 Right Low Beam
19 Left Low Beam
20 Stop
21 Fuel Pump Relay (Wire in BEC)
22 Run/CRK
23 PCM

6-71
Minifuses Usage
24 Parking Lamp
25 Hazard Flashers
26 Spare
27 Spare
28 ABS #2
Mini Relays Usage
29 Ignition
30 Horn
31 Cool Fan #2
32 Starter
33 Air Pump
34 Cool Fan SP
35 Cool Fan 1Micro Relays Usage
36 A/C CLU
37 Fuel Pump
Maxifuses Usage
38 Bat #1
39 Blower Motor
40 Cool Fan 2
41 Headlamp
42 BAT #2
43 Ignition
44 Starter
45 ABS
46 Fuse Puller

6-72

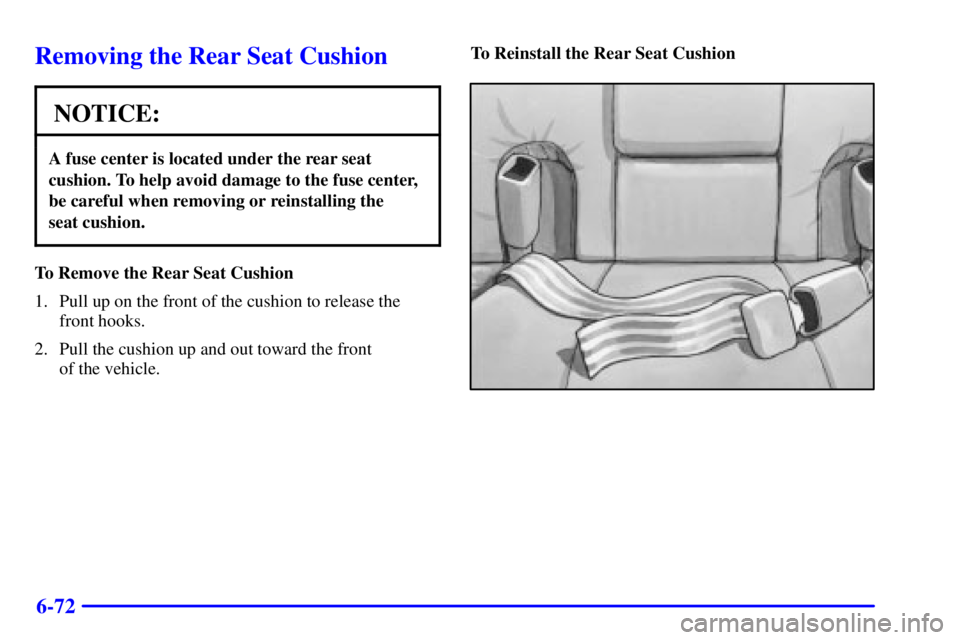

Removing the Rear Seat Cushion
NOTICE:
A fuse center is located under the rear seat
cushion. To help avoid damage to the fuse center,
be careful when removing or reinstalling the
seat cushion.
To Remove the Rear Seat Cushion
1. Pull up on the front of the cushion to release the
front hooks.
2. Pull the cushion up and out toward the front
of the vehicle.To Reinstall the Rear Seat Cushion

6-73

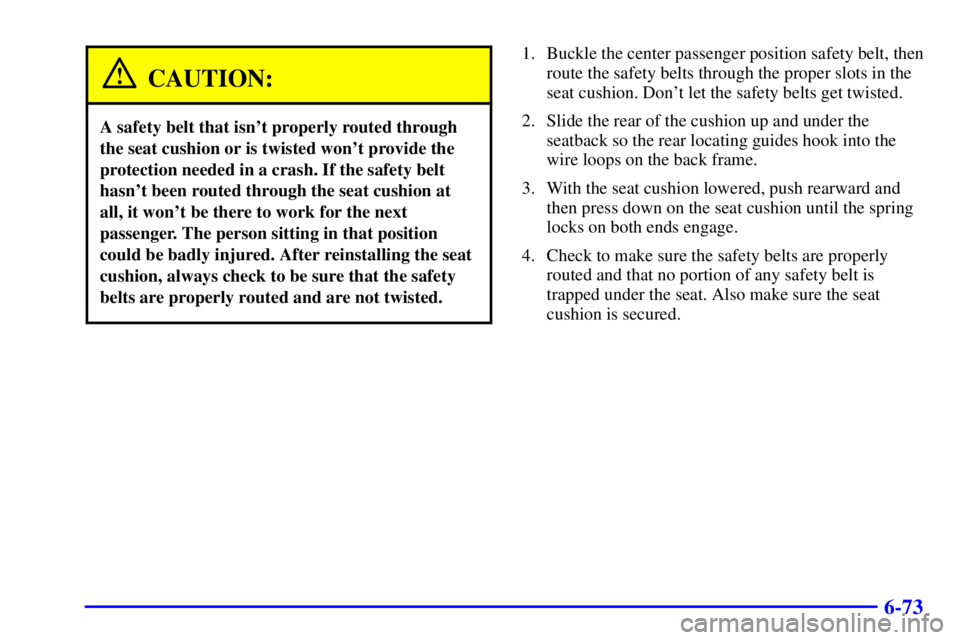

CAUTION:
A safety belt that isn't properly routed through
the seat cushion or is twisted won't provide the
protection needed in a crash. If the safety belt
hasn't been routed through the seat cushion at
all, it won't be there to work for the next
passenger. The person sitting in that position
could be badly injured. After reinstalling the seat
cushion, always check to be sure that the safety
belts are properly routed and are not twisted.
1. Buckle the center passenger position safety belt, then
route the safety belts through the proper slots in the
seat cushion. Don't let the safety belts get twisted.
2. Slide the rear of the cushion up and under the
seatback so the rear locating guides hook into the
wire loops on the back frame.
3. With the seat cushion lowered, push rearward and
then press down on the seat cushion until the spring
locks on both ends engage.
4. Check to make sure the safety belts are properly
routed and that no portion of any safety belt is
trapped under the seat. Also make sure the seat
cushion is secured.
