Page 49 of 107
Front head restraints Height adjustment: slide the head restraint. The adjustment is correct when the upper edge of the head restraint isat the same height as the top of thehead. This adjustment avoidsexcessive movement of the headrearwards, in cases of rear impact. Adjustment of angle*: tilt the head restraint.
To remove the head restraint: posi- tion it at maximum height, press thetwo lugs then remove the headrestraint.
Warning:never drive with the head
restraints removed; they must be in place and correctly adjusted.
Adjustment of front seats Forwards/backwards adjustment: lift control
1, slide the seat, then let go to lock.
Adjustment of seat back:push control 2rearwards to obtain the required angle.
Access to rear seats: (3 doors)raise control 3or push control 2towards the front.
Tilt the back of the seat, then pull the seat forward.
The position of the seats is memorised*. To put them back as they were before, you need only return them to the original position.
The storage compartment for the handbook and Warranty book is located under the front right-hand seat*. * According to speciÞcation
Y O U R 1 0 6 I N D E TA I L50
13
2
06-05-2002
Page 50 of 107

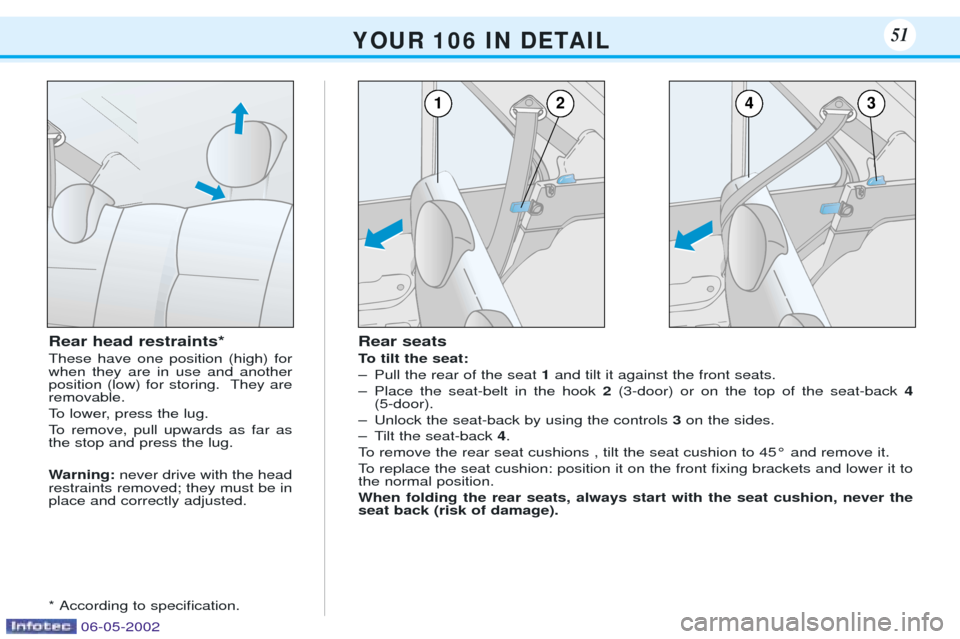

Rear seats
To tilt the seat:
Ð Pull the rear of the seat 1and tilt it against the front seats.
Ð Place the seat-belt in the hook 2(3-door) or on the top of the seat-back 4
(5-door).
Ð Unlock the seat-back by using the controls 3on the sides.
Ð Tilt the seat-back 4.
To remove the rear seat cushions , tilt the seat cushion to 45¡ and remove it.
To replace the seat cushion: position it on the front Þxing brackets and lower it to the normal position. When folding the rear seats, always start with the seat cushion, never the seat back (risk of damage).
Rear head restraints* These have one position (high) for when they are in use and anotherposition (low) for storing. They areremovable.
To lower, press the lug.
To remove, pull upwards as far as the stop and press the lug.
Warning:
never drive with the head
restraints removed; they must be in place and correctly adjusted. * According to speciÞcation.
Y O U R 1 0 6 I N D E TA I L51
2134
06-05-2002
Page 51 of 107

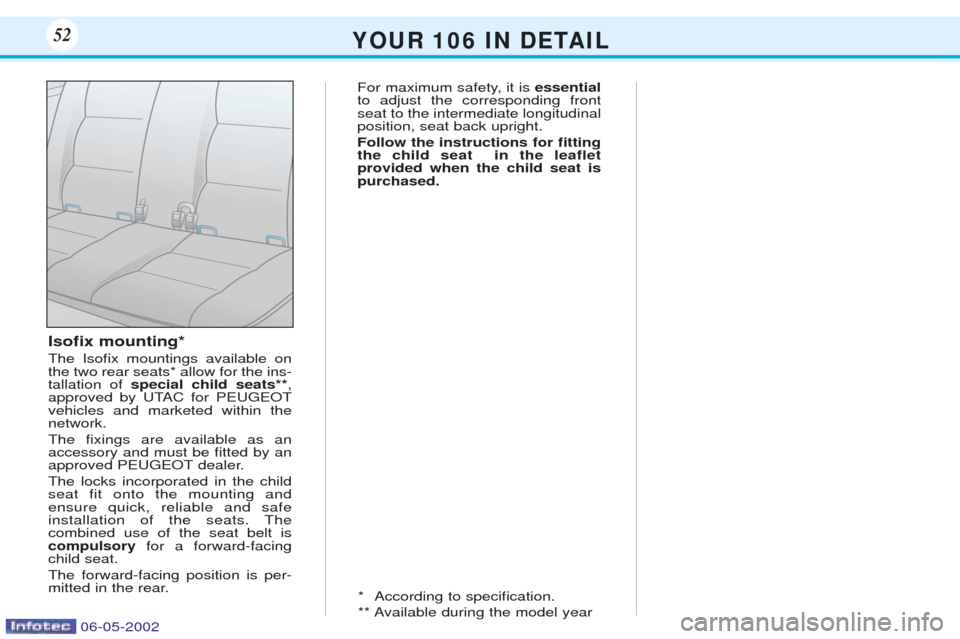

IsoÞx mounting* The IsoÞx mountings available on the two rear seats* allow for the ins-tallation of special child seats** ,
approved by UTAC for PEUGEOTvehicles and marketed within thenetwork. The fixings are available as an accessory and must be Þtted by an
approved PEUGEOT dealer. The locks incorporated in the child seat fit onto the mounting andensure quick, reliable and safeinstallation of the seats. Thecombined use of the seat belt iscompulsory for a forward-facing
child seat. The forward-facing position is per-
mitted in the rear. For maximum safety, it is
essential
to adjust the corresponding frontseat to the intermediate longitudinalposition, seat back upright. Follow the instructions for Þtting the child seat in the leafletprovided when the child seat ispurchased.
* According to speciÞcation.
** Available during the model year
Y O U R 1 0 6 I N D E TA I L52
06-05-2002
Page 52 of 107
Y O U R 1 0 6 I N D E TA I L53
Never leave a child in a vehicle which isexposed to the sun andhas the windowsclosed.
To protect young children fromthe sun, Þt sunblinds to the rearwindows. Never leave the keys in the
reach of children inside the car. Strap children into their child seats even on short journeys.
Observe the precautions concer-ning the passenger airbag.
123
1
2
3

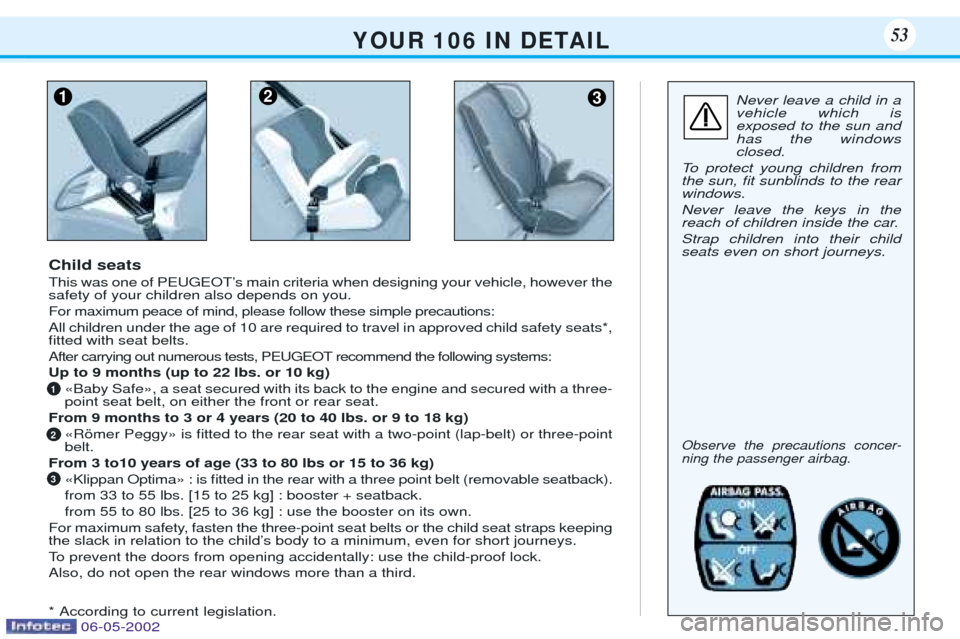

Child seats
This was one of PEUGEOTÕs main criteria when designing your vehicle, however the safety of your children also depends on you. For maximum peace of mind, please follow these simple precautions:All children under the age of 10 are required to travel in approved child safety seats*, Þtted with seat belts. After carrying out numerous tests, PEUGEOT recommend the following systems: Up to 9 months (up to 22 lbs. or 10 kg) ÇBaby SafeÈ, a seat secured with its back to the engine and secured with a three- point seat belt, on either the front or rear seat.
From 9 months to 3 or 4 years (20 to 40 lbs. or 9 to 18 kg) ÇRšmer PeggyÈ is Þtted to the rear seat with a two-point (lap-belt) or three-pointbelt.
From 3 to10 years of age (33 to 80 lbs or 15 to 36 kg)
ÇKlippan OptimaÈ : is Þtted in the rear with a three point belt (removable seatback). from 33 to 55 lbs. [15 to 25 kg] : booster + seatback.from 55 to 80 lbs. [25 to 36 kg] : use the booster on its own.
For maximum safety, fasten the three-point seat belts or the child seat straps keeping
the slack in relation to the childÕs body to a minimum, even for short journeys.
To prevent the doors from opening accidentally: use the child-proof lock.Also, do not open the rear windows more than a third. * According to current legislation.
06-05-2002
Page 53 of 107
Seat belts (5-door):
To adjust the height of the front seat belts*:
Pull control 1towards you and slide it.
To fasten the seat belts: Pull the strap, then insert the end into the buckle. Rear seat beltsThe rear seats are Þtted with two three-point inertia reel belts and alap belt. Pre-tensioning and force-limiting front seat belts* Safety in the event of a front impact has been improved by theintroduction of pre-tensioning andforce-limiting front seat belts.Depending on the seriousness ofthe impact, the pre-tensioningsystem instantly tightens the seatbelts Þrmly against the body of theoccupant. The pre-tensioning seat belts are armed when the ignition is on. * According to speciÞcation
Y O U R 1 0 6 I N D E TA I L54
1To be effective, a seat belt must be tensionedas close to the body aspossible.
Depending on the nature andseriousness of the impact thepre-tensioning system may betriggered before and indepen-dently of the airbags. In all cases, the airbag warning light comes on. Following an impact, have the system checked by a PEUGEOT
dealer. The system has been designed to be fully operational for tenyears. Have it replaced at the endof this period.
06-05-2002
Page 54 of 107
Key position There are four positions of the ignition key in the lock: "S" Stop: ignition is off.
"A" Accessories: ignition is off but
accessories can operate. The battery charge warning lamp lights. "M" Run: ignition on. The following
warning lamps light:
- low engine oil pressure,
- coolant temperature,
- battery charge,
- pre-heater (DIESEL),
- handbrake, low brake ßuid,
- engine diagnostics*, - ABS* (lights for 3 seconds, the
warning lamp should always go out when the vehicle speed isover 8 m.p.h. [12 km/h]),
- Airbag*, the warning lamp lights for six seconds, then goes out.
"D" Starter: starts the engine.
The following warning lamps go out:
- low engine oil pressure,
- battery charge,
- engine diagnostics*. Starting Unlock the steering
Turn the steering wheel gently
while turning the key. Before starting it is advisable to: Press the clutch pedal while opera- ting the starter to aid starting of theengine. * According to speciÞcation
Y O U R 1 0 6 I N D E TA I L55
06-05-2002
Page 55 of 107
Key position There are four positions of the ignition key in the lock: "S" Stop: ignition is off.
"A" Accessories: ignition is off but
accessories can operate. The battery charge warning lamp lights. "M" Run: ignition on. The following
warning lamps light:
- low engine oil pressure,
- coolant temperature,
- battery charge,
- pre-heater (DIESEL),
- handbrake, low brake ßuid,
- engine diagnostics*, - ABS* (lights for 3 seconds, the
warning lamp should always go out when the vehicle speed isover 8 m.p.h. [12 km/h]),
- Airbag*, the warning lamp lights for six seconds, then goes out.
"D" Starter: starts the engine.
The following warning lamps go out:
- low engine oil pressure,
- battery charge,
- engine diagnostics*. Starting Unlock the steering
Turn the steering wheel gently
while turning the key. Before starting it is advisable to: Press the clutch pedal while opera- ting the starter to aid starting of theengine. * According to speciÞcation
Y O U R 1 0 6 I N D E TA I L55
06-05-2002
Page 56 of 107
Y O U R 1 0 6 I N D E TA I L56
Never race a cold engine.
Never run the engine in an enclosed space. If the engine cannot be stopped using the igni-
tion key, press the brake pedal,engage a gear and release theclutch in order to stall the engi-ne. Do not modify the steering
lock in any way.
Starting a petrol engine* Do not press the accelerator pedal. Operate the starter without relea- sing the key until the engine starts. * According to speciÞcation Starting a diesel engine Engine cold: Do not press the accelerator pedal.
Turn the key to position
ÒMÓ, the
pre-heat warning lamp lights.
Wait until the warning lamp goes out, then operate the starter in posi-tion ÒDÓ until the engine runs
smoothly. Engine hot: Do not press the accelerator pedal.
Operate the starter.If the engine stops or does not start
immediately, always wait a fewseconds before trying again using
the pre-heater.
NOTE: according to speciÞca-tion, the pre-heat warninglamp does not light if the engi-ne is sufÞciently hot.
