Page 17 of 107
I N S T R U M E N T S A N D C O N T R O L S20
12345910118
13121415161718192021
67
Instrument panel (Diesel) 1-Maximum coolant temperature
2- Display control:
- total distance display- trip recorder - trip recorder reset- service indicator
3- Speedometer
4- Display:- digital clock- service indicator- total distance- trip recorder
5- Left-hand indicator 6-
Low fuel level
7- Fuel gauge
8- Right-hand indicator
9- Rev. counter
10 - Clock adjustment, lighting rheostat
11 - Oil pressure
12 - Pre-heat (diesel)
13 - Front* and side** airbag warning light and passenger airbagdisarm*
14 - ABS* (Anti-lock Braking System) 15 -
Handbrake, low brake fluid level and engine not running
16 - Battery charge
17 - Rear fog lamp
18 - Front fog lamps*
19 - Main beam
20 - Dipped beam
21 - Passenger airbag disarm
* According to speciÞcation or country. ** According to model.
06-05-2002
Page 18 of 107
Diesel engine pre-heat
Wait until the warning lamp goes
out then operate the starter. Onsome models the warning lamp willnot light when the engine is hot. Battery charge warning lamp
Indicates either:
- faulty operation of the charging circuit, or
- loose battery or starter terminals, or
- broken or slack alternator belt, or
- a faulty alternator.
Consult a PEUGEOT dealer.
Anti-lock brake systemwarning lamp (ABS)*
Indicates faulty ABS operation.
The vehicle does, however, retain conventional braking.
Consult a PEUGEOT dealer. Coolant temperature gauge
- Needle in zone
(A): temperature
correct
- Needle in zone (B): the coolant
temperature is too high Handbrake and brake
ßuid level warning lamp
Indicates either:
- that the engine is not running,
- that the handbrake is on or has not been released correctly (engine running),
- an excessive drop in the brake ßuid level (engine running andhandbrake released).
Note : with the engine running and
the handbrake off, if the warninglight remains lit then you must stop.
Consult a PEUGEOT dealer.
Low engine oil pressure
It is essential to stop. Indicates either:
- insufÞcient engine oil pressure, or
-
lack of oil in the lubrication system.
Top up the oil level if necessary.
Consult a PEUGEOT dealer. High coolant temperaturewarning lamp
It is essential to stop. Indicates too high a temperature, caused by: -
a fan malfunction. Check the fuses
and replace them if necessary,
-a coolant leak; the cooling system ispressurised, turn the cap to the 1stnotch, or* unscrew the cap two turns,to let the pressure drop before topping up the level,
- a coolant pump malfunction.
Warning lamps
I N S T R U M E N T S A N D C O N T R O L S21
B
A
06-05-2002
Page 19 of 107
Engine auto-diagnosticswarning light*
It comes on each time the ignition is switched on. If it comes on with the engine run- ning it indicates a malfunction in theinjection, ignition or emissioncontrol system. If your vehicle is Þt-
ted with a catalytic converter, thereis a risk of damage to it.
Contact a PEUGEOT dealer rapidly.
Front and side*
airbags
If the passenger airbag is armed or if your vehicle is not Þtted with apassenger airbag, the warning lightcomes on for 6 seconds when theignition is switched on.
Front airbag disarmed
If the passager airbag is disarmed,the indicator light remains on. In all cases, if the warning light
flashes, contact a PEUGEOT dealer. Low fuel level warning
Indicates that the quantity of fuel remaining is less than 1 gallon
[5 litres] (Tank capacity approxima-tely 10 gallons [45 litres]).
AIR
BAG
I N S T R U M E N T S A N D C O N T R O L S22
F
E
- If the needle is in zone E, the
temperature is correct.
- If the needle is in zone F, the
temperature is too high. To lower the temperature of the oil, reduceyour speed.
Oil temperature gauge*
Fuel supply cut-off*
If there is a major collision, a device
switches off the supply of fuel to theengine.
To re-establish the supply to the engine, press the button. * According to speciÞcation
06-05-2002
Page 20 of 107
Engine auto-diagnosticswarning light*
It comes on each time the ignition is switched on. If it comes on with the engine run- ning it indicates a malfunction in theinjection, ignition or emissioncontrol system. If your vehicle is Þt-
ted with a catalytic converter, thereis a risk of damage to it.
Contact a PEUGEOT dealer rapidly.
Front and side*
airbags
If the passenger airbag is armed or if your vehicle is not Þtted with apassenger airbag, the warning lightcomes on for 6 seconds when theignition is switched on.
Front airbag disarmed
If the passager airbag is disarmed,the indicator light remains on. In all cases, if the warning light
flashes, contact a PEUGEOT dealer. Low fuel level warning
Indicates that the quantity of fuel remaining is less than 1 gallon
[5 litres] (Tank capacity approxima-tely 10 gallons [45 litres]).
AIR
BAG
I N S T R U M E N T S A N D C O N T R O L S22
F
E
- If the needle is in zone E, the
temperature is correct.
- If the needle is in zone F, the
temperature is too high. To lower the temperature of the oil, reduceyour speed.
Oil temperature gauge*
Fuel supply cut-off*
If there is a major collision, a device
switches off the supply of fuel to theengine.
To re-establish the supply to the engine, press the button. * According to speciÞcation
06-05-2002
Page 21 of 107
Instrument panel display When the ignition is switched on, this display shows in turn, the following infor- mation: - digital clock,
- service indicator,
- oil level indicator,*- total distance. Engine oil level When the ignition is switched on, engine not running, the service indicator is dis- played for a few seconds, then the engine oil level is indicated for approximate-ly 10 seconds.Maximum Minimum Check the level with the dipstick and top it up. The Þgure shown is only correct if the vehicle has been on stable, level ground, withthe engine stopped, for 10 minutes. No oil When the LEDs ßash, it is essential to top up the oil to the correct level, otherwise the engine will be damaged.
* According to speciÞcation Total distance and trip recorder One brief press on button
Achanges the
display between total distance and the
trip recorder. Resetting the trip recorder to zero A long press on the button resets the trip recorder to zero.
I N S T R U M E N T S A N D C O N T R O L S23
A
06-05-2002
Page 22 of 107

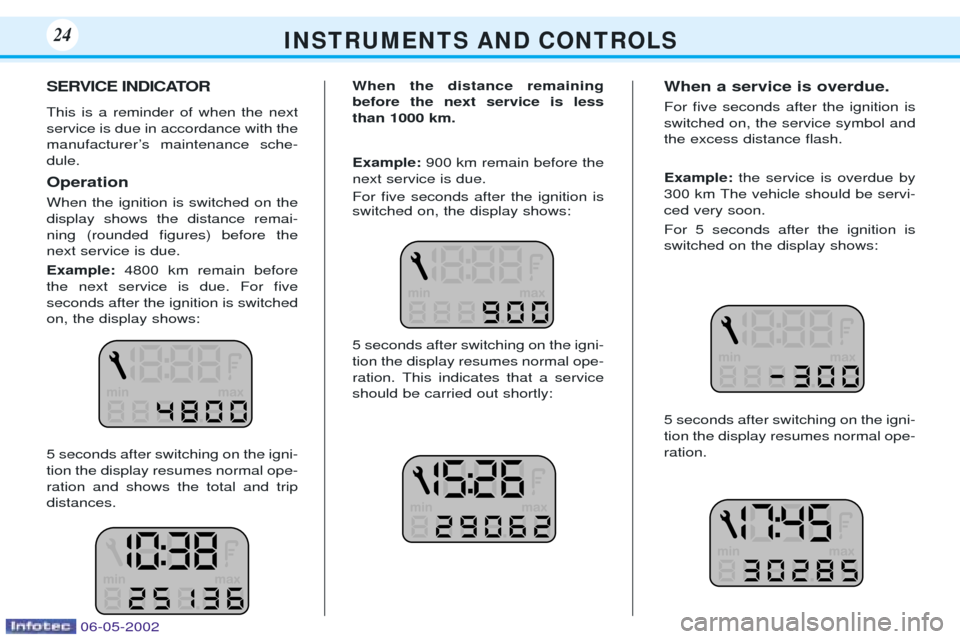

SERVICE INDICATOR This is a reminder of when the next service is due in accordance with the
manufacturerÕs maintenance sche-dule. Operation When the ignition is switched on the display shows the distance remai-ning (rounded Þgures) before thenext service is due. Example:4800 km remain before
the next service is due. For Þve seconds after the ignition is switchedon, the display shows: 5 seconds after switching on the igni- tion the display resumes normal ope-ration and shows the total and tripdistances. When the distance remainingbefore the next service is lessthan 1000 km. Example:
900 km remain before the
next service is due. For Þve seconds after the ignition is switched on, the display shows: 5 seconds after switching on the igni- tion the display resumes normal ope-ration. This indicates that a serviceshould be carried out shortly: When a service is overdue. For Þve seconds after the ignition is switched on, the service symbol andthe excess distance ßash. Example:
the service is overdue by
300 km The vehicle should be servi- ced very soon. For 5 seconds after the ignition is switched on the display shows: 5 seconds after switching on the igni- tion the display resumes normal ope-ration.
I N S T R U M E N T S A N D C O N T R O L S24
06-05-2002
Page 23 of 107

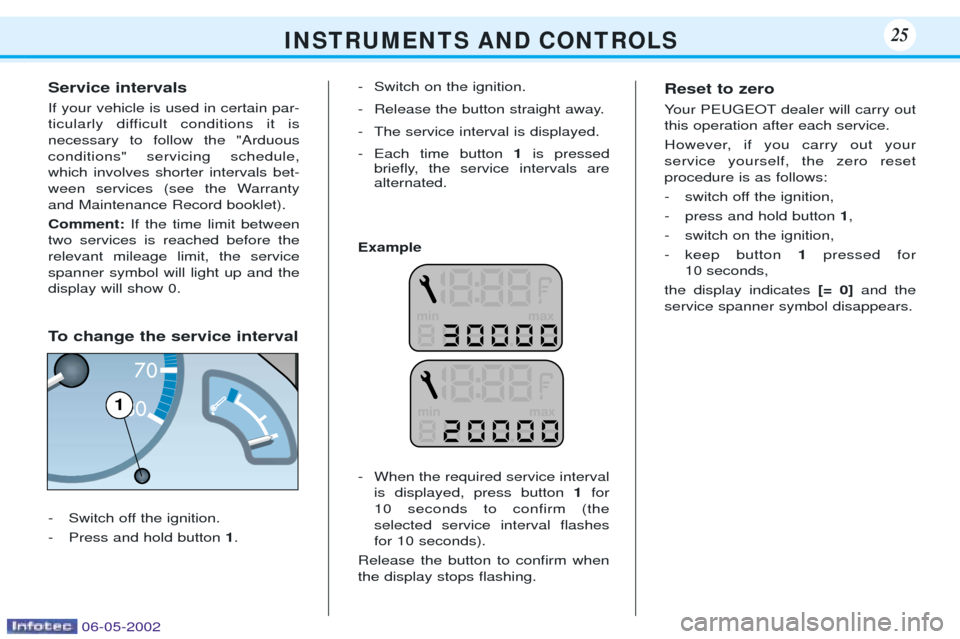

Service intervals If your vehicle is used in certain par-
ticularly difficult conditions it isnecessary to follow the "Arduousconditions" servicing schedule,which involves shorter intervals bet-
ween services (see the Warrantyand Maintenance Record booklet). Comment:If the time limit between
two services is reached before the relevant mileage limit, the servicespanner symbol will light up and thedisplay will show 0.
To change the service interval
- Switch off the ignition.
- Press and hold button 1. - Switch on the ignition.
- Release the button straight away.
- The service interval is displayed.
- Each time button
1is pressed
brießy, the service intervals are alternated.
Example
- When the required service interval is displayed, press button 1for
10 seconds to confirm (the selected service interval ßashes
for 10 seconds).
Release the button to conÞrm whenthe display stops ßashing. Reset to zero
Your PEUGEOT dealer will carry out this operation after each service.
However, if you carry out your service yourself, the zero resetprocedure is as follows:
- switch off the ignition,
- press and hold button
1,
- switch on the ignition,
- keep button 1pressed for
10 seconds,
the display indicates [= 0]and the
service spanner symbol disappears.
I N S T R U M E N T S A N D C O N T R O L S25
1
06-05-2002
Page 24 of 107
Service intervals If your vehicle is used in certain par-
ticularly difficult conditions it isnecessary to follow the "Arduousconditions" servicing schedule,which involves shorter intervals bet-
ween services (see the Warrantyand Maintenance Record booklet). Comment:If the time limit between
two services is reached before the relevant mileage limit, the servicespanner symbol will light up and thedisplay will show 0.
To change the service interval
- Switch off the ignition.
- Press and hold button 1. - Switch on the ignition.
- Release the button straight away.
- The service interval is displayed.
- Each time button
1is pressed
brießy, the service intervals are alternated.
Example
- When the required service interval is displayed, press button 1for
10 seconds to confirm (the selected service interval ßashes
for 10 seconds).
Release the button to conÞrm whenthe display stops ßashing. Reset to zero
Your PEUGEOT dealer will carry out this operation after each service.
However, if you carry out your service yourself, the zero resetprocedure is as follows:
- switch off the ignition,
- press and hold button
1,
- switch on the ignition,
- keep button 1pressed for
10 seconds,
the display indicates [= 0]and the
service spanner symbol disappears.
I N S T R U M E N T S A N D C O N T R O L S25
