Page 65 of 256

Celica_U
642000 CELICA (OM20735U)
Move seat
fully back
A for war d−facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.
Do not put a rear −facing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
severe injury to the child and front
passenger in case of sudden brak-
ing or a collision.1. Run the lap and shoulder belt through or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
ProCarManuals.com
Page 66 of 256
Celica_U
652000 CELICA (OM20735U)

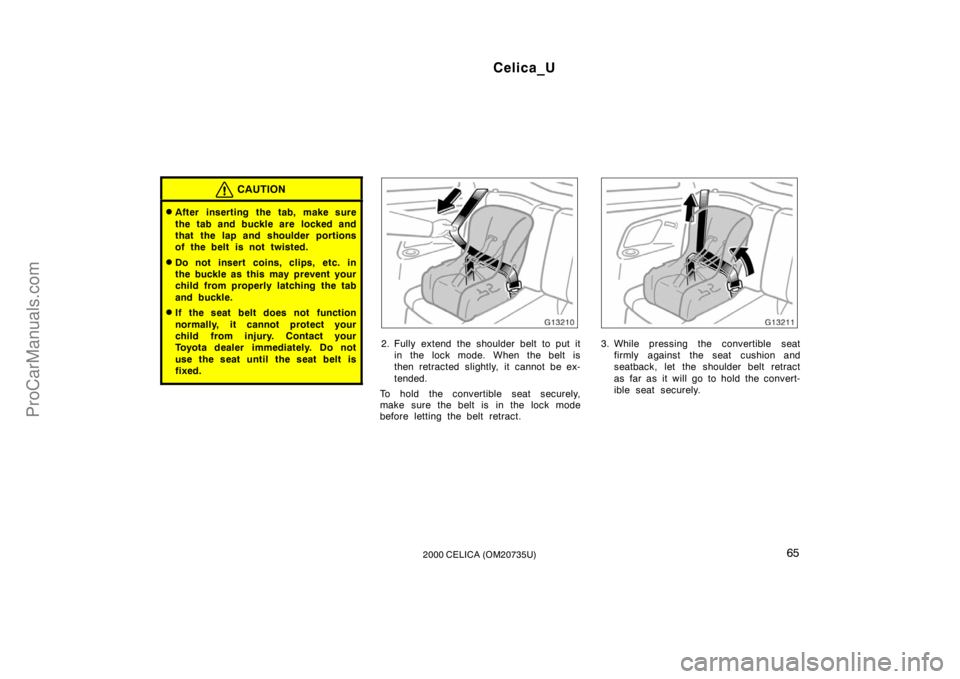

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
ProCarManuals.com
Page 67 of 256
Celica_U
662000 CELICA (OM20735U)

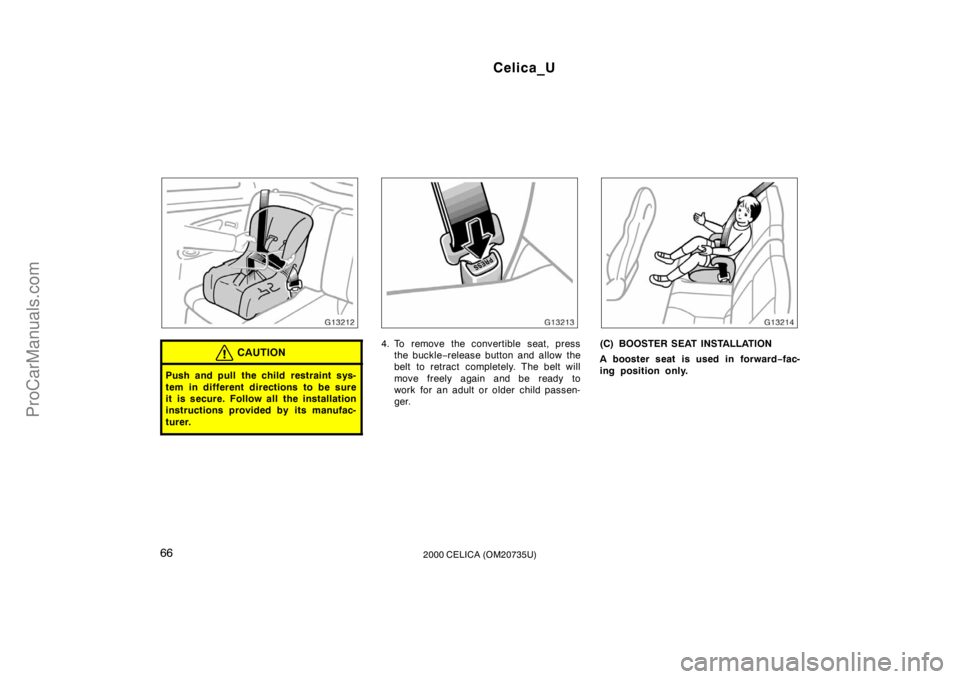

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, pressthe buckle −release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward −fac-
ing position only.
ProCarManuals.com
Page 68 of 256

Celica_U
672000 CELICA (OM20735U)

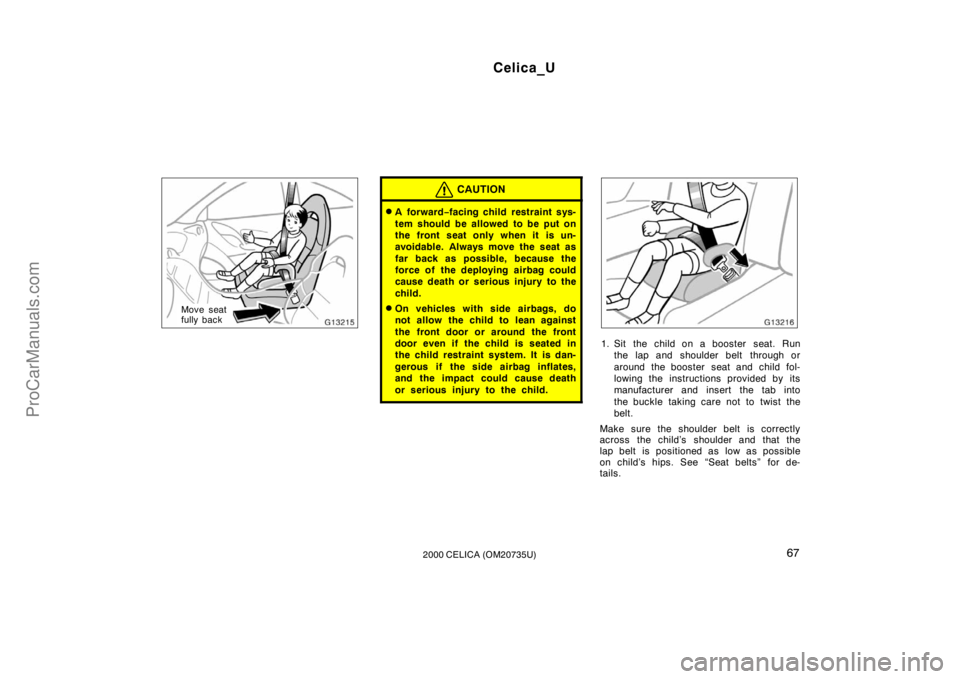

Move seat
fully back
CAUTION
A for war d−facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of the deploying airbag could
cause death or serious injury to the
child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.
1. Sit the child on a booster seat. Run the lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” for de-
tails.
ProCarManuals.com
Page 69 of 256

Celica_U
682000 CELICA (OM20735U)

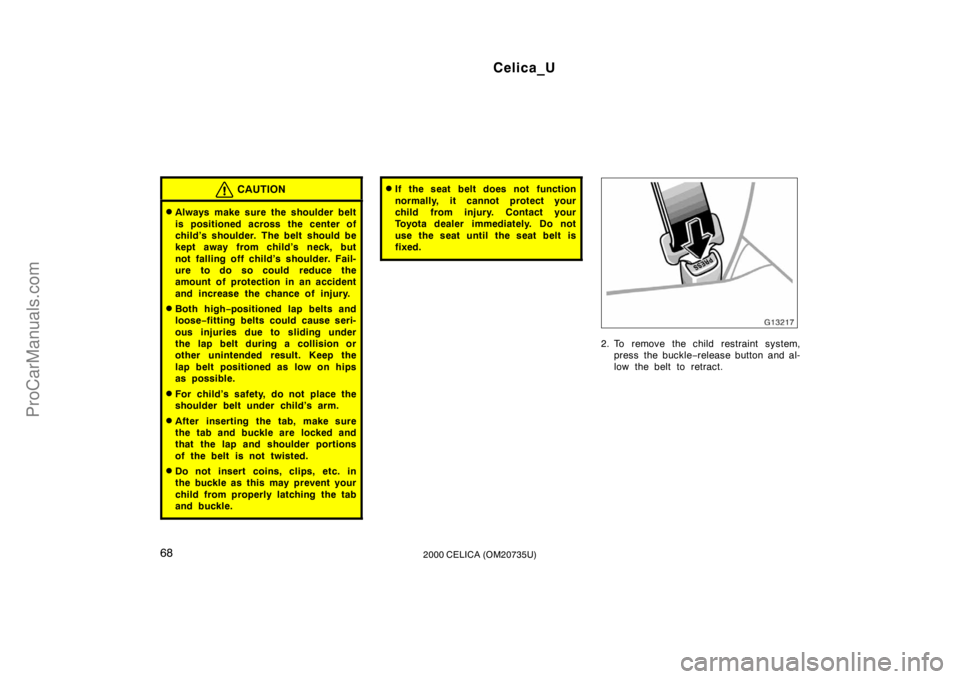

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder. Fail-
ure to do so could reduce the
amount of protection in an accident
and increase the chance of injury.
Both high−positioned lap belts and
loose −fitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on hips
as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. To remove the child restraint system, press the buckle −release button and al-
low the belt to retract.
ProCarManuals.com
Page 70 of 256
Celica_U
692000 CELICA (OM20735U)

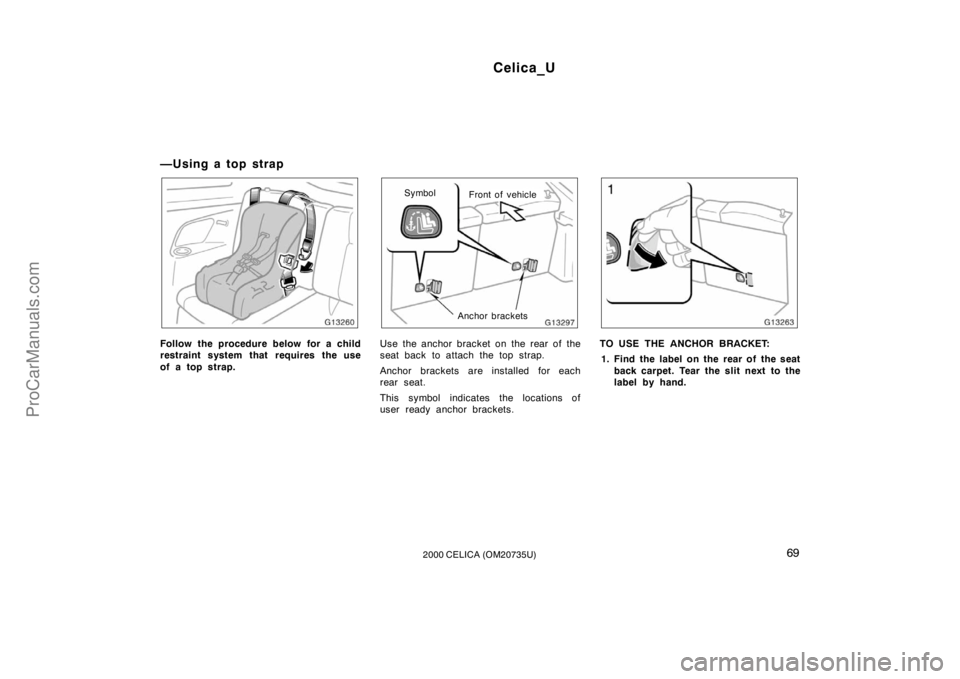

— U sin g a to p st rap
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Front of vehicle
Symbol
Anchor brackets
Use the anchor bracket on the rear of the
seat back to attach the top strap.
Anchor brackets are installed for each
rear seat.
This symbol indicates the locations of
user ready anchor brackets.TO USE THE ANCHOR BRACKET:1. Find the label on the rear of the seat back carpet. Tear the slit next to the
label by hand.
ProCarManuals.com
Page 71 of 256
Celica_U
702000 CELICA (OM20735U)

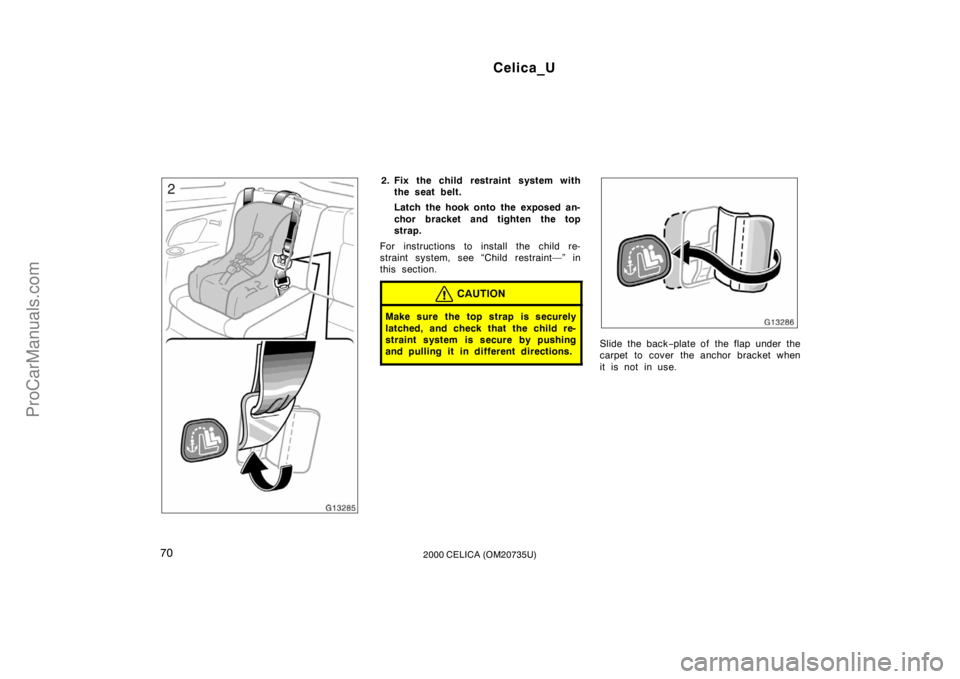

2. Fix the child restraint system withthe seat belt.
Latch the hook onto the exposed an-
chor bracket and tighten the top
strap.
For instructions to install the child re-
straint system, see “Child restraint—” in
this section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Slide the back −plate of the flap under the
carpet to cover the anchor bracket when
it is not in use.
ProCarManuals.com
Page 72 of 256

Celica_U
712000 CELICA (OM20735U)

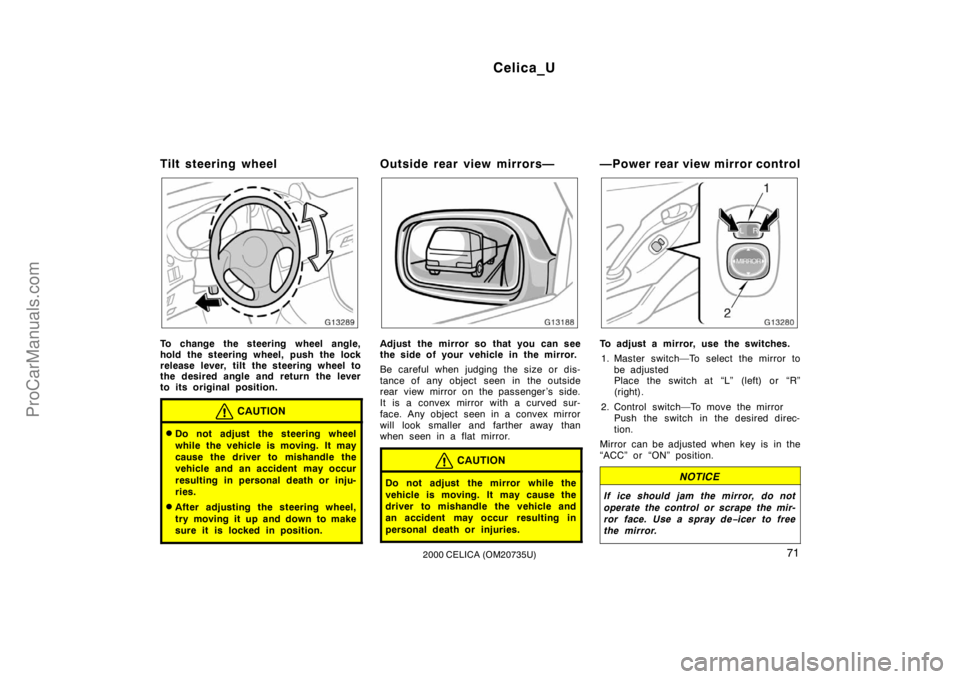

Tilt steering wheel
To change the steering wheel angle,
hold the steering wheel, push the lock
release lever, tilt the steering wheel to
the desired angle and return the lever
to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. It may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in personal death or inju-
ries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrors—
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal death or injuries.
—Power rear view mirror control
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Place the switch at “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirror can be adjusted when key is in the
“ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de −icer to free
the mirror.
ProCarManuals.com
