—Front turn signal lights

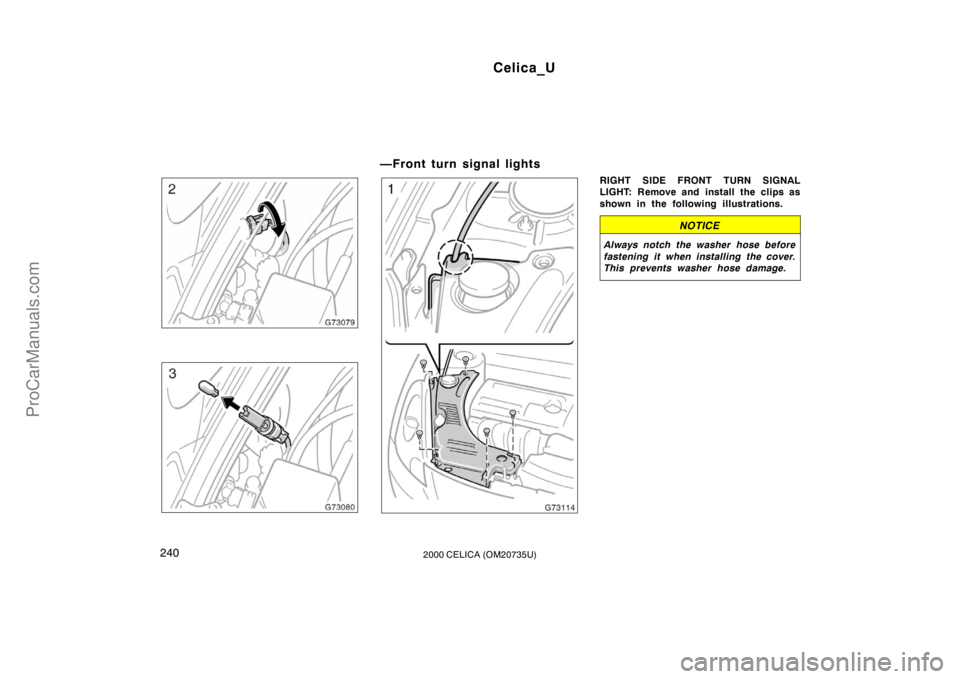

RIGHT SIDE FRONT TURN SIGNAL
LIGHT: Remove and install the clips as
shown in the following illustrations.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
ProCarManuals.com

Celica_U
2412000 CELICA (OM20735U)

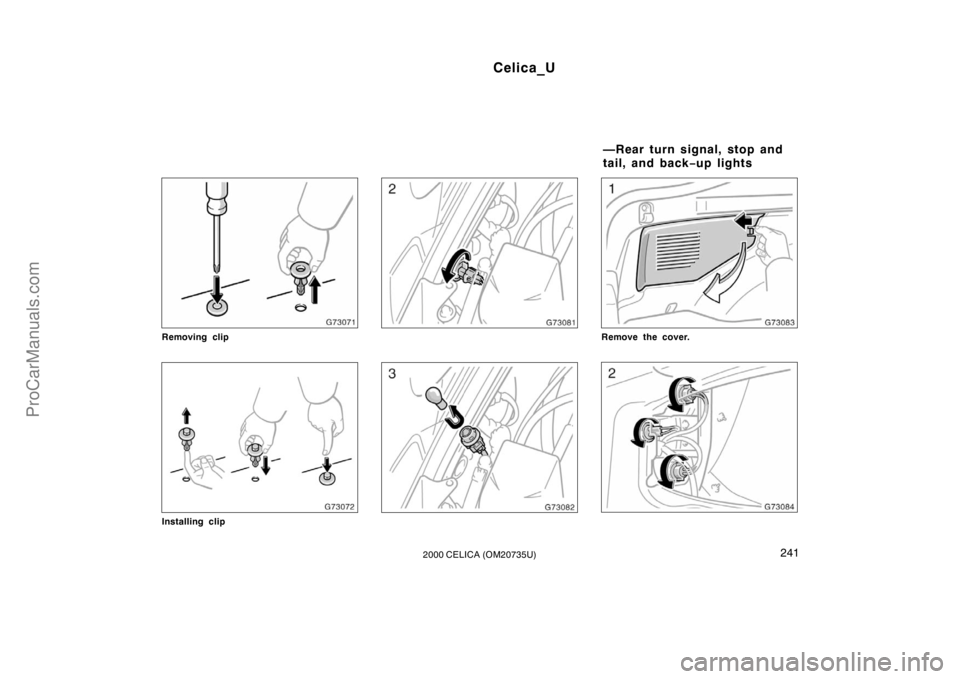

Removing clip
Installing clip
Remove the cover.
—Rear turn signal, stop and
tail, and back−up lights
ProCarManuals.com

Celica_U
2422000 CELICA (OM20735U)
a: Stop and tail light
b: Back−up light
c: Rear turn signal light
—License plate lights
Use a Phillips −head screwdriver.
Remove the cover.
ProCarManuals.com

Celica_U
2432000 CELICA (OM20735U)
ProCarManuals.com

Celica_U
2442000 CELICA (OM20735U)
SPECIFICATIONS
Dimensions and weight245
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 245
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 245
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 246
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 248
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 249
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8
ProCarManuals.com

Celica_U
2452000 CELICA (OM20735U)
Dimensions and weight
Overall length mm (in.) 4330 (170.5)
Overall width mm (in.) 1735 (68.3)
Overall height mm (in.) 1305 (51.8)
∗
Wheelbase mm (in.) 2600 (102.4)
Front tread mm (in.) 1490 (58.7)
Rear tread mm (in.) 1480 (58.3)
Vehicle capacity weight
(occupants + luggage)kg (lb.) 329 (725)
∗:Unladen vehicle
Engine
Model: 1ZZ −FE and 2ZZ −GE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 1ZZ −FE engine
79.0  91.5 (3.11  3.60)
2ZZ −GE engine
82.0  85.0 (3.23  3.35)
Displacement, cm
3 (cu. in.):
1ZZ −FE engine 1794 (109.5)
2ZZ −GE engine 1796 (109.6)
Fuel
Fuel type:
1ZZ −FE engine
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
2ZZ −GE engine
Select premium unleaded gasoline with
an Octane Rating of 95 (Research Oc-
tane Number 96) or higher for opti-
mum engine performance
Fuel tank capacity, L (gal., Imp. gal.): 55 (14.5, 12.1)
ProCarManuals.com

Celica_U
2462000 CELICA (OM20735U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):1ZZ −FE engine
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
2ZZ −GE engine (on a roller side)
Intake 0.10—0.16 (0.004—0.006)
Exhaust 0.24—0.30 (0.010—0.012)
Spark plug type: 1ZZ −FE engine
DENSO SK16R11
NGK IFR5A11
2ZZ −GE engine
DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043) ENGINE LUBRICATION
Oil capacity (drain and refill),
L (qt., Imp. qt.):
1ZZ −FE engine
With filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
2ZZ −GE engine
With filter 4.4 (4.8, 4.0)
Without filter 4.2 (4.6, 3.8)
Oil grade: API grade SJ, “Energy −Conserving” or
ILSAC multigrade engine oil is recom-
mended.
Recommended oil viscosity (SAE):COOLING SYSTEM
Total capacity, L (qt., Imp. qt.): 1ZZ −FE engine
Manual transaxle 5.7 (6.0, 5.0)
Automatic transaxle 5.6 (5.9, 4.9)
2ZZ −GE engine
Manual transaxle 5.9 (6.2, 5.2)
Automatic transaxle 5.8 (6.1, 5.1)
Coolant type: “TOYOTA Long Life Coolant” or equiva-
lent
With ethylene− glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20 °C (68 °F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
ProCarManuals.com

Celica_U
2472000 CELICA (OM20735U)
CLUTCH
Pedal free play, mm (in.):5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 1ZZ −FE engine
1.9 (2.0, 1.7)
2ZZ −GE engine
2.3 (2.4 2.0)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill),
L (qt., Imp. qt.): 1ZZ −FE engine
Up to 2.1 (2.2, 1.8)
2ZZ −GE engine
Up to 4.0 (4.2, 3.5)
Fluid type: Automatic transmission fluid Type T −IV
Change automatic transmission fluid only
as necessary. Generally, it is necessary to change auto-
matic transmission fluid only if your ve-
hicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or “Own-
er ’s Manual Supplement”. When changing
the automatic transmission fluid, use only
Toyota Genuine ATF Type T
−IV (ATF
JWS3309) to aid in assuring optimum
transaxle performance.
Notice: Using automatic transmission
fluid other than Toyota Genuine ATF
Ty p e T −IV may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle. BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110
lbf) with the engine running, mm (in.):
85 (3.4)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 5—8 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON
®II
or III
ProCarManuals.com
