2000 TOYOTA CELICA Owners Manual

Celica_U
722000 CELICA (OM20735U)
—Folding rear view mirrors
The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal death or injuries.
Anti−glare inside rear view
mirror
ProCarManuals.com

Celica_U
732000 CELICA (OM20735U)
Vanity mirrors
To use the vanity mirror, swing down
the sun visor and open the cover.
ProCarManuals.com

Celica_U
742000 CELICA (OM20735U)
ProCarManuals.com

Celica_U
752000 CELICA (OM20735U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Interior light 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Luggage compartment light 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1− 4
ProCarManuals.com

Celica_U
762000 CELICA (OM20735U)
Headlights and turn signals
Ty p e A
Ty p e B
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Type B only—The tail light indicator (green
light) on the instrument panel will tell you
that the tail lights are on.
Position 2—Headlights and all of the
above
Type A only—The head light low beam
indicator light (green light) on the instru-
ment panel will tell you that the low
beams are on.
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver ’s door is opened if you
remove the key with the headlights left
on.
NOTICE
To prevent the battery being dis-
charged, do not leave the lights on
for a long period when engine is not
running.
Daytime running light system
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position or position 1.
They will not go off until the ignition
switch is turned off.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
The headlights automatically turn to full
intensity in the twilight even with the light
switch in the “OFF” position.
ProCarManuals.com

Celica_U
772000 CELICA (OM20735U)

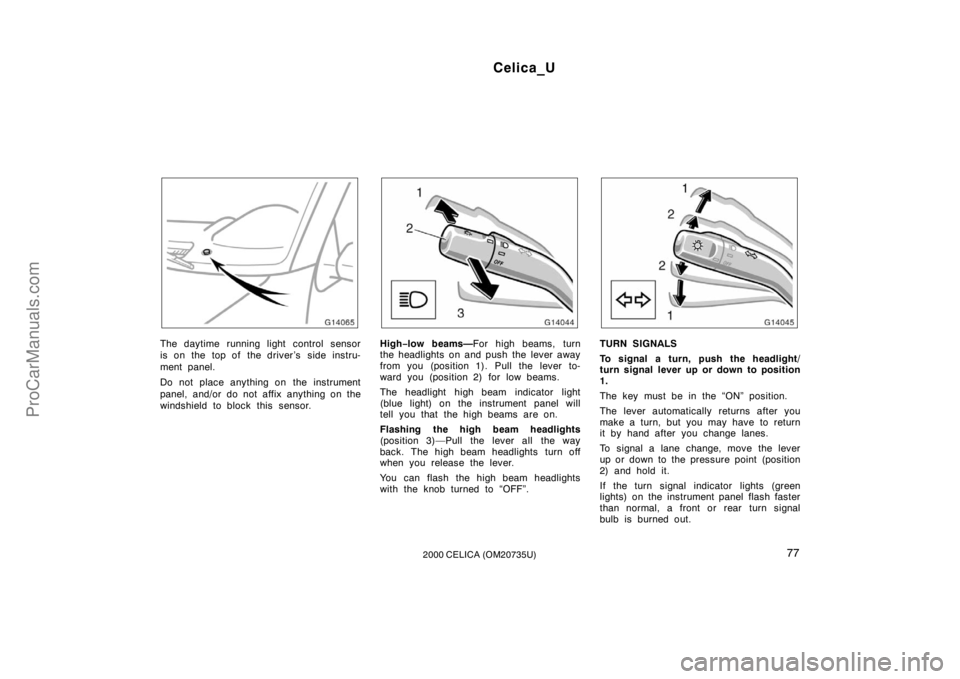

The daytime running light control sensor
is on the top of the driver’s side instru-
ment panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.High−low beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
ProCarManuals.com

Celica_U
782000 CELICA (OM20735U)
Emergency flashers
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
Instrument panel light control
To adjust the brightness of the instru-
ment panel lights, turn the knob.
ProCarManuals.com

Celica_U
792000 CELICA (OM20735U)
Front fog lights
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
Interior light (with moon roof)
To turn the interior light on, push the
“ON” or “DOOR” side switch. To turn
the light off, push the switch lightly on
the opposite side.
The interior light switch has the following
positions:
“ON”—The light stays on all the time.
“DOOR”—Turns the light on when either
side door or the back door is opened. The
light goes off when both side doors and
back door are closed.ILLUMINATED ENTRY SYSTEM
(vehicles with power door lock system)
With the switch in “DOOR” position, the
light comes on when either side door or
back door is opened. After both side
doors and back door are closed, the light
remains on for about 15 seconds and then
fades out.
However, in the following cases, the light
fades out immediately.
Both side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
Both side doors and back door are
closed and both side doors are locked.
When both side doors and back door are
unlocked simultaneously with a key or
wireless remote control transmitter, the in-
terior light comes on for about 15 seconds
and then fades out, even if the door is
not opened.
ProCarManuals.com
