2000 TOYOTA CELICA Owners Manual

Celica_U
82000 CELICA (OM20735U)
Keys
Your vehicle is supplied with two kinds
of keys.1. Master key—This key works in every lock.
2. Sub key—This key will not work in the back door and glove box.
To protect things locked in the glove box
or luggage compartment when you have
your vehicle parked, leave the sub key
with the attendant.
Since the side doors and back door can
be locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside the
vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend to write down the key
number and keep it in safe place.
Side doors—
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with a power door lock system—
Both side doors and back door lock and
unlock simultaneously with either side
door. In the driver ’s door lock, turning the
key once will unlock the driver’s door and
twice in succession will unlock both side
doors and back door simultaneously.
ProCarManuals.com

Celica_U
92000 CELICA (OM20735U)
Vehicles with a power door lock system—
When both side doors and back door are
unlocked simultaneously with a key, the
interior light comes on for about 15 sec-
onds and then fades out, even if the door
is not opened. (For further information,
see “Interior light” in Section 1−4.)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the side door with the lock knob
in the lock position will also lock the side
door. Be careful not to lock your keys in
the vehicle.
Vehicles with a power door lock sys-
tem—The side doors cannot be locked if
you leave the key in the ignition switch.LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear
side.
Both side doors and back door lock or
unlock simultaneously.
ProCarManuals.com

Celica_U
102000 CELICA (OM20735U)
CAUTION
Before driving, be sure that the side
doors are closed and locked, espe-
cially when small children are in the
vehicle. Along with the proper use of
seat belts, locking the side doors
helps prevent the driver and passen-
gers from being thrown out from the
vehicle during an accident. It also
helps prevent the side doors from be-
ing opened unintentionally.
—Wireless remote control
Locking operation
Unlocking operation
Your vehicle has a wireless remote
control system that can lock or unlock
both side doors and back door, or
activate the theft deterrent system from
a distance within approximately 1 m (3
ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock both side doors and
back door, push the switches of the
transmitter slowly and securely.
To lock: Push the “LOCK” switch. Both
side doors and back door are locked si-
multaneously. At this time, parking lights,
side marker lights and tail lights flash.
Check to see that both side doors and
back door are securely locked.
If either side doors or back door is not
securely closed, or if the key is in the
ignition switch, locking cannot be per-
formed by the “LOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks both side doors and back door
simultaneously. At this time, parking lights,
side marker lights and tail lights flash
twice.
ProCarManuals.com

Celica_U
112000 CELICA (OM20735U)
When both side doors and back door are
unlocked simultaneously with a wireless
remote control transmitter, the interior light
comes on for about 15 seconds and then
fades out, even if the door is not opened.
(For further information, see “Interior light”
in Section 1−4.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, both side
doors and back door will be automatically
locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the button
and then push again.
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:
Push the “PANIC” switch once again.
Unlock either side door or back door
with the key or wireless remote control
transmitter.
Turn the ignition key from the “LOCK”
to “ACC” or “ON” position. The “PANIC” mode does not work when
the ignition key is in the “ACC” or “ON”
position.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
ProCarManuals.com

Celica_U
122000 CELICA (OM20735U)
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “REPLACING
TRANSMITTER BATTERY”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent.
REPLACING TRANSMITTER BATTERY
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
 During replacing the transmitter
battery, do not push the “LOCK”
and “UNLOCK” switches many
times.
 When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
Replace the transmitter battery by the fol-
lowing procedures:
1. Using a coin or equivalent, open the
transmitter case.
ProCarManuals.com

Celica_U
132000 CELICA (OM20735U)
2. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.
3. Put a new transmitter battery with posi-tive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
 Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
 Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” in Section 4.)
ProCarManuals.com

Celica_U
142000 CELICA (OM20735U)
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
−Reorient or relocate the receiving an-
tenna.
− Increase the separation between the
equipment and receiver.
− Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
− Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
Power windows
The windows can be operated with the
switch on the center console.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both side doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either side door is
opened.

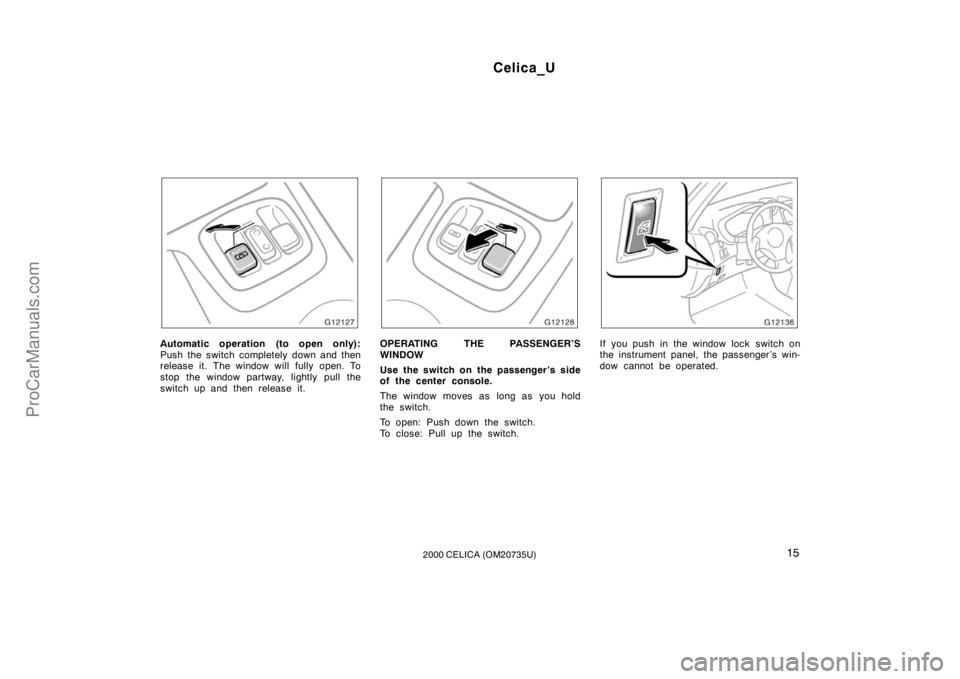

OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s side of
the center console.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
ProCarManuals.com

Celica_U
152000 CELICA (OM20735U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s side
of the center console.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.If you push in the window lock switch on
the instrument panel, the passenger ’s win-
dow cannot be operated.
