2000 TOYOTA AVALON Owners Manual

'00 AVALON U (L/O 9908)
328
2. Turn the bulb and remove it.3. Install a new bulb and the connectorinto the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer. If either the left or right front fog or
front turn signal/parking lights burns
out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog or
front turn signal/parking light bulbsby yourself. You may damage the ve-hicle.
ÐFront fog and front turn
signal/parking lights
ProCarManuals.com

'00 AVALON U (L/O9908)
329

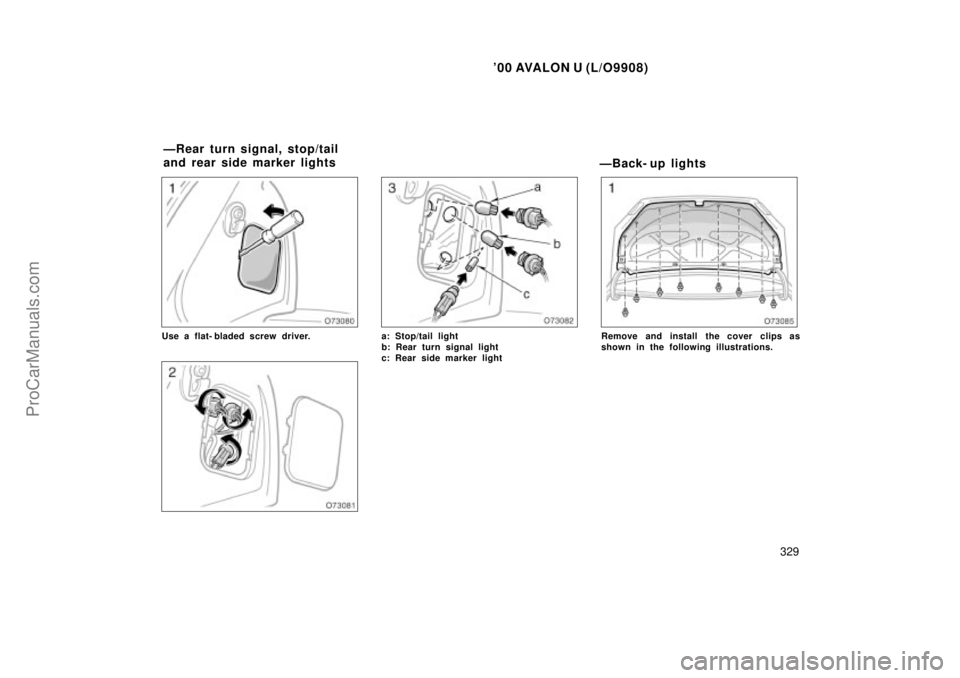

Use a flat- bladed screw driver.a: Stop/tail light
b: Rear turn signal light
c: Rear side marker light
ÐBack- up lights
Remove and install the cover clips as
shown in the following illustrations.
ÐRear turn signal, stop/tail
and rear side marker lights
ProCarManuals.com

'00 AVALON U (L/O 9908)
330

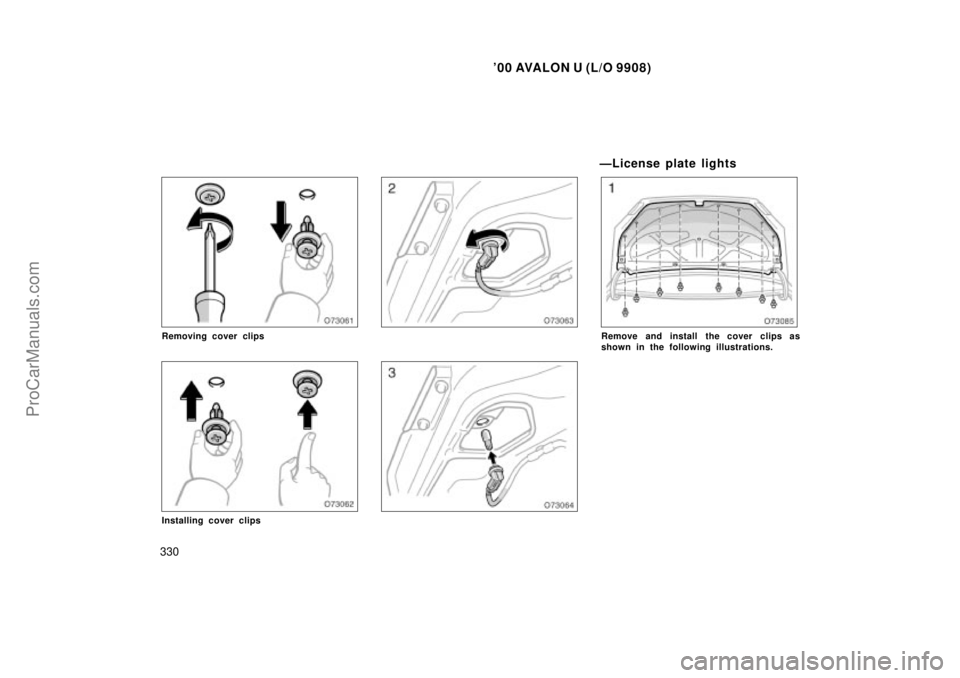

Removing cover clips
Installing cover clips
ÐLicense plate lights
Remove and install the cover clips as
shown in the following illustrations.
ProCarManuals.com

'00 AVALON U (L/O9908)
331

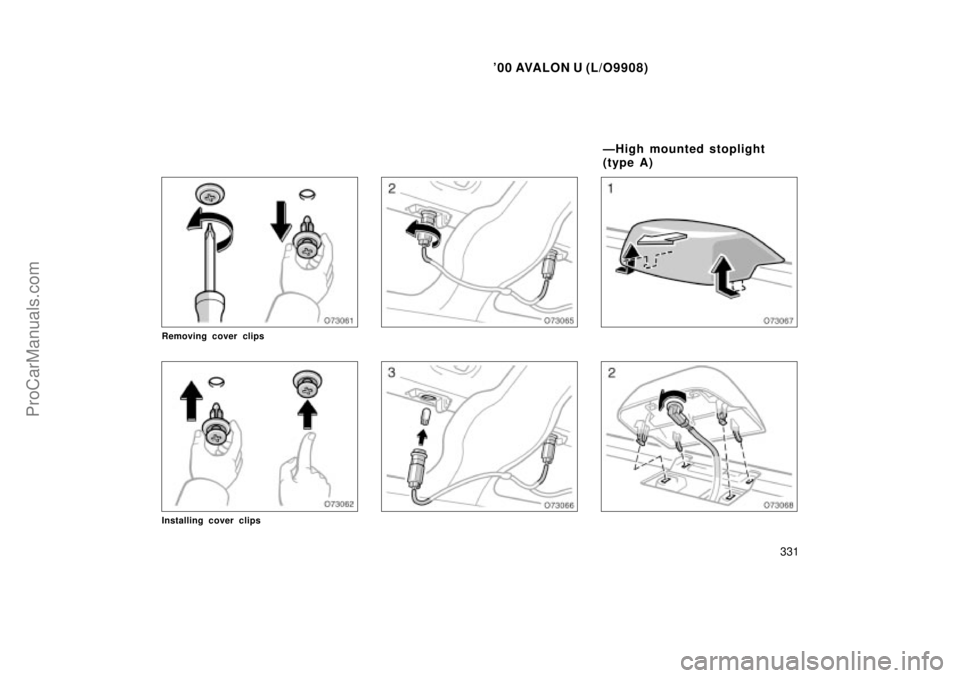

Removing cover clips
Installing cover clips
ÐHigh mounted stoplight
(type A)
ProCarManuals.com

'00 AVALON U (L/O 9908)
332
ÐHigh mounted stoplight
(type B)
ProCarManuals.com

'00 AVALON U (L/O9908)
333
ProCarManuals.com

'00 AVALON U (L/O 9908)
334
SPECIFICATIONS
SECTION 8
ProCarManuals.com

'00 AVALON U (L/O9908)
335
Dimensions and weight341
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
ProCarManuals.com
