2000 TOYOTA AVALON Owners Manual

'00 AVALON U (L/O 9908)
136
MODEº and RESET/ADJº buttons
These buttons are used to select the
item to be reset or adjusted.
Every time you push the MODEº button,
the display toggles in the following order.1. Hour
2. Minute
3. Year
4. Month
5. Day
6. English or metric unit selection of the outside temperature gauge and cruise
information display
7. Compass deviation calibration (zone)
8. Compass circling calibration
When the item desired to be corrected
appears, reset or adjust it by pushing the
RESET/ADJº button.
DISPLAYº button
This button is used to toggle the func-
tions of the cruise information display.
Every time you push the DISPLAYº but-
ton, the display toggles.
For more details, see ÐCruise
information displayº.CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
ÐClock
The digital clock indicates the time.
If the electrical power source has been
disconnected, the time display will auto-
matically be set to 1:00 a.m.
To reset the hour: Push the MODEº but-
ton until the hour display appears and
blinks. Then push the RESET/ADJº but-
ton.
To reset the minutes: Push the MODEº
button until the minute display appears
and blinks. Then push the RESET/ADJº
button.
After resetting the clock, push the MODEº
button until the display returns to normal
calendar mode.
ProCarManuals.com

'00 AVALON U (L/O9908)
137
ÐCalendar
The digital calendar indicates the date.
If the electrical power source has been
disconnected, the calendar display will au-
tomatically be set to FRI JAN 1º.
To reset the year: Push the MODEº but-
ton until the year display appears and
blinks. Then push the RESET/ADJº but-
ton. (After the year 2018 appears, the
number returns to 1999.)
To reset the month: Push the MODEº
button until the month display appears and
blinks. Then push the RESET/ADJº but-
ton.
To reset the day: Push the MODEº button
until the day display appears and blinks.
Then push the RESET/ADJº button.After resetting the calendar, push the
MODEº button until the display returns to
normal calendar mode.
ÐOutside temperature gauge
The outside temperature gauge indi-
cates outside air temperatures.
To set the unit, push the MODEº button
until the unit display appears and blinks.
Then push the RESET/ADJº button to se-
lect
Cº or  Fº. (At this time, cruise
information and air conditioning displays
also change.)
After setting the unit, push the MODEº
button until the display returns to normal
calendar mode.
ProCarManuals.com

'00 AVALON U (L/O 9908)
138
ÐCruise information display
The cruise information display indicates
the following information.1. Instantaneous fuel consumption
2. Average fuel consumption
3. Average vehicle speed
4. Driving range
5. Driving time
Every time you push the DISPLAYº but-
ton, the display toggles through this infor-
mation.
The displayed values in the cruise infor-
mation display indicate general driving
conditions. Accuracy varies with driving
habits and road conditions.
If the electrical power source has been
disconnected, the display will automatically
be set to instantaneous fuel consumption.
To set the unit, push the MODEº button
until the unit display appears and blinks.
Then push the RESET/ADJº button to se-
lect km/liter or mile/gallon. (At this time,
the outside temperature and air condition-
ing displays also change.)
After setting the unit, push the MODEº
button until the display returns to normal
calendar mode. 1. Instantaneous fuel consumption
(INST ECONº)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption for 2 sec-
onds with the engine running.
The displayed value is updated every 2
seconds.
Note that an accurate figure may not be
shown in the following cases.

When the vehicle is stopped with the
engine running, the display will indicate
the extremely high fuel consumption.

When the vehicle is driving down a
long slope, applying the engine brake,
the display will indicate the extremely
low fuel consumption.
The calculation is reset when the ignition
switch is turned off.
ProCarManuals.com

'00 AVALON U (L/O9908)
139
2. Average fuel consumption(AVG ECONº)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 10
seconds.
To reset the calculations, push the
RESET/ADJº button.
The calculation is reset when the ignition
switch is turned off. 3. Average vehicle speed (AVG SPEEDº)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated every 10
seconds.
To reset the calculations, push the
RESET/ADJº button.
The calculation is reset when the ignition
switch is turned off. 4. Driving range
(FUEL RANGEº)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The displayed value is updated every time
when the fuel equivalent for 1 km or 1
mile is consumed.
Every time you refuel the vehicle, the cal-
culation is reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer. If fuel consumption is poor, the
driving range will be shorter.
5. Driving time (TRIP TIMEº)
The elapsed time after the engine starts
is displayed.
When the engine is started, driving time
is counted from 0:00. Up to 99:59 (99
hours, 59 minutes) can be displayed.
When the driving time exceeds 99:59, the
counter returns to 0:00.
To reset the calculations, push the
RESET/ADJº button.
The calculation is reset when the ignition
switch is turned off.
ÐCompass
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading south.
Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
ProCarManuals.com

'00 AVALON U (L/O 9908)
140
The compass may not show the correct
direction in the following conditions:

The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.

The ignition switch is turned off imme-
diately after turning.

The vehicle is on an inclined surface.

The vehicle is in a place where the
earth's magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).

The vehicle is magnetized. (There is a
magnet or a metal object on or near
the roof.)

The battery has been disconnected.
The compass works to calibrate the direc-
tion automatically while the vehicle is in
motion, if deviation is small.
For additional precision or for complete
calibrating, see CALIBRATING THE
COMPASSº below.
Compass sensor
NOTICE
Do not put magnets or a metal object on or near the roof of the vehicle.Doing this may cause malfunction ofthe compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth's magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust for this deviation, stop the ve-
hicle and push the MODEº button several
times until ZONE XXº appears on the
calendar display. Then push the RESET/
ADJº button, referring to the following map
to select the number of the zone where
the vehicle is.
ProCarManuals.com

'00 AVALON U (L/O9908)
141

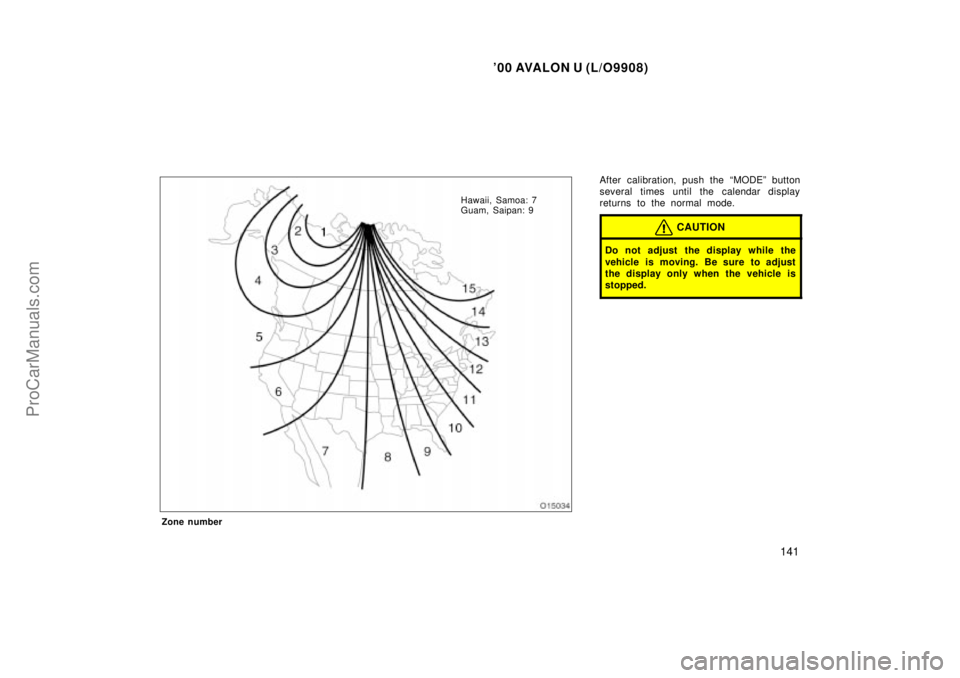

Zone number
After calibration, push the MODEº button
several times until the calendar display
returns to the normal mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Hawaii, Samoa: 7
Guam, Saipan: 9
ProCarManuals.com

'00 AVALON U (L/O 9908)
142
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push the
MODEº button several times until
COMPASSº appears and blinks on the
display. Then push the RESET/ADJº but-
ton. CALIBRATEº appears and blinks to-
gether with the compass display.Drive the vehicle in a circle until the blink-
ing stops. If there is not enough space to
drive in a circle, drive around the block
until the blinking stops.
When the compass and the calendar dis-
play return to normal mode, calibration is
complete.
If you want to cancel the calibration be-
fore it is complete, push the MODEº but-
ton again.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.

Do not perform circling calibration of
the compass in a place where the
earth's magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).

During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
CAUTION

When doing the circling calibration,
be sure to secure a wide space,
and pay attention to people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.

Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
ProCarManuals.com

'00 AVALON U (L/O9908)
143
(a)If parking brake
is off, stop
immediately and
contact Toyota
dealer.
(b) Fasten driver 's
seat belt.
If the indicator or
buzzer comes on...
(d) Stop and check. (type A)
(type B)
(indicator and buzzer)
(e) Stop and check.Do this.
(c) Fasten front
passenger 's seat
belt.
(h) Take vehicle to
Toyota dealer.
If brake system
warning light is
also on, stop
immediately and
contact Toyota
dealer.
If the indicator or
buzzer comes on...
(i) Close all doors.
(j) Replace bulb.
(type A)
(type B)
(g)
Fill up tank.
Do this.
(f) Take vehicle to
Toyota dealer.
(m) Take vehicle to
Toyota dealer.
If the indicator or
buzzer comes on...
(o) Remove key. Key reminder
buzzer
(n) Add washer fluid.Do this.
(l) Take vehicle to
Toyota dealer.
(k) Take vehicle to
Toyota dealer
immediately.
Service reminder indicators
an d warn in g bu zzers
