2000 TOYOTA AVALON Owners Manual

'00 AVALON U (L/O 9908)
216
The outside temperature gauge indi-
cates the outside air temperatures with
the ignition key at the ONº position.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.
Type AÐTo change the display between
 Cº to  Fº, push the MODEº button until
the display blinks. Then push the ADJº
button to select  Cº or  Fº.
Type BÐFor details, see Multi- information
displayк in Section 1- 5.

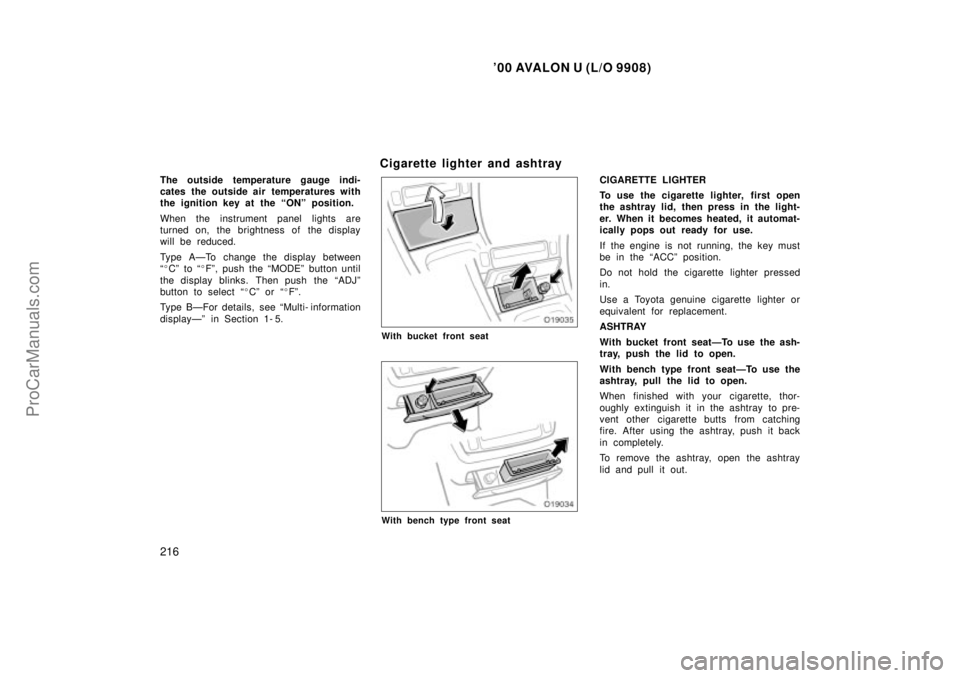

Cigarette lighter and ashtray
With bucket front seat
With bench type front seat
CIGARETTE LIGHTER
To use the cigarette lighter, first open
the ashtray lid, then press in the light-
er. When it becomes heated, it automat-
ically pops out ready for use.
If the engine is not running, the key must
be in the ACCº position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAY
With bucket front seatÐTo use the ash-
tray, push the lid to open.
With bench type front seatÐTo use the
ashtray, pull the lid to open.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
To remove the ashtray, open the ashtray
lid and pull it out.
ProCarManuals.com

'00 AVALON U (L/O9908)
217
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always push the ash-
tray back in completely after using.
Power outlet (12 VDC)
With bucket front seat
With bench type front seat
The power outlet is designed for power
supply for car accessories.
The key must be in the ºACCº or ºONº
position for the power outlet to be used.
NOTICE

To prevent the fuse from beingblown, do not use the electricityover the total vehicle capacity of 12VDC/120W.

To prevent the battery from beingdischarged, do not use the poweroutlet longer than necessary when
the engine is not running.

Close the power outlet lid when thepower outlet is not in use. Insertinga foreign object other than the ap-propriate plug that fits the outlet,
or allowing any liquid into the out-let may cause electrical failure orshort circuits.
ProCarManuals.com

'00 AVALON U (L/O 9908)
218

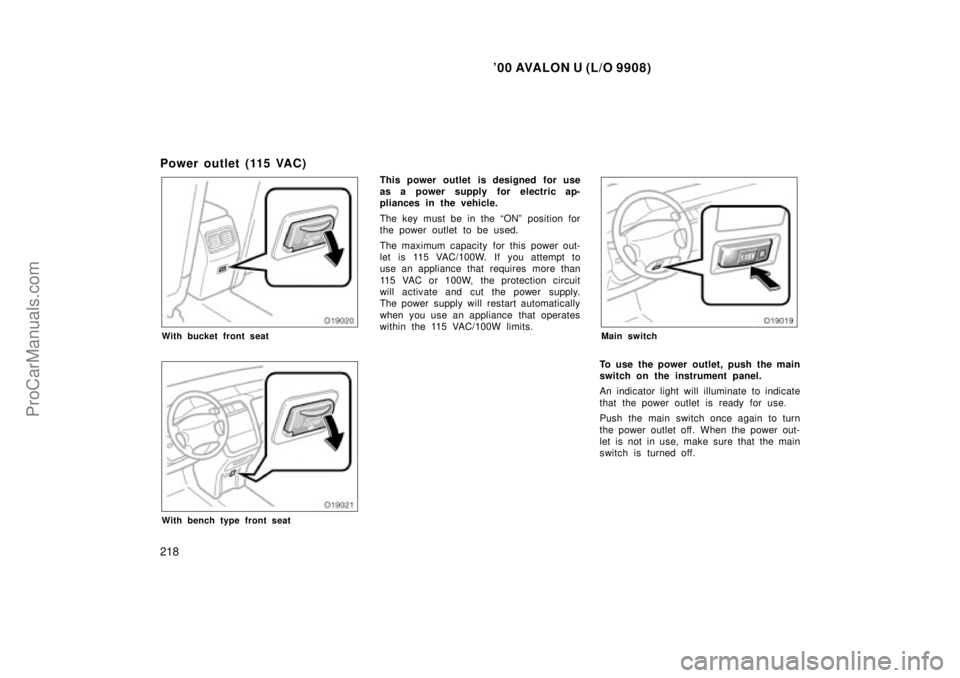

Power outlet (115 VAC)
With bucket front seat
With bench type front seat
This power outlet is designed for use
as a power supply for electric ap-
pliances in the vehicle.
The key must be in the ONº position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.
Main switch
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
ProCarManuals.com

'00 AVALON U (L/O9908)
219
NOTICE

To prevent the battery from beingdischarged, do not use the poweroutlet longer than necessary whenthe engine is not running.

Close the power outlet lid when thepower outlet is not in use. Insertinga foreign object other than the ap-
propriate plug that fits the outletmay cause electrical failure or shortcircuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.

Appliances with high initial peak watt-
age: cathode- ray tube type televisions,
compressor- driven refrigerators, electric
pumps, electric tools, etc.

Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.

Other appliances requiring an extremely
stable power supply: microcomputer-
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.
Glo ve bo x
To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
glove box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
ProCarManuals.com

'00 AVALON U (L/O 9908)
220
Garage door opener
Garage door openers manufactured un-
der the license from HomeLink and
can be programmed to operate garage
doors, estate gates, security lighting,
etc. PROGRAMMING THE GARAGE DOOR
OPENER
This garage door opener has 3 buttons
and you can store one program for each
button.
1. Decide which one of the 3 buttons you want to program. Push and hold down
one of the buttons until the indicator
light begins to flash.
2. While holding this button, bring the original garage door opener closer to
the garage door opener equipped on
the vehicle within about 25 mm (1 in.)
and push the button on the original
garage door opener. This signal from
the original garage door opener is sent
to the one to be programmed.
3. When the frequency and code is regis- tered, the indicator light flashes rapidly.
Then you can release both buttons.
4. If you wish, repeat the procedure for each remaining button for another ga-
rage door opener.
If you want to write a new program over
the program set already, select a button
you want to program and repeat the pro-
cedure from step 1. The previous program
is erased and a new program will be set. If the transmitter has a rolling c
odeº fea-
ture, it is necessary to program the ga-
rage door opener receiver on the garage
after programming the garage door opener
on the vehicle. For the setting of the re-
ceiver, refer to the instruction manual for
the receiver.
After setting the receiver, push the pro-
grammed button on the vehicle for about
1 to 2 seconds within the operational
range.
The old- type garage door openers
manufactured before 1982 cannot be pro-
grammed with this system.
CAUTION
When programming or operating the
garage door opener, make sure there
is no one around the moving door. It
is dangerous if someone is caught.
OPERATING THE GARAGE DOOR
OPENER
Push the appropriate button to activate the
garage door opener. The indicator light
comes on. The garage door opener contin-
ues to send the signal for up to 20 sec-
onds as long as the button is pushed.
ProCarManuals.com

'00 AVALON U (L/O9908)
221
ERASING THE GARAGE DOOR OPENER
MEMORY
Push and hold down the 2 outside buttons
until the indicator light flashes. All memo-
rized data will be erased.
FCC ID: CB2V94800
CANADA: 1763 102 264
This device complies with FCC Pules
Part 15. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence that may be received, including
interference that may cause undersired
operation.
WARNING: This transmitter has been
tested and complies with FCC and
DOC/MPAC rules. Changes or modifi-
cations not expressly approved by the
partly responsible for compliance
could void the user's authority to op-
erate the device.
Auxiliary box (type A)
To use the box, push the lid to open.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
In hot weather, inside of the vehiclebecomes very hot. Do not leave any-thing flammable or deformable suchas a lighter, the glasses, etc. inside.
ProCarManuals.com

'00 AVALON U (L/O 9908)
222
Auxiliary box (type B)
To use the box, pull on the handle.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
Auxiliary box (type C)
To use the box, pull up the lock release
lever and open the lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
Auxiliary box (type D)
To use the box, pull up the lock release
lever and open the lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
ProCarManuals.com

'00 AVALON U (L/O9908)
223

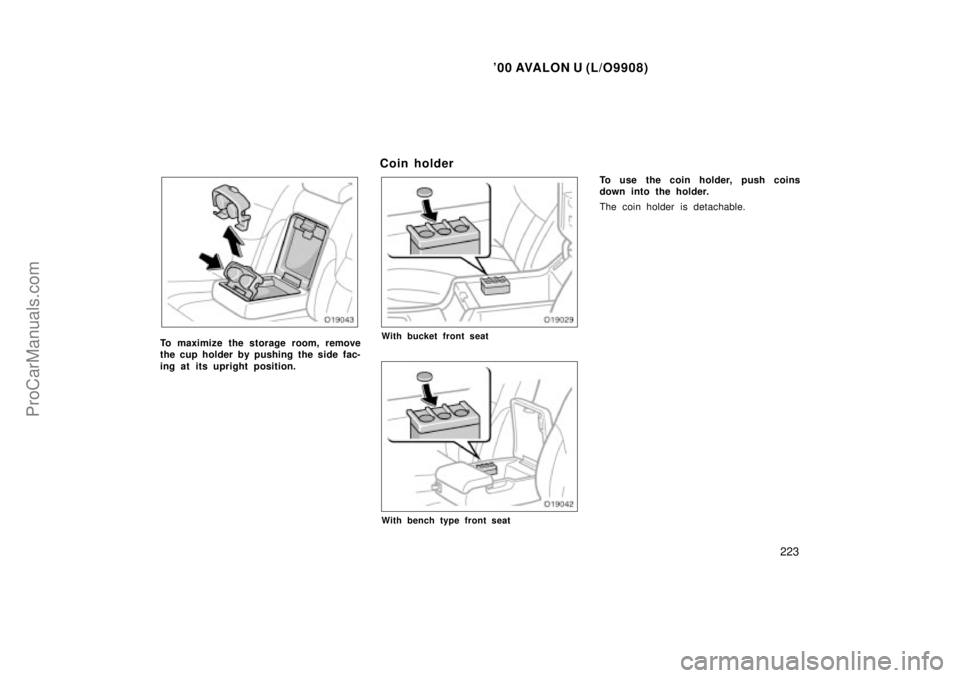

To maximize the storage room, remove
the cup holder by pushing the side fac-
ing at its upright position.
Coin holder
With bucket front seat
With bench type front seat
To use the coin holder, push coins
down into the holder.
The coin holder is detachable.
