2000 RENAULT KANGOO Sheet Metal Work Workshop Manual

LOWER STRUCTURE
Semi-rear end cross member
41
141LOWER STRUCTURE
Semi-rear end cross member
INTRODUCTION
This part is changed in addition to changing the rear
end panel. It may be performed in two ways:
The separation operation should be carried out last,
when all the other links have been unhooked.
In the operation described below, only descriptions of
the joints specific to the part concerned are given.
Connections associated with the additional parts are
not taken into consideration. These connections will be
dealt with in their respective section (refer to contents).
COMPOSITION OF THE PART FROM THE PARTS
DEPARTMENT
Part assembled with:
– extreme rear cross member.
– lower central extender,
– striker support absorber,
– lower side extender,
– side cross member,
– side cross member stiffener,
– counter blade absorber.PARTS CONCERNED (thickness in mm):
1 Side panel rain channel light support 1.5
2 Lights lower bracket 1
3 Side cross member stiffener 1
4 Extreme rear cross member 1.2
5 Side cross member 1
6 Side panel extender 1
7 Rear floor extender 0.8
8 Lower central extender 1
9 Basic body rearend panel 1 Cut 1order a right or left demi-cross member,
Cut 2order the two demi-cross members
then fit them in (A) or (B). For this
operation, the use of the body jig bench
is vital.
41-1
P

LOWER STRUCTURE
Semi-rear end cross member
41
41-2
SPECIAL FEATURE OF THE FOLLOWING
REPLACEMENT CUT 1
P

LOWER STRUCTURE
Semi-rear end cross member
41
41-3
P

LOWER STRUCTURE
Semi-rear end cross member
41
41-4
P

LOWER STRUCTURE
Semi-rear end cross member
41
41-5
J = two hexagonal screws Ø 8 mm
P

LOWER STRUCTURE
Semi-rear end cross member
41
41-6

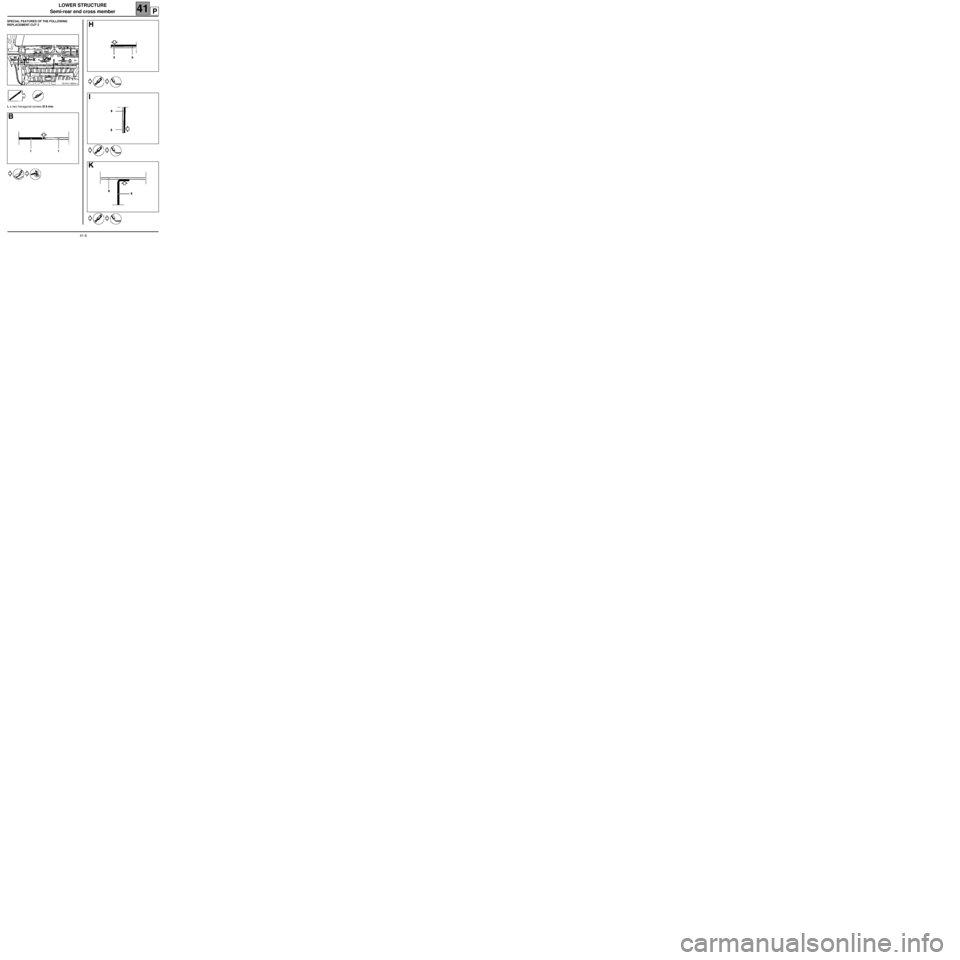

SPECIAL FEATURES OF THE FOLLOWING
REPLACEMENT CUT 2
L = two hexagonal screws Ø 8 mm
761P4-16604-1
P

LOWER STRUCTURE
Semi-rear end cross member
41
41-7
P

LOWER STRUCTURE
Rear floor extender
41Rear floor extender
INTRODUCTION
For a rear impact, replacing this part is an additional
operation to replacing:
–the rearend panel,
–the demi-extreme rear cross member.
IMPORTANT: the separation operation should be
carried out last, when all the other links of the part
have been released, in order to move the part to
separate it.
In the operation described below, only descriptions of
the joints specific to the part concerned are given.
Connections associated with the additional parts are
not taken into consideration. These connections will be
dealt with in their respective sections (refer to
contents).
COMPOSITION OF THE PART FROM THE PARTS
DEPARTMENT
Part assembled with:
–seal contour,
–striker stiffener,
–towing ring plate.PARTS CONCERNED (thickness in mm):
1 Rear floor extender 0.8
2 Rear section rear floor 1
3 Extreme rear cross member 1.2
4 Lights support lower bracket 1
5 Lights mounting side panel rain channel 1.5
6 Side inner panel extender 0.8
7 Central lower extender 1
8 Side cross member 1
9 Seal contour 1
41-8
