Page 9 of 66
GENERAL INFORMATION
Description of parts
40Description of parts
UPPER STRUCTURE
1Roof added
2Roof rear cross member
3Rear wing panel (panel and glazed version)
4Side panel rain channel support
5Side panel added (panel and glazed version)
6Side panel extender
7Side inner panel extender
8Upper rear corner stiffener
9Roof inner panel extender
PRF4011
40-6
Page 10 of 66
GENERAL INFORMATION
Description of parts
40
40-7
SUB-FRAME
10 Rear floor extender
11 Demi-rear end cross member
12 Rear end panel
PRF4012
Page 11 of 66
GENERAL INFORMATION
Sub-frame dimensions
40Sub-frame dimensions
DESCRIPTION X Y Z DIAMETER SLOPE %
L Rear end cross member (end panel) 3 446 - 497.5 151 M8 0
40-8
Page 12 of 66
GENERAL INFORMATION
Repair Bench
40Repair Bench
CELETTE REPAIR BENCH
40-9
Page 13 of 66
GENERAL INFORMATION
Repair Bench
40
40-10
BLACKHAWK BODY JIG BENCH
PRF4013
Page 14 of 66
GENERAL INFORMATION
Repair Bench
40
SPECIAL TOOLING PART NUMBER
BLACKHAWK
Special heads for MS System
Order at: BLACKHAWK S.A.
Centre Eurofret
Rue de Rheinfeld
67100 STRASBOURG
Supplier’s part number: REN 88222CELETTE
Specific plates for MZ System
Order at: CELETTE S.A.
B.P. 9
38026 VIENNA
Supplier’s part number: 760 308
40-11
Page 15 of 66
GENERAL INFORMATION
Tools and specific products
40

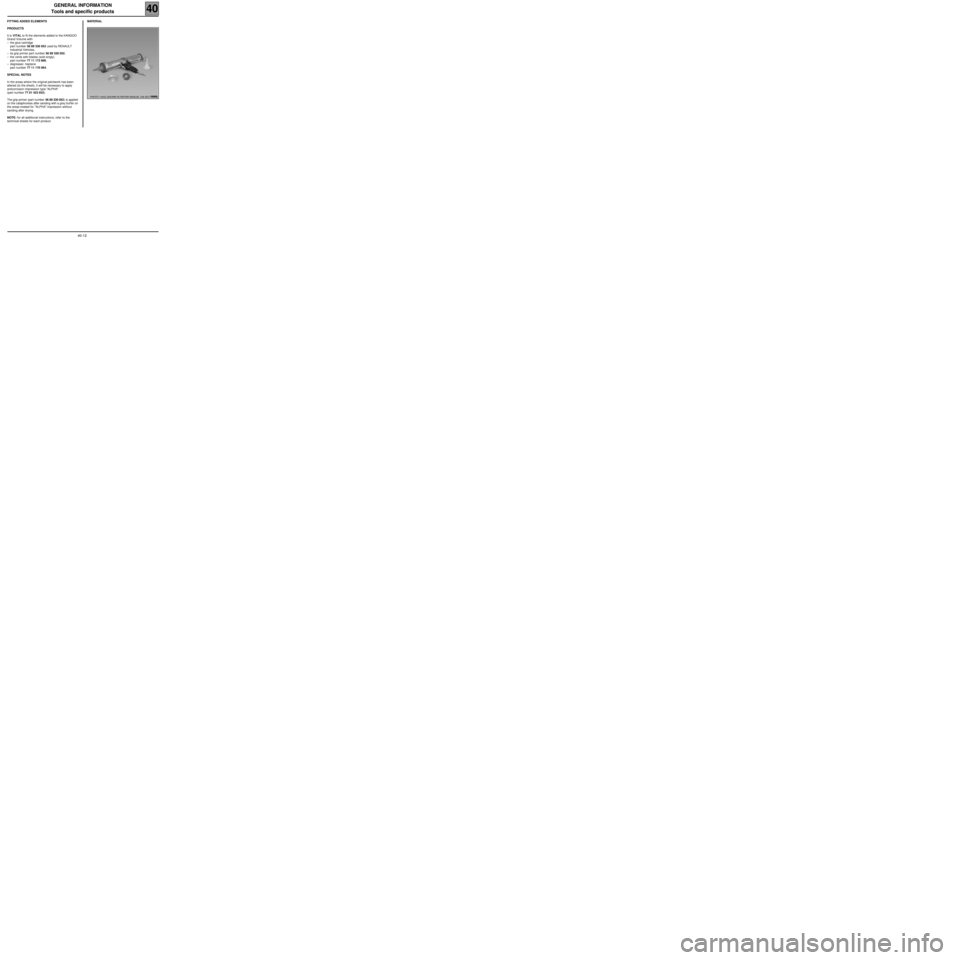

40-12
Tools and specific products
FITTING ADDED ELEMENTS
PRODUCTS
It is VITAL to fit the elements added to the KANGOO
Grand Volume with:
–the glue cartridge
part number 56 89 330 053 used by RENAULT
Industrial Vehicles,
–its grip primer part number 56 89 330 052,
–the vents with blades (sold singly)
part number 77 11 172 866,
–degreaser, heptane
part number 77 11 170 064,
SPECIAL NOTES
In the areas where the original paintwork has been
altered (to the sheet), it will be necessary to apply
anticorrosion impression type "ALPHA"
(part number 77 01 423 933).
The grip primer (part number 56 89 330 052) is applied
on the cataphoresis after sanding with a grey buf fer on
the areas treated for "ALPHA" impression without
sanding after drying.
NOTE: for all additional instructions, refer to the
technical sheets for each product. MATERIAL
PHOTO 14342 (SHOWN IN REPAIR MANUAL 338 SECTION 5)
Page 16 of 66
GENERAL INFORMATION
Tools and specific products
40
3M ADHESIVE FINISHING SEAL
(Part number 77 11 212 385)
It is applied before the paint, on a degreased primer.
Refer to section type (section 44-Aa, 44-Bb).
16595R4
40-13
