6-62 Engine Compartment Bussed Electrical
Center (BEC)
As mentioned above, the
front BEC is located in
the front of the engine
compartment on the
passenger's side. Lift the
cover to gain access.
Fuse 22 or 23 can be moved to the outer position to
enable the accessory power outlet or cigarette lighter
when the ignition is not on. See your dealer for
additional assistance, if needed.
Minifuse Usage
1 Not Used
2 Accessory
3 Windshield Wipers
4 Not Used
5 Headlamp Low Beam Left
6 Headlamp Low Beam Right
7 Spare
8 Powertrain Control
Module Battery

6-63
Minifuse Usage
9 Headlamp High Beam Right
10 Headlamp High Beam Left
11 Ignition 1
12 Not Used
13 Transaxle
14 Cruise Control
15 DIS
16 Injector Bank #2
17 Not Used
18 Not Used
19 Powertrain Control
Module Ignition
20 Oxygen Sensor
21 Injector Bank #1
22 Auxiliary Power
23 Cigar Lighter
24 Fog Lamps/Daytime
Running Lamps
25 Horn
26 Air Conditioning ClutchMirco Relay Usage
27 Headlamp High Beam
28 Headlamp Low Beam
29 Fog Lamps
30 Daytime Running Lamps
31 Horn
32 Air Conditioning Clutch
33 HVAC Solenoid
Mini Relay Usage
34 Accessory
35 Air Pump
36 Starter 1
37 Cooling Fan Secondary
38 Ignition 1
39 Cooling Fan Series/Parallel
40 Cooling Fan Primary

6-64
Maxibreaker Usage
41 Starter
Maxifuse Usage
42 Air
43 Antilock Brake System
44 Not Used
45 Not Used
46 Cooling Fan Secondary
47 Cooling Fan Primary
48 Spare
49 Spare
50 Spare
51 Spare
52 Spare
53 Fuse PullerRemoving the Rear Seat Cushion
NOTICE:
The battery and main fuse boxes are located
under the rear seat cushion. The battery's ground
terminal and some relay wires are exposed. To
help avoid damage to the battery and wires, be
careful when removing or reinstalling the seat
cushion. Do not remove covers from covered
parts. Do not store anything under the seat,
as objects could touch exposed wires and cause
a short.
To remove the rear seat cushion:
1. Pull up on the front of the cushion to release the
front hooks.
2. Pull the cushion up and out toward the front of
the vehicle.

6-65

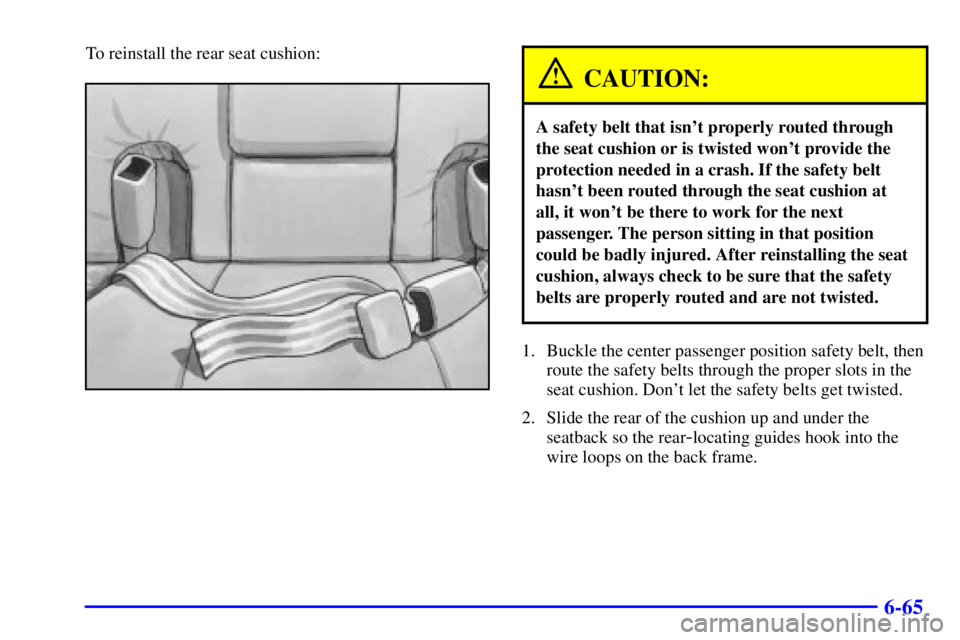

To reinstall the rear seat cushion:
CAUTION:
A safety belt that isn't properly routed through
the seat cushion or is twisted won't provide the
protection needed in a crash. If the safety belt
hasn't been routed through the seat cushion at
all, it won't be there to work for the next
passenger. The person sitting in that position
could be badly injured. After reinstalling the seat
cushion, always check to be sure that the safety
belts are properly routed and are not twisted.
1. Buckle the center passenger position safety belt, then
route the safety belts through the proper slots in the
seat cushion. Don't let the safety belts get twisted.
2. Slide the rear of the cushion up and under the
seatback so the rear
-locating guides hook into the
wire loops on the back frame.

6-66
3. With the seat cushion lowered, push rearward and
then press down on the seat cushion until the spring
locks on both ends engage.
4. Check to make sure the safety belts are properly
routed and that no portion of any safety belt is
trapped under the seat. Also make sure the seat
cushion is secured.
Rear Underseat Bussed Electrical
Center (BEC)
The rear BEC is located
below the rear seat on the
driver's side. The rear seat
cushion must be removed
to access the BEC. See
ªRemoving the Rear Seat
Cushionº in the Index.
Minifuse Usage
1 Fuel Pump
2 Heater, Ventilation, Air
Conditioning Blower
3 Memory Seat
4 Assembly Line Diagnostic Link
5 Not Used
6CD
7 Driver Door Module
8 Supplemental Inflatable Restraint

6-67
Minifuse Usage
9 Not Used
10 Lamps Park Right
11 Ventilation Solenoid
12 Ignition 1
13 Lamps Park Left
14 Interior Lamp Dimmer Module
15 Not Used
16 Heated Seat Left Front
17 Not Used
18 Rear Door Modules
19 Stoplamps
20 PARK (P) / REVERSE (R)
21 Audio
22 Retained Accessory Power
23 Not Used
24 Not Used
25 Passenger Door Module
26 Body
27 Interior Lamps
28 Not UsedMinifuse Usage
29 Ignition Switch
30 Instrument Panel
31 Heated Seat Right Front
32 Not Used
33 Heating, Ventilation,
Air Conditioning
34 Ignition 3 Rear
35 Antilock Brake System
36 Turn Signal/Hazard
37 HVAC Battery
38 Dash Integration Module
Micro Relay Usage
39 Fuel Pump
40 Parking Lamps
41 Ignition 1
42 Not Used
43 Not Used
44 Park Brake
45 Reverse Lamps

6-68
Micro Relay Usage
46 Retained Accessory Power
47 Fuel Tank Door Lock
48 Not Used
49 Ignition 3
50 Fuel Tank Door Release
51 Interior Lamps
52 Trunk Release
53 Front Courtesy Lamps
54 Not Used
55 Electronic Level
Control Compressor
Circuit Breaker Usage
56 Power Seats
57 Power Windows
Mini Relay Usage
58 Cigarette Lighter
59 Rear DefogMaxifuse Usage
60 Not Used
61 Rear Defog
62 Not Used
63 Audio Amplifier
64 Electronic Level Control
Compressor/Exhaust
65 Cigarette Lighter
66 Not Used
67 Spare
68 Spare
69 Spare
70 Spare
71 Spare
72 Spare
73 Spare
74 Spare
75 Fuse Puller

6-69
Replacement Bulbs
If your vehicle is equipped with the Driver Information
Center, the messages will also appear on the Lamp
Monitor to alert you that a bulb needs to be replaced.
Exterior Lamps Bulb
Front
Parking/Turn Lamps 3157NA
Halogen Headlamps
Low Beam 9006
High Beam 9005
Rear
Taillamps 3057
Back
-up Lamps 3057
Stoplamps 3057
Turn 3157
For service information on other bulbs, contact your
dealer's service department.
Capacities and Specifications
The following approximate capacities are given in English
and metric conversions. Please refer to ªRecommended
Fluids and Lubricantsº in the Index for more information.
Engine Specifications
3800 V6 Series II Engine (L36)
VIN Engine Code K. . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 3.8 Liters. . . . . . . . . . . . . . . . . . . . . .
Horsepower 205
-hp . . . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-6-5-4-3-2 . . . . . . . . . . . . . . . . . . . . .
Thermostat Temperature 195
F (91
C) . . . . . . . . . .
3800 V6 Series II Supercharged Engine (L67)
VIN Engine Code 1. . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 3.8 Liters. . . . . . . . . . . . . . . . . . . . . .
Horsepower 240
-hp . . . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-6-5-4-3-2 . . . . . . . . . . . . . . . . . . . . .
Thermostat Temperature 195
F (91
C) . . . . . . . . . .
Tire PressuresSee Tire
-Loading Information . . . . .
label on the driver's door.
