2000 PONTIAC BONNEVILLE Owners Manual

3-9 Heating
If you have the standard system, on cold days use
FLOOR with the temperature knob in the red area. If
you have the electronic system, press AUTO and adjust
the temperature by turning the TEMP knob up or down.
You may also adjust the electronic system manually by
pressing the MODE button and selecting FLOOR.
Again, adjust the temperature by turning the TEMP
knob up or down.
With either system, outside air will be heated and sent
through the floor outlets. The heater works best if you
keep your windows closed while using it.
Defogging and Defrosting
On cool, humid days, use DEFOG to keep the
windshield and side windows clear. Use FRONT defrost
to remove fog or ice from the windshield quickly in
extremely humid or cold conditions.
If you have the standard system, select DEFOG and
adjust the fan speed to your comfort level. Turn the A/C
on to help dehumidify the air. Use FRONT defrost with
the temperature toward the red area and the fan control
toward high.
If you have the electronic system and select FRONT
defrost or DEFOG from AUTO, the system will control
the fan speed. Adjust the temperature and fan speed to
your comfort level. After the windshield is clear, adjust
the temperature to your normal setting and select the
AUTO button and return to AUTO mode and
fan control.
For maximum FRONT defrost performance under
extreme icing or frosting conditions, increase the
temperature setting to 90
F (33
C) and increase the
fan speed to high.

3-10 Rear Window Defogger
The lines you see on the
rear window warm the
glass. Press the button to
start warming your window.
A light will glow in the
button while the defogger
is working.
If your vehicle is equipped with heated mirrors, this
button will activate them.
After 10 minutes it will turn off by itself, or press the
button during the heating cycle to turn it off. If you need
additional warming time, push the button again. The
system will then operate for five minutes before turning
off by itself. If your speed is maintained over 30 mph
(48 km/h), the rear defog will not turn off automatically
to help keep the rear glass clear.
Do not attach a temporary vehicle license, tape or decals
across the defogger grid on the rear window.NOTICE:
Do not try to clear frost or other material from
the inside of the rear window with a razor blade
or anything else that is sharp. This may damage
the defogger grid. The repairs wouldn't be
covered by your warranty.
Ventilation System
For mild outside temperatures when little heating or
cooling is needed, use the panel outlet setting (on the
standard system) to direct outside air through your
vehicle. Air will flow through the instrument
panel outlets.
Your vehicle's flow
-through ventilation system supplies
outside air into the vehicle when it's moving. When the
vehicle is not moving, you can get outside air to flow
through by selecting any air delivery mode and any
fan speed.

3-11

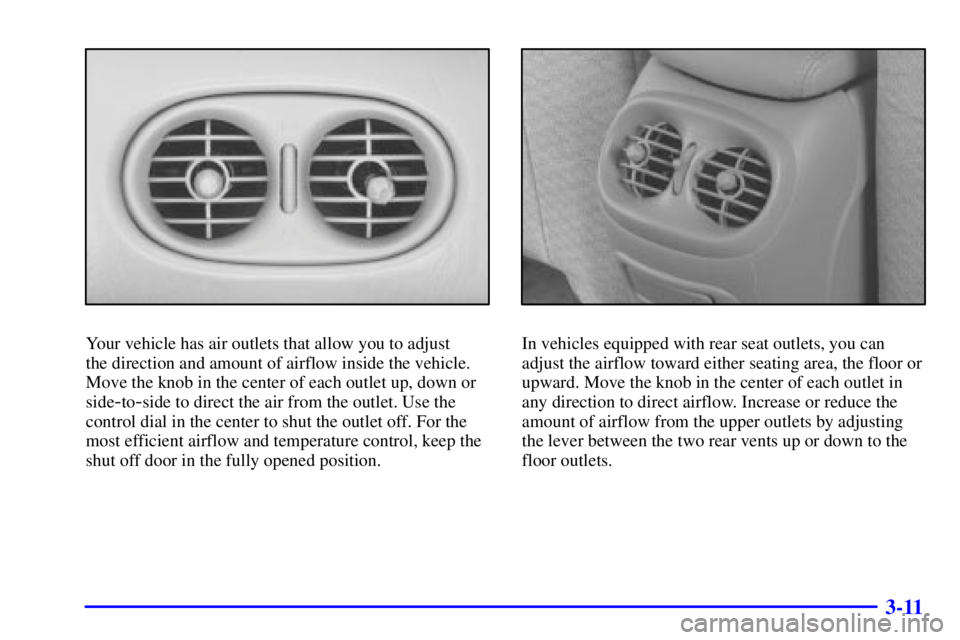

Your vehicle has air outlets that allow you to adjust
the direction and amount of airflow inside the vehicle.
Move the knob in the center of each outlet up, down or
side
-to-side to direct the air from the outlet. Use the
control dial in the center to shut the outlet off. For the
most efficient airflow and temperature control, keep the
shut off door in the fully opened position.
In vehicles equipped with rear seat outlets, you can
adjust the airflow toward either seating area, the floor or
upward. Move the knob in the center of each outlet in
any direction to direct airflow. Increase or reduce the
amount of airflow from the upper outlets by adjusting
the lever between the two rear vents up or down to the
floor outlets.

3-12
Ventilation Tips

Keep the hood and front air inlet free of ice, snow or
any other obstruction such as leaves. The heater and
defroster will work better, reducing the chance of
fogging your windows.

In cool damp weather, minimize your use of
RECIRC to reduce the chance of fogging
your windows.

When you enter a vehicle with the standard system
in cold weather, select FLOOR mode to supply air
through the floor outlets. Then turn the fan on high
for a few moments before driving away. This will
blow moist air from the intake outlets toward the
floor, not the windshield. It reduces the chance of
fogging your windows. If you have the electronic
system, the AUTO setting will do this for you.
Manual operation of the electronic system in the
FLOOR mode will also supply air through the
floor outlets.

Keep the air path under the front seats clear of
objects. This helps air to circulate throughout
your vehicle.Audio Systems
Your audio system has been designed to operate easily
and give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all its controls, to be sure you're getting the
most out of the advanced engineering that went into it.
Setting the Clock for Systems with Radio
Data System
Press and hold HR until the correct hour appears. AM
will appear on the display for morning hours. Press and
hold MIN until the correct minute appears. The clock
may be set with the ignition on or off.
To set the clock to the time of a station broadcasting
Radio Data System (RDS) information, press and hold
HR and MIN at the same time until TIME UPDATED
appears on the display. If the time is not available
from the station, NO UPDATE will appear on the
display instead.

3-13 AM-FM Stereo with Cassette Tape Player
with Programmable Equalization and
Radio Data System (RDS) (If Equipped)
Playing the Radio
PWR
-VOL: Press this knob to turn the system on
and off. To increase volume, turn the knob clockwise.
Turn it counterclockwise to decrease volume.SCV: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV,
your audio system adjusts automatically to make up
for road and wind noise as you drive. Set the volume
at the desired level. Press this button to select MIN,
MED or MAX. Each choice allows for more volume
compensation at faster vehicle speeds. Then, as you
drive, SCV automatically increases the volume, as
necessary, to overcome noise at any particular speed.
The volume level should always sound the same to you
as you drive. If you don't want to use SCV, select OFF.
Finding a Station
AM
-FM: Press this button to switch between AM,
FM1 and FM2. The display shows your selection.
TUNE: Turn this knob to choose radio stations.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.

3-14
SCAN: Press and hold one of the SEEK arrows for two
seconds until the SCAN icon appears on the display and
you hear a beep. Use SCAN to listen to stations for a
few seconds. The radio will go to a station, stop for a
few seconds, then go on to the next station. Press one of
the SEEK arrows again to stop scanning. The sound will
mute while scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM
-FM to select the band.
3. Tune in the desired station.
4. Press EQ to select the desired equalization.
5. Press and hold one of the six numbered buttons until
you hear a beep. Whenever you press that numbered
button, the station you set will return and the
equalization that you selected will also be
automatically selected for that button.
6. Repeat the steps for each pushbutton.PRESET SCAN: Press and hold one of the SEEK
arrows for more than four seconds until the PSCAN icon
and the preset number appear on the display. You will
hear a double beep. Use PRESET SCAN to listen to
each of your preset stations for a few seconds. The
radio will go to the first preset station stored on your
pushbuttons, stop for a few seconds, then go on to the
next preset station. Press one of the SEEK arrows again
to stop scanning presets.
Note that PRESET SCAN will skip over presets where
no station is being received at that time to prevent
hearing static.
Setting the Tone
TONE: Press and release this button until the desired
tone control (BASS, MID or TREB) is found. The
SELECT LED indicator will light to show that the tone
control can be adjusted. When using BASS, MID or
TREB, turn the SELECT knob clockwise to increase.
Turn it counterclockwise to decrease. If a station is weak
or noisy, you may want to decrease the treble.
Pressing and holding the TONE button for at least two
seconds will return all tone settings to flat regardless of
tone selected. FLAT will appear on the display.

3-15
EQ: This feature allows you to choose preset bass,
mid and treble equalization settings designed for
different individual listening tastes. Press EQ to select
the desired preset equalization setting. Each time you
press EQ, another setting will appear on the display.
You can preset up to six equalization settings. Just:
1. Turn the radio on.
2. Use the TONE button and the SELECT knob to
select the desired equalization.
3. Press and hold EQ for two seconds. SELECT EQ #
will appear on the display. The EQ icon will flash.
4. Press EQ or turn the SELECT knob to select the
desired EQ number. Each time you press EQ or turn
the SELECT knob, another EQ setting will appear on
the display.
5. Press and hold the EQ button or push the SELECT
knob to store the equalization preset. You will hear a
beep and EQ SAVED will appear on the display.
6. Repeat the steps for each EQ setting.
Note that EQ 5 has been programmed for use with talk
radio, but it can be preset to a different tone.Using RDS Mode
Your audio system is equipped with a Radio Data
System (RDS). RDS mode gives you many useful new
features. With RDS, the radio can:

Seek only to stations with the types of programs you
want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies, and

receive and display messages from radio stations.
RDS features are only available for use on FM stations
which broadcast RDS information. The RDS features of
your radio rely upon receiving specific RDS information
from these stations. These features will only work when
the RDS information is available. In rare cases, a radio
station may broadcast incorrect information that will
cause the radio features to work improperly. If this
happens, please contact the radio station.
When you are tuned to an RDS station, the station
name will appear on the display, instead of the
frequency. Most RDS stations provide their station
name, the time of day and a Program Type (PTY) for
their current programming.

3-16
TRAF: Press this button to receive traffic
announcements. The traffic announcement brackets will
appear on the display. TRAF will appear on the display
if the tuned station broadcasts traffic announcements.
If the current tuned station does not broadcast traffic
announcements, the radio will seek to a station that
does. When the radio finds a station that broadcasts
traffic announcements, it will stop. If no station is found,
NO TRAFFIC will appear on the display.
When a traffic announcement comes on the tuned radio
station or a related network station, you will hear it,
even if the volume is muted or a cassette tape or
compact disc is playing. If the cassette tape or compact
disc player was being used, the tape or compact disc will
stay in the player and resume play at the point where
it stopped.
INFO: If the current station has a message, INFO will
appear on the display. Press this button to see the
message. If the whole message does not appear on the
display, parts of the message will appear every three
seconds until the message is completed. To see the parts
of the message faster than every three seconds, press this
button again. A new group of words will appear on the
display. Once the complete message has been displayed,
INFO will disappear from the display until another new
message is received.PROG-TYPE: This button is used to turn on and off
Program Type (PTY) select. The P
-TYPE icon will
appear on the display and the SELECT LED indicator
next to the SELECT knob will light. The last selected
PTY will appear on the display for five seconds. Turn
the SELECT knob to select the PTY you want to listen
to. Press SEEK or SCAN to find radio stations of the
PTY you want to listen to. The last PTY selected will
be used for seek or scan modes. If a station with the
selected PTY is not found, NOT FOUND will appear on
the display. If both PROG
-TYPE and TRAF are on, the
radio will search for stations with traffic announcements
and the selected PTY.
To use the PROG
-TYPE interrupt feature, press and
hold this button until you hear a beep on the PTY
you want to interrupt. An ª*º will appear next to the
PTY name, for example CLASSICAL*. When you are
listening to a cassette or compact disc, the last selected
RDS FM station will interrupt play if that selected PTY
format is broadcast.
