RepairsIndexOverview Controls Car care Technology Data

1 Parking lamps/Low beams 94
2

>

Turn signal 77

>

Parking lamp 95

>

High beam 95

>

Headlamp flasher 77

>

Onboard computer88
3 Fog lamps95
4 Wiper/Washer system77
5 Central locking system36
6 Hazard warning flashers27
7 Rear window defroster79
8 HornMultifunction steering wheel
(MFL)25, 26
9 Electronic steering wheel
adjustment 54

Cockpit

18n

Instrument cluster390us338

19n

RepairsIndexOverview Controls Car care Technology Data

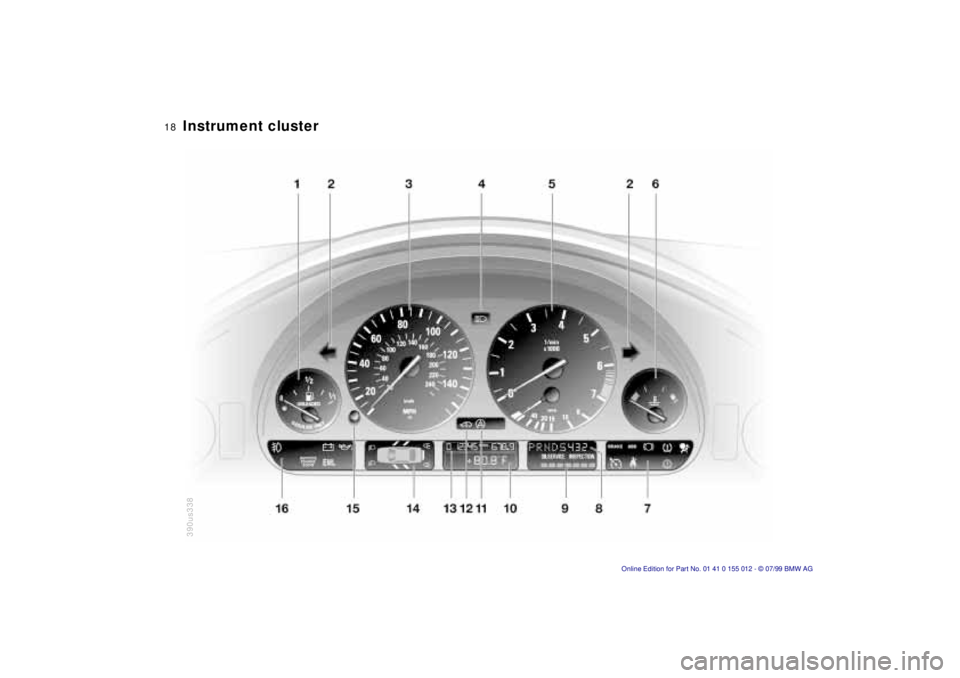

Instrument cluster

There are two versions, depending on
the equipment on your vehicle
1 Fuel gauge with indicator lamp for
fuel reserve 83
2 Indicator lamp for turn signals 24
3 Speedometer
4 Indicator lamp for high beams 24
5 Tachometer and
Energy Control 83
6 Engine coolant thermometer with
"Coolant temperature too high"
indicator 84
7 Indicator and warning lamps for:

>

Parking brake/Brake hydraulic
system, Dynamic Brake Control
(DBC)

*
22, 23

>

Antilock Brake System (ABS) 23

>

Brake pads 23

>

Tire Pressure Control (RDC)

*
23

>

Airbags 23

>

Automatic transmission

*
23

>

Please fasten safety belts 23

>

Cruise control 24
8 Selector lever and program display
for automatic transmission

*
71, 74
9 Service Interval Display 8410 Display for onboard computer
(operation via the turn signal lever,
refer to page 88):

>

Outside temperature

>

Average fuel consumption

>

Cruising range

>

Average speed
11 Indicator lamp for Automatic
Stability Control plus Traction
(ASC+T)/Dynamic Stability
Control (DSC)

*
24
12 Indicator lamp for level control
system

*
23
13 Odometer and trip odometer 82
14 Indicator for Check Control 85
15 Reset button for trip odometer 82
16 Indicator and warning lamps for:

>

Fog lamps 24

>

Battery charge current 22

>

Engine oil level/Engine oil
pressure 22, 23

>

Electronic Engine Power
Control (EML) 24

>

CHECK ENGINE lamp 24

20n

Instrument cluster

*
390us339

21n
RepairsIndexOverview Controls Car care Technology Data

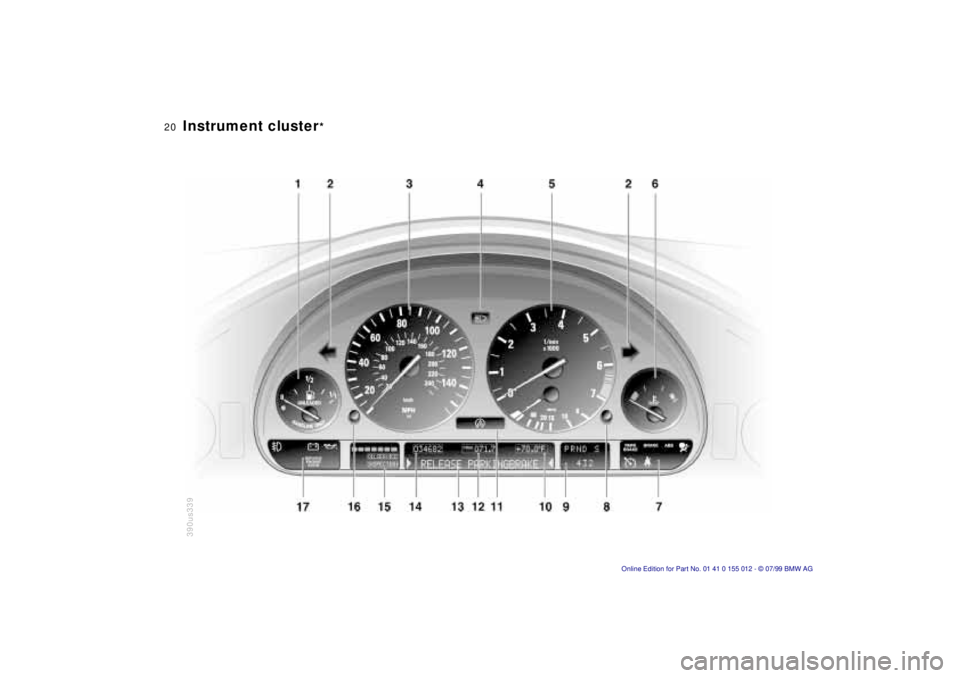

Instrument cluster

*
There are two versions, depending on
the equipment on your vehicle
1 Fuel gauge with indicator lamp for
fuel reserve 83
2 Indicator lamp for turn signals 24
3 Speedometer
4 Indicator lamp for high beams 24
5 Tachometer and
Energy control 83
6 Engine coolant temperature
gauge 84
7 Indicator and warning lamps for:

>

Parking brake 23

>

Brake hydraulic system, Dynamic
Brake Control (DBC)

*
22, 23

>

Antilock Brake System (ABS) 23

>

Airbags 23

>

Please fasten safety belts 23

>

Cruise control 24
8 CHECK button 85
9 Selector lever and program display
for automatic transmission

*
71, 7410 Outside temperature display 82
11 Indicator lamp for Automatic
Stability Control plus Traction
(ASC+T)/Dynamic Stability
Control (DSC)

*
24
12 Trip odometer 82
13 Indicator for Check Control 85
14 Odometer 82
15 Service Interval Display 84
16 Reset button for trip odometer 82
17 Indicator and warning lamps for:

>

Fog lamps 24

>

Battery charge current 22

>

Engine oil pressure 22

>

CHECK ENGINE lamp 24

22n

Indicator and warning lampsTechnology that monitors itselfMany of the systems of your BMW mon-
itor themselves automatically, both dur-
ing engine starts and while you are driv-
ing. Indicator and warning lamps that
are identified by "l" are tested for
proper functioning whenever the igni-
tion key is turned. They each light up
once for different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started or
it lights up while the vehicle is moving.
You will see how to react to this below.
Red: Stop immediately
Battery charge current l
The battery is no longer being
charged. There is a malfunction
of the alternator V-belt or in the charg-
ing circuit of the alternator. Please con-
tact the nearest BMW center.
If the ribbed V-belt is defective, do
not continue driving. The engine
could be damaged due to overheating.
If the ribbed V-belt is defective, in-
creased steering effort is also re-
quired.<
Engine oil pressure l
Comes on while the engine is
running and the "STOP! ENGINE
OILPRESS" message appears in the
Check Control: Stop vehicle and switch
off engine immediately. Check level of
oil in engine, top up as required. If oil
level is correct: Please contact the
nearest BMW center.
Do not continue driving. The en-
gine could be damaged because
of inadequate lubrication.<
Tire Pressure Control (RDC)
* l
In addition, there is an acousti-
cal warning signal: A tire failure
has occurred. Reduce vehicle speed
immediately and stop the vehicle. Avoid
hard brake applications. Do not over-
steer. For additional information: Refer
to page 92.
Parking brake
*, brake hydraulic
system l
Comes on when you engage the
parking brake. For additional informa-
tion: Refer to page 69.
Comes on although the parking brake is
released: Have the brake fluid level
checked. Before driving further, be
sure to read the notes on pages 130
and 152.
Also comes on with the message
"CHECK BRAKE PADS" in the Check
Control.
Parking brake warning lamp
*/
Brake hydraulic system for
Canadian models.

23n
RepairsIndexOverview Controls Car care Technology Data
Indicator and warning lampsYellow: Stop immediately
Engine oil level l
Stop vehicle and switch off en-
gine immediately. The oil level is
at the absolute minimum.
Refer to page 149.
Do not continue driving until oil is
added. Otherwise, the engine
could be damaged because of inade-
quate lubrication.<
Red: An important reminder
Parking brake
*
Comes on when you engage the
parking brake.
For additional information: Refer to
page 69.
Parking brake warning lamp
* for
Canadian models.
Please fasten safety belts l
Together with an acoustic signal
or a message
* in the Check
Control. Comes on until the safety belts
are fastened. For additional information
on safety belts: Refer to page 59.
Airbags l
Please have the system in-
spected by your authorized
BMW center.
For additional information: Refer to
page 60.
Yellow: Check as soon as possible
Antilock Brake System (ABS) l
ABS has been deactivated in
response to system malfunction.
Conventional braking efficiency is avail-
able without limitations. Please have
the system inspected by your autho-
rized BMW center.
For additional information: Refer to
page 127.
Antilock Brake System (ABS)
warning lamp for Canadian
models.
Engine oil level l
Comes on after the engine has
been shut off: Check the engine
oil level. For additional information:
Refer to page 149.
Automatic transmission
*
Because of a malfunction, the
automatic transmission shifts
only in the emergency program. Please
consult the nearest authorized BMW
center.
For additional information: Refer to
pages 73, 76.
Brake pads
* l
Have the brake pads checked.
For additional information:
Refer to page 130.

24n
Indicator and warning lamps
Dynamic Brake Control
(DBC)
* l
Fault in the DBC system. Con-
ventional braking efficiency is available
without limitations.
For additional information: Refer to
page 129.
Dynamic Brake Control (DBC)
warning lamp for Canadian
models
Tire Pressure Control (RDC)
* l
Check the tire inflation pressure.
Refer to pages 29, 92.
Level control system
* l
The level control system is
inactive. Please consult the
nearest authorized BMW center.
For additional information: Refer to
page 132.
Automatic Stability Control plus
Traction (ASC+T)/Dynamic Sta-
bility Control (DSC)
* l
The ASC+T/DSC has been switched off
or has been deactivated because of a
malfunction. In the event of a malfunc-
tion, have the system checked by your
authorized BMW center.
For additional information: Refer to
page 91.
Electronic Engine Power Control
(EML)
*
Malfunction in the EML. When
braking, higher brake application pres-
sure may be necessary and brake pedal
travel may be significantly longer.
Please have the system inspected by
your authorized BMW center.
CHECK ENGINE lamp l
If the indicator lamp comes on
either continuously or intermit-
tently, this indicates a fault in the emis-
sions-related electronic systems.
Although the vehicle remains opera-
tional, you should have the systems
checked by your BMW center at the
earliest possible opportunity.
For additional information: Refer to
page 162.
CHECK ENGINE warning lamp
for Canadian models.
Green: For your information
Turn signal
Flashes when the turn signals
are in operation. Rapid flashing
indicates a system malfunction.
For additional information: Refer to
page 77.
Cruise control
Lights up when the cruise con-
trol is activated. Available for
operation via the multifunction steering
wheel.
For additional information: Refer to
page 80.
Fog lamps
Lights up whenever you switch
on the fog lamps.
For additional information: Refer to
page 95.
Blue: For your information
High beam
Lights up when the high beams
are on or the headlamp flasher
is actuated.
For additional information: Refer to
page 77.
