2000 BMW 540I SEDAN Owners Manual

137n
RepairsIndexOverview Controls Car care Technology Data
Tire rotation Wheel and tire combinationsShould you decide to rotate the tires, it
is essential to comply with the follow-
ing: Rotate tires on the same side only,
since braking characteristics and road
grip could otherwise be adversely
affected.
Following tire rotation, correct the tire
inflation pressure.
If different tire sizes are mounted
on the front and rear axles (refer to
page 140), the wheels may not be
rotated from one axle to the other.<
The right choiceUse only tires approved by BMW.
Refer to the information beginning on
page 140.
Because of the high speeds this vehicle
can reach, the use of specific tire
brands, specifications and dimensions
is mandatory. Consult any BMW center
for details.
Comply with national, state, or province
regulations.
The correct wheel-tire combina-
tion affects different systems such
as ABS, ATC, ASC+T/DSC. The func-
tion of these systems is impaired if im-
proper wheel-tire combinations are
used.
For this reason, use only tires of the
same brand and tread pattern. In the
event of a flat tire if you have mounted
winter tires, for example, remount the
approved wheel-tire combination as
soon as possible.<
Codes on tires and wheelsThe tire codes will aid you in selecting
the correct tire.
Codes on radial tires:
The speed rating indicates the ap-
proved maximum speed for the tire.
Summer tires:
S = up to 112 mph (180 km/h)
T = up to 118 mph (190 km/h)
H = up to 130 mph (210 km/h)
V = up to 150 mph (240 km/h)
W = up to 167 mph (270 km/h)
Y = up to 186 mph (300 km/h)
ZR= over 150 mph (240 km/h)Example:
Nominal width
in mm
Aspect ratio in %
Radial tire code
Rim diameter in inches
Load rating
(not on ZR tires)
Speed rating
(before R on ZR tires)
235/60 R 16 100 W

138n
Wheel and tire combinations Winter tiresWinter tires:
Q M+S = up to 100 mph (160 km/h)
T M+S = up to 118 mph (190 km/h)
H M+S = up to 130 mph (210 km/h)
Codes stamped on light-alloy wheels:
Protect valve inserts against dirt using
screw-on valve stem caps. Dirt in the
valves frequently leads to slow leaks. Example:
Rim width
in inches
Code letter for
flange type
Symbol for full-drop
center rim
Rim diameter in inches
Hump on the 2 rim shoulders
8x16H2
J
Choosing the right tireBMW recommends winter tires (M+S
radial tires) for driving in adverse winter
road conditions. While tires known as
all-season tires (M+S designation) pro-
vide better winter traction than summer
tires with load ratings H, V, W, Y and
ZR, they generally do not achieve the
performance of winter tires.
In the interests of safe tracking and
steering response, install radial tires
made by the same manufacturer and
with the same tread configuration on all
four wheels if you elect to mount winter
tires.
Mount only winter tires which have
been approved by BMW. Any BMW
center will be glad to provide you with
information for selecting the best winter
tires for your particular driving condi-
tions.

139n
RepairsIndexOverview Controls Car care Technology Data
Winter tires Snow chains
*
Do not exceed specified
maximum speeds
Never exceed the maximum
speed for which the tires are
rated.
Unprofessional attempts by laymen to
service tires can lead to damage and
accidents.
Have this work performed by skilled
professionals only. Any BMW center
has the required technical knowledge
and the proper equipment and will be
happy to assist you.<
Tire condition, tire pressureWinter tires display a perceptible loss in
their ability to cope with winter driving
conditions once the tread wears to be-
low 0.16 inches (4 mm), and should
thus be replaced.
Comply with the specified tire inflation
pressures Ð and be sure to have the
wheel and tire assemblies balanced
every time you change the tires.
StorageStore tires in a cool, dry place, away
from light whenever possible. Protect
the tires against contact with oil, grease
and fuel.Use narrow-link BMW snow chains
on
summer or winter tires only in pairs and
only on the rear wheels. Comply with all
manufacturer's safety precautions when
mounting the chains.
It is not possible to mount snow
chains on tires with 17-inch
wheels.<

140n
Approved wheel and tire specifications Ð sedanPay attention to the specifications for
tires and wheels in the vehicle's manu-
als. If sizes not approved by the manu-
facturer are mounted, an entry in the
vehicle's documents may be necessary.
Comply with local legislation. Tire specifications Steel rim
(wheel rim)Light-alloy wheel
BMW 528i
All season tires
225/60 R 15 96 H M+S Ð 7Jx15
Summer tires
225/60 R 15 96 W Ð 7Jx15
225/55 R 16 95 W Ð 7Jx16
235/45 R 17 94 W/Y Ð 8Jx17
Front: 235/45 R 17 94 W/Y
Rear: 255/40 R 17 94 W/YÐ
Ð8Jx17
9Jx17
Winter tires (M+S)
205/65 R 15 94 Q Ð 6.5Jx15
225/60 R 15 96 Q Ð 7Jx15
225/55 R 16 95 Q Ð 7Jx16
235/45 R 17 94 Q Ð 8Jx17
The use of rims and wheel bolts
that do not meet the specifications
of the original factory-installed equip-
ment will affect the safe operation of
your vehicle and may cause an accident
and personal injury.
Never mix tires of different design, such
as steel-belted radials with radial bias-
belted or bias-ply tires, etc. Mixing tire
types will adversely affect roadholding
and can lead to loss of vehicle con-
trol.<

141n
RepairsIndexOverview Controls Car care Technology Data
Approved wheel and tire specifications Ð sedanPay attention to the specifications for
tires and wheels in the vehicle's manu-
als. If sizes not approved by the manu-
facturer are mounted, an entry in the
vehicle's documents may be necessary.
Comply with local legislation.Snow chains
*
For tires on 17-inch wheels, it is not
possible to mount snow chains. Tire specifications Steel rim
(wheel rim)Light-alloy wheel
BMW 540i
All season tires (BMW 540iA only)
225/55 R 16 95 H M+S Ð 7Jx16
Summer tires
225/55 R 16 95 W Ð 7Jx16
235/45 R 17 94 W/Y Ð 8Jx17
Front: 235/45 R 17 94 W/Y
Rear: 255/40 R 17 94 W/YÐ
Ð8Jx17
9Jx17
Winter tires (M+S)
225/55 R 16 95 Q/T/H Ð 7Jx16
235/45 R 17 94 Q/T/H Ð 8Jx17
The use of rims and wheel bolts
that do not meet the specifications
of the original factory-installed equip-
ment will affect the safe operation of
your vehicle and may cause an accident
and personal injury.
Never mix tires of different design, such
as steel-belted radials with radial bias-
belted or bias-ply tires, etc. Mixing tire
types will adversely affect roadholding
and can lead to loss of vehicle con-
trol.<

142n
Approved wheel and tire specifications Ð sport wagonTire specifications Steel rim
(wheel rim)Light-alloy wheel
BMW 528i
All season tires
225/60 R 15 96 H M+S Ð 7Jx15
Summer tires
225/60 R 15 96 W Ð 7Jx15
225/55 R 16 95 W Ð 7Jx16
235/45 R 17 94 W/Y Ð 8Jx17
Winter tires (M+S)
225/60 R 15 96 Q 7Jx15 7Jx15
225/55 R 16 95 Q Ð 7Jx16
235/45 R 17 94 Q Ð 8Jx17
BMW 540i
All season tires
225/55 R 16 95 H M+S Ð 7Jx16
Summer tires
225/55 R 16 95 W Ð 7Jx16
235/45 R 17 94 W/Y Ð 8Jx17
Winter tires (M+S)
225/55 R 16 95 Q Ð 7Jx16
235/45 R 17 94 Q Ð 8Jx17
Pay attention to the specifications for
tires and wheels in the vehicle's manu-
als. If sizes not approved by the manu-
facturer are mounted, an entry in the
vehicle's documents may be necessary.
Comply with local legislation.Snow chains
*
For tires on 17-inch wheels, it is not
possible to mount snow chains.
The use of rims and wheel bolts
that do not meet the specifications
of the original factory-installed equip-
ment will affect the safe operation of
your vehicle and may cause an accident
and personal injury.
Never mix tires of different design, such
as steel-belted radials with radial bias-
belted or bias-ply tires, etc. Mixing tire
types will adversely affect roadholding
and can lead to loss of vehicle con-
trol.<

143n
RepairsIndexOverview Controls Car care Technology Data
HoodTo unlockPull the lever located under the left-
hand side of the instrument panel.
Do not work on your vehicle with-
out appropriate skills. Switch off
the engine and allow it to cool down
before working in the engine compart-
ment. Always disconnect the battery
before working on any electrical
systems or equipment, especially when
these are located within the engine
compartment. Comply with all applica-
ble instructions and warnings. Failure to
work in an informed, professional
manner when servicing components
and materials constitutes a safety
hazard for vehicle occupants and other
road users. If you are not familiar with
the guidelines, please have the opera-
tions performed by your authorized
BMW center.<390de071
To openPull the release handle and open the
hood.390de072
To closeAllow the hood to fall from a height
of about 12 inches (30 cm) so that it
audibly engages.
To avoid injuries, be sure that the
travel path of the hood is clear
when it is closed, as with all closing
procedures.
If it is determined that the hood is not
completely closed while driving, stop
immediately and close it securely.< 390de375

144n
390de620

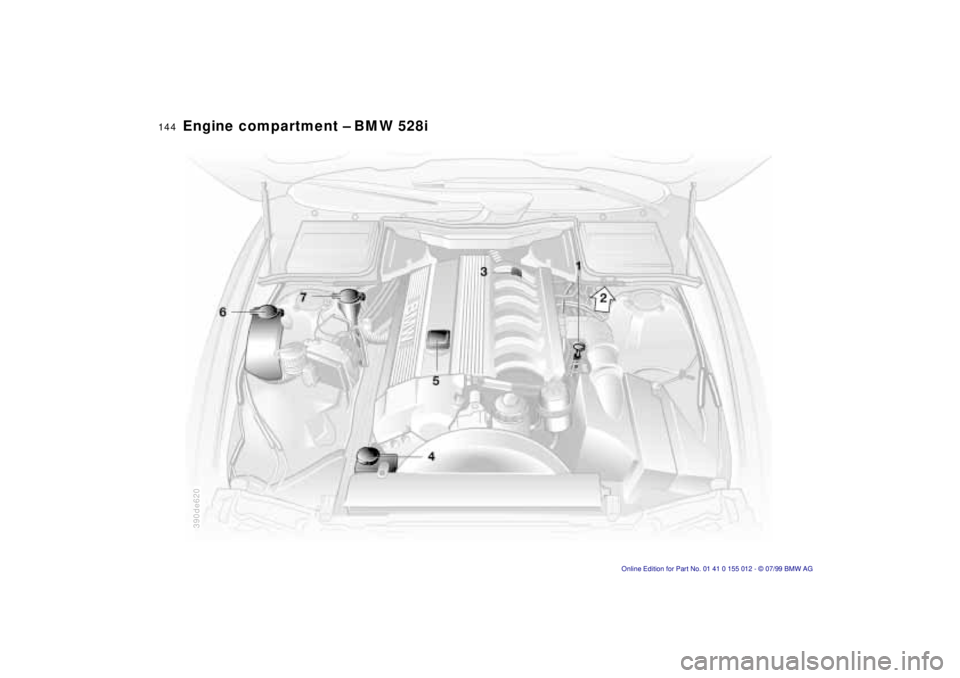

Engine compartment Ð BMW 528i
