2000 AUDI ALLROAD Anti theft

Power locks
The power locking system in your vehicle in­
corporates:
• Central locking function
• Remote control feature
• Anti-theft alarm system
for detail see page 67.
You can either lock your vehicle using the
remote control in your folding master
key or by using the mechanical key.
Activat ing the power locking system locks
or unlocks all doors, the rear lid and fuel filler
flap simu ltaneously.
The anti-theft alarm system switches on or
off whenever you lock or unlock the vehicle
with the remote control or key.
When locking the vehicle the horn of the
anti-theft alarm system will sound briefly if
all doors, hood and rear lid are closed prop­
erly.
The selective unlock feature makes it
possible to open just the driver's door in­
cluding the fuel filler flap. Operating
locks using remote
control
Unlocking and locking
(buttons A and C)
• To unlock just the driver's door
press button A one time for approxi­
mately 1 second.
To unlock all the doors and the rear
lid press button A two times.
All four turn signal lights will flash twice
when the car is unlocked. CONT
ROLS AND EQUIPMENT
After unlocking the vehicle, you have 60
seconds to open a door or the rear lid. If you
wait longer than 60 seconds, the vehicle will
automatically lock itself once again. The
alarm system will be reactiv ated.
• To lock the vehicle press button C for
approximately 1 second.
To confirm that the car is locked all four turn
signal lights will flash one time.
Remote rear lid release
(button B)
To unlock rear lid only, press button B
for at least 1 second. Then open lid within
60 seconds.
How to unlock rear lid using the key see
page 63.
PA NIC switch (button D)
Bypushingthe red button Dyou will engage
the "panic functio n." The horn sounds and
the turn signals will flash.
Press button D again to switch off the "pan­
ic function ."
59

Unlocking the
vehicle and
opening doors
To unlock and open door from
outside
• Press unlock button on your remote con­
trol twice or turn the key in the lock of the
driver's door or the rear lid two times to the
unlock position.
• Open doors by pulling the outside door
handle.
When you unlock your vehicle:
- the locking knobs in all doors will rise,
- the anti-theft alarm system is turned off,
- the anti-theft alarm system readiness
lights in the front doors goes out,
- the .vehicle interior lights come on for
about 30 seconds. See page 171.
- the seat and mirror memory is activated
and the driver's seat, exterior mirror and
steering wheel positions are retrieved.
See pages 74 and 83 for more details. To
unlock and open door from
inside
Each door can be unlocked independently
of the power locking system from the inside
by pulling the inside door handle:
Pulling the handle one time raises the
locking knob only.
Pulling the handle two times opens the
door.
Locking the vehicle
To lock vehicle from outside
• Close all windows and doors properly.
• Press lock button on your remote control
or turn the key in the lock of the driver's door
or the rear lid to the lock position.
When you lock the vehicle:
- all doors and the rear lid are locked, (the
locking knobs in all doors will lower),
- the anti-t .heft alarm system is turned on,
the vehicle interior lights turn off, and
the anti-theft alarm system readiness
lights near the locking knobs in the front
doors will start to blink. CONT
ROLS AND EQUIPMENT
To lock vehicle from Inside
Yo u can lock the vehicle from inside by
- depressing the locking knobs in the
doors or by
- pressing the lower part of power locking
switch. See next column.
Please note:
The anti-theft alarm system will not be
turned on when you lock the vehicle from in­
side.
If the driver's door is open, or not
closed properly, you will not be able to
lock this door.
61

CONT
ROLS AND EQUIPMENT---------------------
With the vehicle locked and child safe­
ty lock activated, you can also open the rear
lid in an emergency without having to use a
key.
To do this, a passenger in the car must lift
the lever on the inside of the rear lid (arrow) .
Then the rear lid can be opened from the
outside.
66 General
notes
Power locking system
• In the event of an accident with airbag
deployment all locked doors will be auto­
matically unlocked to give access to the ve­
hicle occupants from the outside.
• If the power locking system should fail,
you can still open the fuel tank flap in an
emergency, see page 224. Remote
control function
• The remote control system can be af­
fected by other systems operating in the
same frequency range close to the vehicle,
such as mobile telephones, television
broadcas ting stations, etc.
• Do no use the remote control if you are
inside the car, otherwise you may uninten­
tionally lock the vehicle, and then you would
set off the anti-theft alarm when you try to
start the engine or open a door.
If the ignition is switched on, the remote
control system is deactiv ated.
• Reactiv ating remote control.
If you replace a lost key, or if any repair and
I or exchange work is performed on the re­
ceiver, an authorized Audi Dealer must reac­
tivate the syste m. Only then can the key­
less remote system be used again.

---------------------CONTROLS
AND EQUIPMENT
• Certification
The remote control device complies with
Part 15 of the FCC Rules. Operation is sub­
ject to the following conditions:
1 - this device may not cause harmful in­
terfere nce, and
2 - this device must accept any interfer­
ence received, including interference
that may cause undesir ed operation.
The manufacturer is not responsible for
ANY RADIO OR TV Interference caused by
una uthorized modifications to this equip­
ment. Such modifications could void the
user's authority to operate the equipment. Anti-theft
alarm system
The anti-theft alarm system triggers an
acoustic alarm and switches on the emer­
genc y flasher if it senses unauthorized inter­
ference with the vehicle.
When the vehicle is locked the alarm sy­
stem monitors and protects the following
parts of the vehicle:
• engine compartment
• luggage compartment
• doors
• factory installed radio
• passenger compartment
• ignition.
The alarm system is switched on or off
whenever you lock or unlock the vehicle.
Simply tum the key to the lock or unlock
position or use the remote control.
The system is activated about 30 seconds
after the vehicle is locked, and the indicator
lights on the front door window sills start
flashing. The
horn sounds briefly when the car is
locked to confirm that the alarm system is
operative and that all doors, hood and rear
lid are properly closed. If the hom does not
sound, or the indicator lights do not flash,
check all doors, rear lid and hood and close
them properly. The horn will also sound if
the door, lid and hood are closed when the
system is already switched on.
The rear lid can be opened separately even
when the system is active. When the rear
lid is closed the luggage compartment will
again be included in the alarm circuit.
When the system is switched on the alarm
will be triggered if one of the doors, the en­
gine hood or the rear lid are opened, or if the
ign ition is switched on or the radio re­
moved.
When the alarm is triggered the hom
sounds and all four turn signals flash simul­
taneously. The engine cannot be started un­
til the system is switched off with the key
or the remote control.
67

CONT
ROLS AND
EQUIPMENT---------------------
If the alarm has sounded one time, and then
the vehicle is forced open again (for exam­
ple, someone tries to forcibly open a door,
and then tries to force open the rear lid), the
signal will sound once again.
You can also trigger the alarm by pressing
the PANIC switch on your remote control
to alert other people in case of emergency
or when in another difficult situation. The
alarm can be switched off by pressing the
PA NIC switch again.
Warn ing lights
After you lock the vehicle, the warning light
on the window sills will blink quickly first for
30 seconds and will then blink slowly. This
is to let you know that the anti-theft alarm
system is activated, including the interior
move ment sensors.
If the warning lights come on continuously
for about 30 seconds instead of flashing
when the vehicle is locked, this indicates
that the interior movement sensor is defec­
tive.
68 Swit
ching off the interior
movement sensors l
Yo u should switch off the interior move­
ment sensors if there is the possibility that
the alarm system could be set off, for exam­
ple by a pet left in the vehicle. •
Press the switch in the door pillar (see il­
lustration). The indicator light in the switch
will come on. The indicator light on the win­
dow sills will come on for approx imately
3 seconds. This verifies that the interior
movement sensors have been deactivat ed.
The sensors will be reactivated when you
unlo ck and lock the vehicle again.
• Lock the vehicle.
The indi cator lights in the doorpillarwill blink
quickly for approximately 3 seconds at first.
Then, after approximately 30 seconds, the
light will flash slowly.

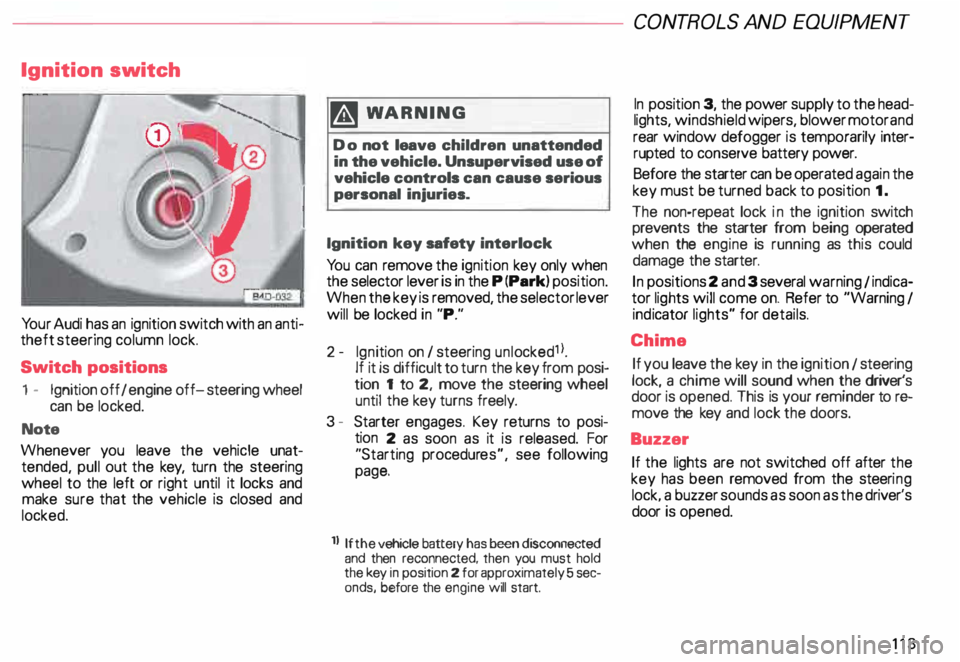

Ignition
switch
Yo ur Audi has an ignition switch with an anti­
theft steering column lock.
Switch positions
1 - Ignition off I engine off-steering wheel
can be locked.
Note
Whenever you leave the vehicle unat­
tended, pull out the key, turn the steering
wheel to the left or right until it locks and
make sure that the vehicle is closed and
locked. m
WARNING
Do not leave children unattended
in the vehicle. Unsupervised use of
vehicle controls can cause serious
personal injuries.
Ignition key safety interlock
Yo u can remove the ignition key only when
the selector lever is in the P (Park) position.
When the key is removed, the selector lever
will be locked in "P."
2- Ignition on I steering unlocked1 l.
If it is difficult to turn the key from posi­
tion 1 to 2, move the steering wheel
until the key turns freely.
3 - Starter engages. Key returns to posi­
tion 2 as soon as it is released. For
"Starting procedures", see following
page.
ll If the
vehicle battery has been disconnected
and then reconnected, then you must hold
the key in position 2 for approximately 5 sec­
onds, before the engine will start. CONT
ROLS AND EQUIPMEN T
In position 3, the power supply to the head­
lights, windshield wipers, blower motor and
rear window defogger is temporarily inter·
rupted to conserve battery power.
Before the starter can be operated again the
key must be turned back to position 1.
The non-repeat lock in the ignition switch
prevents the starter from being operated
when the engine is running as this could
damage the starter.
In positions 2 and 3 several warning 1 indica­
tor lights will come on. Refer to "Warning I
ind icator lights" for details.
Chime If you leave the key in the ignition 1 steering
lock, a chime will sound when the driver's
door is opened. This is your reminder tor&­
move the key and lock the doors.
Buzzer If the lights are not switched off after the
key has been removed from the steeri ng
lock. a buzzer sounds as soon as the driver's
door is opened.
113

Fuse
arrangement
No. 1 - Heated washer jets !
B45-087C I
A 11
- .. 5
2 - Turn signals . . . . . . . . .
. 10
3 - Headlight washer (relay)
illum ination for glove compartment,
climate control, Automatic
Tr ansmission, instrument cluster ... 5
4 - License plate light . . . 5
l) Amps No.
A1l
5 - Ins trument cluster, seat heating,
test connection for cruise control,
bulb monitor, Automatic
Tr ansmis sion display, switch lighting,
mirror switches and actuators,
airbag warning light, outside
temperature indicator, climate
control, solar roof, acoustic parking
assistance system, navigation­
system, car telephone, 4 Level Air
Suspension ............ .. ...... 1 0
6 - Power locking system . . . . . . . . . 5
7 - Anti-lock brake system (ABS),
brake light switch . . . . . . . . . . . . 1 0
8 - Car telephone . . . . . . . . . . . . . . .
. 5
9 - Heated mirrors . . . . . . . . . . . . . . 1 0
1 0- Automatic headlight adjustment
. 5
11 -Cruise control
(Automatic Transmission) . . .
1 0
12- On Board Diagnostic system .... _ 10
13 -Brake lights . . . . . . 1 0 DO-IT-YOURSELF
SERVICE
No. 14 -Interior lights, reading lights,
anti-theft alarm system,
vanity mirror, seat memory ....... 10
15 -Instrument cluster, climate control,
mirror and seat mem ory, .
navigation system . . . . . . . . . . . . . . 1 0
16- Electronic Stability Programm ..... 5
17 -Navigation system, 4 Level Air
Suspension, automatic headlight
adjustment .............. ...... 10
18-Hig h-beam, right ......... ....... 10
19 -H igh-beam, left . . . . . . . . . . . . .. 1 0
20 � Low beam, right, headlight
adjustment . . . . . . . . . . . . . . . • . .
15
21 -Low beam, left, headlight
adjustment . . . . . . . . . . . . . . . .. 15
22 -Side marker and tail light, right . 5
23 -Side marker and tail light, left . . . . . 5
24 -Wiper and washer system . . 25
25 -Blower for heating (climate
control), solar roof 30
275

ALP
HABEnCAL INDEX----------------------------------------------
A
Acoustic park assist
Adding - Brake fluid ...
- Engine coolant
. . . . . • • •
- Engine oil . . . . .
... •.• .. __ 11
2
242
240
236
Additional accessories ..
262
Adjusta ble steering column . . . . . 98
Adjusting
- Climate controls . . . . . . . . . . 163
- Head restraints . • . . . . . 75, 79
-M irrors . . . . . . . . . • • . . . . . . . 72
-S eats .... ... ............ ... 76
- Washer jets . . . . . . . . . . . . . . . 250
Air circulation -luggage compart-
ment ........ .. ... .... .. . 89
Air cleaner ...... .. ... . _ .... . .. 248
Air conditioning . . . . . . . , . .
162
Air outlets . . . . . 165
Air recirculation
... ••• , • • . .
164
Air suspension .
153
Air vents . . . . . . • . . . . . . 165
Airbag . . . . . . . . . . . . . . . .
25
- System components
25
?00 Airbag
system . • . . . . • • • . . . . 25
-C are....... .. .. .. .. 41
- Disposal . . . . . . . . . • • . • . . .
41
- Front airbags . . . . . . . . . . . .
25
- How it works (front airbag) . . . 27
-S eating position . .
29
-S ervice .. .. .. .. ... _ ... 41
Alarm system . .
• . . . . • • • • . . . . 67
All Wheel Drive
. . . . 207
Alternator . . . . . 120, 127
Ambient lighting . . . . . . . _ . . . . . 172
Anti-Lock Brake System ..•.... 202
Anti-theft alarm system . . . . ...
67
Armrest . . . . . . . . . . . . . . . . . 85, 263
Armrest with telephone ..... _ . . 19 0
Ashtray . . . . . . . . . . . . . .
180
Auto-Check System . . .
1 38
Automatic air recirculation . . . . . . 164
Automatic headlight adjustment . 14 8
Automatic shift lock . . . . . . . . .
106
Automatic transmission . . . . . . 1 04
- Back-up lights . . . . . . . . . . .
1 08
- Ign ition key safety interlock 1
04
- Reverse 1
08
- Tiptronic
105 B
Back-up lights- Automatic
transmission .
1 08
Battery . . . . . . .
. . . . . • • • 244
-C harging . .
. . • . . • .... . 246
- Replacing . . . . . 248
- Winter operation .
. . . . . . . . . 245
Belt tensioner . . . . . . • • • . • . .
. 24
Body cavity sealing .
220
Bolt-on hubcap . . . . . . . . . • . . 269
Booster seats ....... .. .. ... .. _ . 48
Boo t.............. .
184
Brake booster. . . . . . . . . . . . . . . . . 201
Brake fluid . . . . . . . . . . . . . • • . . • . . 242
Brake fluid reservoir . . . 242
Braking . . . . . . . . . . . 201
Break-in period . . • . . . . . 193
Bulb replacing . • . . . • • • • . . • 277
Buzzer 113
