2000 AUDI A4 Instrument Cluster OBD From Model Year 1999 Workshop Manual

01-54

Adapting SRI for inspection service Interval-1
(IN1) (time in days)
This function is used to enter the time until the
next inspection service 1 is due (see service
schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -7- to insert channel 07.
- Press -Q- button to confirm input.
Pa
ge 65 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-55

Channel 7 Adaptation 11

-1 3-

Indicated on display
The display shows the days remaining until the next inspection service 1
is due (in this example "11" indicates 110 days remaining).
Notes:
Values can only be entered in increments of 10 days. Therefore the
display shows blocks of 10 days. If the instrument cluster must be replaced, observe notes Page 01
-
75
.
When using the scan tool keypad, only the direct input method can be
used. If an incorrect value is input, the "adaptation" function 10 will be
cancelled and must be initiated again.
-
Press button.
Pa
ge 66 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

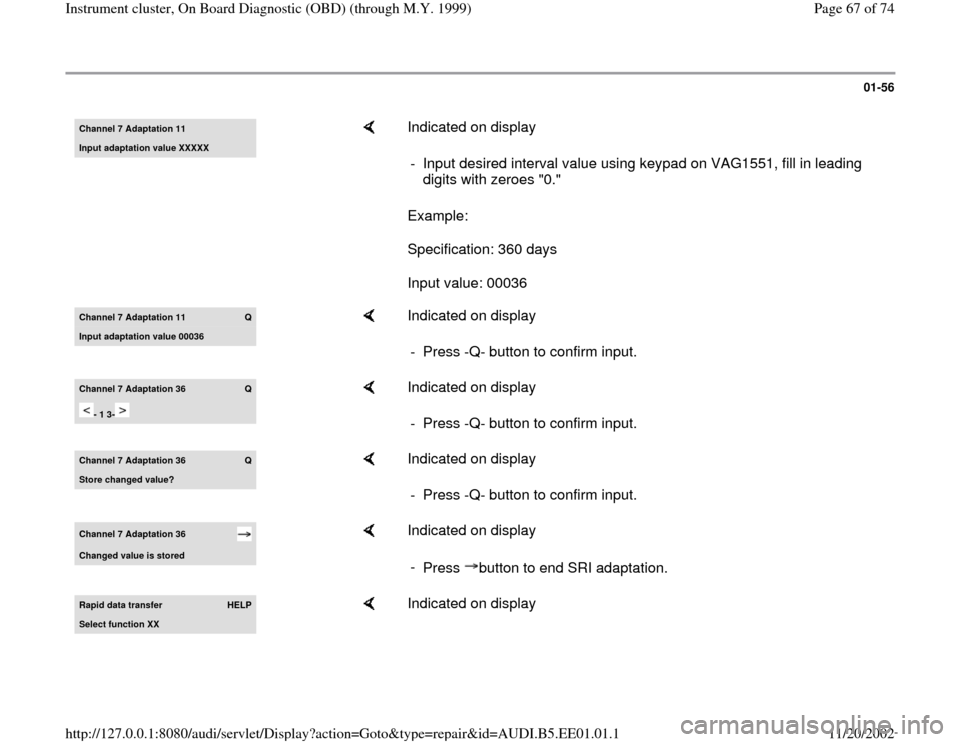

01-56

Channel 7 Adaptation 11Input adaptation value XXXXX

Indicated on display
Example:
Specification: 360 days
Input value: 00036 - Input desired interval value using keypad on VAG1551, fill in leading
digits with zeroes "0."
Channel 7 Adaptation 11
Q
Input adaptation value 00036

Indicated on display
- Press -Q- button to confirm input.
Channel 7 Adaptation 36
Q
- 1 3-

Indicated on display
- Press -Q- button to confirm input.
Channel 7 Adaptation 36
Q
Store chan
ged value?

Indicated on display
- Press -Q- button to confirm input.
Channel 7 Adaptation 36

Chan
ged value is stored

Indicated on display
-
Press button to end SRI adaptation.
Rapid data transfer
HELP
Select function XX

Indicated on display
Pa
ge 67 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-57

Adapting SRI for inspection service Interval-2
(IN2) (time in days)
This function is used to enter the time until the
next inspection service 2 is due (see service
schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -8-.
- Press -Q- button to confirm input.
Pa
ge 68 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

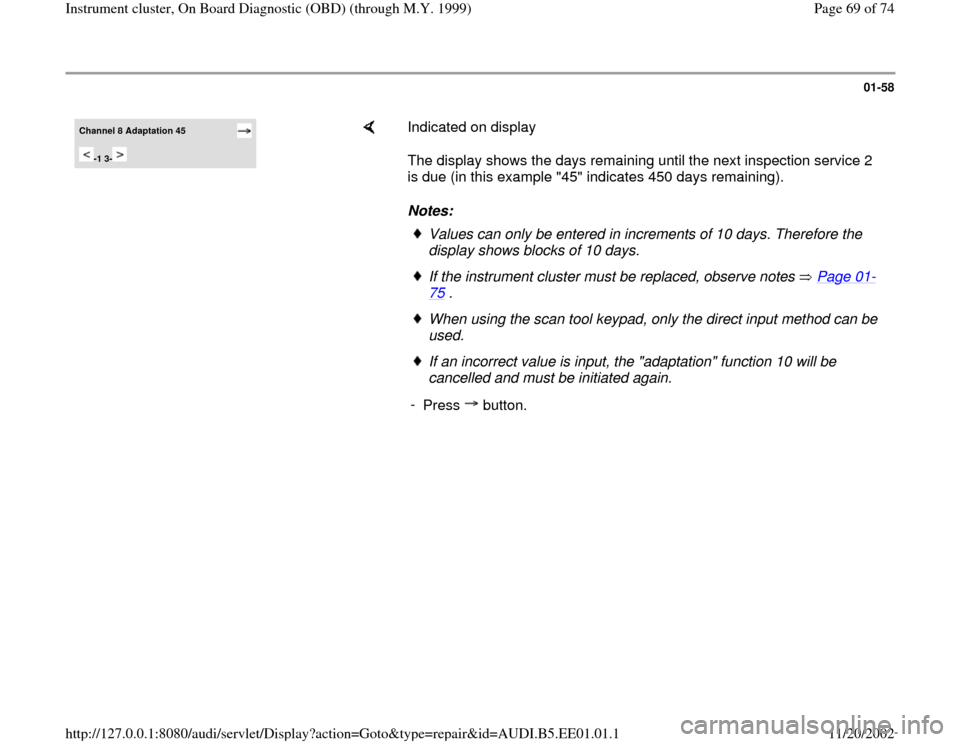

01-58

Channel 8 Adaptation 45

-1 3-

Indicated on display
The display shows the days remaining until the next inspection service 2
is due (in this example "45" indicates 450 days remaining).
Notes:
Values can only be entered in increments of 10 days. Therefore the
display shows blocks of 10 days. If the instrument cluster must be replaced, observe notes Page 01
-
75
.
When using the scan tool keypad, only the direct input method can be
used. If an incorrect value is input, the "adaptation" function 10 will be
cancelled and must be initiated again.
-
Press button.
Pa
ge 69 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-59

Channel 8 Adaptation 45Input adaptation value XXXXX

Indicated on display
Example:
Specification: 720 days
Input value: 00072 - Input desired interval value using keypad on VAG1551, fill in leading
digits with zeroes "0."
Channel 8 Adaptation 45
Q
Input adaptation value 00072

- Indicated on display
- Press -Q- button to confirm input.
Channel 7 Adaptation 72
Q
-1 3-

- Indicated on display
- Press -Q- button to confirm input.
Channel 7 Adaptation 72
Q
Store changed value?

- Indicated on display
- Press -Q- button to confirm input.
Channel 7 Adaptation 72

Chan
ged value is stored

- Indicated on display
-
Press button to end SRI adaptation.
Rapid data transfer
HELP
Select function XX

Indicated on display
Pa
ge 70 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

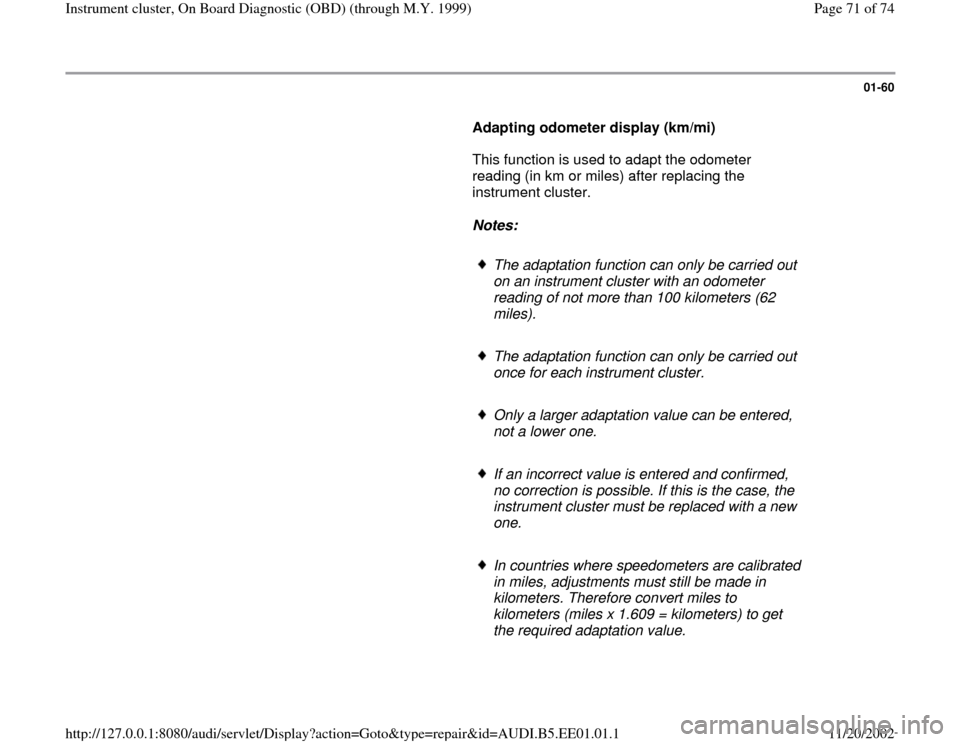

01-60

Adapting odometer display (km/mi)
This function is used to adapt the odometer
reading (in km or miles) after replacing the
instrument cluster.

Notes:

The adaptation function can only be carried out
on an instrument cluster with an odometer
reading of not more than 100 kilometers (62
miles).
The adaptation function can only be carried out
once for each instrument cluster.
Only a larger adaptation value can be entered,
not a lower one.
If an incorrect value is entered and confirmed,
no correction is possible. If this is the case, the
instrument cluster must be replaced with a new
one.
In countries where speedometers are calibrated
in miles, adjustments must still be made in
kilometers. Therefore convert miles to
kilometers (miles x 1.609 = kilometers) to get
the required adaptation value.
Pa
ge 71 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

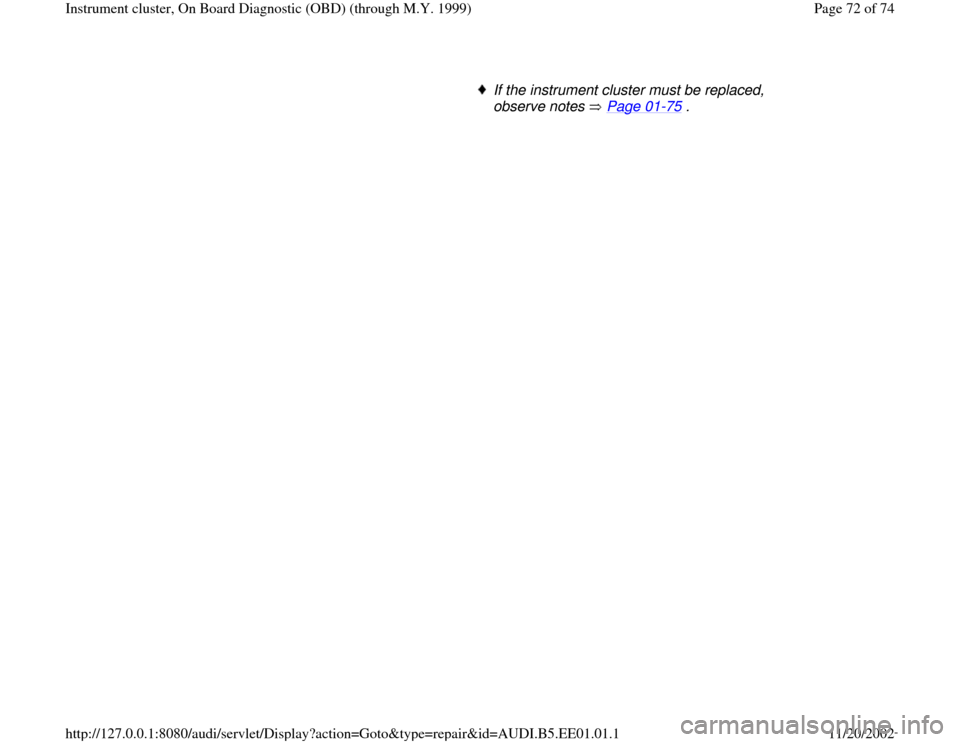

If the instrument cluster must be replaced,
observe notes Page 01
-75
.
