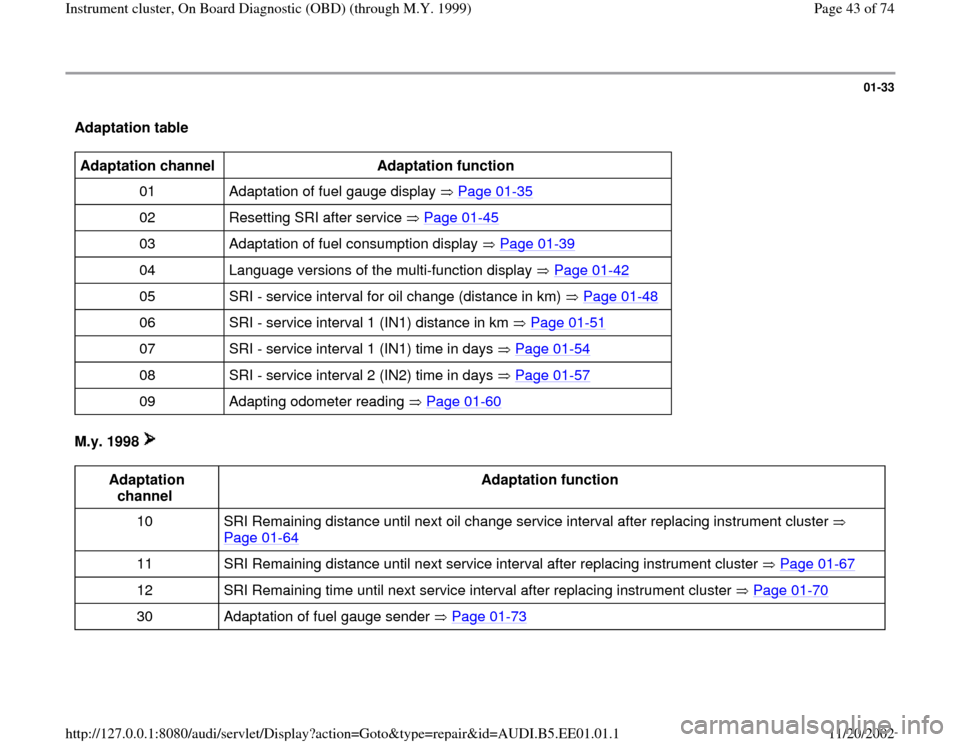

01-33
Adaptation table Adaptation channel
Adaptation function
01 Adaptation of fuel gauge display Page 01
-35

02 Resetting SRI after service Page 01
-45

03 Adaptation of fuel consumption display Page 01
-39

04 Language versions of the multi-function display Page 01
-42

05 SRI - service interval for oil change (distance in km) Page 01
-48

06 SRI - service interval 1 (IN1) distance in km Page 01
-51

07 SRI - service interval 1 (IN1) time in days Page 01
-54

08 SRI - service interval 2 (IN2) time in days Page 01
-57

09 Adapting odometer reading Page 01
-60

M.y. 1998
Adaptation
channel Adaptation function
10 SRI Remaining distance until next oil change service interval after replacing instrument cluster
Page 01
-64

11 SRI Remaining distance until next service interval after replacing instrument cluster Page 01
-67

12 SRI Remaining time until next service interval after replacing instrument cluster Page 01
-70

30 Adaptation of fuel gauge sender Page 01
-73

Pa
ge 43 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-46

Channel 2 Adaptation 1
-1 3-

Indicated on display. (service interval will be displayed, e.g. 1)
Note:
Reset the SRI using only the direct input method. 1 - indicates that the oil service is due.
10 - indicates that the inspection service is due.
11 - indicates that oil and inspection services are due.
-
Press button.
Channel 2 Adaptation 1 Input adaptation value XXXXX

Indicated on display
Delete the following service events by using the adaptation values listed
below: Adaptation value
Service Event
00000 Delete OIL and INSP
00010 Delete OIL
00001 Delete INSP - Using keypad, enter appropriate adaptation value to delete service
event, e.g. 00000.
- Press -0- button five times.
Pa
ge 57 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

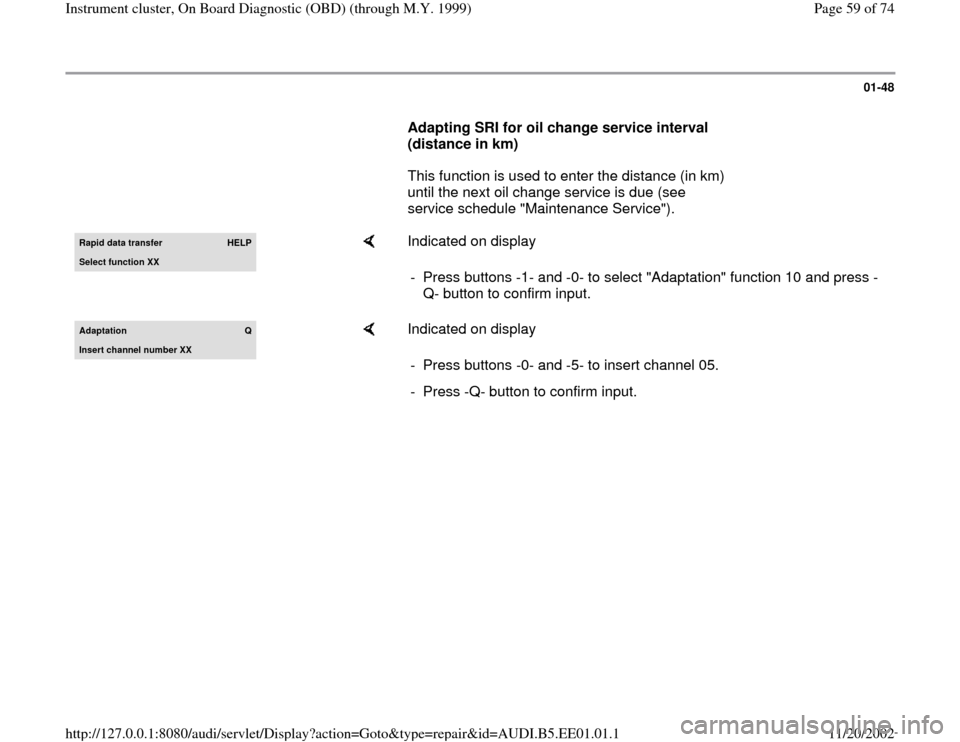

01-48

Adapting SRI for oil change service interval
(distance in km)
This function is used to enter the distance (in km)
until the next oil change service is due (see
service schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -5- to insert channel 05.
- Press -Q- button to confirm input.
Pa
ge 59 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

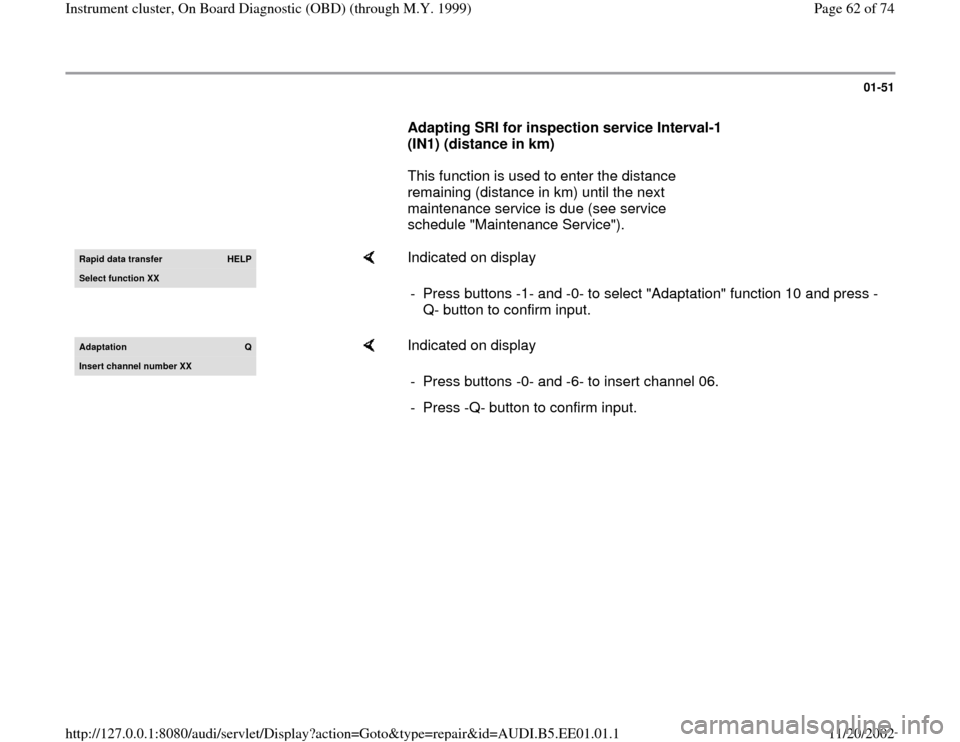

01-51

Adapting SRI for inspection service Interval-1
(IN1) (distance in km)
This function is used to enter the distance
remaining (distance in km) until the next
maintenance service is due (see service
schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -6- to insert channel 06.
- Press -Q- button to confirm input.
Pa
ge 62 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

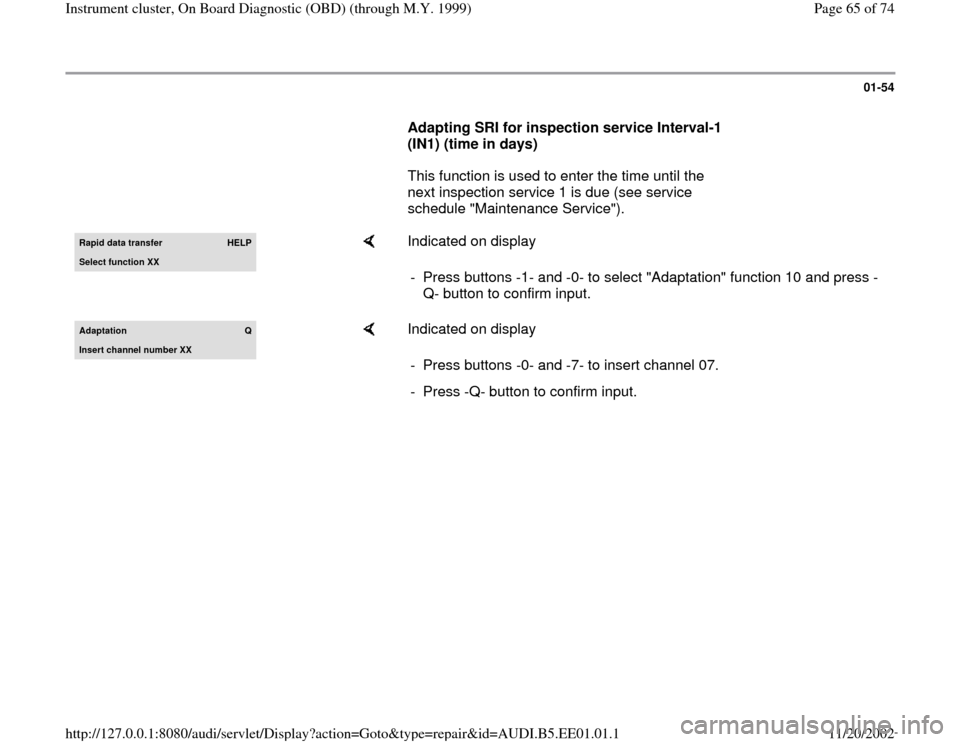

01-54

Adapting SRI for inspection service Interval-1
(IN1) (time in days)
This function is used to enter the time until the
next inspection service 1 is due (see service
schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -7- to insert channel 07.
- Press -Q- button to confirm input.
Pa
ge 65 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

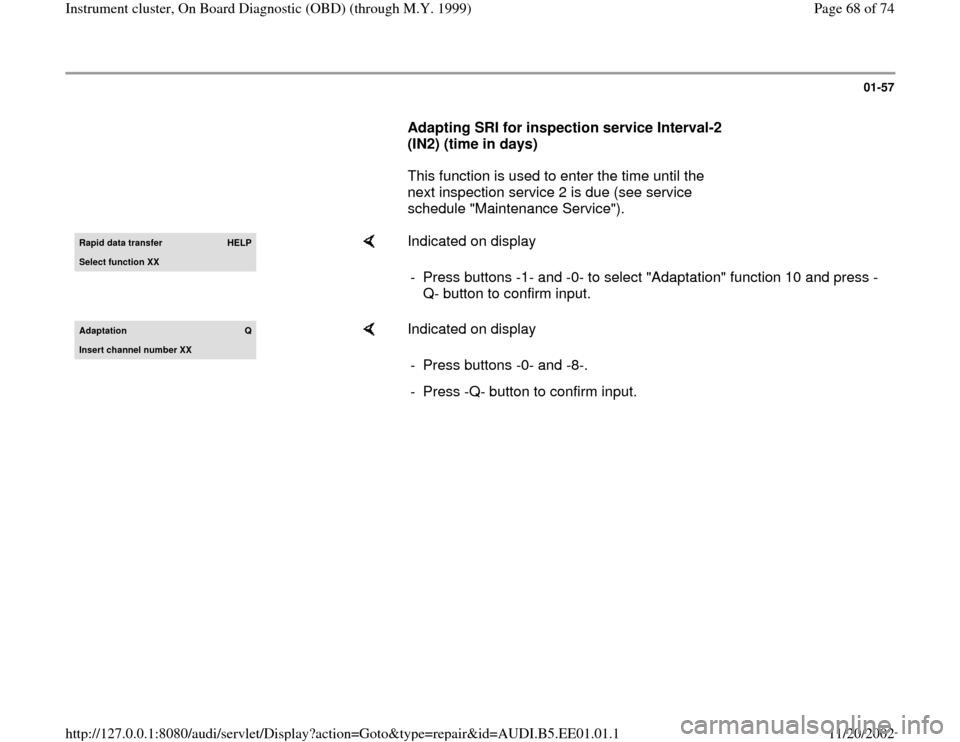

01-57

Adapting SRI for inspection service Interval-2
(IN2) (time in days)
This function is used to enter the time until the
next inspection service 2 is due (see service
schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -8-.
- Press -Q- button to confirm input.
