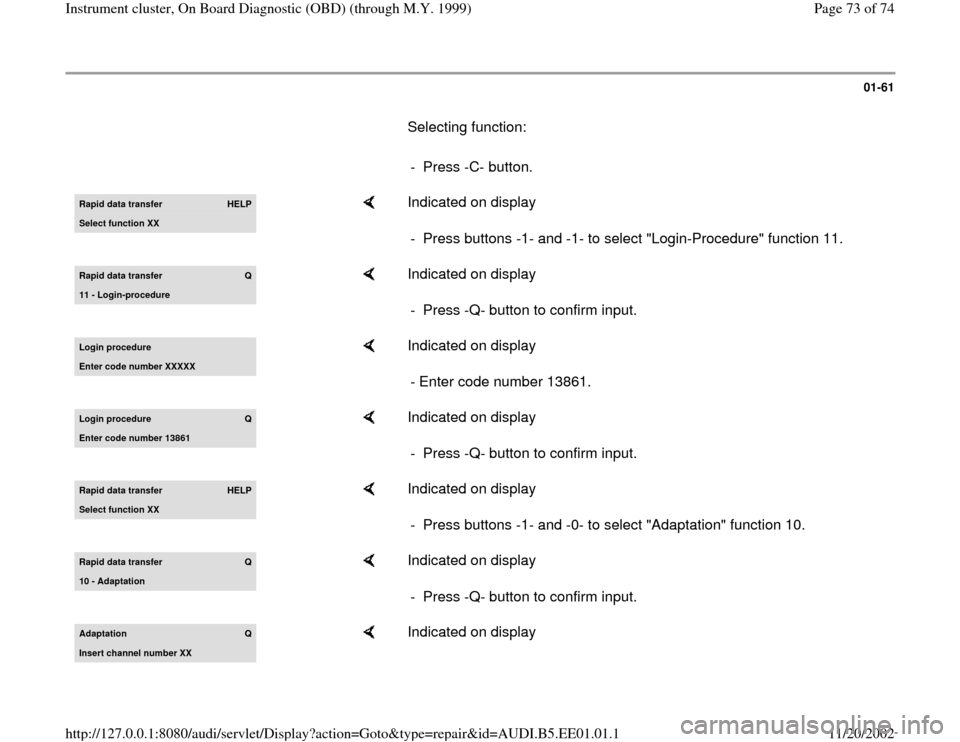

01-61
Selecting function:
- Press -C- button.Rapid data transfer
HELP
Select function XX
Indicated on display
- Press buttons -1- and -1- to select "Login-Procedure" function 11.
Rapid data transfer
Q
11 - Lo
gin-procedure
Indicated on display
- Press -Q- button to confirm input.
Login procedure
Enter code number XXXXX
Indicated on display
- Enter code number 13861.
Login procedure
Q
Enter code number 13861
Indicated on display
- Press -Q- button to confirm input.
Rapid data transfer
HELP
Select function XX
Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10.
Rapid data transfer
Q
10 - Adaptation
Indicated on display
- Press -Q- button to confirm input.
Adaptation
Q
Insert channel number XX
Indicated on display
Pa
ge 73 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

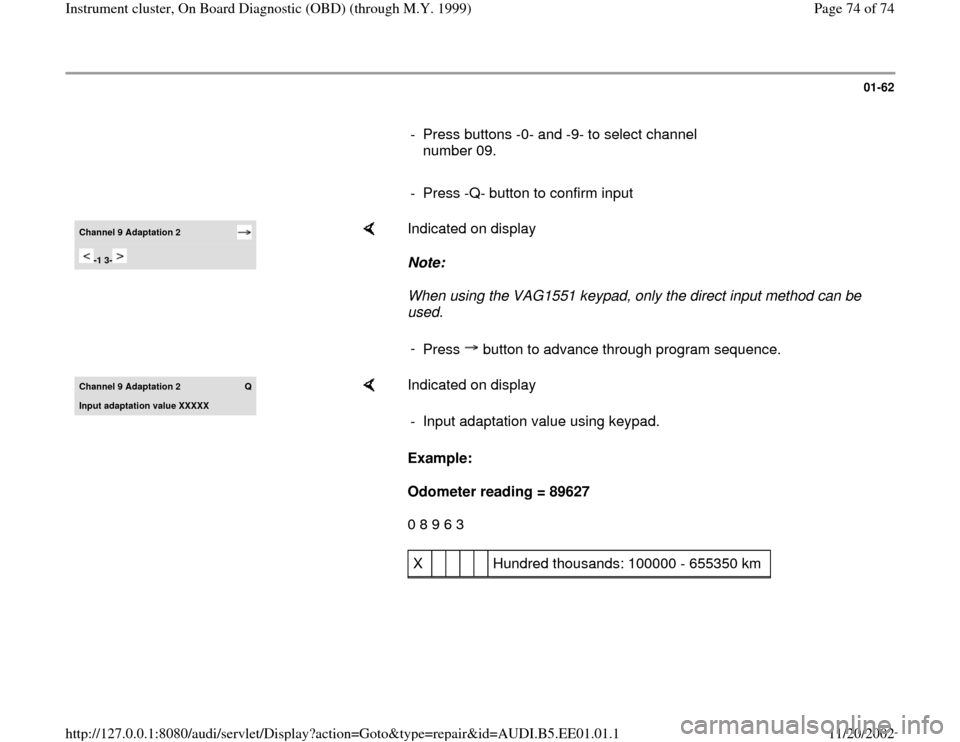

01-62
- Press buttons -0- and -9- to select channel
number 09.
- Press -Q- button to confirm inputChannel 9 Adaptation 2
-1 3-
Indicated on display
Note:
When using the VAG1551 keypad, only the direct input method can be
used.
-
Press button to advance through program sequence.
Channel 9 Adaptation 2
Q
Input adaptation value XXXXX
Indicated on display
Example:
Odometer reading = 89627
0 8 9 6 3 - Input adaptation value using keypad.X Hundred thousands: 100000 - 655350 km
