2000 AUDI A4 oil change

01-33
Adaptation table Adaptation channel
Adaptation function
01 Adaptation of fuel gauge display Page 01
-35

02 Resetting SRI after service Page 01
-45

03 Adaptation of fuel consumption display Page 01
-39

04 Language versions of the multi-function display Page 01
-42

05 SRI - service interval for oil change (distance in km) Page 01
-48

06 SRI - service interval 1 (IN1) distance in km Page 01
-51

07 SRI - service interval 1 (IN1) time in days Page 01
-54

08 SRI - service interval 2 (IN2) time in days Page 01
-57

09 Adapting odometer reading Page 01
-60

M.y. 1998
Adaptation
channel Adaptation function
10 SRI Remaining distance until next oil change service interval after replacing instrument cluster
Page 01
-64

11 SRI Remaining distance until next service interval after replacing instrument cluster Page 01
-67

12 SRI Remaining time until next service interval after replacing instrument cluster Page 01
-70

30 Adaptation of fuel gauge sender Page 01
-73

Pa
ge 43 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-48

Adapting SRI for oil change service interval
(distance in km)
This function is used to enter the distance (in km)
until the next oil change service is due (see
service schedule "Maintenance Service"). Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10 and press -
Q- button to confirm input.
Adaptation
Q
Insert channel number XX

Indicated on display
- Press buttons -0- and -5- to insert channel 05.
- Press -Q- button to confirm input.
Pa
ge 59 of 74 Instrument cluster, On Board Dia
gnostic
(OBD
) (throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.01.1

01-49

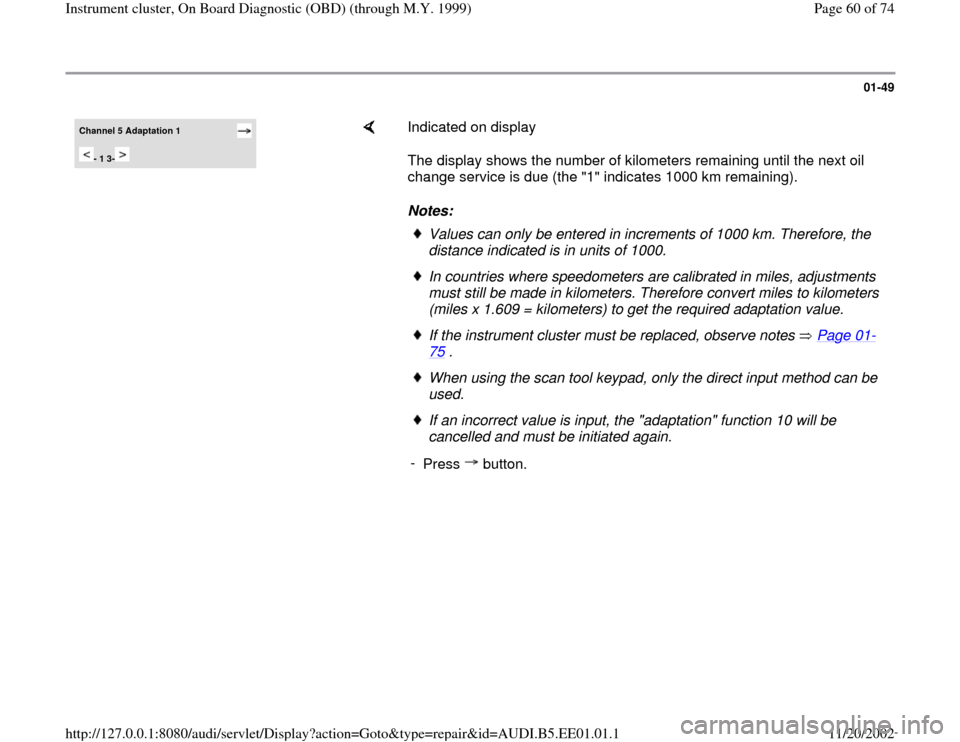

Channel 5 Adaptation 1
- 1 3-

Indicated on display
The display shows the number of kilometers remaining until the next oil
change service is due (the "1" indicates 1000 km remaining).
Notes:
Values can only be entered in increments of 1000 km. Therefore, the
distance indicated is in units of 1000. In countries where speedometers are calibrated in miles, adjustments
must still be made in kilometers. Therefore convert miles to kilometers
(miles x 1.609 = kilometers) to get the required adaptation value. If the instrument cluster must be replaced, observe notes Page 01
-
75
.
When using the scan tool keypad, only the direct input method can be
used. If an incorrect value is input, the "adaptation" function 10 will be
cancelled and must be initiated again.
-
Press button.
