1999 TOYOTA SOLARA Owners Manual

SOLARA_U65

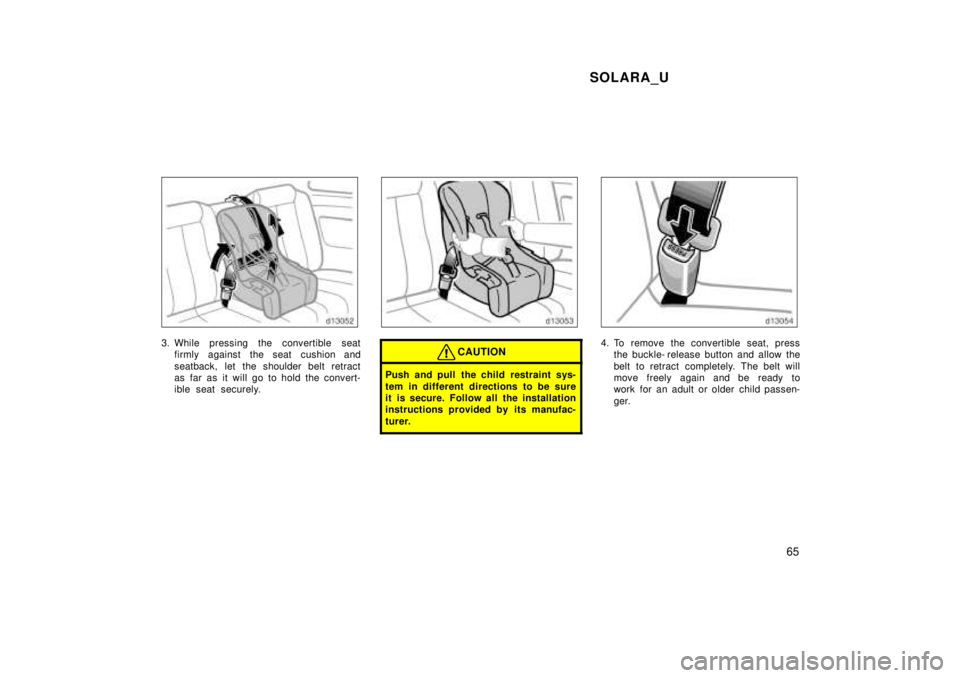

3. While pressing the convertible seatfirmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, pressthe buckle- release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

SOLARA_U
66

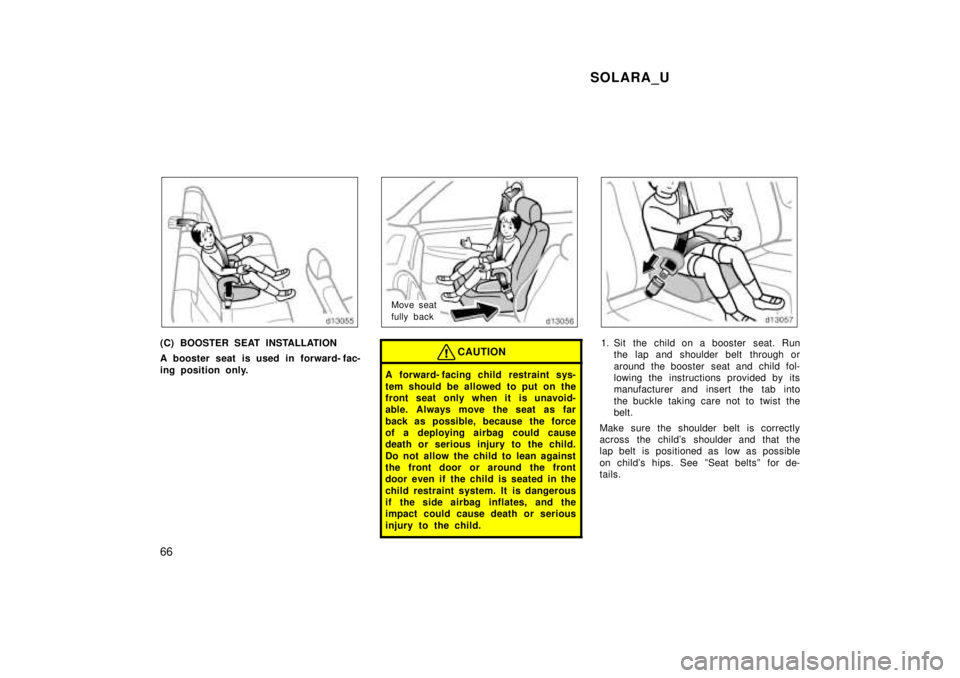

(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward- fac-
ing position only.
Move seat
fully back
CAUTION
A forward- facing child restraint sys-
tem should be allowed to put on the
front seat only when it is unavoid-
able. Always move the seat as far
back as possible, because the force
of a deploying airbag could cause
death or serious injury to the child.
Do not allow the child to lean against
the front door or around the front
door even if the child is seated in the
child restraint system. It is dangerous
if the side airbag inflates, and the
impact could cause death or serious
injury to the child.
1. Sit the child on a booster seat. Run the lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child's shoulder and that the
lap belt is positioned as low as possible
on child's hips. See ºSeat beltsº for de-
tails.

SOLARA_U67

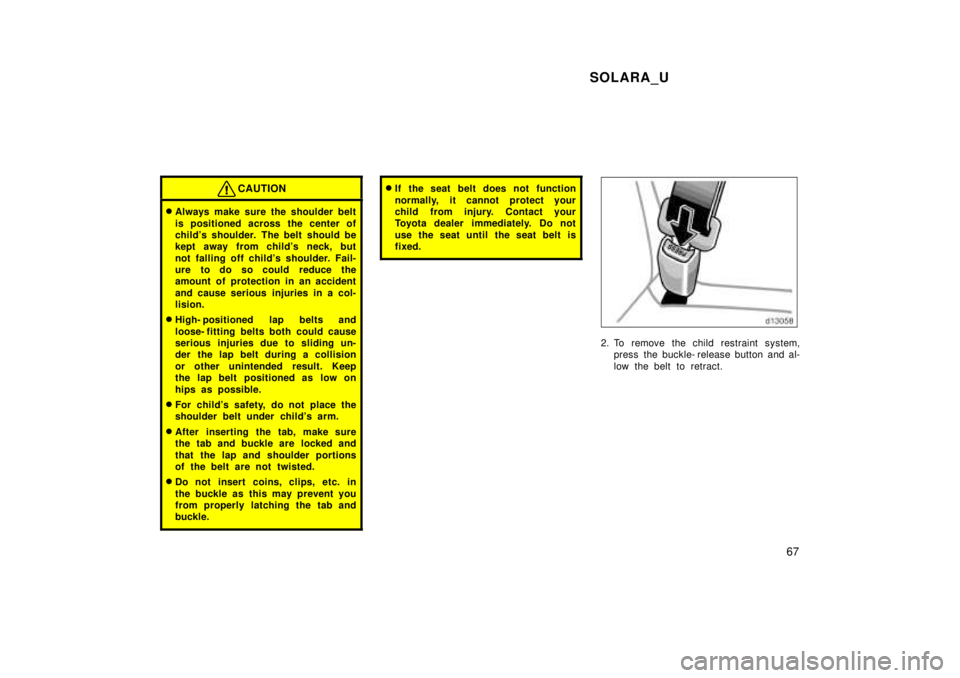

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child's shoulder. The belt should be
kept away from child's neck, but
not falling off child's s houlder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
High- positioned lap belts and
loose- fitting belts both could cause
serious injuries due to sliding un-
der the lap belt during a collision
or other unintended result. Keep
the lap belt positioned as low on
hips as possible.
For child's safety, do not place the
shoulder belt under child's arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. To remove the child restraint system,
press the buckle- release button and al-
low the belt to retract.

SOLARA_U
68
If your child restraint system requires
the use of a top strap, latch the hook
onto the anchor bracket and tighten the
top strap.
See the following instructions to install the
anchor bracket.
103 mm
(4.1 in.)
391 mm
(15.4 in.)Anchor bracket
178.5 mm
(7.0 in.)
Bolt
Spacer
On the filler p anel behind the rear seat
Center anchorÐ
a. Using the illustration as a guide, run
your fingers across the trim of the f iller
panel itself to locate the position of the
holes underneath.
b. Make a hole in the covering directly
above the hole in the f iller panel.
c. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5Ð24.7 N Vm (1.68Ð2.52
kgf Vm, 12.2Ð18.2 ft Vlbf).
Outside anchorsÐ
a. Should you select to use the outer
anchor positions, please contact your
Toyota dealer for proper modifications to
the filler p anel.
b. After modifications have been made to
the filler p anel, insert a 15 mm (0.6 in.)
spacer and tighten down the anchor brack-
et for your child restraint system with a
bolt. Torque the bolt to 16.5Ð24.7 N Vm
(1.68Ð2.52 kgf Vm, 12.2Ð18.2 ft Vlbf).
c. Securely latch the hook of the top strap
onto the anchor bracket and make sure
the hook does not make contact with the
filler p anel.
ÐTop strap anchors and
locations

SOLARA_U69
To comply with Canadian Motor Vehicle
Safety Standards, this model sold in
Canada is provided with a bracket set in
the glovebox, designed for use with any of
the 3 anchor locations shown in the
illustration.
If your child restraint system does not
provide any of the necessary parts, ask
your Toyota dealer. (See ºÐChild restraint
systemº.)

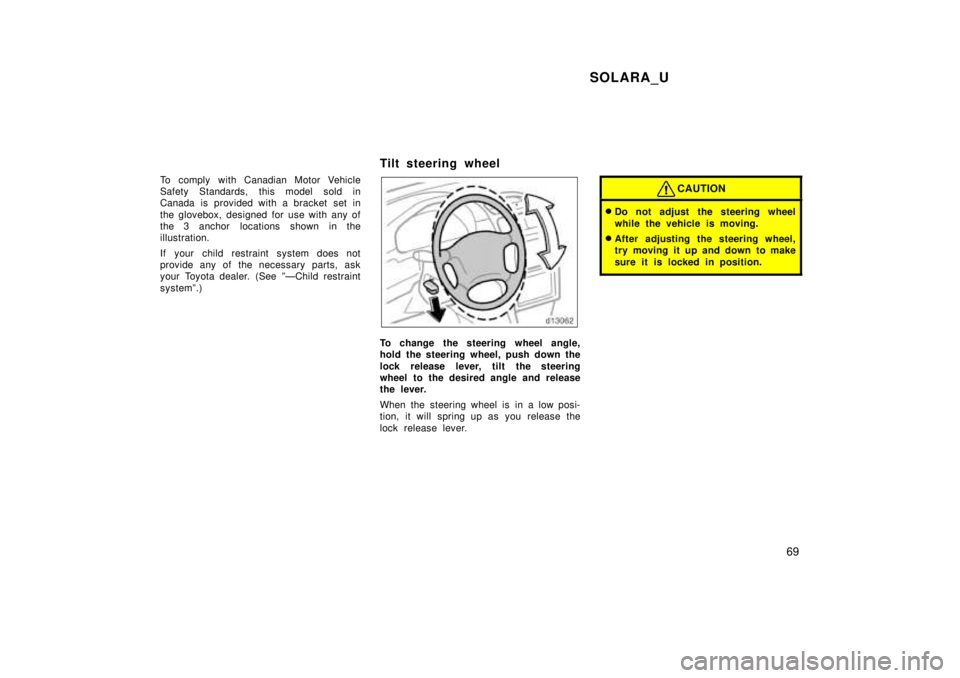

Tilt steering wheel
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and release
the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION

Do not adjust the steering wheel
while the vehicle is moving.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.

SOLARA_U
70

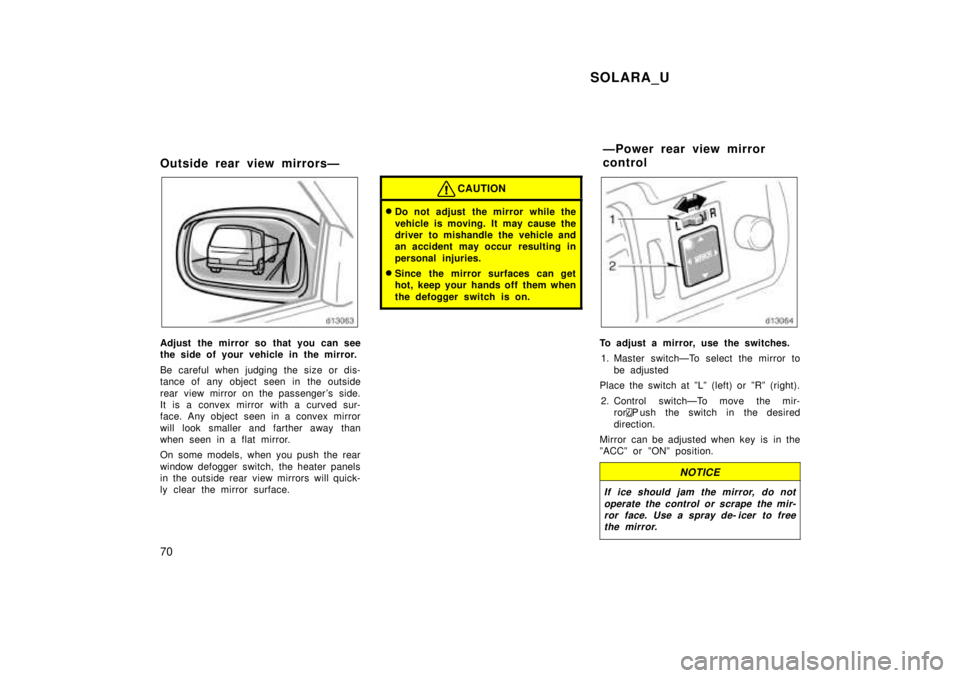

Outside rear view mirrorsÐ
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger 's side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface.
CAUTION

Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
Since the mirror surfaces can get
hot, keep your hands off them when
the defogger switch is on.
To adjust a mirror, use the switches.
1. Master switchÐTo select the mirror to be adjusted
Place the switch at ºLº (left) or ºRº (right).
2. Control switchÐTo move the mir- ror
P ush the switch in the desired
direction.
Mirror can be adjusted when key is in the
ºACCº or ºONº position.
NOTICE
If ice should jam the mirror, do not operate the control or scrape the mir-ror face. Use a spray de- icer to free the mirror.
ÐPower rear view mirror
control

SOLARA_U71

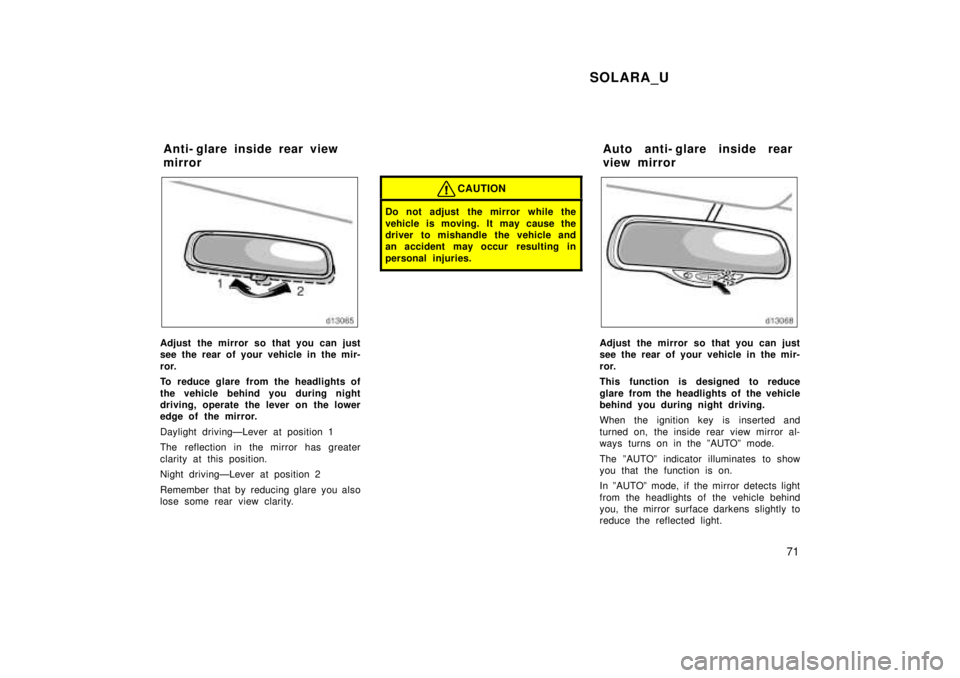

Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight drivingÐLever at position 1
The reflection in the mirror has greater
clarity at this position.
Night drivingÐLever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This function is designed to reduce
glare from the headlights of the vehicle
behind you during night driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the ºAUTOº mode.
The ºAUTOº indicator illuminates to show
you that the function is on.
In ºAUTOº mode, if the mirror detects light
from the headlights of the vehicle behind
you, the mirror surface darkens slightly to
reduce the reflected light.
Anti- glare inside rear view
mirror
Auto anti- glare inside rear
view mirror

SOLARA_U
72
To turn off the automatic function, press
the switch on the ºOFFº side. The indica-
tor lights up in the ºOFFº side.
To turn on the automatic function again,
press the switch on the ºAUTOº side.
Adjust it before driving so that the rear
view is in the best condition.
When the outside air temperature is low,
it may take little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.

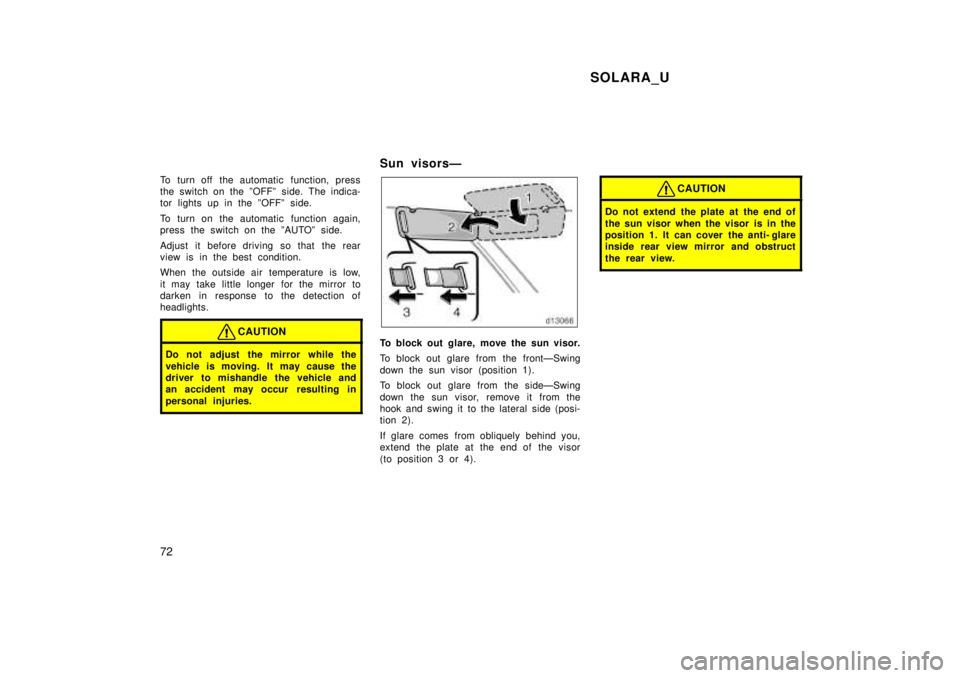

Sun visorsÐ
To block out glare, move the sun visor.
To block out glare from the frontÐSwing
down the sun visor (position 1).
To block out glare from the sideÐSwing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3 or 4).
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the anti- glare
inside rear view mirror and obstruct
the rear view.
