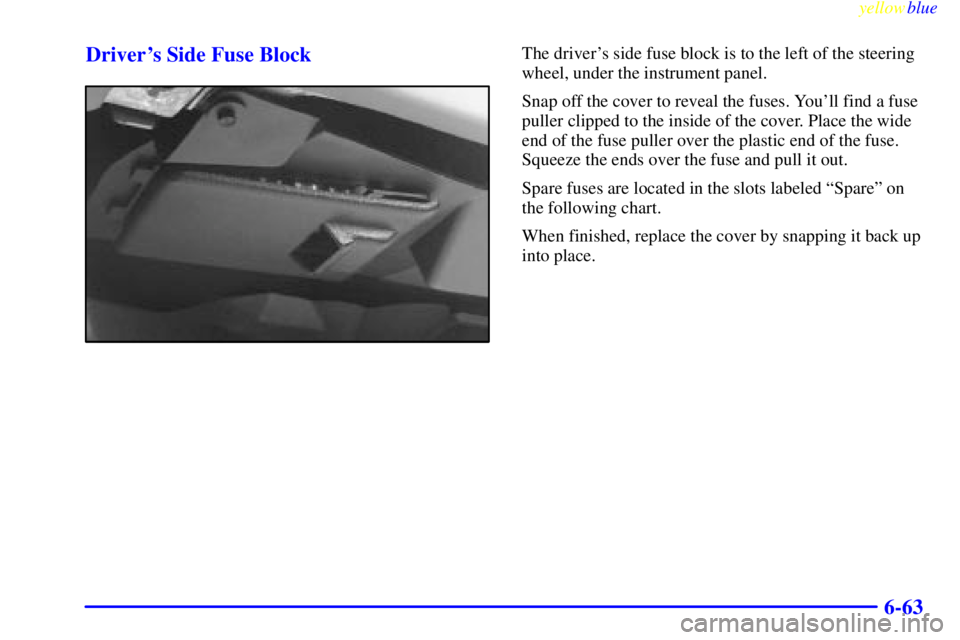

6-63 Driver's Side Fuse Block
The driver's side fuse block is to the left of the steering
wheel, under the instrument panel.
Snap off the cover to reveal the fuses. You'll find a fuse
puller clipped to the inside of the cover. Place the wide
end of the fuse puller over the plastic end of the fuse.
Squeeze the ends over the fuse and pull it out.
Spare fuses are located in the slots labeled ªSpareº on
the following chart.
When finished, replace the cover by snapping it back up
into place.

yellowblue
6-64
Fuse Usage
1
Circuit Breaker
-Power Sunroof
2 Not Used
3
Circuit Breaker
-Power Seats
4 Not Used
5 Not Used
1A
PASS
-Key

2A Spare
3A Not Used
4A Not Used
5A Automatic A/C Control, Base Cluster,
Cruise Control
6A Courtesy Lamps, Power Mirrors
7A Not Used
8A Not Used
9A Not Used
1B
Turn Signal, Back
-Up Lamps,
Brake
-Transaxle Shift Interlock
2B Spare

yellowblue
6-65
Fuse Usage
3B Not Used
4B Not Used
5B
Anti
-Lock Brake System, Computer
Command Ride
6B Brake and Hazard Lamps
7B Not Used
8B Interior Lighting
9B Cigarette Lighter
1C Air Bag System
2C Spare
3C Not Used
4C Not Used
5C Cooling Fans, Transaxle
6C Parking Lamps/Interior Lamps
7C Not Used
8C Not Used
9C (Battery), Radio, Cluster
1D Ignition (Run/Crank),
Chime, ClusterFuse Usage
2D Spare
3D Heated Mirror
4D Not Used
5D Base A/C
6D Fog Lamps
7D Transaxle
8D Radio
9D Not Used
1E Not Used
2E
Air Bag System, PASS
-Key

3E Not Used
4E Not Used
5E Rear Defog
6E Not Used
7E Miscellaneous Engine Controls
(Non
-OBD II)
8E Wipers, Washer
9E Not Used

yellowblue
6-66 Passenger's Side Fuse Block
Additional fuses are located in the relay center, on the
passenger's side, below the instrument panel. You must
remove the sound insulator on the right side of the
passenger footwell to replace these fuses.
Since replacing these fuses is difficult. We recommend
that you see your dealer if you need one replaced.

yellowblue
6-67
Fuse Usage
1 Door Locks
2 Trunk Release, RAC
3 Horns
4 Not Used
5 Miscellaneous Engines Controls (OBD II)
6 Fuel PumpFuse Usage
7 Injectors
8 Powertrain Control Module
9 Not Used
10 Not Used
11 A/C Programmer
12 Not Used

yellowblue
6-68
Replacement Bulbs
If your vehicle is equipped with the Driver Information Center, the messages will also appear on the Lamp Monitor to
alert you that a bulb needs to be replaced.
Outside Lamps Bulb
Front
Parking/Turn Lamps 3157NA. . . . . . . . . . . . . . . . . . . . . .
Halogen Headlamps
Low Beam 9006. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Beam 9005. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear
Taillamps 194. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back-up Lamps 1156. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stoplamps 2057. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn 1156. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For service information on other bulbs, contact your dealer's service department.

yellowblue
6-69
Capacities and Specifications
The following approximate capacities are given in English and metric conversions. Please refer to ªRecommended
Fluids and Lubricantsº in the Index for more information.
Automatic Transaxle (Overdrive)
Pan Removal and Replacement . . . . . . . . . . 6.0 quarts (5.6 L)
Complete Overhaul . . . . . . . . . . . . . . . . . . . 11.0 quarts (10.4 L)
Cooling System. . . . . . . . . . . . . . . . . . . . . . . . 13.0 quarts (12.3 L)
When draining or replacing torque converter, more fluid may be needed.
Engine Crankcase. . . . . . . . . . . . . . . . . . . . . 4.5 quarts (4.3 L)
Oil change with filter change.
Fuel Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . 18.0 gallons (68.1 L)
Tire Pressures. . . . . . . . . . . . . . . . . . . . . . . . . See Tire
-Loading Information label on the driver's door.
Wheel Nut Torque. . . . . . . . . . . . . . . . . . . . . 100 lb
-ft 140 N´m
R
-134a Air Conditioning. . . . . . . . . . . . . . . . See refrigerant charge label under the hood.
All capacities are approximate. When adding, be sure to fill to the appropriate level, as recommended in this manual.

yellowblue
6-70 Engine Specifications
3800 Series II Engine (L36)
VIN Engine Code K. . . . . . . . . . . . . . . . . . . . . . . . . . .
Type V6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 3.8 Liters. . . . . . . . . . . . . . . . . . . . . . . .
Horsepower 205
-hp . . . . . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-6-5-4-3-2 . . . . . . . . . . . . . . . . . . . . . .
Thermostat Temperature 195
F (91
C) . . . . . . . . . . .
3800 Series II Supercharged Engine (L67)
VIN Engine Code 1. . . . . . . . . . . . . . . . . . . . . . . . . . .
Type V6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 3.8 Liters. . . . . . . . . . . . . . . . . . . . . . . .
Horsepower 240
-hp . . . . . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-6-5-4-3-2 . . . . . . . . . . . . . . . . . . . . . .
Thermostat Temperature 195
F (91
C) . . . . . . . . . . .
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If the air
conditioning system in your vehicle needs refrigerant, be
sure the proper refrigerant is used. If you're not sure, ask
your dealer.
Normal Maintenance
Replacement Parts
Air Cleaner Filter AC Type A-1096C . . . . . . . . . . . . .
Engine Oil Filter AC Type PF
-47 . . . . . . . . . . . . . . . .
Fuel Filter AC Type GF
-627 . . . . . . . . . . . . . . . . . . . .
Transaxle Filter GM Part No. 8651909. . . . . . . . . . . .
Spark Plugs AC Type 41
-921* . . . . . . . . . . . . . . . . .
Gap: 0.060 inch (1.52 mm)
Windshield Wiper Blades
Type Pin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Length 22 inches (56 cm). . . . . . . . . . . . . . . . . . . . .
*On 3800 Supercharged Engine (Code 1) only, this
replaces original spark plug NGK Type PTR4B
-15.
