Electrical components
Specifications434
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking battery condition 443
. . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 451
. . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 453 . . . . .
Checking the cartridge type fuses 457
. . . . . . . . . . . . . . .
Adding washer fluid 459
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the headlight aim 459
. . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 462
. . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIFICATIONS
± FUSE LOCATIONS

ELECTRICAL COMPONENTS
435
64L006±2

1Engine compartment
2Driver's side instrument panel
± FUSES

ELECTRICAL COMPONENTS
436
64L007±1

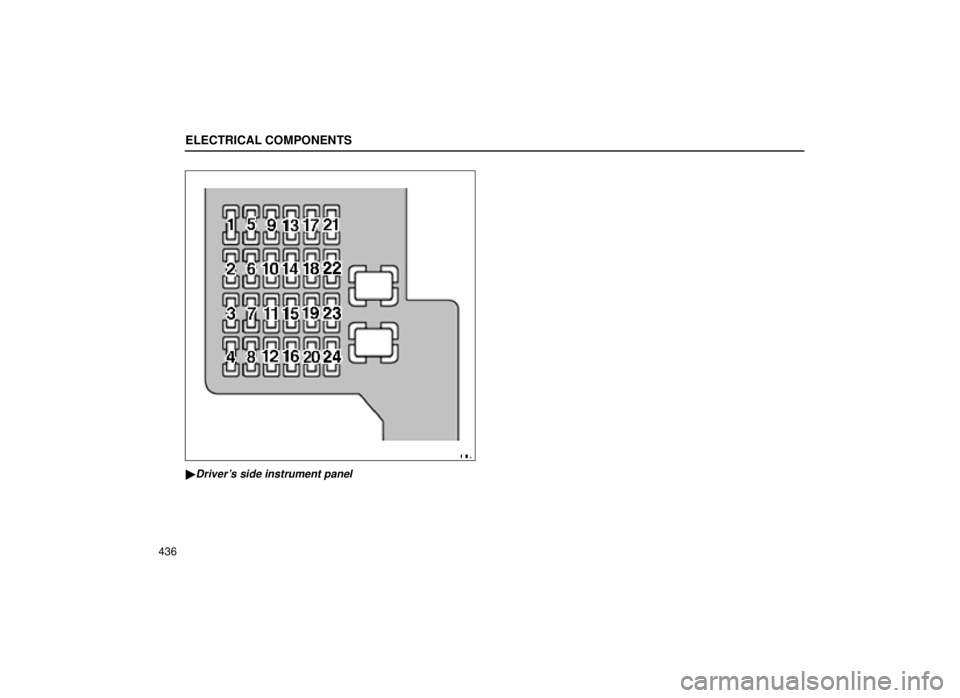

Driver's side instrument panel

ELECTRICAL COMPONENTS
437
64L008±1

ELECTRICAL COMPONENTS
438

Engine compartment

ELECTRICAL COMPONENTS
439
No.FUSEAMPERECIRCUIT
1 TURN7.5Turn signal lights
2 WIPER20Windshield wipers
3 HEATER10
Air conditioning system,
Rear window defogger,
Multiport fuel injection
system/sequential multiport fuel
injection system
4 FR FOG15Fog lights
5 ECU±IG10Power steering control system,
Charging system,
Vehicle skid control system
6 PWR±IG15
Automatic headlight leveling
system, Moon roof,
Headlight cleaner,
Power seat switch,
Tilt and telescopic steering,
Shift lock system
7 GAUGE10
Gauges and meters, service
reminder indicators and
warning buzzers,
Back±up lights,
Vehicle skid control system,
Multiport fuel injection
system/sequential multiport fuel
injection system, Automatic
transmission system
8 IGN10SRS, Multiport fuel injection
system/sequential multiport fuel
injection system

ELECTRICAL COMPONENTS
440
9 RR FOG7.5No circuit
10 FUEL OPN10Fuel opener system
No.FUSEAMPERECIRCUIT
11 RR CIG15Rear cigarette lighter,
Power outlet
12 FR CIG15Front cigarette lighter, SRS
13 A/C7.5Air conditioning system
14 P RR
DOOR20Rear door lock,
Rear power window
15 STOP LP25Stop lights,
High mounted stop light
16 RADIO NO.215
Audio system,
Outside rear view mirror,
Shift lock system,
Air conditioning system
17 PANEL7.5Instrument panel lights,
Air conditioning system, Glove
box light, Audio system
18 STARTER7.5
Starting system,
Automatic transmission system,
Multiport fuel injection
system/sequential multiport fuel
injection system
19 TAIL7.5Tail lights, Side marker lights,
License plate lights
