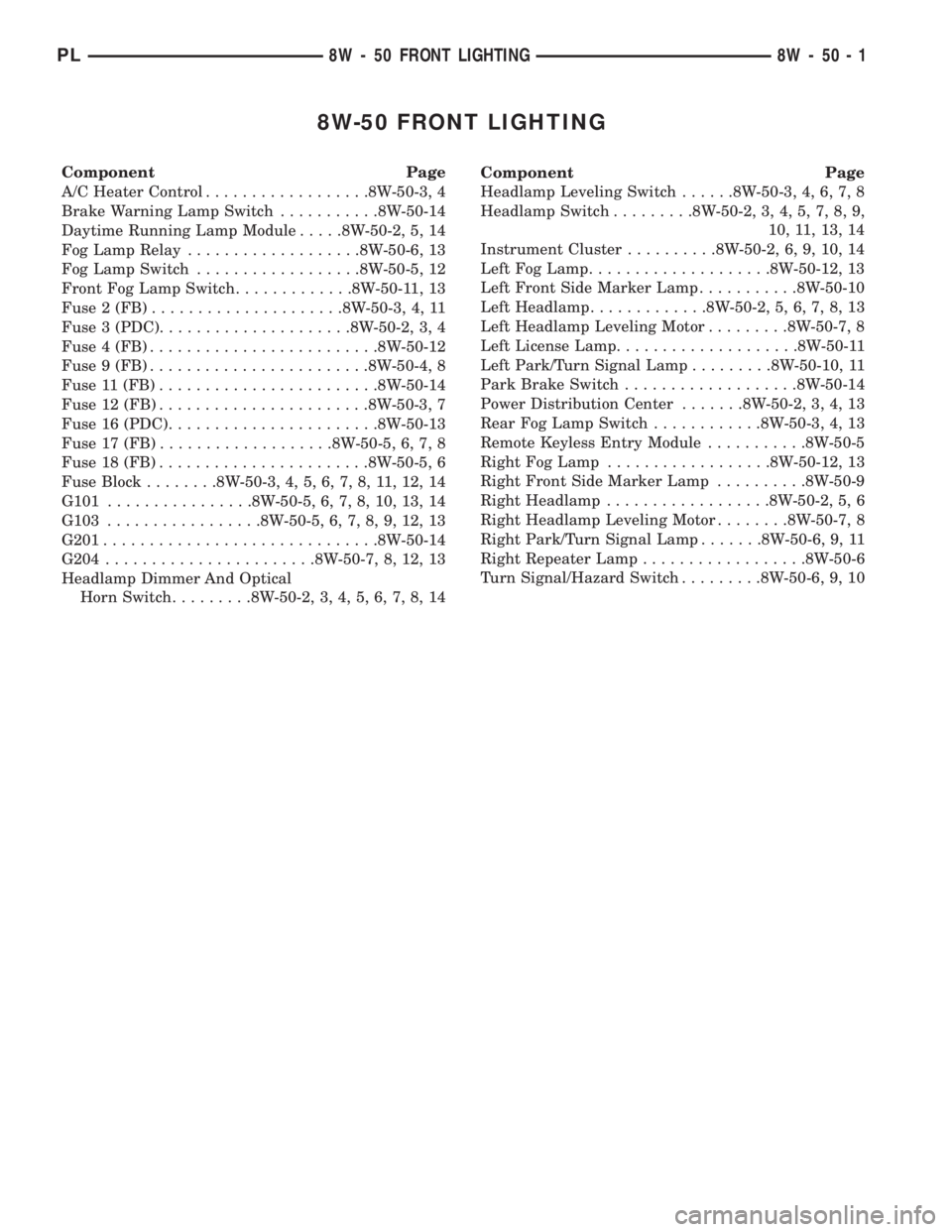

8W-50 FRONT LIGHTING
Component Page
A/C Heater Control..................8W-50-3, 4
Brake Warning Lamp Switch...........8W-50-14
Daytime Running Lamp Module.....8W-50-2, 5, 14
Fog Lamp Relay...................8W-50-6, 13
Fog Lamp Switch..................8W-50-5, 12
Front Fog Lamp Switch.............8W-50-11, 13
Fuse 2 (FB).....................8W-50-3, 4, 11
Fuse 3 (PDC).....................8W-50-2, 3, 4
Fuse 4 (FB).........................8W-50-12
Fuse 9 (FB)........................8W-50-4, 8
Fuse 11 (FB)........................8W-50-14
Fuse 12 (FB).......................8W-50-3, 7
Fuse 16 (PDC).......................8W-50-13
Fuse 17 (FB)...................8W-50-5, 6, 7, 8
Fuse 18 (FB).......................8W-50-5, 6
Fuse Block........8W-50-3, 4, 5, 6, 7, 8, 11, 12, 14
G101................8W-50-5, 6, 7, 8, 10, 13, 14
G103.................8W-50-5, 6, 7, 8, 9, 12, 13
G201..............................8W-50-14
G204.......................8W-50-7, 8, 12, 13
Headlamp Dimmer And Optical
Horn Switch.........8W-50-2, 3, 4, 5, 6, 7, 8, 14Component Page
Headlamp Leveling Switch......8W-50-3, 4, 6, 7, 8
Headlamp Switch.........8W-50-2, 3, 4, 5, 7, 8, 9,
10, 11, 13, 14
Instrument Cluster..........8W-50-2, 6, 9, 10, 14
Left Fog Lamp....................8W-50-12, 13
Left Front Side Marker Lamp...........8W-50-10
Left Headlamp.............8W-50-2, 5, 6, 7, 8, 13
Left Headlamp Leveling Motor.........8W-50-7, 8
Left License Lamp....................8W-50-11
Left Park/Turn Signal Lamp.........8W-50-10, 11
Park Brake Switch...................8W-50-14
Power Distribution Center.......8W-50-2, 3, 4, 13
Rear Fog Lamp Switch............8W-50-3, 4, 13
Remote Keyless Entry Module...........8W-50-5
Right Fog Lamp..................8W-50-12, 13
Right Front Side Marker Lamp..........8W-50-9
Right Headlamp..................8W-50-2, 5, 6
Right Headlamp Leveling Motor........8W-50-7, 8
Right Park/Turn Signal Lamp.......8W-50-6, 9, 11
Right Repeater Lamp..................8W-50-6
Turn Signal/Hazard Switch.........8W-50-6, 9, 10
PL8W - 50 FRONT LIGHTING 8W - 50 - 1
