1999 CHEVROLET SUBURBAN Owners Manual

yellowblue
1-51 Top Strap
If your child restraint has a top strap, it should
be anchored.Suburban models: If you need to have an anchor
bracket installed for a second row seat or a center rear
seat, you can ask your dealer to put it in for you. If you
want to install the anchor yourself, your dealer can tell
you how to do it.
Anchor brackets for the third row outside seat positions
are located on the floor in the cargo area.

yellowblue
1-52
CAUTION:
Routing the top strap for a child restraint over or
under the cargo security shade could cause the
shade to come loose and even break. If this
happens, the shade could be thrown about the
vehicle in a collision or sudden maneuver. You or
others could be injured. When anchoring a top
strap to a cargo tiedown, be sure to remove the
cargo security shade from your vehicle. See
ªCargo Security Shadeº in the Index.
Don't use the front set of tie-down brackets. Anchor the
top strap to the rearmost bracket on the same side of the
vehicle as the child restraint.Utility models: Anchor brackets for the rear outside
seat positions are located on the floor in the cargo area.

yellowblue
1-53
CAUTION:
Routing the top strap for a child restraint over or
under the cargo security shade could cause the
shade to come loose and even break. If this
happens, the shade could be thrown about the
vehicle in a collision or sudden maneuver. You or
others could be injured. When anchoring a top
strap to a cargo tiedown, be sure to remove the
cargo security shade from your vehicle. See
ªCargo Security Shadeº in the Index.
Don't use the front set of tie-down brackets. Anchor the
top strap to the rearmost bracket on the same side of the
vehicle as the child restraint. If you need to have an
anchor bracket installed for the center rear seat, you can
ask your dealer to put it in for you. If you want to install
the anchor yourself, your dealer can tell you how to do it.
Canadian law requires that child restraints have a top
strap, and that the strap be anchored.
If your child restraint has a top strap, your dealer can
obtain a kit with anchor hardware and installation
instructions specifically designed for this vehicle. The
dealer can then install the anchor for you. This work will
be done for you free of charge. Or, you may install the
anchor yourself using the instructions provided in
the kit.

yellowblue

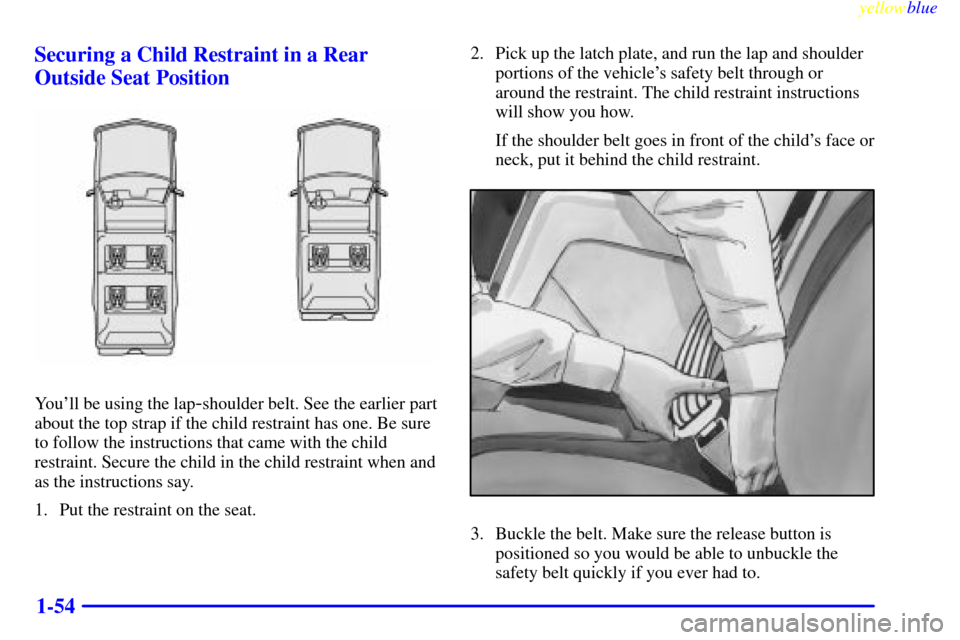

1-54 Securing a Child Restraint in a Rear
Outside Seat Position
You'll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one. Be sure
to follow the instructions that came with the child
restraint. Secure the child in the child restraint when and
as the instructions say.
1. Put the restraint on the seat.2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle's safety belt through or
around the restraint. The child restraint instructions
will show you how.
If the shoulder belt goes in front of the child's face or
neck, put it behind the child restraint.
3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.

yellowblue
1-55

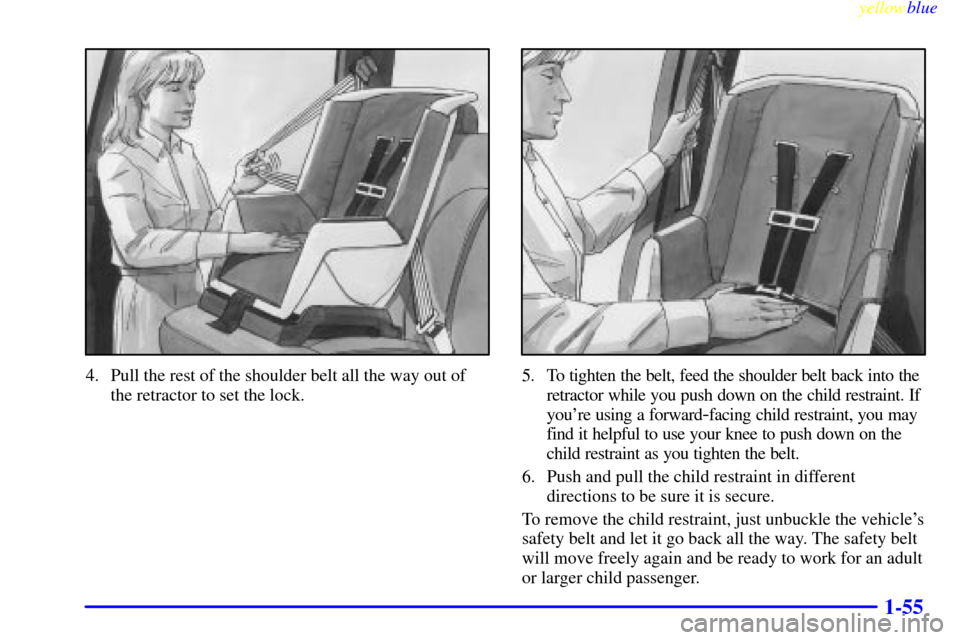

4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.5. To tighten the belt, feed the shoulder belt back into the
retractor while you push down on the child restraint. If
you're using a forward
-facing child restraint, you may
find it helpful to use your knee to push down on the
child restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle's
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.

yellowblue

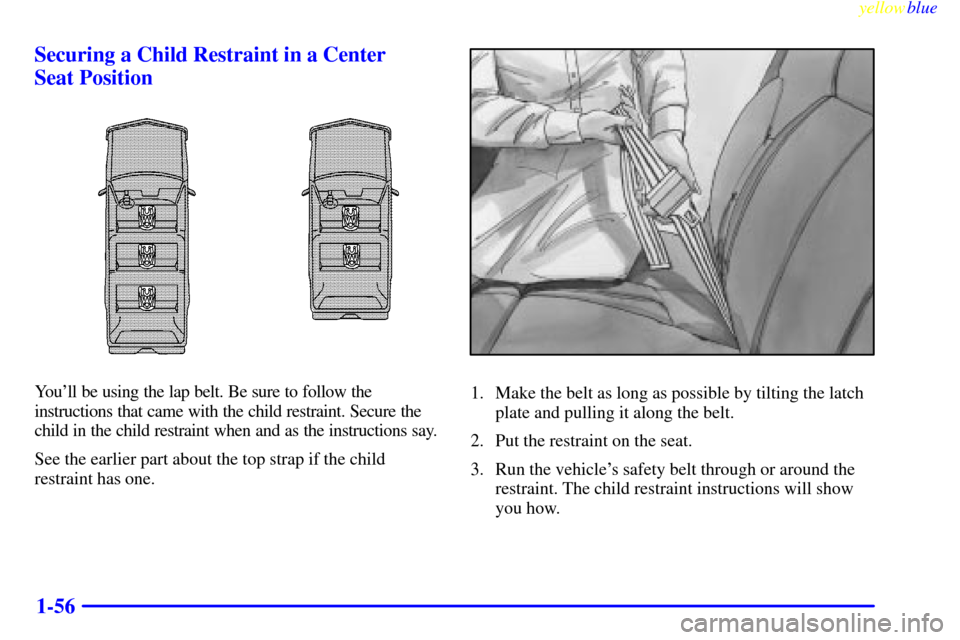

1-56 Securing a Child Restraint in a Center
Seat Position
You'll be using the lap belt. Be sure to follow the
instructions that came with the child restraint. Secure the
child in the child restraint when and as the instructions say.
See the earlier part about the top strap if the child
restraint has one.1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat.
3. Run the vehicle's safety belt through or around the
restraint. The child restraint instructions will show
you how.

yellowblue
1-57

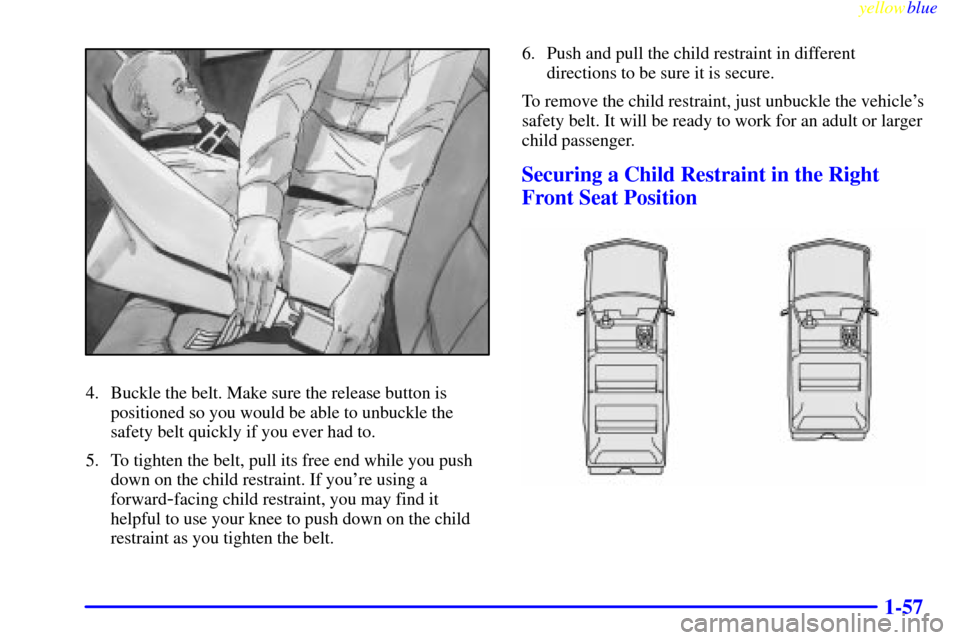

4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. To tighten the belt, pull its free end while you push
down on the child restraint. If you're using a
forward
-facing child restraint, you may find it
helpful to use your knee to push down on the child
restraint as you tighten the belt.6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle's
safety belt. It will be ready to work for an adult or larger
child passenger.
Securing a Child Restraint in the Right
Front Seat Position

yellowblue
1-58
Your vehicle has a right front passenger air bag. Never
put a rear
-facing child restraint in this seat. Here's why:
CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger's air bag inflates, even though your
vehicle has Next Generation frontal air bags. This
is because the back of the rear
-facing child
restraint would be very close to the inflating air
bag. Always secure a rear
-facing child restraint
in the rear seat.
Although a rear seat is a safer place, you can secure a
forward
-facing child restraint in the right front seat.
You'll be using the lap
-shoulder belt. See the earlier part
about the top strap if the child restraint has one. Be sure
to follow the instructions that came with the child
restraint. Secure the child in the child restraint when and
as the instructions say.
1. Because your vehicle has a right front passenger air
bag, always move the seat as far back as it will go
before securing a forward
-facing child restraint.
(See ªSeatsº in the Index.)
2. Put the restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle's safety belt through or
around the restraint. The child restraint instructions
will show you how.
If the shoulder belt goes in front of the child's face or
neck, put it behind the child restraint.
