On Suburban models, to
create a load floor, release
the panels from the seatback
by pushing rearward on the
latch and fold them out to
cover the rear seat footwell.
To return the seat to the passenger position on a
Suburban, lift the load floor panels and latch them into
the seatback. On both models, remove the head
restraints by sliding them out of the seat cushion. Lift
the seatback up and push rearward all the way. Then,
lower the seat cushion until it latches in position.
After returning the seat to the passenger position, return
the head restraints to the top of the seatback. Pull
forward on the seatback and up on the seat cushion to
make sure that the seat is securely in place.If the latch plate portion of the center safety belt was put
in the center armrest when the seat was folded, take the
latch plate portion out and place it on the seat. That way,
the center position safety belt will be available for the
center rear seat passenger to use.
Entry to the Rear Seat (Suburban Second Seat)
The right side of the rear 60/40 split folding bench seat
has an easy entry feature. That makes it easy to get in
and out of the third seat, if you have one.
To operate the seat, move the lever at the side of the
seat down.
Tilt the seatback toward the front of the vehicle by
pulling the top of the seatback forward.
When you do, the seat bottom will release. Just pull the
seat forward until it stops.
Page 18 of 424
yellowblue
1-12
There is a foot-operated
release lever for rear seat
passengers to use when
getting out of the third seat.
To release the easy entry second seat, lift up on the
top of the release lever with your foot. Push the top
of the seatback forward and tilt it toward the front of
the vehicle.
To return the seat to its regular position, return the
seatback to its upright position, then push the whole seat
rearward until it latches.
After returning the seat to its regular position, try to
move the seat with your body, to make sure the seat is
locked into place.Removing the Rear (Suburban Third Seat)
If your vehicle has a third seat, it can be taken out for
more cargo space.
Before removing the seat, unlatch the outside passenger
position safety belts from the seat frame.
To unlatch the safety belt,
press the tip of a key into
the release hole of the
safety belt attachment
while pulling up on the
safety belt.
Page 19 of 424
yellowblue
1-13
Then, hang the latch plate
end of the belt on the hook
at the top of the retractor
cover, out of the way.
To remove the seat, fully open the rear load doors and
enter the back of the vehicle.
Move the seatback release
lever, at the right rear of the
seat, toward the center of
the vehicle.
Then, fold the seatback forward into the seat cushion.
To unlatch the seat from the
floor, pull up on the center
release handle at the rear of
the seat and lift the rear seat
up, off of the floor.
Turn the seat sideways and take it out of the vehicle.
Replacing the Rear Seat
CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
Page 20 of 424

yellowblue
1-14
CAUTION:
A safety belt that is twisted or not properly
attached won't provide the protection needed in a
crash. The person wearing the belt could be
seriously injured. After installing the seat, always
check to be sure that the safety belts are not
twisted and are properly attached.
To put the seat back in, hold the seat sideways and put it
into the vehicle. Turn the seat to the forward position
and set it down, with the latches at the bottom of the seat
over the hooks in the floor. Pull up on the center release
handle and let the seat drop into place. Release the
handle to let the seat latch close and make sure it locks
into place. Then, move the seatback release lever at the
right rear of the seat toward the center of the vehicle and
raise the seatback.
After returning the seatback to the upright position, push
the seatback forward to make sure it is locked into place.
Then, return the outside passenger position safety belts
to the seat frame buckles, so they will be available for
rear seat passengers to use.
Safety Belts: They're for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
with safety belts.
And it explains the air bag system.
CAUTION:
Don't let anyone ride where he or she can't wear
a safety belt properly. If you are in a crash and
you're not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check that your passengers' belts
are fastened properly too.
Page 21 of 424

yellowblue
1-15
CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
Your vehicle has a light that
comes on as a reminder to
buckle up. (See ªSafety
Belt Reminder Lightº in
the Index.)In most states and Canadian provinces, the law says to
wear safety belts. Here's why: They work.
You never know if you'll be in a crash. If you do have a
crash, you don't know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn't survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt or
killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter ... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Page 22 of 424
yellowblue
1-16

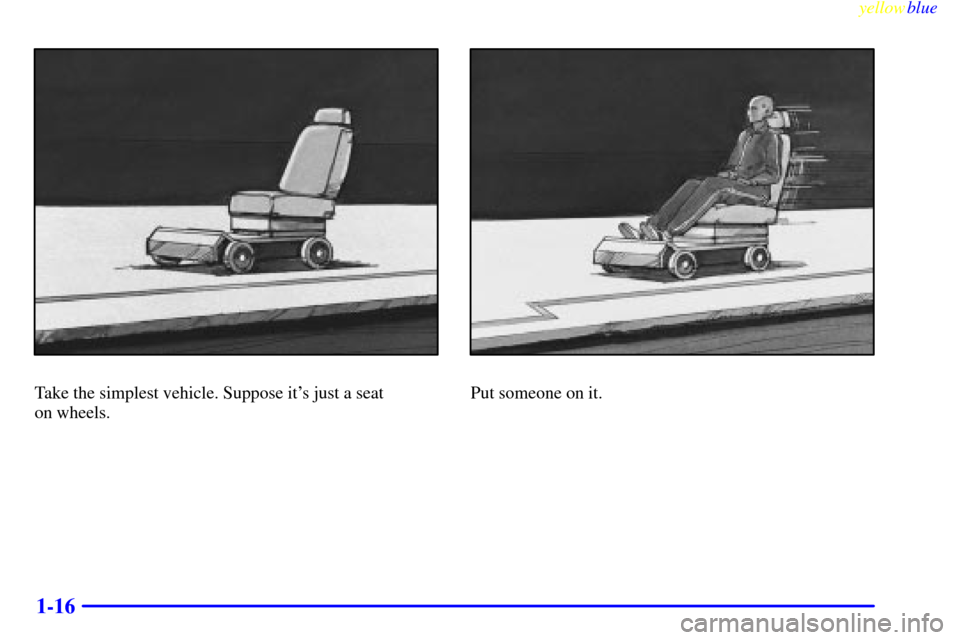

Take the simplest vehicle. Suppose it's just a seat
on wheels.Put someone on it.
Page 23 of 424
yellowblue
1-17

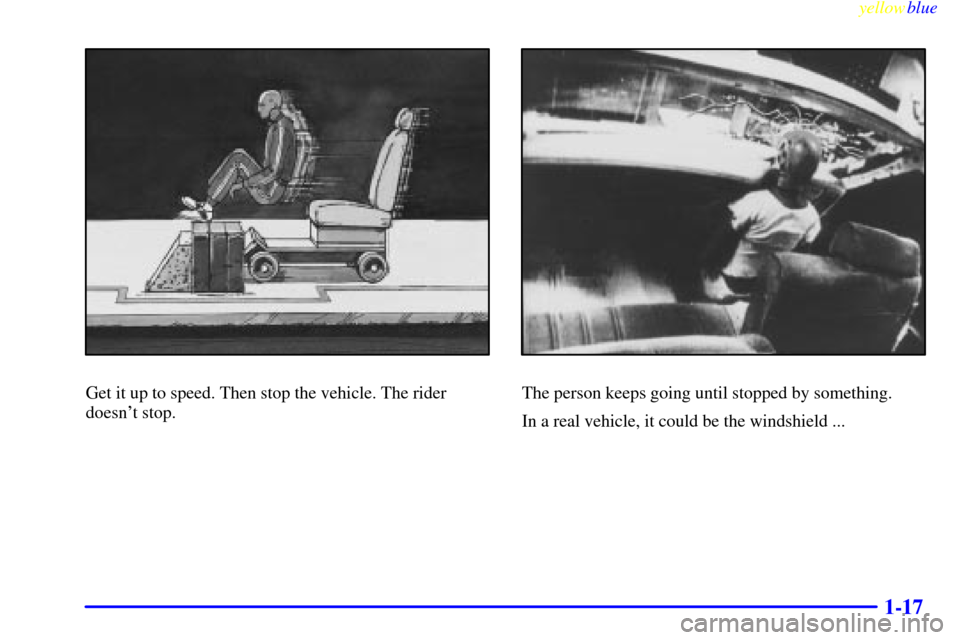

Get it up to speed. Then stop the vehicle. The rider
doesn't stop.The person keeps going until stopped by something.
In a real vehicle, it could be the windshield ...
Page 24 of 424
yellowblue
1-18

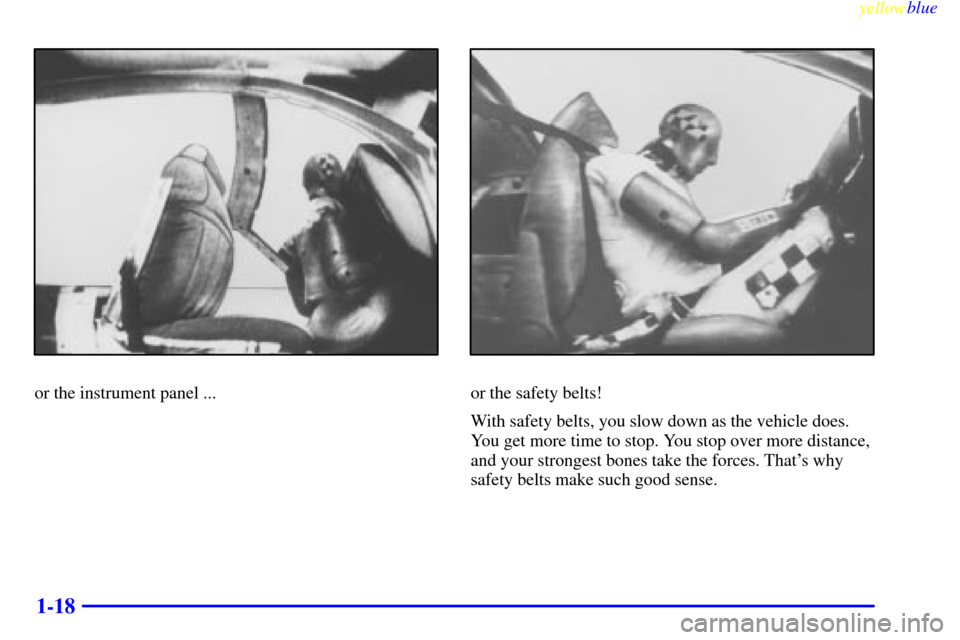

or the instrument panel ...or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That's why
safety belts make such good sense.
