1998 PONTIAC GRAND PRIX CD player

Understanding Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations to interfere with each other.
AM can pick
up noise from things like storms and power lines. Try
reducing the treble to reduce
this noise if you ever get it.
FM Stereo
FM stereo will give you the best sound, but FM signals
will reach only about 10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with FM signals, causing
the sound to come and go.
Tips About Your Audio System
Hearing damage from loud noise is almost undetectable
until it is too late. Your hearing can adapt
to higher
volumes of sound. Sound that seems
normal can be loud
and harmful to
your hearing. Take precautions by
adjusting
the volume control on your radio to a safe
sound level before your hearing adapts to it.
To help avoid hearing loss or damage:
0 Adjust the volume control to the lowest setting.
0 Increase volume slowly until you hear comfortably
and clearly.
NOTICE:
Before you add any sound equipment to your
vehicle
-- like a tape player, CB radio, mobile
telephone or two-way radio
-- be sure you can
add what you want.
If you can, it's very
important to do it properly. Added sound
equipment may interfere with the operation
of
your vehicle's engine, Delco Electronics radio or
other systems, and even damage them. Your
vehicle's systems may interfere with the
operation
of sound equipment that has been
added improperly.
So, before adding sound equipment, check with
your dealer and be sure to check Federal rules
covering mobile radio and telephone units.
3-30

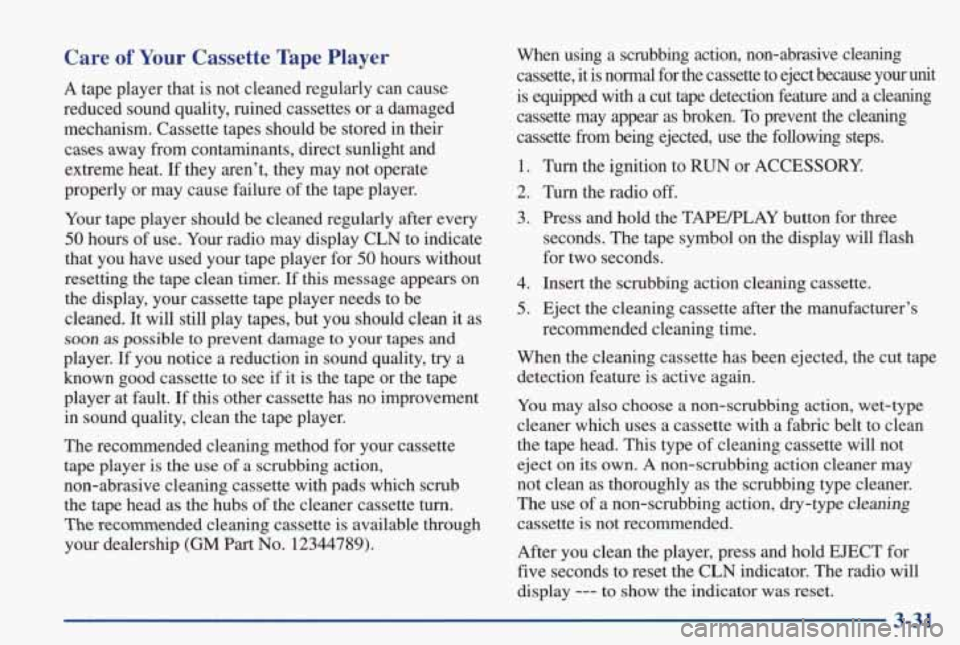

Care of Your Cassette Tape Player
A tape player that is not cleaned regularly can cause
reduced sound quality, ruined cassettes or a damaged
mechanism. Cassette tapes should be stored in their
cases away from contaminants, direct sunlight and
extreme heat.
If they aren’t, they may not operate
properly or may cause failure of the tape player.
Your tape player should be cleaned regularly after every
50 hours of use. Your radio may display CLN to indicate
that you have used your tape player for
50 hours without
resetting the tape clean timer. If this message appears on
the display, your cassette tape player needs to be
cleaned. It will still play tapes, but you should clean it
as
soon as possible to prevent damage to your tapes and
player. If you notice a reduction in sound quality, try a
known good cassette to see if it is the tape or the tape
player at fault.
If this other cassette has no improvement
in sound quality, clean the tape player.
The recommended cleaning method for your cassette
tape player
is the use of a scrubbing action,
non-abrasive cleaning cassette with pads which scrub the tape head as the hubs
of the cleaner cassette turn.
The recommended cleaning cassette is available through
your dealership
(GM Part No. 12344789).
When using a scrubbing action, non-abrasive cleaning
cassette, it
is normal for the cassette to eject because your unit
is equipped with a cut
tape detection feature and a cleaning
cassette may appear as broken. To prevent the cleaning
cassette from being ejected, use the following steps.
1.
2.
3.
4.
5.
Turn the ignition to RUN or ACCESSORY
Turn the radio
off.
Press and hold the TAPEFLAY button for three
seconds. The tape symbol on the display will flash
for two seconds.
Insert the scrubbing action cleaning cassette.
Eject the cleaning cassette after the manufacturer’s
recommended cleaning time.
When the cleaning cassette has been ejected, the cut tape
detection feature
is active again.
You may also choose a non-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt to clean
the tape head. This type of cleaning cassette will not
eject on its own. A non-scrubbing action cleaner may
not clean as thoroughly as the scrubbing type cleaner.
The use
of a non-scrubbing action, dry-type cleaning
cassette is not recommended.
After you clean the player, press and hold EJECT for
five seconds to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
3-31

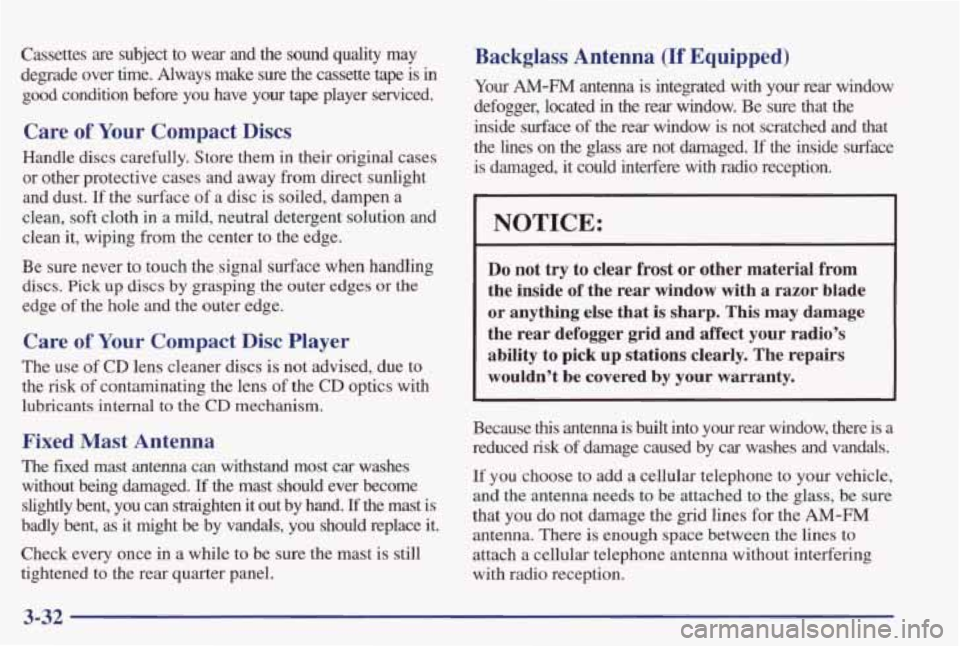

Cassettes are subject to wear and the sound quality may
degrade over time. Always make sure the cassette
tape is in
good condition before you have your tape player serviced.
Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight and dust.
If the surface of a disc is soiled, dampen a
clean,
soft cloth in a mild, neutral detergent solution and
clean it, wiping from the center to the edge.
Be sure never to touch the signal surface when handling
discs. Pick up discs by grasping the outer edges or the
edge of the hole and the outer edge.
Care of Your Compact Disc Player
The use of CD lens cleaner discs is not advised, due to
the risk
of contaminating the lens of the CD optics with
lubricants internal to the
CD mechanism.
Fixed Mast Antenna
The fixed mast antenna can withstand most car washes
without being damaged.
If the mast should ever become
slightly bent, you can straighten it out by hand. If the mast is
badly bent,
as it might be by vandals, you should replace it.
Check every once in a while to be sure the mast is still
tightened to the rear quarter panel.
Backglass Antenna (If Equipped)
Your AM-FM antenna is integrated with your rear window
defogger, located
in the rear window. Be sure that the
inside surface of the rear window is not scratched and that
the lines
on the glass are not damaged. If the inside surface
is damaged, it could interfere
with radio reception.
NOTICE:
Do not try to clear frost or other material from
the inside
of the rear window with a razor blade
or anything else that is sharp. This may damage
the rear defogger
grid and affect your radio’s
ability to pick
up stations clearly. The repairs
wouldn’t be covered
by your warranty.
Because this antenna is built into your rear window, there is a
reduced risk of damage caused by car washes and vandals.
If you choose to add a cellular telephone to your vehicle,
and
the antenna needs to be attached to the glass, be sure
that you
do not damage the grid lines for the AM-FM
antenna. There is enough space between the lines to
attach a cellular telephone antenna without interfering
with radio reception.
3-32

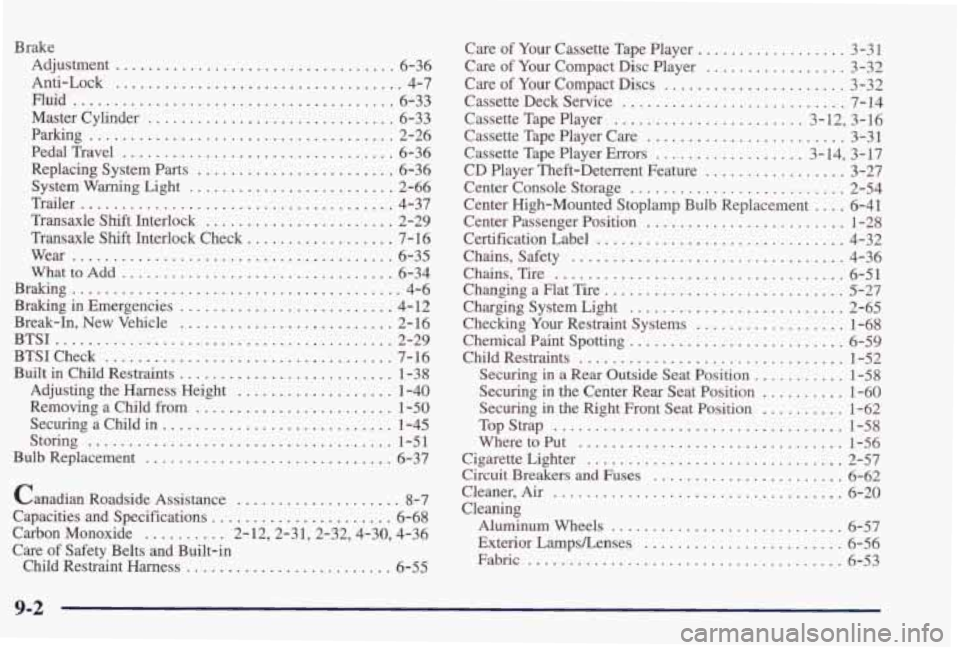

Brake Adjustment
.................................. 6-36
hti-Lock
................................... 4-7
Master Cylinder
.............................. 6-33
Replacing System
Parts ........................ 6-36
System Warning Light
......................... 2-66
Trailer
...................................... 4-37
Transaxle
Shift Interlock ....................... 2-29
Transaxle
Shift Interlock Check .................. 7-16
Wear
....................................... 6-35
WhattoAdd
................................. 6-34
Braking
........................................ 4-6
Braking in Emergencies
.......................... 4- 12
Break-In, New Vehicle
.......................... 2-16
BTSI
......................................... 2-29
Built in Child Restraints .......................... 1-38
Adjusting the Harness Height
................... 1-40
Removing a Child from
........................ 1-50
Securing a Child in
............................ 1-45
Bulb Replacement
.............................. 6-37
Canadian Roadside Assistance
.................... 8-7
Capacities and Specifications ...................... 6-68
Carbon Monoxide
.......... 2-12,2-31,2-32,4-30, 4-36
Child Restraint Harness
......................... 6-55
Fluid
....................................... 6-33
Parking
..................................... 2-26
PedalTravel
................................. 6-36
BTSICheck
................................... 7-16
Storing
..................................... l-51
Care of Safety Belts and Built-in Care
of Your Cassette Tape Player .... ....... 3-31
Care
of Your Compact Disc Player ................. 3-32
Care
of Your Compact Discs ...................... 3-32
Cassette Deck Service
........................... 7-14
Cassette Tape Player
....................... 3.12. 3.16
Cassette Tape Player Care
........................ 3-31
Cassette Tape Player Errors
.................. 3.14. 3.17
CD Player Thefi-Deterrent Feature
................. 3-27
Center Console Storage
.......................... 2-54
Center Passenger Position
........................ 1-28
Certification Label .............................. 4-32
Chains. Safety
................................. 4-36
Chains. Tire
................................... 6-51
Changing a Flat Tire
............................. 5-27
Charging System Light .......................... 2-65
Checking
Your Restraint Systems .................. 1-68
Chemical Paint Spotting .......................... 6-59
Child Restraints
................................ 1-52
Securing
in the Center Rear Seat Position .......... 1-60
Securing
in the Right Front Seat Position .......... 1-62
Cigarette Lighter
............................... 2-57
Center High-Mounted Stoplamp Bulb Replacement
.... 6-41
Securing
in a Rear Outside Seat Position ........... 1-58
TopStrap
................................... l-58
WheretoPut .....................,.........., l-56
Circuit Breakers and Fuses ....................... 6-62
Cleaner. Air
................................... 6-20
Cleaning AluminumWhels
............................ 6-57
Fabric ...................................... 6-53
Exterior
Lampshnses
........................ 6-56
9-2

Glass .............. .................... 6-55
Inside of
Your Vehicle ......................... 6-53
Instrument Panel
............................. 6-54
Interior Plastic Components
..................... 6-54
Leather
..................................... 6-54
Outside of
Your Vehicle ........................ 6-56
Special Problems
............................. 6-53
Tires
............ ....... ........ 6-58
Wheels
........................... ...... 6-57
Windshield and Wiper Blades
................... 6-55
Climate Control System
........................... 3-2
Clock, Setting the
............................... 3-10
Column Shift
.................................. 2-28
Comfort Controls
.... ..................... 3-1
Compact Disc Care
....... .................. 3-32
Compact Disc Player
....................... 3-19, 3-22
Compact Disc Player Care
........................ 3-32
Compact Disc Player Errors
............. 3-21,3-23, 3-25
Compact Spare Tire ............................. 5-37
ConsoleShift
.................................. 2-29
Content Theft-Deterrent
.................... 2- 14, 2-50
Content Theft-Deterrent, Arming and Disarming
...... 2-51
Control of a Vehicle
.............................. 4-6
Convenience Net
............................... 2-57
Convex Outside Mirror
.......................... 2-53
Coolant
....................................... 6-26
BleedValves
................................. 5-24
Heater, Engine
............................. 2-20
Stains
...................................... 6-53
Vinyl
.......................... ........ 6-54 Recovery Tank
........ .... 5-20
To Use the Engine Heater .................... 2-20
Cooling System
................................ 5-18
Courtesy Lamps
................................ 2-42
Courtesy Transportation
........................... 8-8
Cruise Control
................................. 2-37
Customer Assistance for Text Telephone Users
......... 8-5
Customer Assistance Information ................... 8-1
Customer Satisfaction Procedure
.................... 8-3
Damage. Finish
... ...... 6-58
Damage. Sheet Metal
. . ...... ...... 6-58
Daytime Running Lamps
.............. ...... 2-41
Dead Battery
..................... .......... 5-3
Defects. Reporting Safety
........................ 8-10
Defensive Driving
............................... 4-2
Defogger. Rear Window .......................... 3-9
Defogging and Defrosting ..................... 3-4. 3-8
Defrosting. Defogging
.... ........ 3-4. 3.8
Delayed Illumination ............ .... 2.43. 2.47
Dimensions. Vehicle
............... ...... 6-69
Disarming with the Remote Keyless Entry Transmitter
................. .... 2-15
Disarming with
Your Key ...................... 2-15
Dolby@ B Noise Reduction
.................. 3.14. 3.18
DoorLocks
..................................... 2. 4
Driver Information Center ........................ 2-76
Driver Position
................................. 1-14
Driver’s Temperature Knob. Automatic
and
Auxiliary Temp Control ......................... 3-5
9-3

Tachometer ................................ 2-63
Taillamp Bulb Replacement
....................... 6-42
TapePlayerCare
............................... 3-31
Theft
......................................... 2-13
Theft-Deterrent Feature. CD Player
................ 3-27
THEFTLOCK”
................................ 3-27
Themostat .................................. 6-30
Tilt Steering Wheel
. . .................... 2-34
Time. Setting the
............................... 3-10
Tire Chains
.................................... 6-51
TireLoading ................................... 4-31
Tire-Loading Information Label
................... 4-3 1
Tires ......................................... 6-44
Alignment and Balance
........................ 6-50
BuyingNew
................................. 6-48
Chains
..................................... 6-51
Changing a Flat
.............................. 5-27
Cleaning .................................... 6-58
Compact Spare ............................... 5-37
Inflation
.................................... 6-45
Inflation Check
............................... 7-14
Inspection and Rotation
........................ 6-46
Loading
.................................... 4-31
Pressure
.................................... 6-45
Temperature
................................. 6-50
Traction
........................ ........ 6-49
Treadwear
................................... 6-49
Uniform Quality Grading
....................... 6-49
Used Replacement Wheels
...................... 6-51
Wear Indicators .............................. 6-47
Wheel Replacement ........................... 6-50
When It’s Time for New
....................... 6-47 When to Check
............................... 6-46
TopStrap
..................................... 1-58
Torque Lock ................................... 2-30
Torque. Wheel Nut
.............................. 5-34
Towing a Trailer
................................ 4-33
Towing Your Vehicle
............................. 5-8
Traction Control System
.......................... 4-9
Traction Control System Warning Light
............. 2-67
Trailer
Brakes
..................................... 4-37
Driving on Grades
............................ 4-39
Driving With
................................ 4-37
Engine Cooling When Towing
................... 4-40
Following Distance
........................... 4-37
Hitches
..................................... 4-36
Maintenance When Towing
..................... 4-40
MakingTurns
................................ 4-38
Parking on Hills .............................. 4-39
Safety Chains ................................ 4-36
Tongueweight
............................... 4-35
Total Weight on Your Vehicle’s Tires
.............. 4-36
Towing
..................................... 4-33
Turnsignals
................................. 4-38
Weight
..................................... 4-35
Automatic
............................... 6-22
HowtoAdd
................................. 6-26
How to Check
............................... 6-22
When to Check and Change ..................... 6-22
Transportation Error Courtesy ...................... 8-8
Trip Computer ............................ 2.78. 2.79
Trip Odometer
................................. 2-63
Transaxle Fluid
9-11
