1998 PONTIAC BONNEVILLE Owners Manual

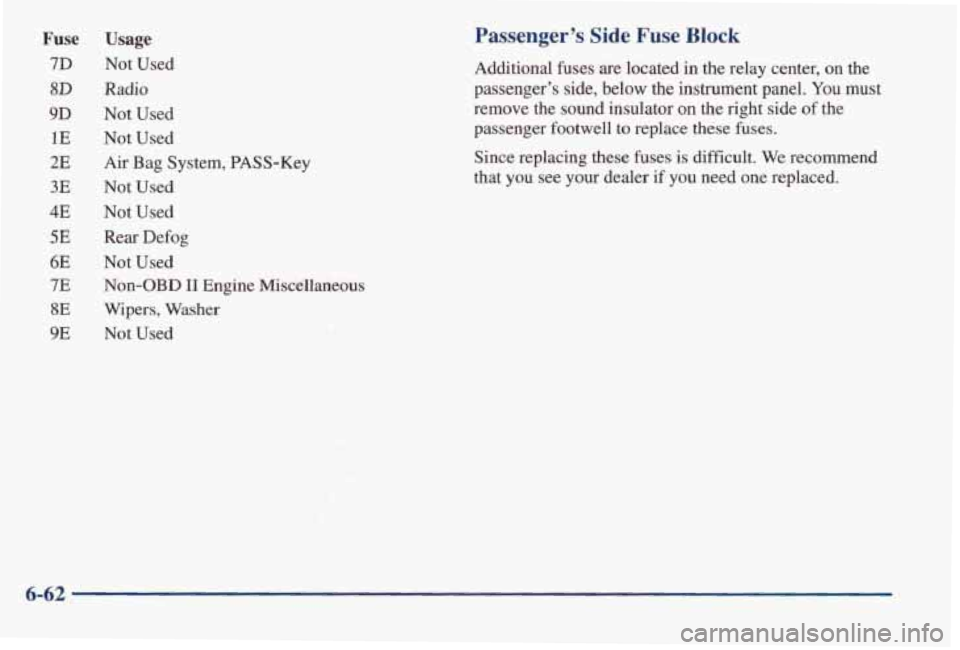

Fuse
7D
8D
9D
1E
2E
3E
4E
5E
6E
7E
8E
9E
Usage
Not Used
Radio
Not Used
Not Used
Air
Bag System, PASS-Key
Not Used
Not Used Rear Defog
Not Used Non-OBD
II Engine Miscellaneous
Wipers, Washer
Not Used
Passenger’s Side Fuse Block
Additional fuses are located in the relay center, on the
passenger’s side, below the instrument panel. You must
remove the sound insulator
on the right side of the
passenger footwell
to replace these fuses.
Since replacing these fuses is difficult. We recommend
that you see your dealer
if you need one replaced.
6-62

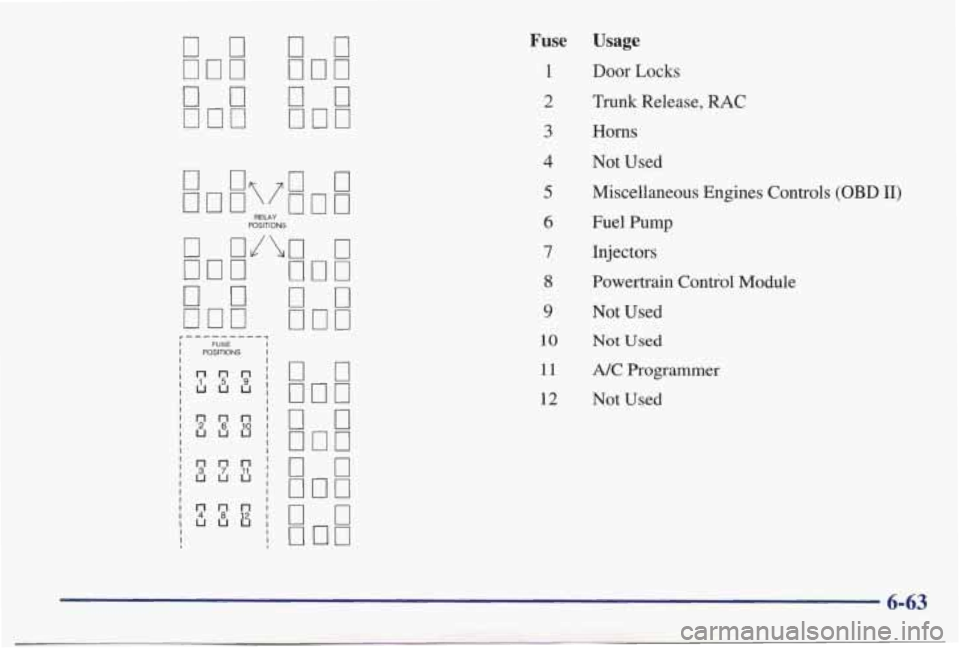

on
000
no
000
I CUM I I POSmONS I
0
no
0
00
0
on
17
00
0
on
Fuse
1
2
3
4
5
6
7
8
9
10
11
Q
Usage
Door Locks
Trunk Release, RAC
Horns
Not Used
Miscellaneous Engines Controls
(OBD II)
Fuel Pump
Injectors
Powertrain Contiol Module
Not Used
Not Used
NC Programmer
Not Used
6-63

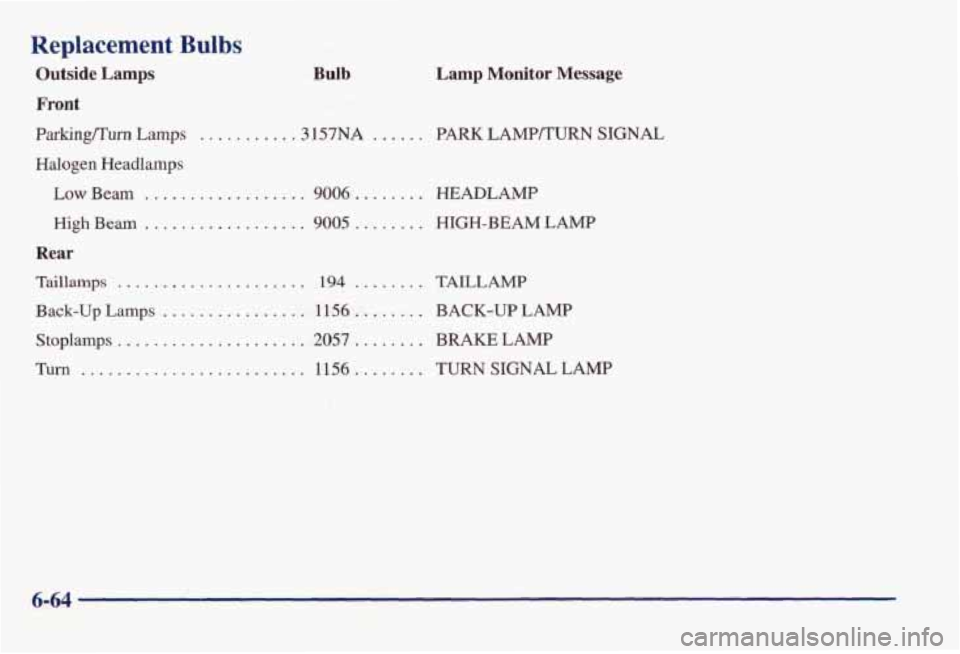

Replacement Bulbs
Outside Lamps Bulb Lamp Monitor Message
Front
ParkinglTurn Lamps ........ .3 157NA ...... PARK LAMP/TURN SIGNAL
Halogen Headlamps
Low Beam .................. 9006.. ...... HEADLAMP
High Beam ................ 9005 ........ HIGH-BEAM LAMP
Rear
Taillamps ..................... 194 ........ TAILLAMP
Back-up Lamps
................ 1156 ........ BACK-UP LAMP
Stoplamps ..................... 2057 ........ BRAKE LAMP
Turn ......................... 1156 ........ TURN SIGNAL LAMP
6-64

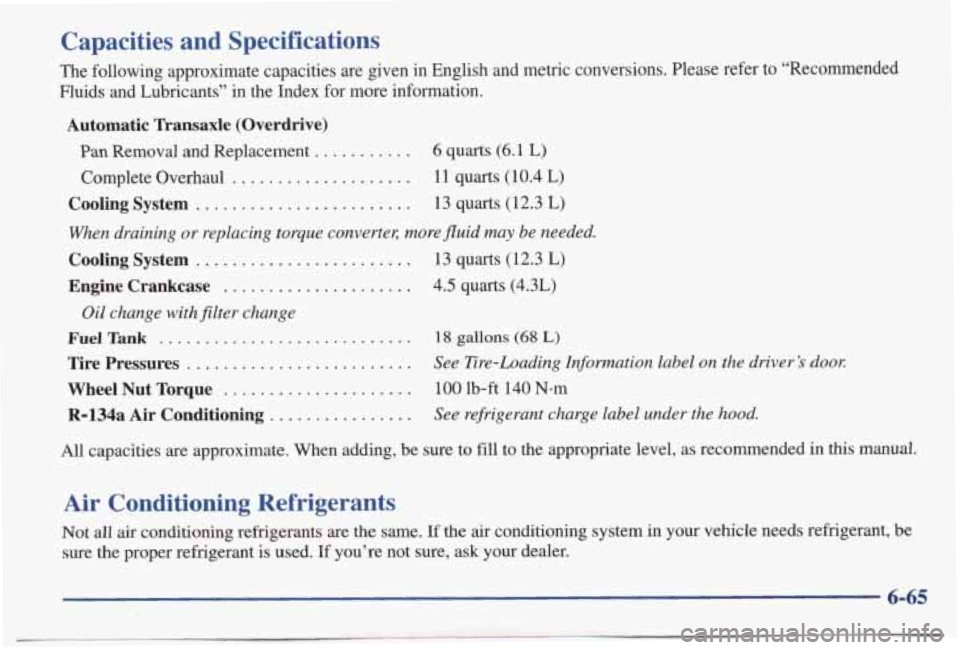

Capacities and Specifications
The following approximate capacities are given in English and m\
etric conversions. Please refer to “Recommended
Fluids and Lubricants” in the Index for more information.
Automatic Transaxle (Overdrive)
Pan Removal and Replacement ........... 6 quarts (6.1 L)
Complete Overhaul .................. 11 quarts (10.4 L)
Cooling System ........................ 13 quarts (12.3 L)
When draining or replacing torque converter; more fluid may be needed.
Cooling System ................ ........ 13 quarts (12.3 L)
Engine Crankcase ................... 4.5 quarts (4.3L)
Fuel Tank ............................ 18 gallons (68 L)
Tire Pressures .... >.. . See Ere-Loading Information label on the driver’s dool:
Wheel Nut Torque ......... . 100 lb-ft 140 N-m
R-134a Air Conditioning .... . See refrigerant charge label under the hood.
Oil
change with filter change
.......
.......
.......
All capacities are approximate. When adding, be sure to fill to the appropriate level, as recommended in this manual.
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs refrigerant, be
sure the proper refrigerant is used. If you’re not sure,
ask your dealer.
6-65

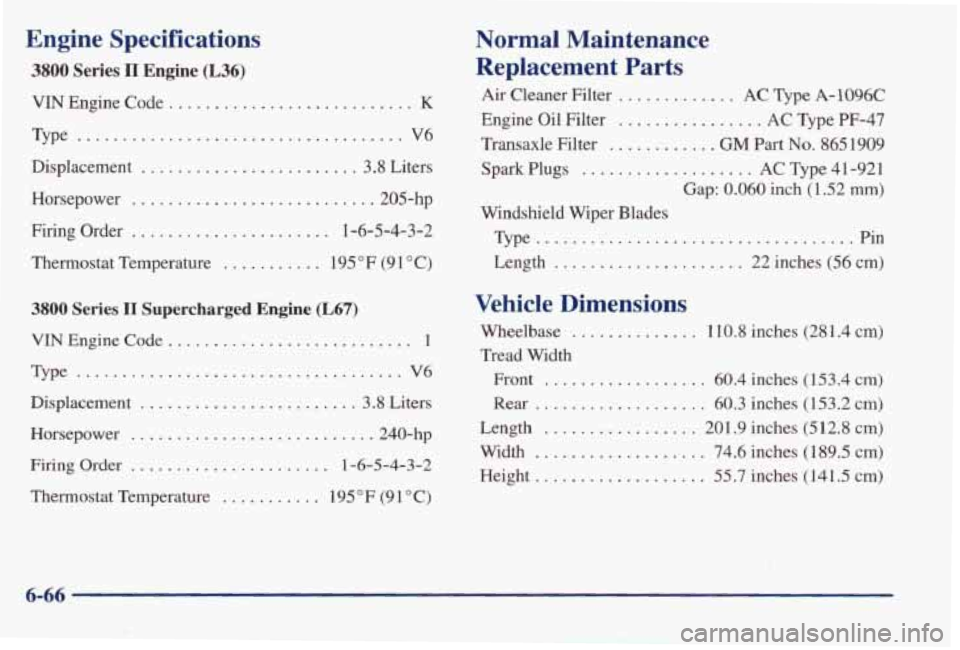

Engine Specifications
VIN Engine Code . . ................... K
Type ............ ~ ................ V6
Displacement
.................... 3.8 Liters
Horsepower
...................... .205-hp
Firing Order
...................... 1-6-5-4-3-2
3800 Series I1 Engine (L36)
Thermostat Temperature ........... 195°F (91°C)
Normal Maintenance
Replacement
Parts
Engine Oil Filter ................ AC Type PF-47
Transaxle Filter
............ GM Part No. 865 1909
Spark Plugs
................. AC Type 41-921
Air Cleaner Filter
............. AC Type A-1096C
Gap: 0.060 inch (1.52 mm)
Windshield Wiper Blades
npe
.................
Length .................
.............. Pin
. . 22 inches (56 cm)
3800 Series I1 Supercharged Engine (L67) Vehicle Dimensions
VIN Engine Code 1 .............. Wheelbase 110.8 inches (28 1.4 cm)
Tread Width ...........................
5pe .............. .................. V6
Front ........... . . 60.4 inches (153.4 cm)
Displacement
........................ 3.8 Liters
Horsepower
........................ .240-hp
Thermostat Temperature
........... 195°F (91°C)
Firing Order ...................... 1-6-5-4-3-2 Rear
................... 60.3 inches (1 53.2 cm)
Length
................. 201.9 inches (512.8 cm)
Width
................... 74.6 inches (189.5 cm)
Height
................... 55.7 inches (141.5 cm)
6-66

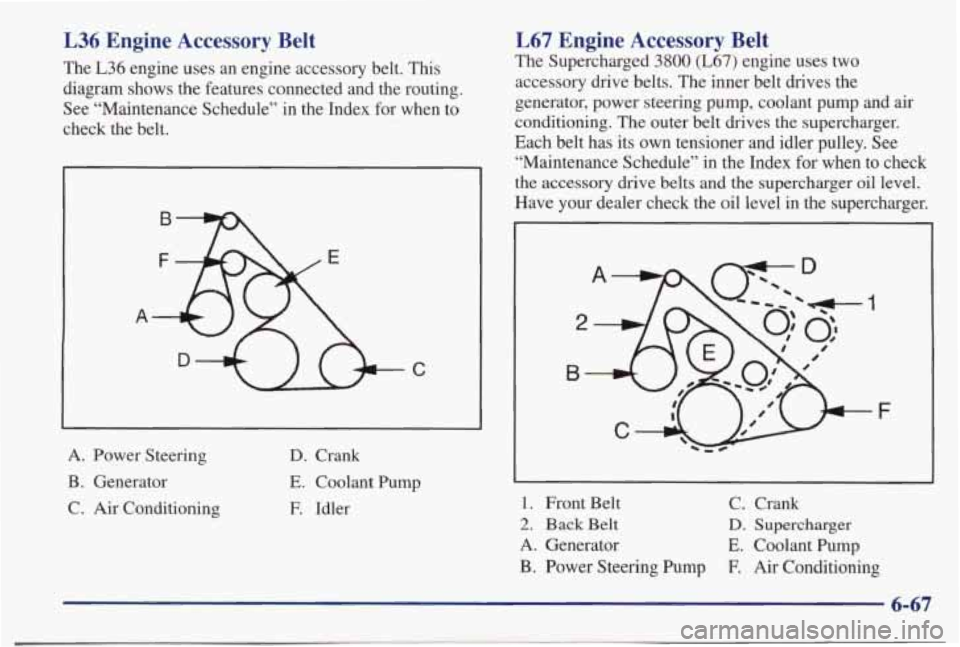

L36 Engine Accessory Belt
The L36 engine uses an engine accessory belt. This
diagram shows the features connected and the routing.
See “Maintenance Schedule” in the Index for when to
check the belt.
B
F
A-
C
A. Power Steering
B. Generator C.
Air Conditioning
D. Crank
E. Coolant Pump
E Idler
L67 Engine Accessory Belt
The Supercharged 3800 (L67) engine uses two accessory drive belts. The inner belt drives the
generator, power steering pump, coolant pump and
air
conditioning. The outer belt drives the supercharger.
Each belt has its own tensioner and idler pulley. See “Maintenance Schedule” in the Index for when to check
the accessory
drive belts and the supercharger oil level.
Have your dealer check the
oil level in the supercharger.
F
1. Front Belt C. Crank
2. Back Belt D. Supercharger
A. Generator E. Coolant Pump
B. Power Steering Pump E Air Conditioning

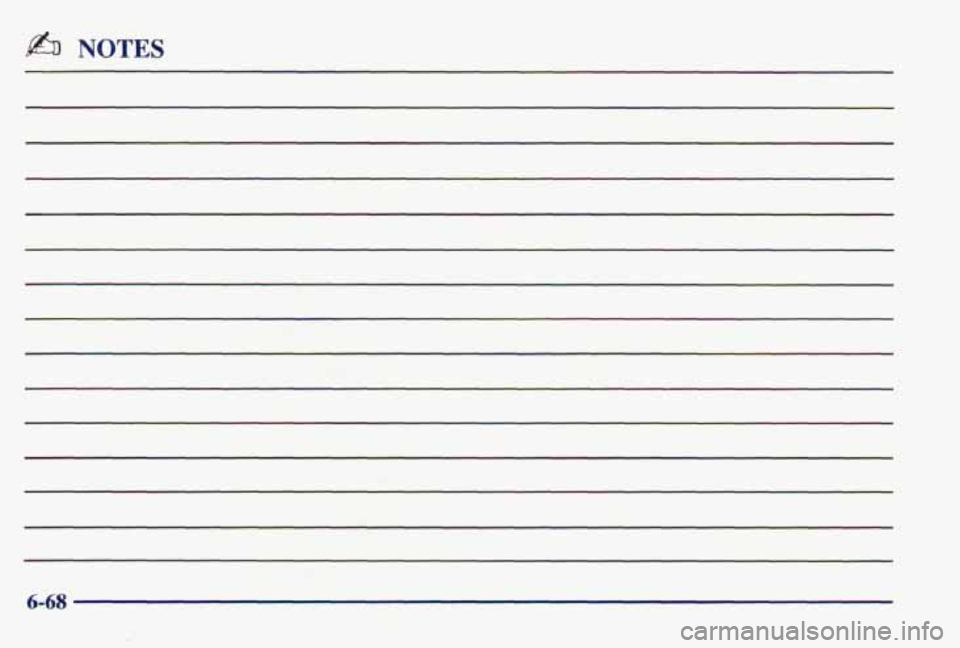

b NOTES
6-68

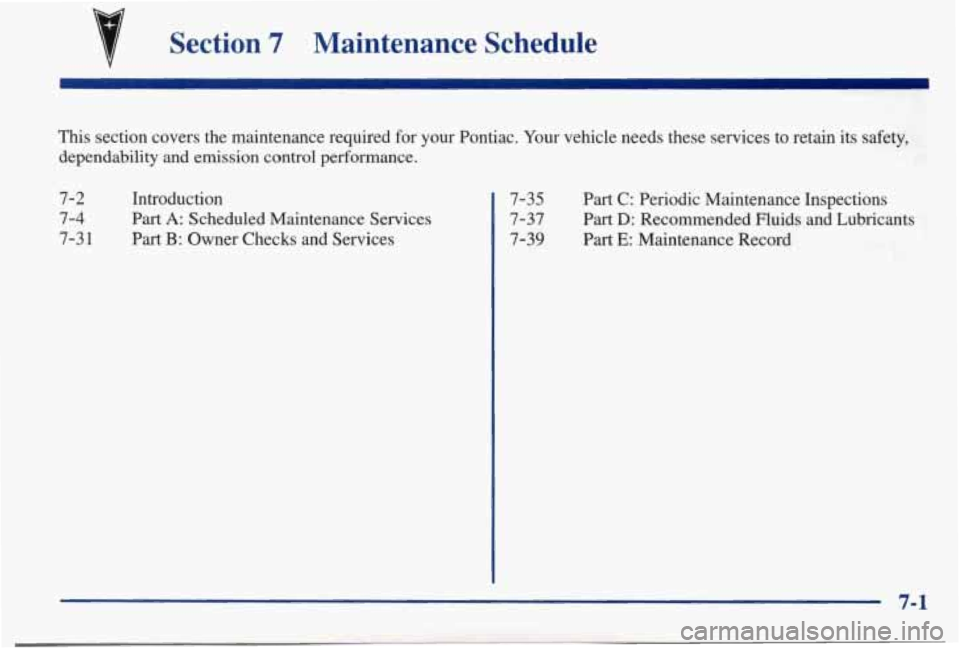

Section 7 Maintenance Schedule
This section covers the maintenance required for your Pontiac. Your vehicle needs these services to retain its safety,
dependability
and emission control performance.
7-2
7-4
7-3
1
Introduction
Part
A: Scheduled Maintenance Services
Part
B: Owner Checks and Services
7-35 Part C: Periodic Maintenance Inspections
I 7-37 Part D: Recommended Fluids and Lubricants
7-39 Part E: Maintenance Record
