1998 NISSAN PATROL Engine Control Workshop Manual

DIAGNOSTIC PROCEDURE
INSPECTION START
CHECK OVERALL FUNCTION.
1. Turn ignition switch ``ON''.
2. Select ``FULL ACCEL SW'' and
``OFF ACCEL SW'' in ``DATA
MONITOR'' mode with CON-
SULT.
3. Check ``FULL ACCEL SW'' and
``OFF ACCEL SW'' signal under
the following conditions.
OFF ACCEL SW:
Accelerator pedal released
ON
Accelerator pedal
depressed OFF
FULL ACCEL SW:
Accelerator pedal released
OFF
Accelerator pedal fully
depressed ON
--------------------------------------------------------------------------------------------------------------------------------------OR--------------------------------------------------------------------------------------------------------------------------------------
1. Turn ignition switch ``ON''.
2. Check voltage between ECM
terminal
V31and ground under
the following conditions.
Voltage:
Accelerator pedal released
Battery voltage
Accelerator pedal
depressed
Approximately 0V
3. Check voltage between ECM
terminal
V32and ground under
the following conditions.
Voltage:
Accelerator pedal released
Approximately 0V
Accelerator pedal fully
depressed
Battery voltage
NG
cOK
INSPECTION END
CHECK POWER SUPPLY.
1. Turn ignition switch ``OFF''.
2. Disconnect accelerator position switch
harness connector.
3. Turn ignition switch ``ON''.
4. Check voltage between terminal
V5
and ground with CONSULT or tester.
Voltage: Battery voltage
OK
cNG
Check the following.
+Harness connectors
M52,F7(LHD mod-
els)
+Harness for open or
short between accelera-
tor position switch and
ECCS relay
+Harness for open or
short between accelera-
tor position switch and
ECM
If NG, repair harness or
connectors.
jA
SEF626S
SEF627S
SEF708V
SEF786V
.
.
.
TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS
Accelerator Position Switch (Cont'd)
EC-167

jA
CHECK INPUT SIGNAL CIRCUIT-I.
1. Turn ignition switch ``OFF''.
2. Disconnect ECM harness connector.
3. Check harness continuity between ter-
minal
V6and ECM terminalV31.
Continuity should exist.
If OK, check harness for short to
ground and short to power.
OK
cNG
Check the following.
+Harness connectors
M52,F7(RHD mod-
els)
+Harness for open or
short between ECM and
accelerator position
switch
If NG, repair open circuit or
short to ground or short to
power in harness or con-
nectors.
CHECK INPUT SIGNAL CIRCUIT-II.
Check harness continuity between termi-
nal
V4and ECM terminalV32.
Continuity should exist.
If OK, check harness for short to ground
and short to power.
OK
cNG
Check the following.
+Harness connectors
M52,F7(RHD mod-
els)
+Harness for open or
short between ECM and
accelerator position
switch
If NG, repair open circuit or
short to ground or short to
power in harness or con-
nectors.
CHECK COMPONENT
(Accelerator position switch).
Refer to ``COMPONENT INSPECTION''
on next page.
OK
cNG
Replace accelerator pedal
assembly.
Disconnect and reconnect harness con-
nectors in the circuits. Then retest.
Trouble is not ®xed.
Check ECM pin terminals for damage and
check the connection of ECM harness
connector. Reconnect ECM harness con-
nector and retest.
INSPECTION END
SEF787V
SEF788V
.
.
.
.
.
.
TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS
Accelerator Position Switch (Cont'd)
EC-168

COMPONENT INSPECTION
Accelerator position switch
1. Disconnect accelerator position switch harness connector.
2. Check continuity between terminals
V5andV6.
Conditions Continuity
Accelerator pedal released Yes
Accelerator pedal depressed No
3. Check continuity between terminalsV4andV5.
Conditions Continuity
Accelerator pedal released No
Accelerator pedal fully depressed Yes
If NG, replace accelerator pedal assembly.
CAUTION:
If accelerator position sensor or ECM connector is
disconnected, perform the following procedures:
Select ``OFF ACCEL PO SIG'' in ``ACTIVE TEST'' mode.
Touch CLEAR.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------OR-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Start and warm up engine. After engine has warmed up,
idle for 10 minutes.
SEF709V
TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS
Accelerator Position Switch (Cont'd)
EC-169

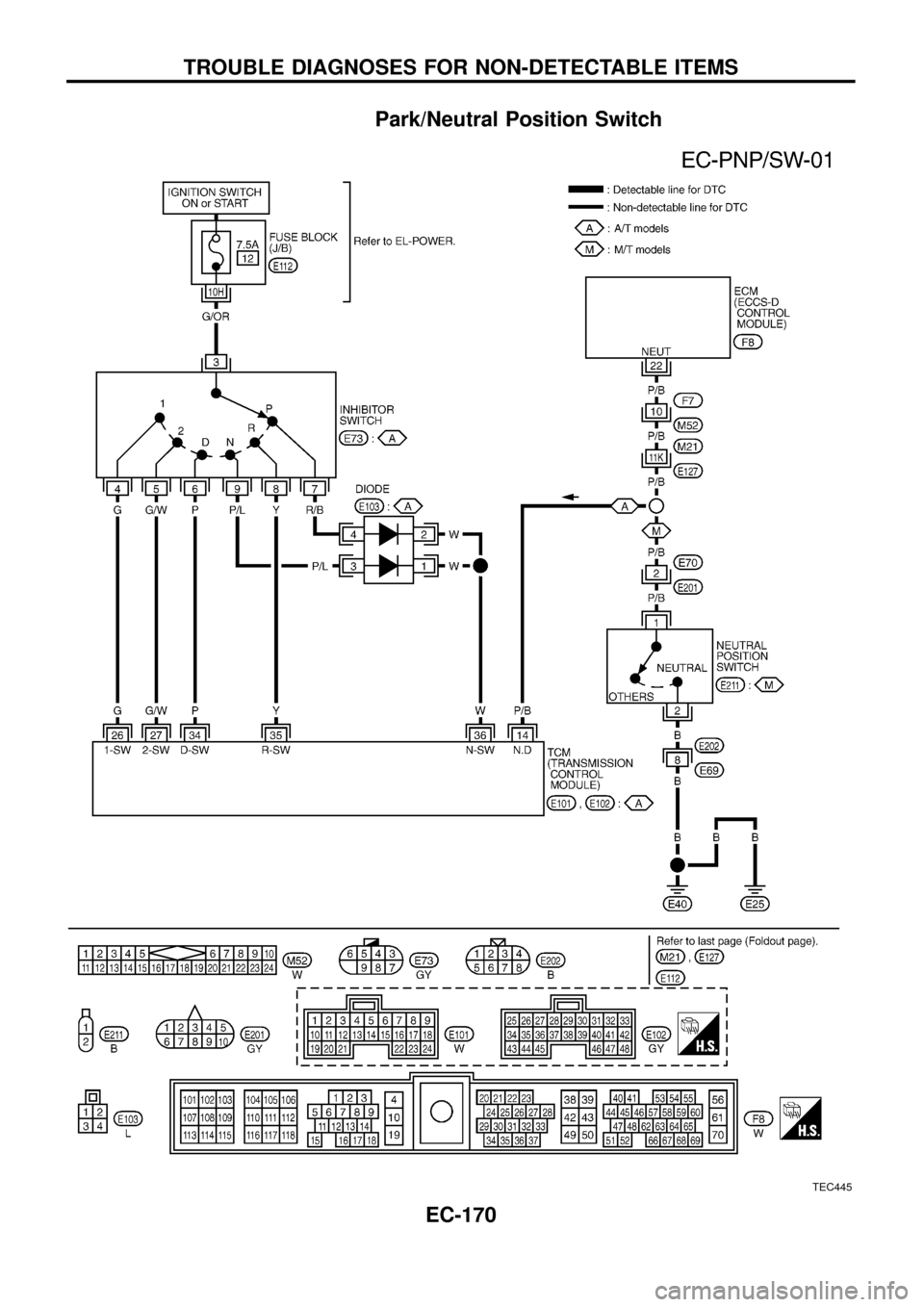

Park/Neutral Position Switch
TEC445
TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS
EC-170

When the gear position is in ``N'', neutral position switch is ``ON''.
The ECM detects the position because the continuity of the line (the
``ON'' signal) exists.
CONSULT REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Speci®cation data are reference values.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW+Ignition switch: ONShift lever: Neutral/Park ON
Except above OFF
ECM TERMINALS AND REFERENCE VALUE
Remarks: Speci®cation data are reference values and are measured between each terminal andV43(ECCS
ground) with a voltmeter.
TER-
MINAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse
Signal)
22 P/BInhibitor switch/
Neutral position switchIgnition switch ``ON''
Gear position is ``N'' or ``P'' (A/T models).Gear position is ``Neutral'' (M/T models).Approximately 0V
Ignition switch ``ON''
Except the above gear positionBATTERY VOLTAGE
(11 - 14V)
DIAGNOSTIC PROCEDURE
M/T models
INSPECTION START
CHECK OVERALL FUNCTION.
1. Turn ignition switch ``ON''.
2. Select ``P/N POSI SW'' in
``DATA MONITOR'' mode with
CONSULT.
3. Check ``P/N POSI SW'' signal
under the following conditions.
Neutral position: ON
Except neutral position: OFF
--------------------------------------------------------------------------------------------------------------------------------------OR--------------------------------------------------------------------------------------------------------------------------------------
2. Check voltage between ECM
terminal
V22and ground under
the following conditions.
Voltage:
Neutral position
Approximately 0V
Except neutral position
Battery voltage
NG
cOK
INSPECTION END
jA
SEF963N
SEF622S
SEF789V
.
.
TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS
Park/Neutral Position Switch (Cont'd)
EC-171

jA
CHECK GROUND CIRCUIT.
1. Turn ignition switch ``OFF''.
2. Disconnect neutral position switch har-
ness connector.
3. Check harness continuity between termi-
nal
V2and body ground.
Continuity should exist.
If OK, check harness for short to
ground and short to power.
OK
cNG
Check the following.
+Harness connectors
E202,E69
+Harness for open or short
between neutral position
switch and body ground
If NG, repair open circuit or
short to ground or short to
power in harness or con-
nectors.
CHECK INPUT SIGNAL CIRCUIT.
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM
terminal
V22and terminalV1.
Continuity should exist.
If OK, check harness for short to
ground and short to power.
OK
cNG
Check the following.
+Harness connectors
F7,M52
+Harness connectors
M21,E127
+Harness connectors
E70,E201
+Harness for open or short
between ECM and neu-
tral position switch
If NG, repair open circuit or
short to ground or short to
power in harness or con-
nectors.
CHECK COMPONENT
(Neutral position switch).
Refer to MT section.
OK
cNG
Replace neutral position
switch.
Disconnect and reconnect harness connec-
tors in the circuit. Then retest.
Trouble is not ®xed.
Check ECM pin terminals for damage and
check the connection of ECM harness con-
nector. Reconnect ECM harness connector
and retest.
INSPECTION END
AEC750
SEF624S
.
.
.
.
.
.
TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS
Park/Neutral Position Switch (Cont'd)
EC-172

A/T models
INSPECTION START
CHECK OVERALL FUNCTION.
1. Turn ignition switch ``ON''.
2. Select ``P/N POSI SW'' in
``DATA MONITOR'' mode with
CONSULT.
3. Check ``P/N POSI SW'' signal
under the following conditions.
``P'' or ``N'' position: ON
Except above positions: OFF
--------------------------------------------------------------------------------------------------------------------------------------OR--------------------------------------------------------------------------------------------------------------------------------------
2. Check voltage between ECM
terminal
V22and ground under
the following conditions.
Voltage:
``P'' or ``N'' position
Approximately 0V
Except above positions
Battery voltage
NG
cOK
INSPECTION END
CHECK POWER SUPPLY.
1. Turn ignition switch ``OFF''.
2. Disconnect inhibitor switch harness con-
nector.
3. Turn ignition switch ``ON''.
4. Check voltage between terminal
V3and
ground with CONSULT or tester.
Voltage: Battery voltage
OK
cNG
Check the following.
+7.5A fuse
+Harness for open or short
between inhibitor switch
and fuse
If NG, repair harness or
connectors.
jA
SEF963N
SEF622S
SEF790V
SEF791V
SEF792V
.
.
.
TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS
Park/Neutral Position Switch (Cont'd)
EC-173

jA
CHECK INPUT SIGNAL CIRCUIT-I.
1. Turn ignition switch ``OFF''.
2. Disconnect TCM harness connector.
3. Check harness continuity between TCM
terminal
V36and terminalsV7,V9.
Continuity should exist.
If OK, check harness for short to ground
and short to power.
OK
cNG
Check the following.
+Diode
E103
+Harness continuity
between inhibitor switch
and TCM
If NG, repair open circuit or
short to ground or short to
power in harness or con-
nectors.
CHECK INPUT SIGNAL CIRCUIT-II.
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM
terminal
V22and TCM terminalV14.
Continuity should exist.
If OK, check harness for short to ground
and short to power.
OK
cNG
Check the following.
+Harness connectors
F7,M52
+Harness connectors
M21,E127
+Harness for open or short
between ECM and TCM
If NG, repair open circuit or
short to ground or short to
power in harness or con-
nectors.
CHECK COMPONENT
(Inhibitor switch).
Refer to AT section.
OK
cNG
Replace inhibitor switch.
Disconnect and reconnect harness connec-
tors in the circuit. Then retest.
Trouble is not ®xed.
Check ECM pin terminals for damage or
the connection of ECM harness connector.
Reconnect ECM harness connector and
retest.
INSPECTION END
SEF793V
SEF794V
.
.
.
.
.
.
TROUBLE DIAGNOSES FOR NON-DETECTABLE ITEMS
Park/Neutral Position Switch (Cont'd)
EC-174
