1998 NISSAN PATROL Engine Control Workshop Manual

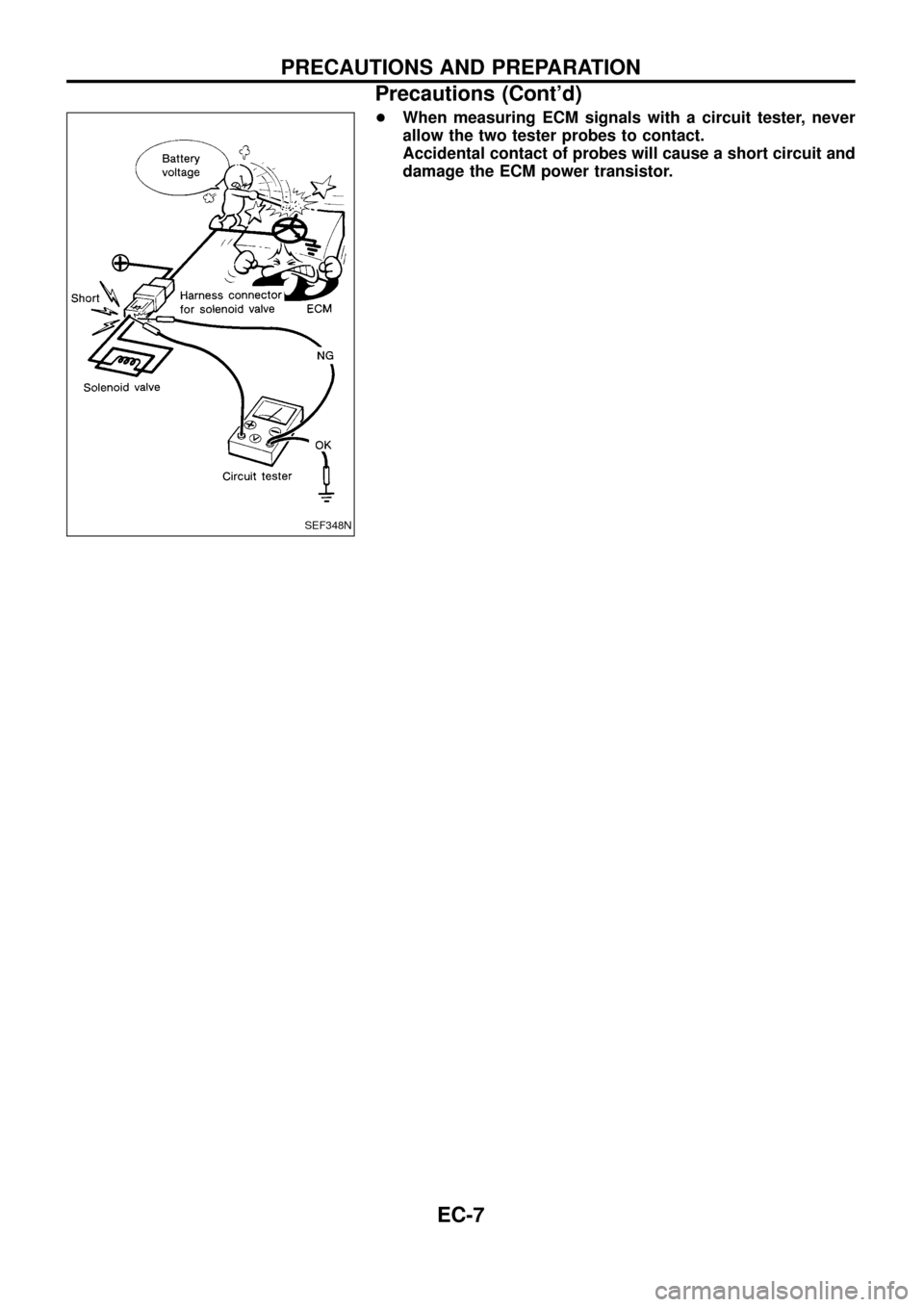

+When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.
SEF348N
PRECAUTIONS AND PREPARATION
Precautions (Cont'd)
EC-7

ECCS-D Component Parts Location
SEF657V
ENGINE AND EMISSION CONTROL OVERALL SYSTEM
EC-8

SEF658V
ENGINE AND EMISSION CONTROL OVERALL SYSTEM
ECCS-D Component Parts Location (Cont'd)
EC-9

SEF659V
ENGINE AND EMISSION CONTROL OVERALL SYSTEM
ECCS-D Component Parts Location (Cont'd)
EC-10

Circuit Diagram
TEC420
ENGINE AND EMISSION CONTROL OVERALL SYSTEM
EC-11

System Diagram
SEF660V
ENGINE AND EMISSION CONTROL OVERALL SYSTEM
EC-12

Vacuum Hose Drawing
V1Charge air cooler to vacuum gal-
lery
V2Throttle control valve to throttle
control solenoid valve
V3Vacuum pump to 3-way connector
V4Vacuum gallery to wastegate valve
actuator
V53-way connector to throttle control
solenoid valve
V63-way connector to EGRC-sole-
noid valve A
V73-way connector to EGRC-sole-
noid valve A
V83-way connector to EGRC-sole-
noid valve B
V9EGR valve and 3-way connector
Refer to ``System Diagram'', EC-12 for vacuum control system.
SEF661V
ENGINE AND EMISSION CONTROL OVERALL SYSTEM
EC-13

System Chart
Camshaft position sensor (PUMP)c
ECM
(ECCS-D
control
module)
Crankshaft position sensor (TDC)c
Control sleeve position sensorc
Fuel temperature sensorc
Engine coolant temperature sensorc
Needle lift sensorc
Accelerator position sensorc
Accelerator position switchc
Accelerator switch (F/C)c
Neutral position switchc
Ignition switchc
Battery voltagec
Vehicle speed sensorc
Air conditioner switchc
Mass air ¯ow sensorc
Charge air temperature sensorc
Heat up switchc
Fuel injection controlcElectric governor
Fuel injection timing controlcInjection timing control valve
Fuel cut controlcFuel cut solenoid valve
Glow control systemcGlow relay & glow lamp
On board diagnostic systemcMalfunction indicator lamp
(On the instrument panel)
EGR valve & throttle control
valve controlcEGRC-solenoid valve A, B &
throttle control solenoid valve
Cooling fan controlcCooling fan relay
Air conditioning cut controlcAir conditioner relay
Charge air cooler fan controlcCharge air cooler fan relay
ENGINE AND EMISSION CONTROL OVERALL SYSTEM
EC-14
