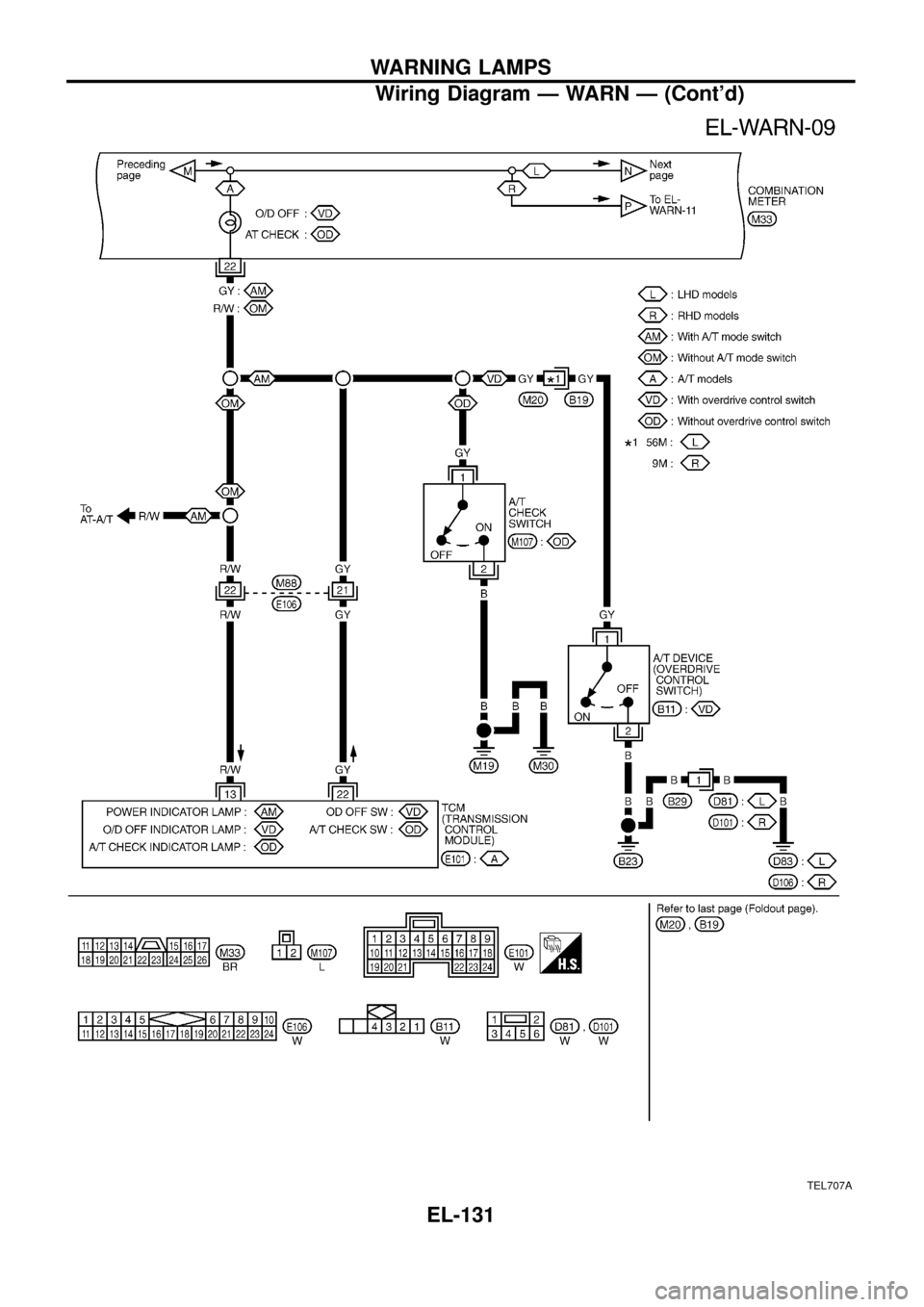

Page 135 of 326
TEL707A
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-131

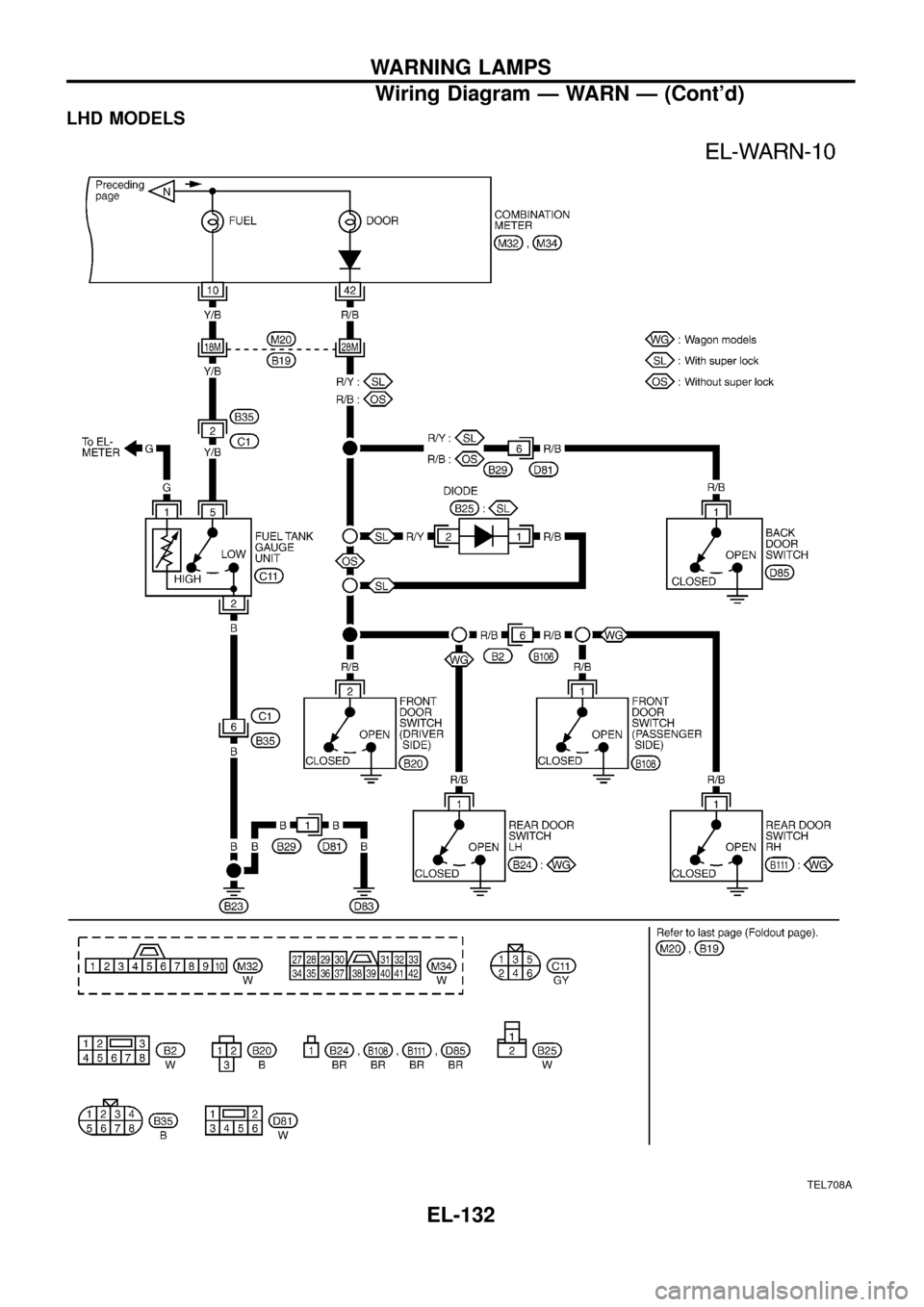

Page 136 of 326
LHD MODELS
TEL708A
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-132

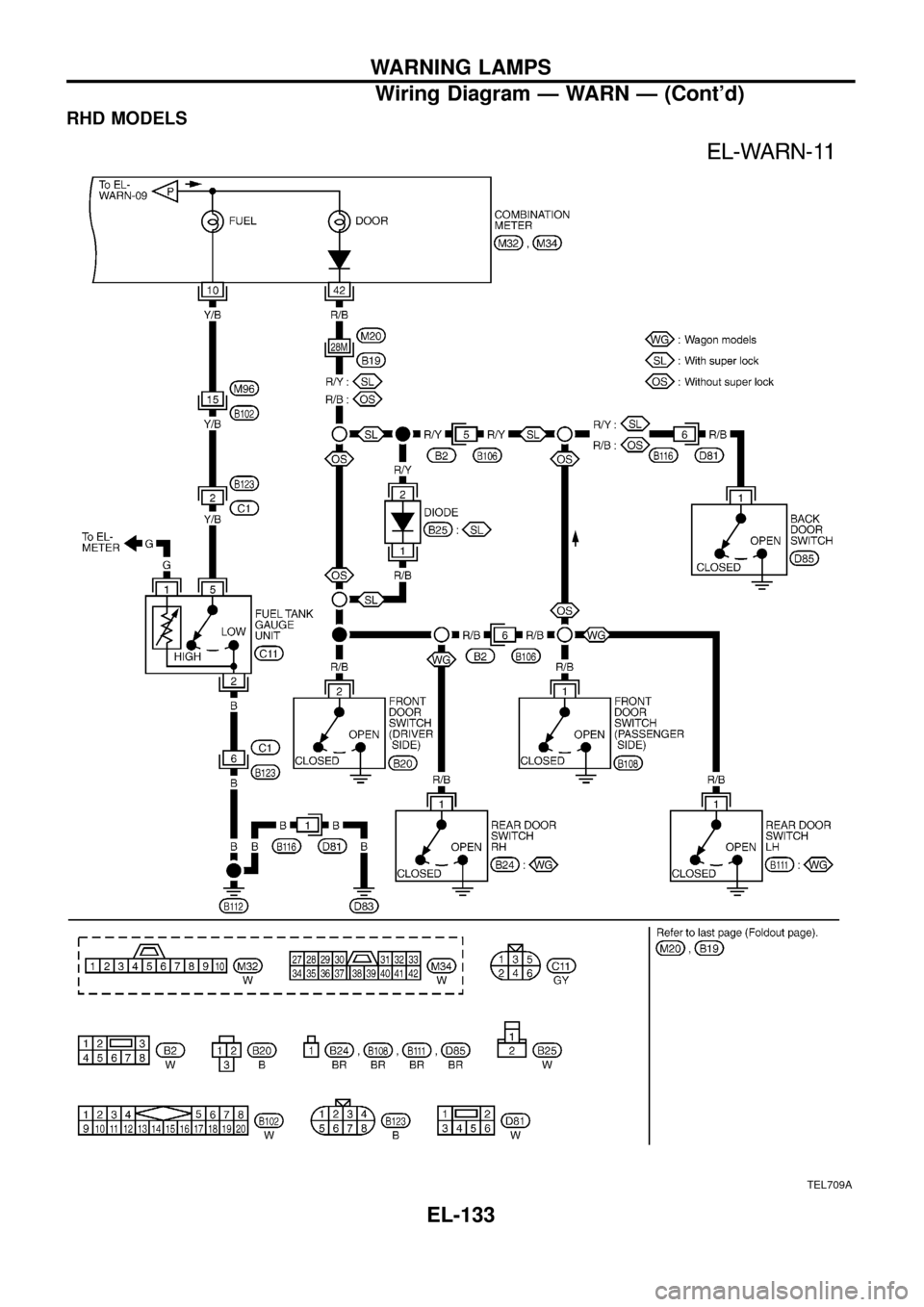

Page 137 of 326
RHD MODELS
TEL709A
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-133

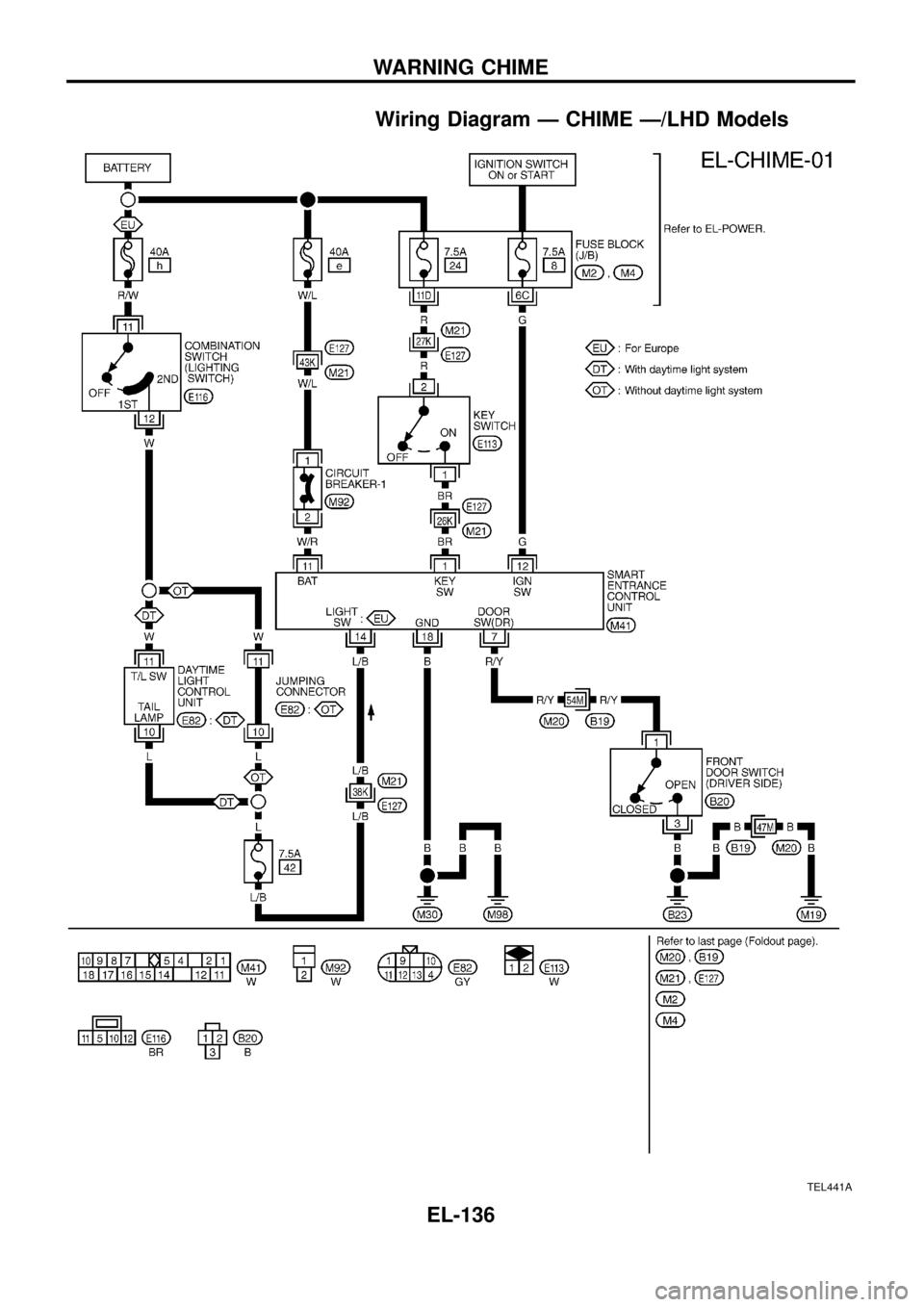

Page 140 of 326
Wiring Diagram Ð CHIME Ð/LHD Models
TEL441A
WARNING CHIME
EL-136

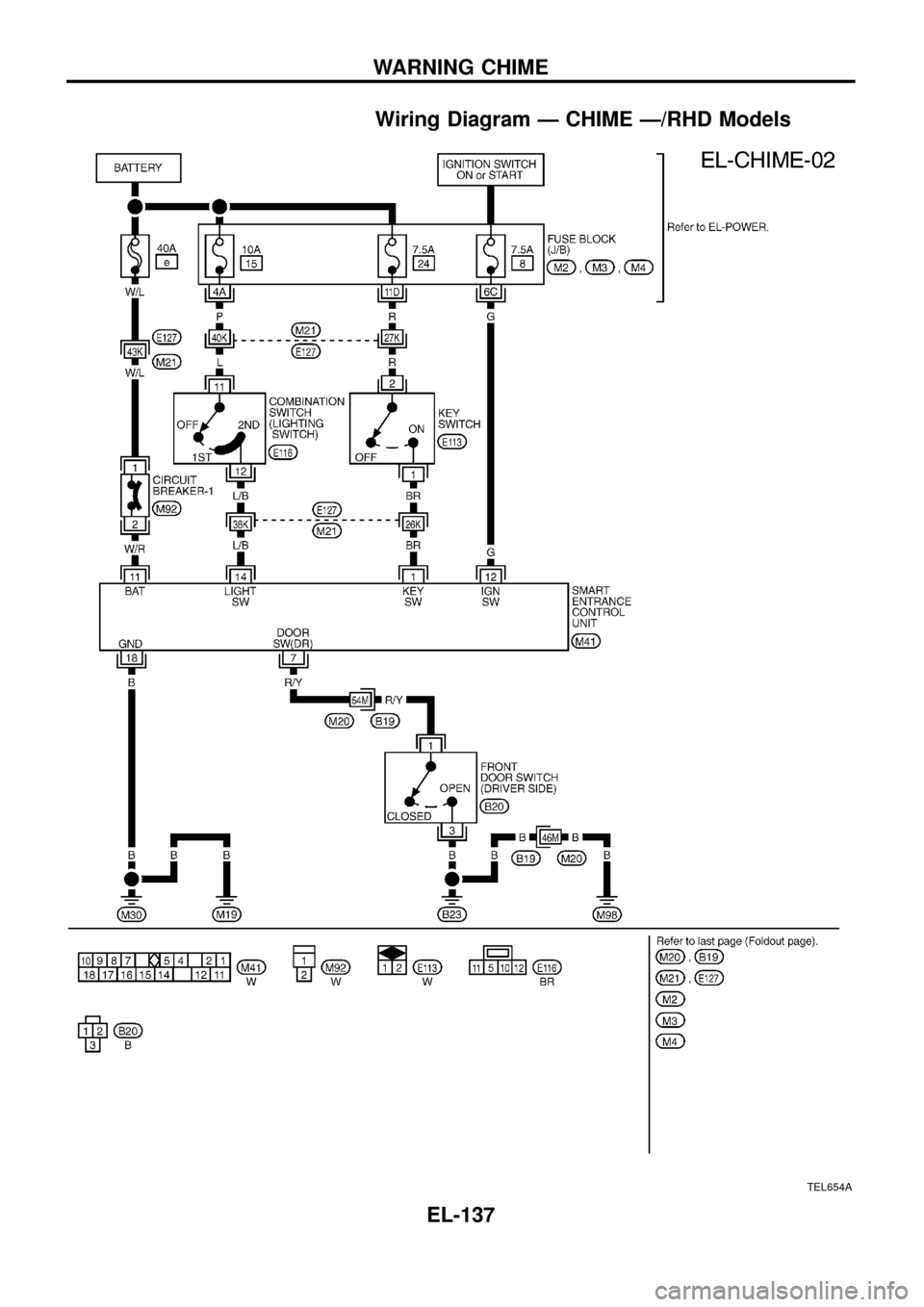

Page 141 of 326
Wiring Diagram Ð CHIME Ð/RHD Models
TEL654A
WARNING CHIME
EL-137

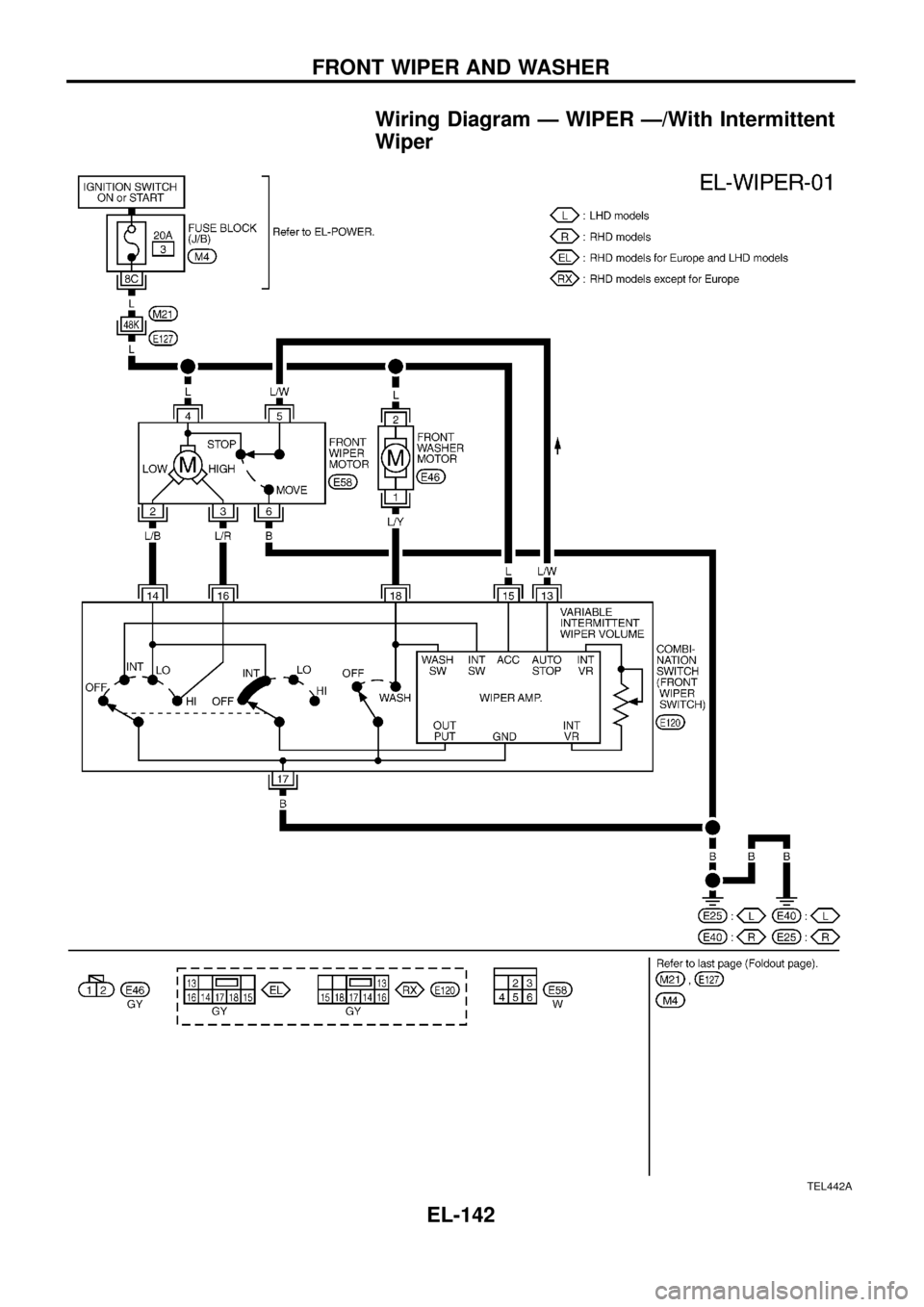

Page 146 of 326
Wiring Diagram Ð WIPER Ð/With Intermittent
Wiper
TEL442A
FRONT WIPER AND WASHER
EL-142

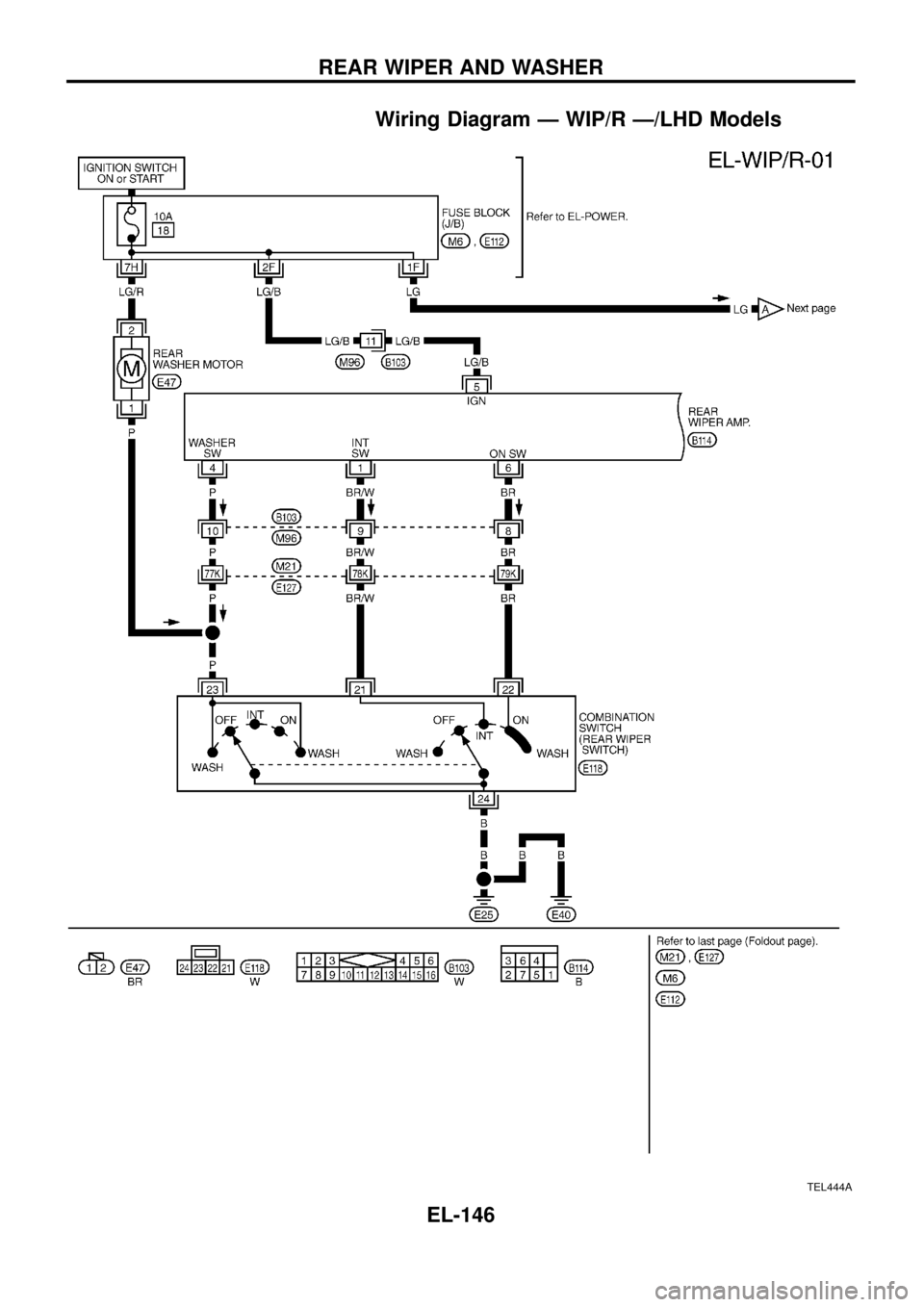

Page 150 of 326
Wiring Diagram Ð WIP/R Ð/LHD Models
TEL444A
REAR WIPER AND WASHER
EL-146
Page 151 of 326
TEL445A
REAR WIPER AND WASHER
Wiring Diagram Ð WIP/R Ð/LHD Models
(Cont'd)
EL-147
