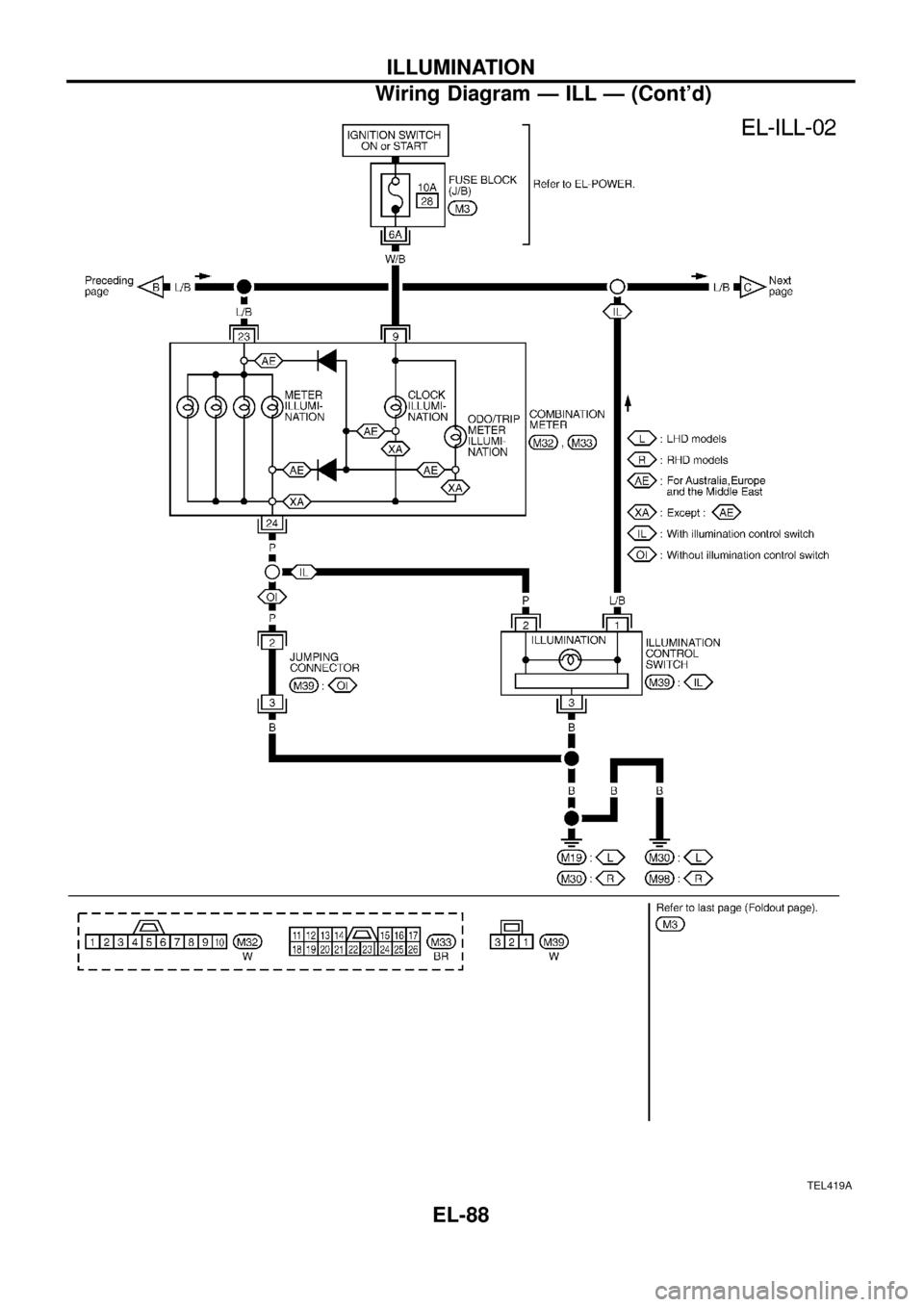

Page 92 of 326
TEL419A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-88

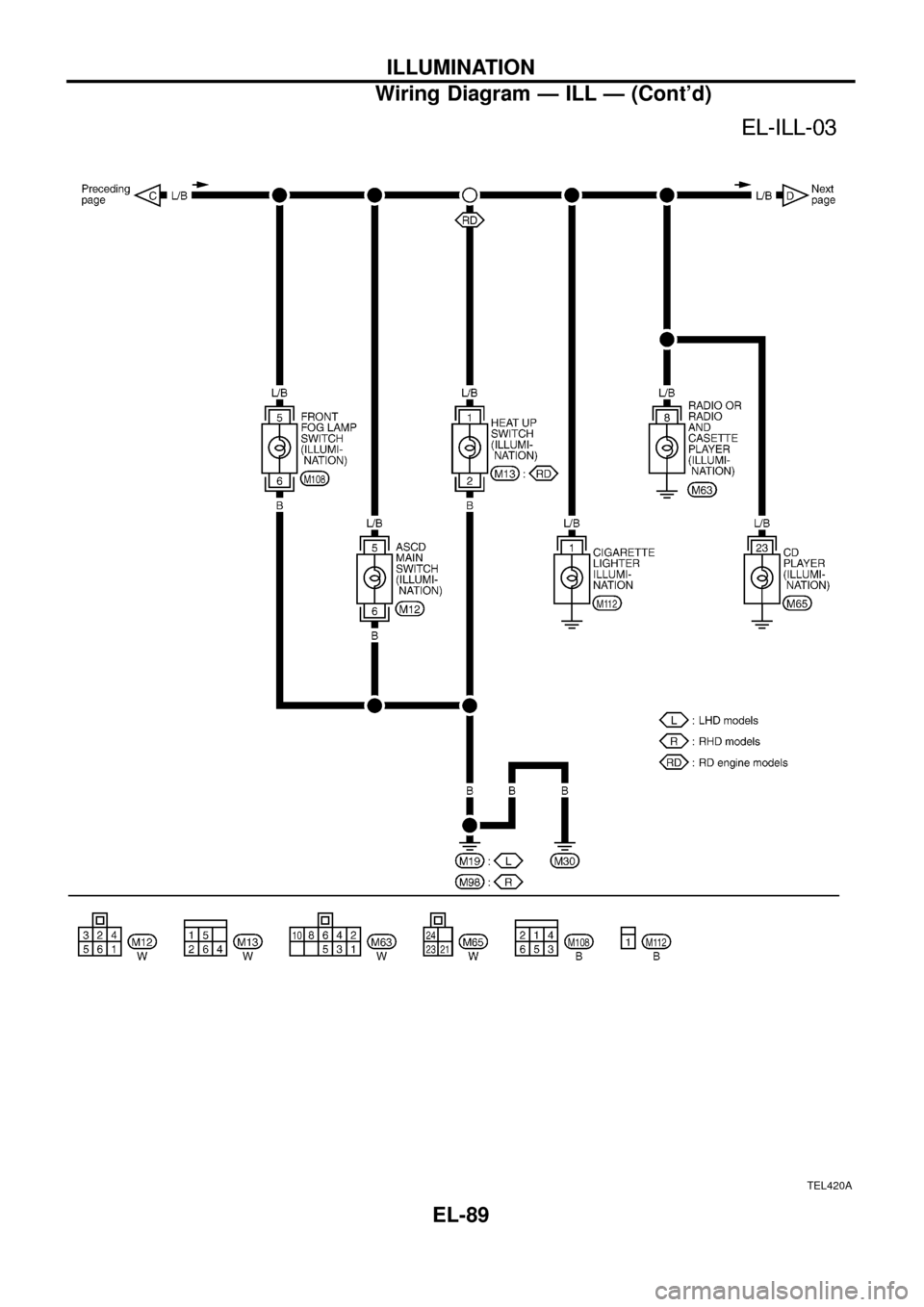

Page 93 of 326
TEL420A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-89

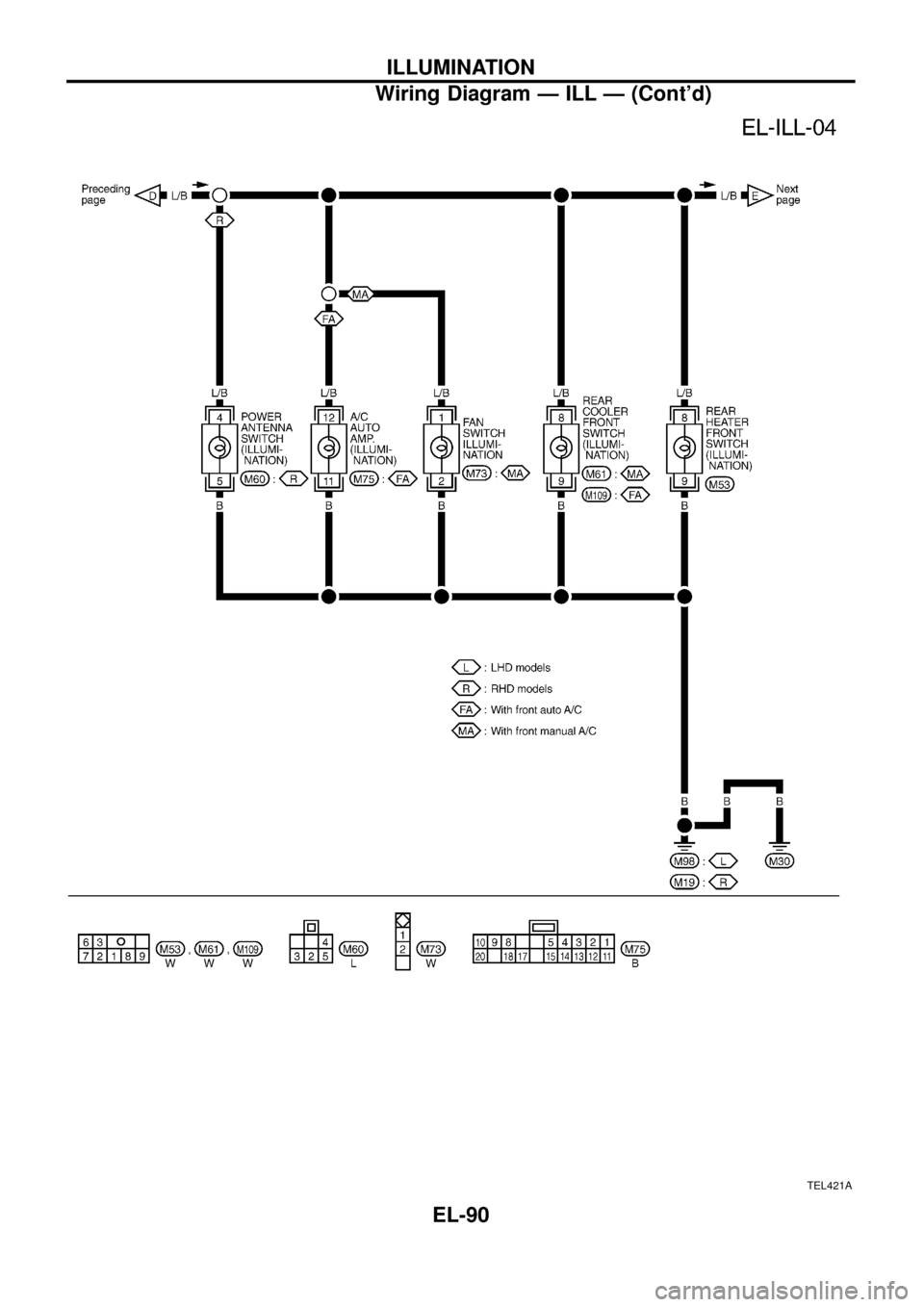

Page 94 of 326
TEL421A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-90

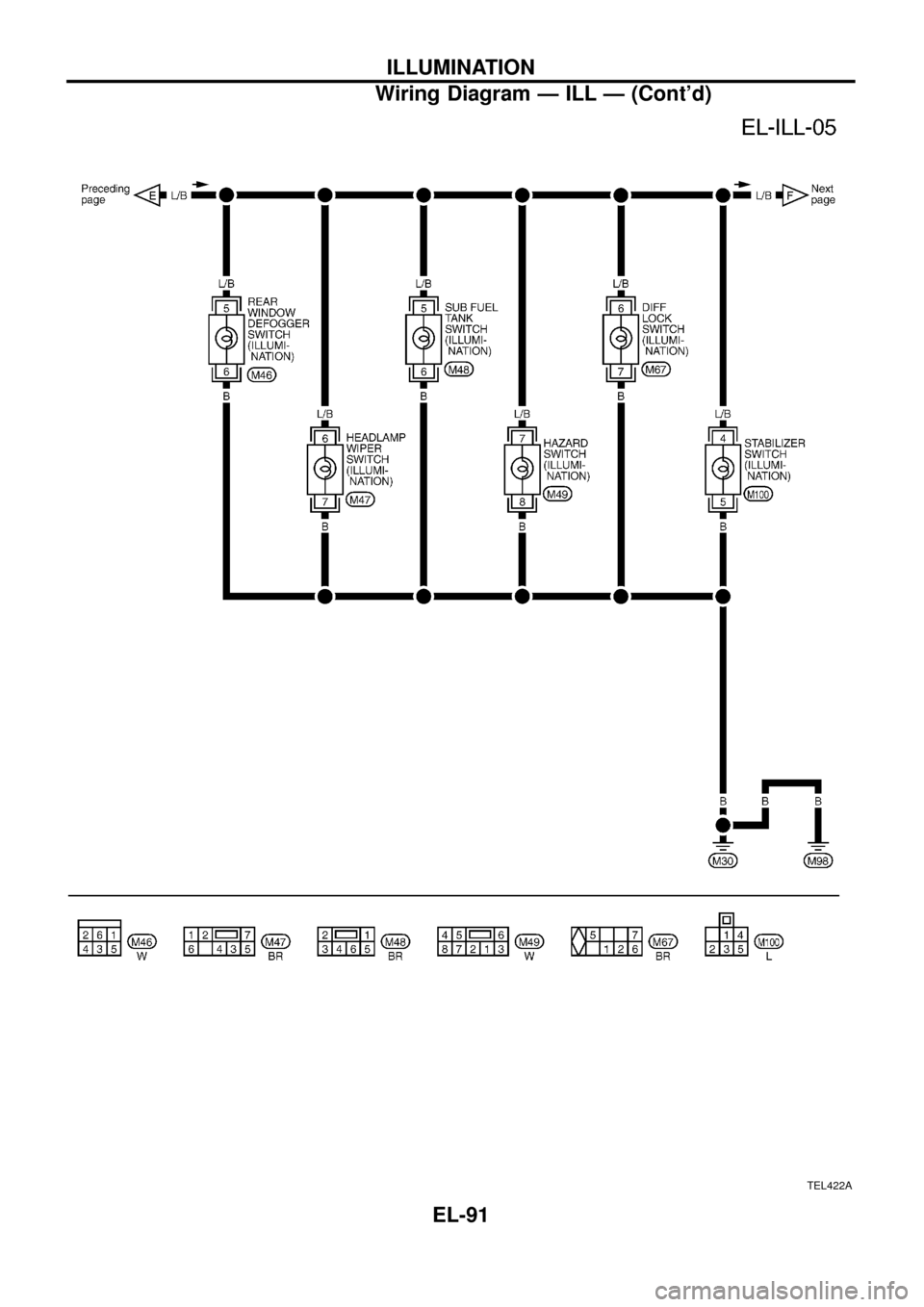

Page 95 of 326
TEL422A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-91

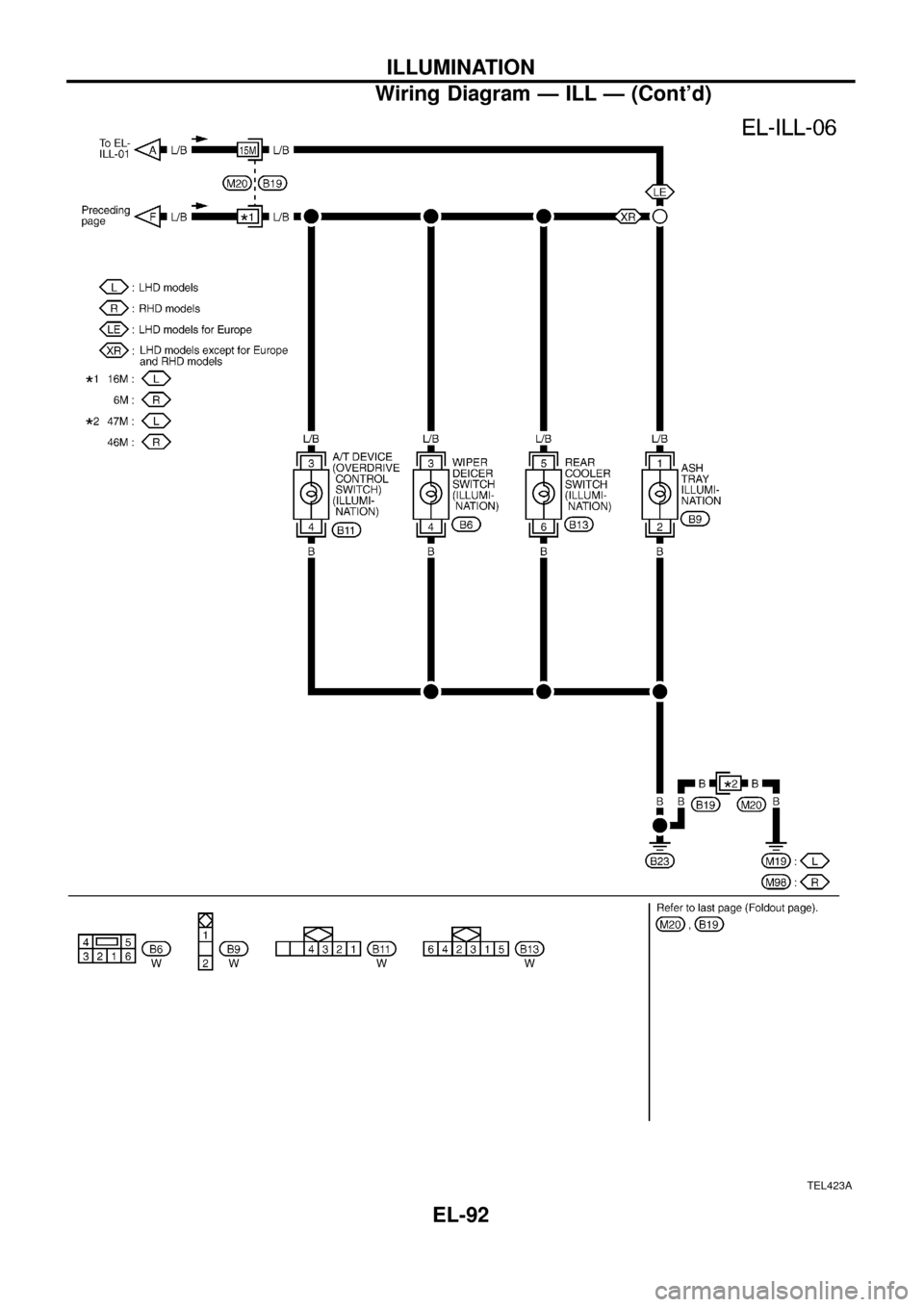

Page 96 of 326
TEL423A
ILLUMINATION
Wiring Diagram Ð ILL Ð (Cont'd)
EL-92

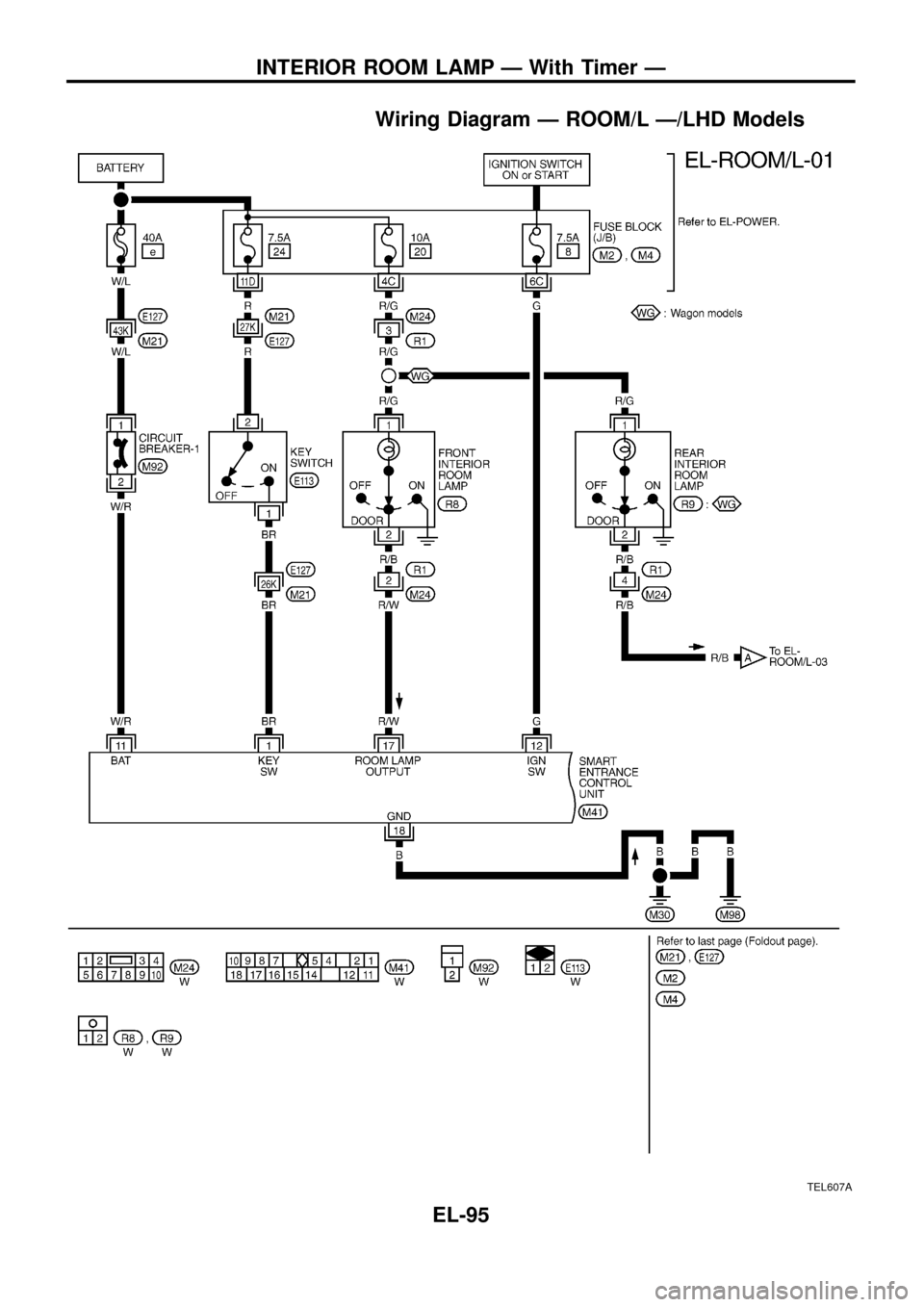

Page 99 of 326
Wiring Diagram Ð ROOM/L Ð/LHD Models
TEL607A
INTERIOR ROOM LAMP Ð With Timer Ð
EL-95

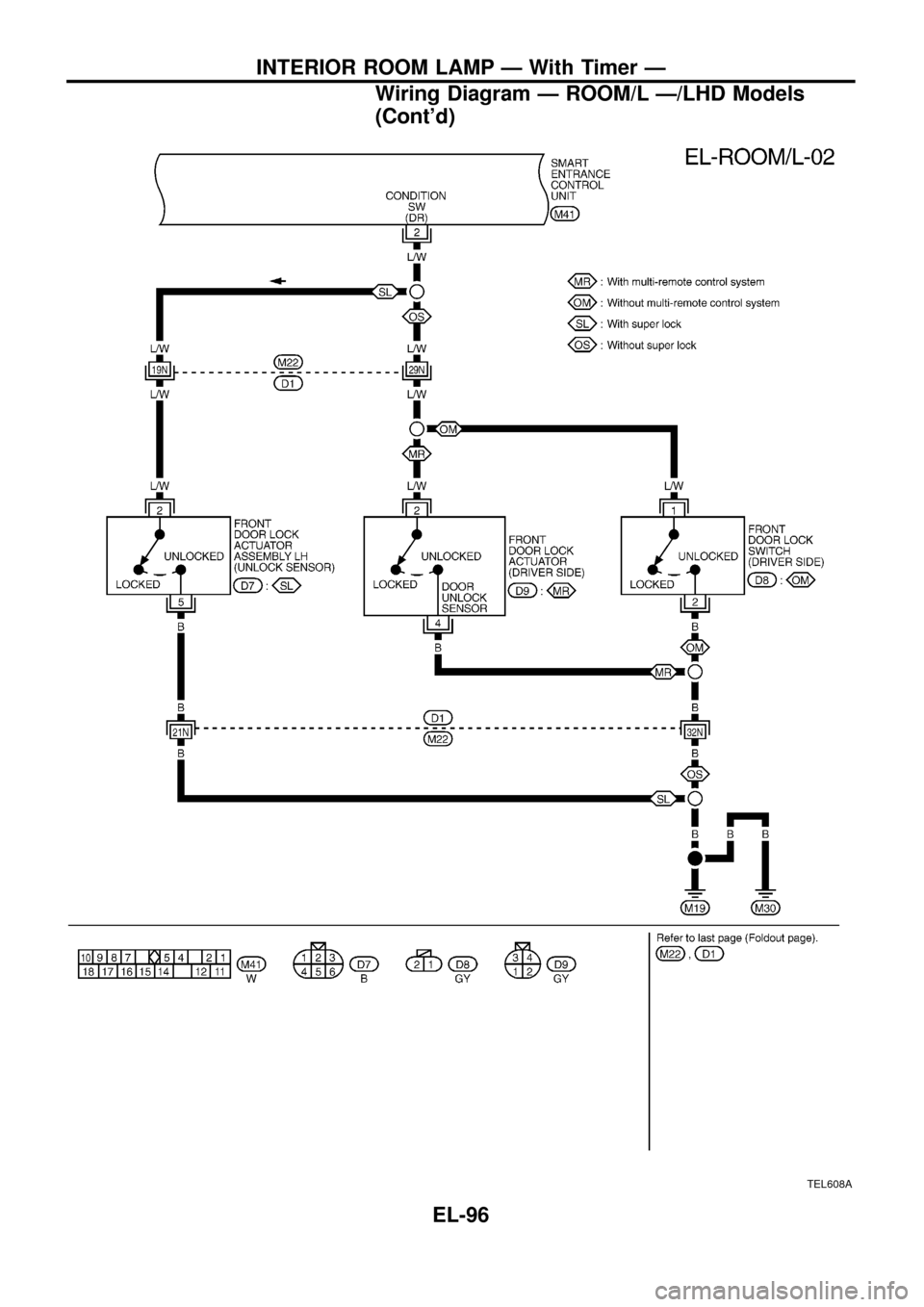

Page 100 of 326
TEL608A
INTERIOR ROOM LAMP Ð With Timer Ð
Wiring Diagram Ð ROOM/L Ð/LHD Models
(Cont'd)
EL-96
Page 101 of 326
TEL609A
INTERIOR ROOM LAMP Ð With Timer Ð
Wiring Diagram Ð ROOM/L Ð/LHD Models
(Cont'd)
EL-97
