Page 82 of 326

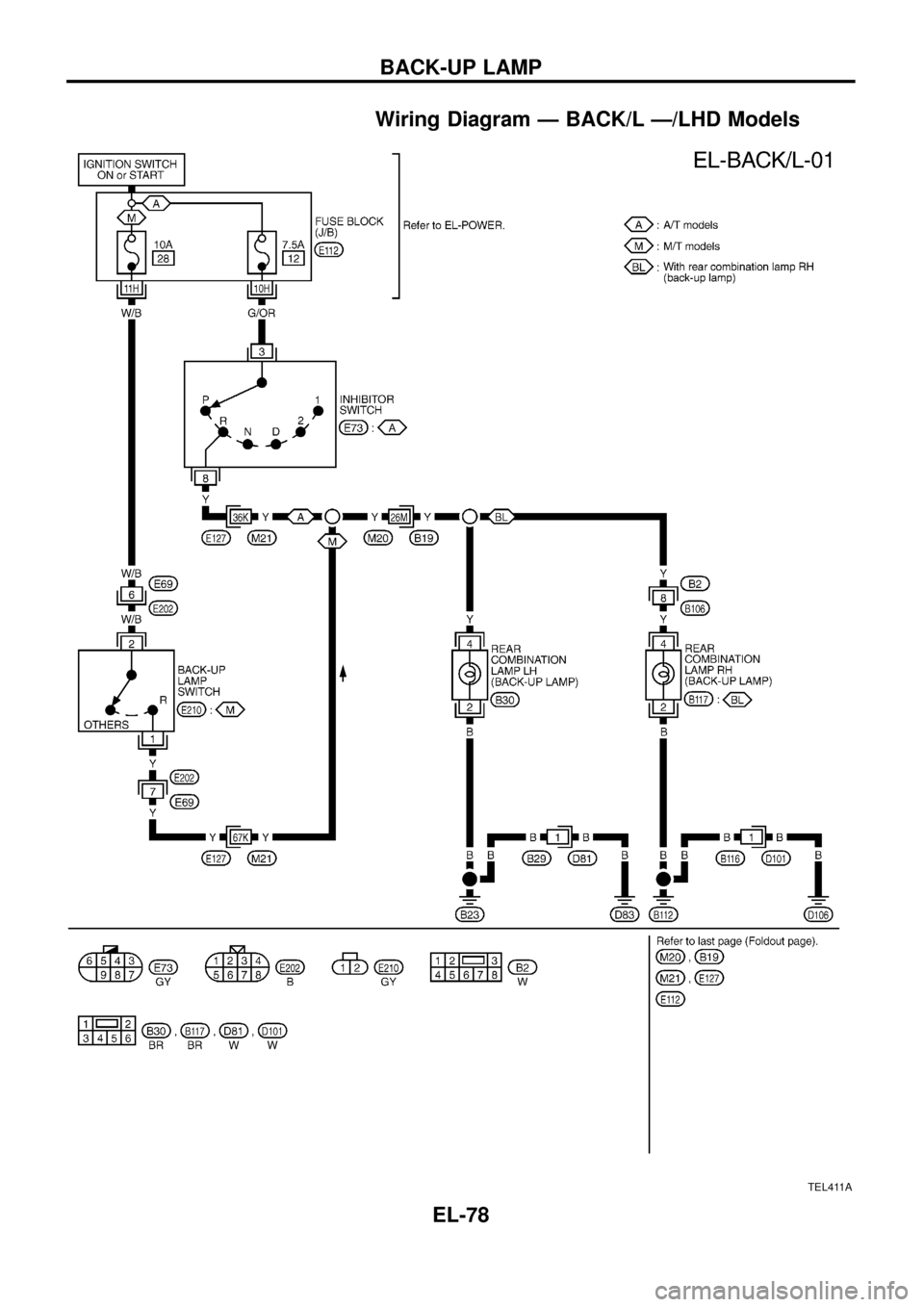

Wiring Diagram Ð BACK/L Ð/LHD Models
TEL411A
BACK-UP LAMP
EL-78
Page 83 of 326

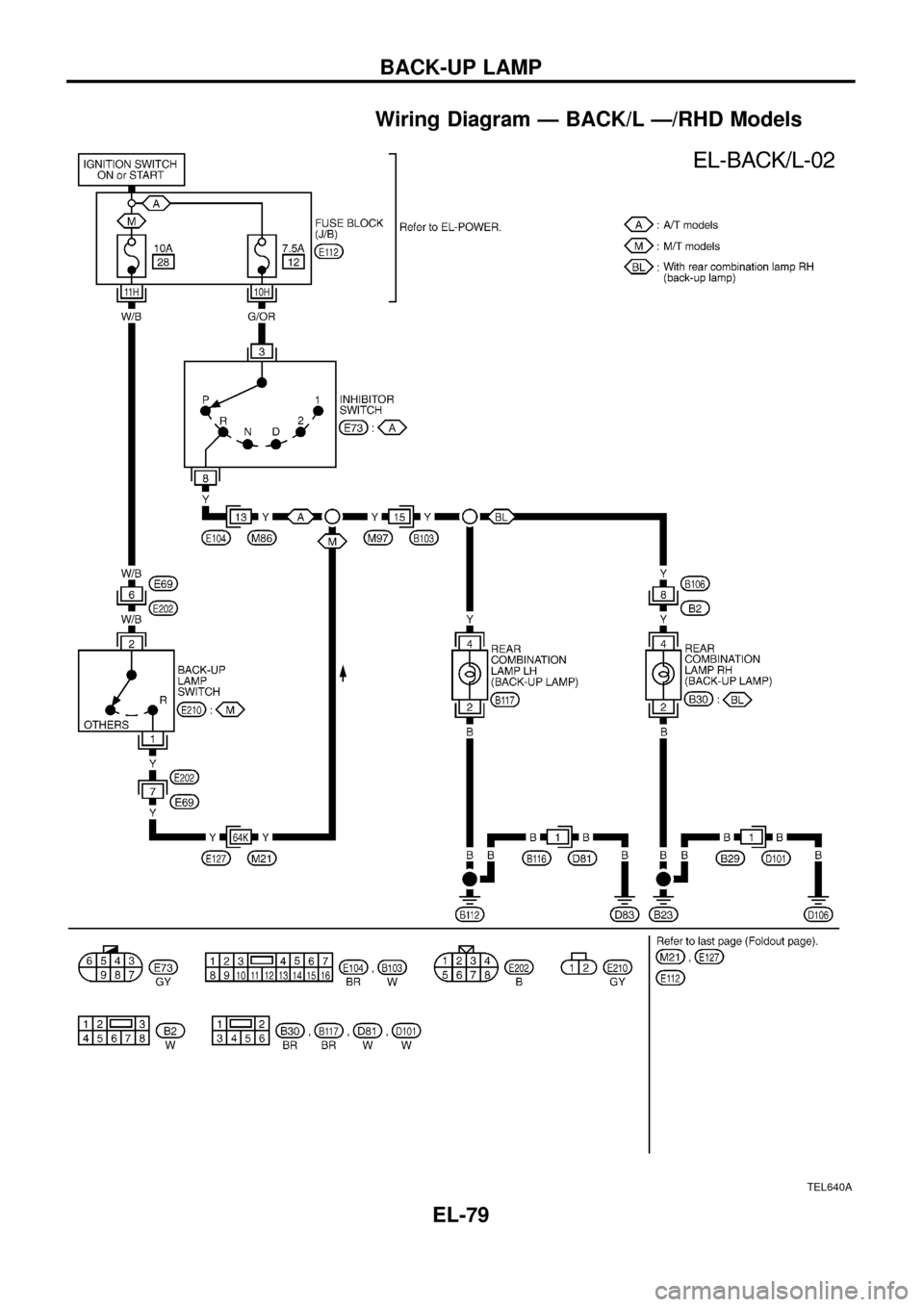

Wiring Diagram Ð BACK/L Ð/RHD Models
TEL640A
BACK-UP LAMP
EL-79
Page 84 of 326

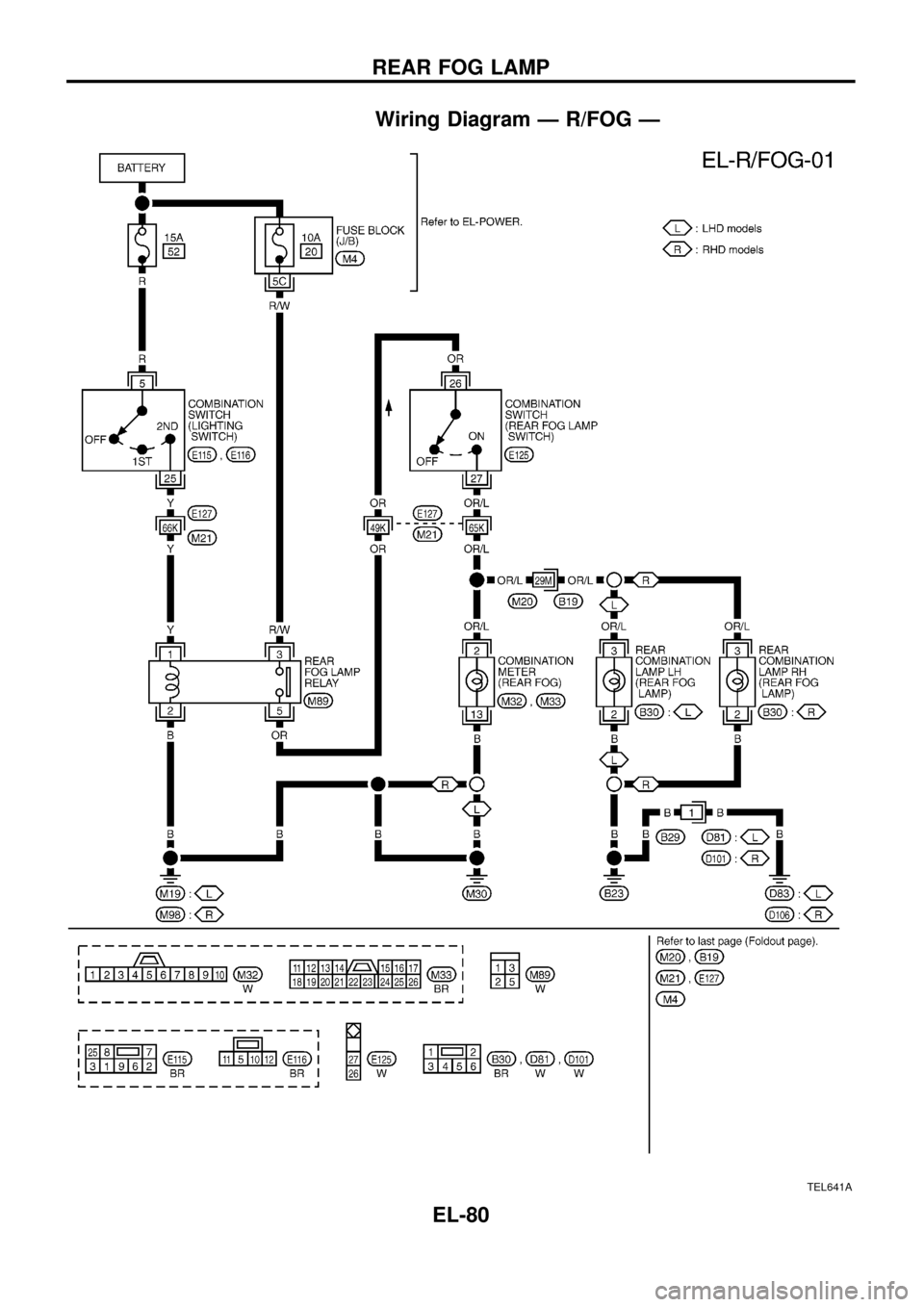

Wiring Diagram Ð R/FOG Ð
TEL641A
REAR FOG LAMP
EL-80
Page 85 of 326

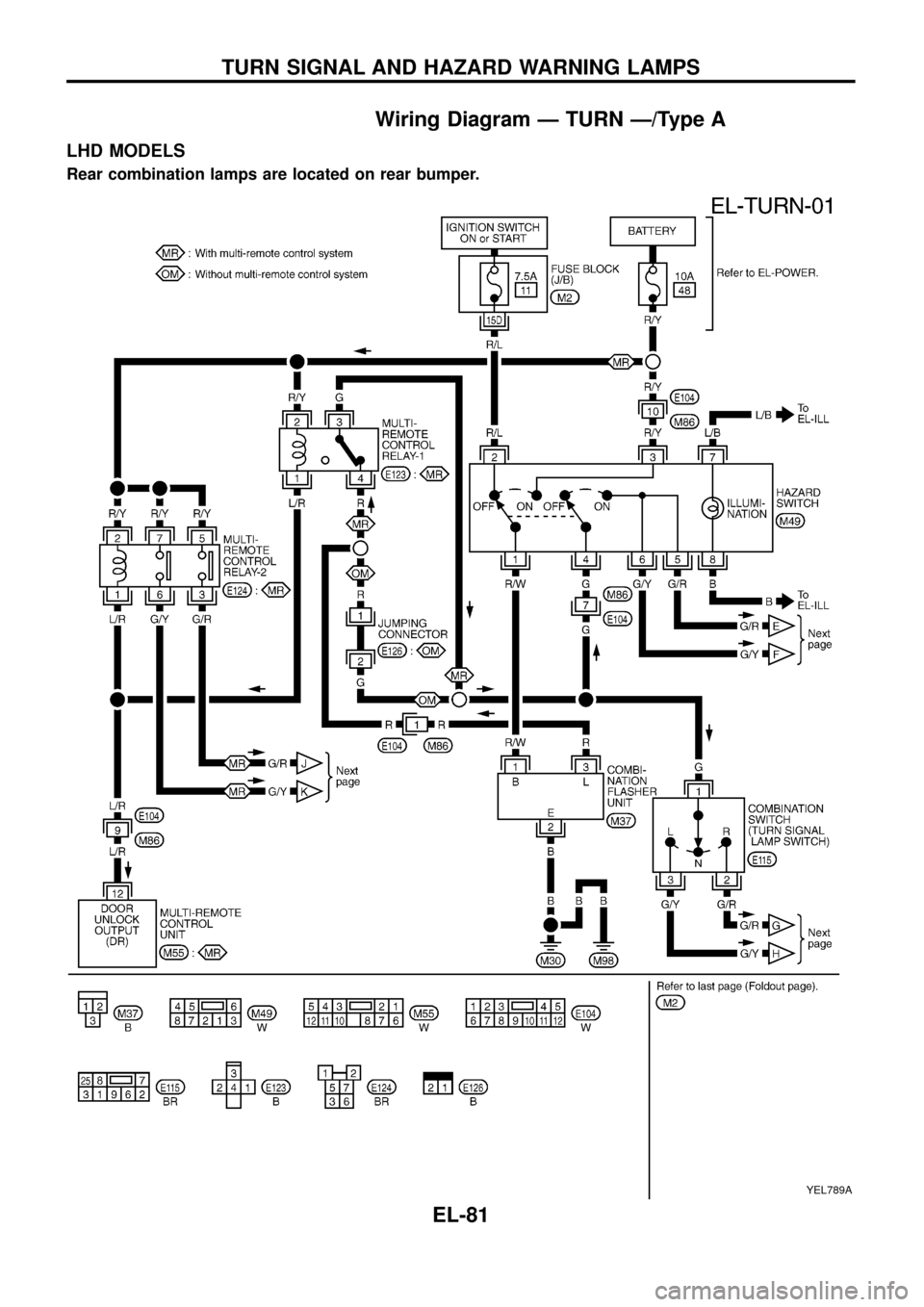

Wiring Diagram Ð TURN Ð/Type A
LHD MODELS
Rear combination lamps are located on rear bumper.
YEL789A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-81
Page 86 of 326
YEL790A
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Type A (Cont'd)
EL-82
Page 87 of 326

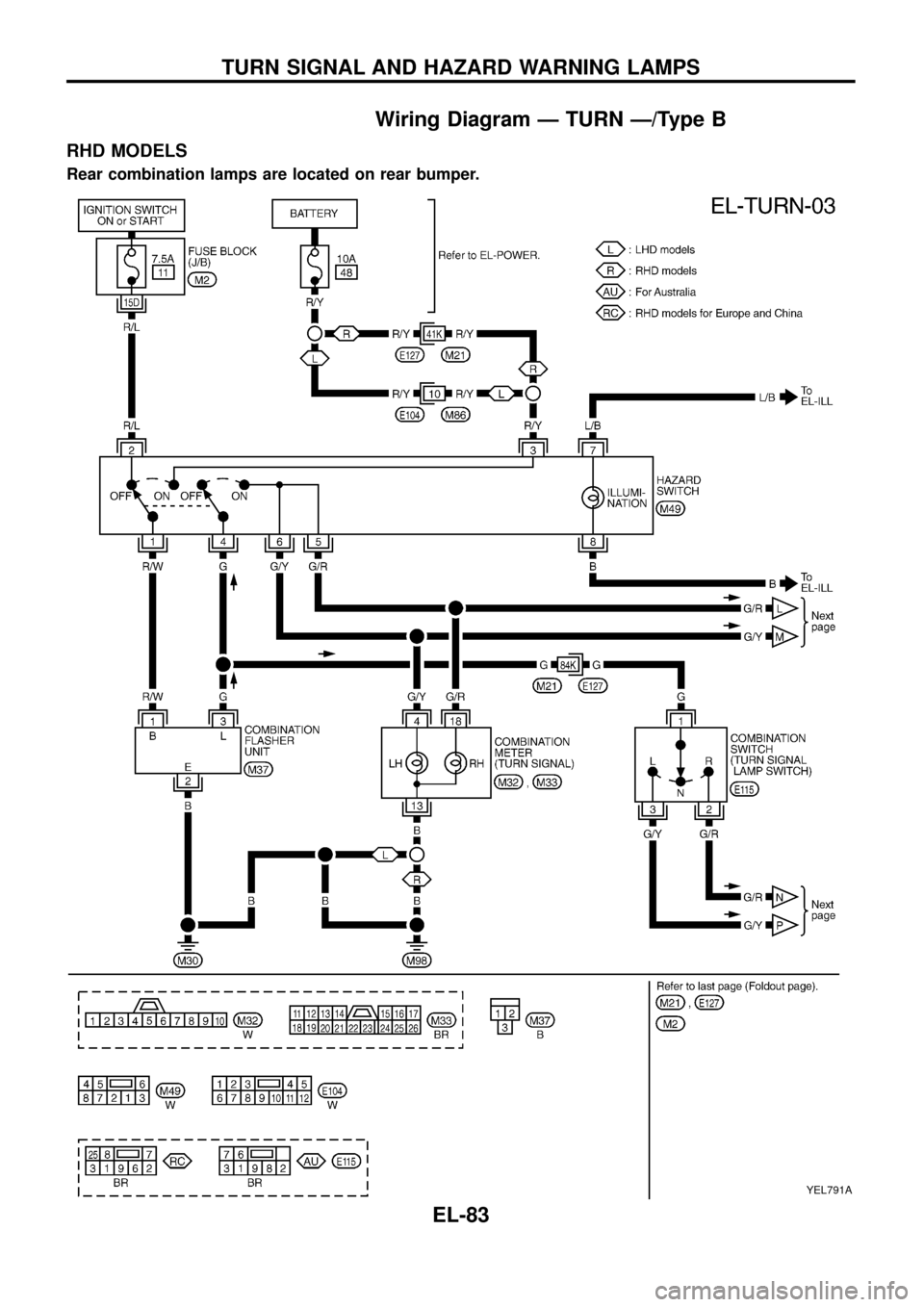

Wiring Diagram Ð TURN Ð/Type B
RHD MODELS
Rear combination lamps are located on rear bumper.
YEL791A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-83
Page 88 of 326
YEL792A
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/Type B (Cont'd)
EL-84
Page 91 of 326

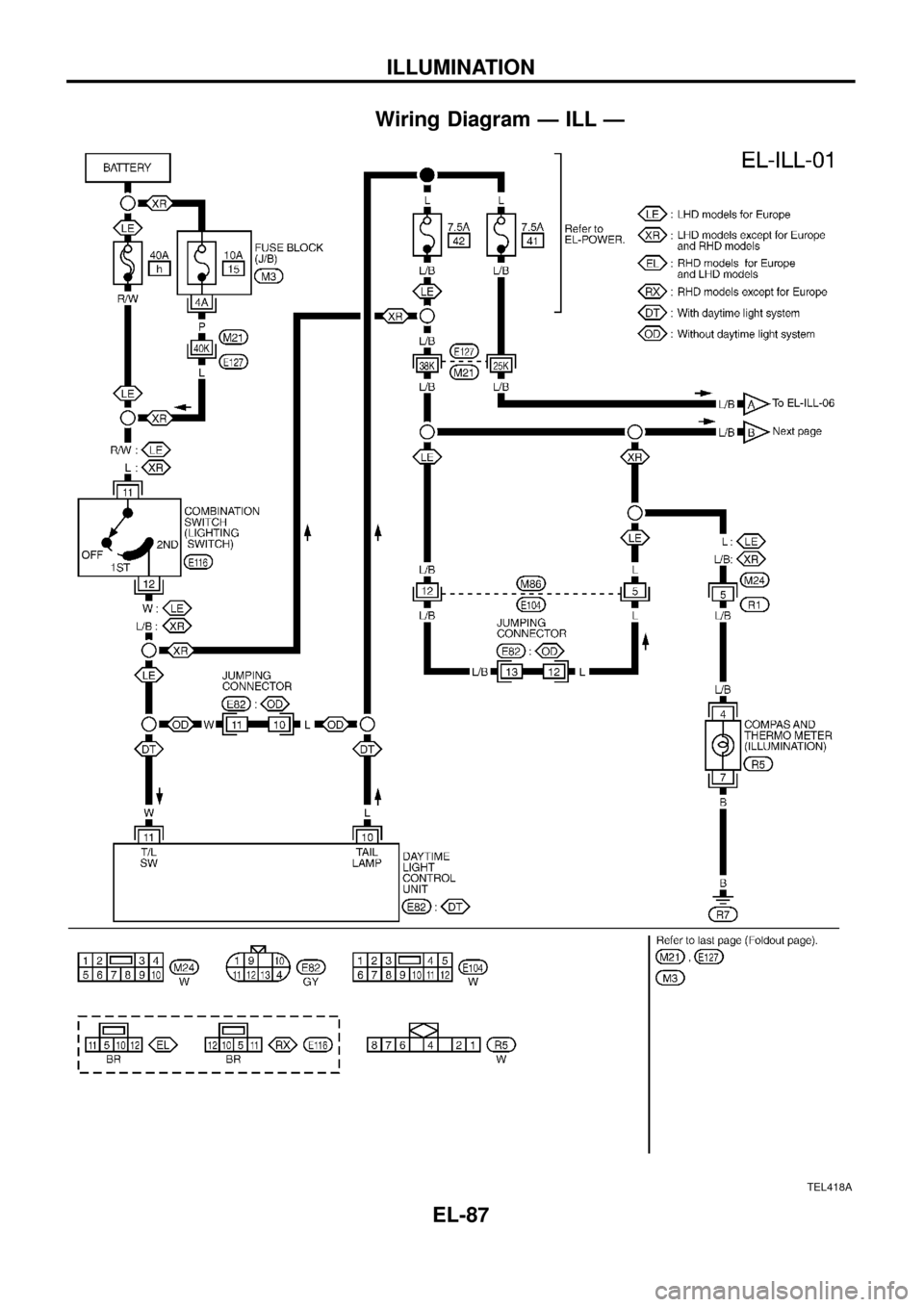

Wiring Diagram Ð ILL Ð
TEL418A
ILLUMINATION
EL-87
