Page 193 of 326

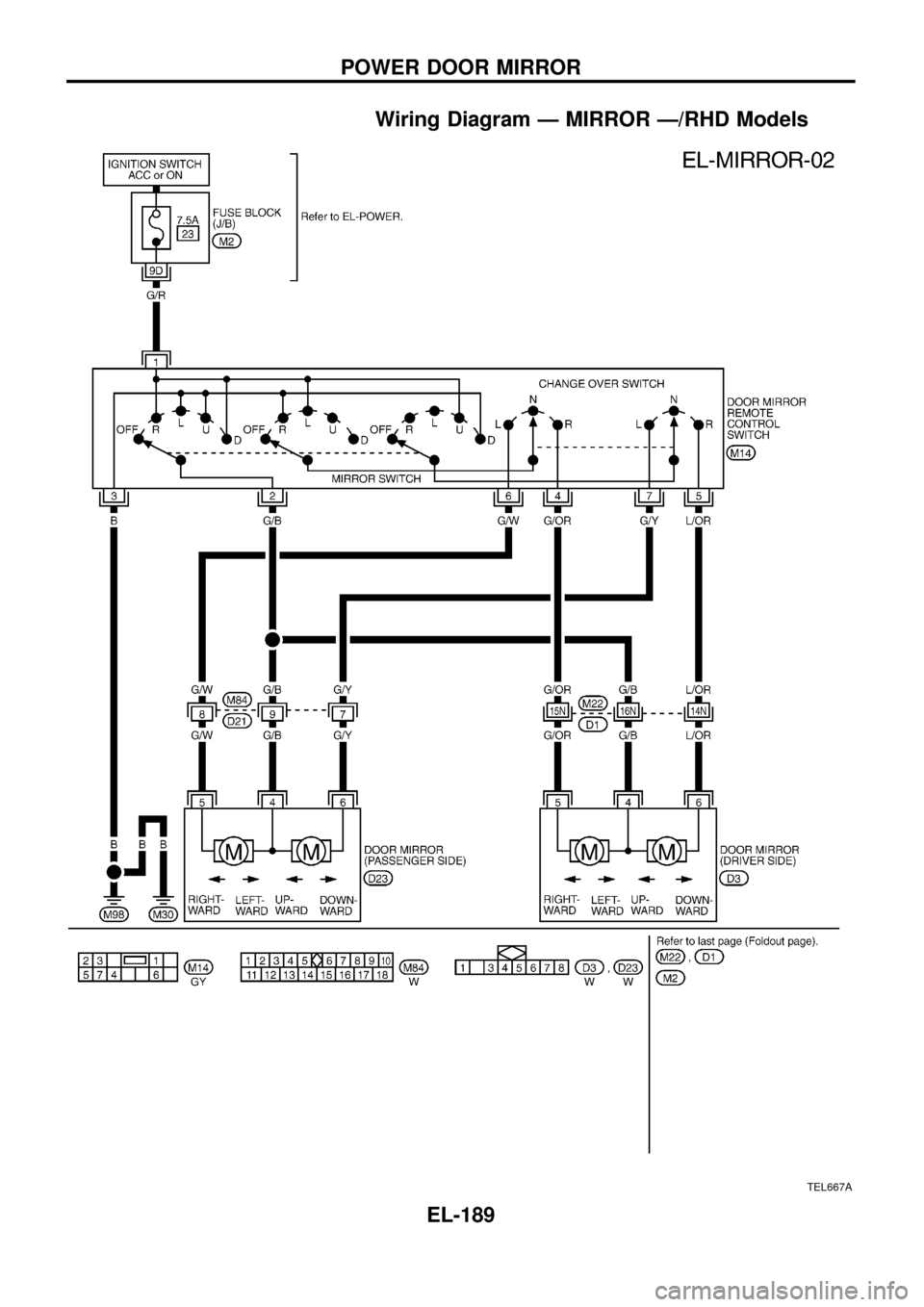

Wiring Diagram Ð MIRROR Ð/RHD Models
TEL667A
POWER DOOR MIRROR
EL-189
Page 194 of 326

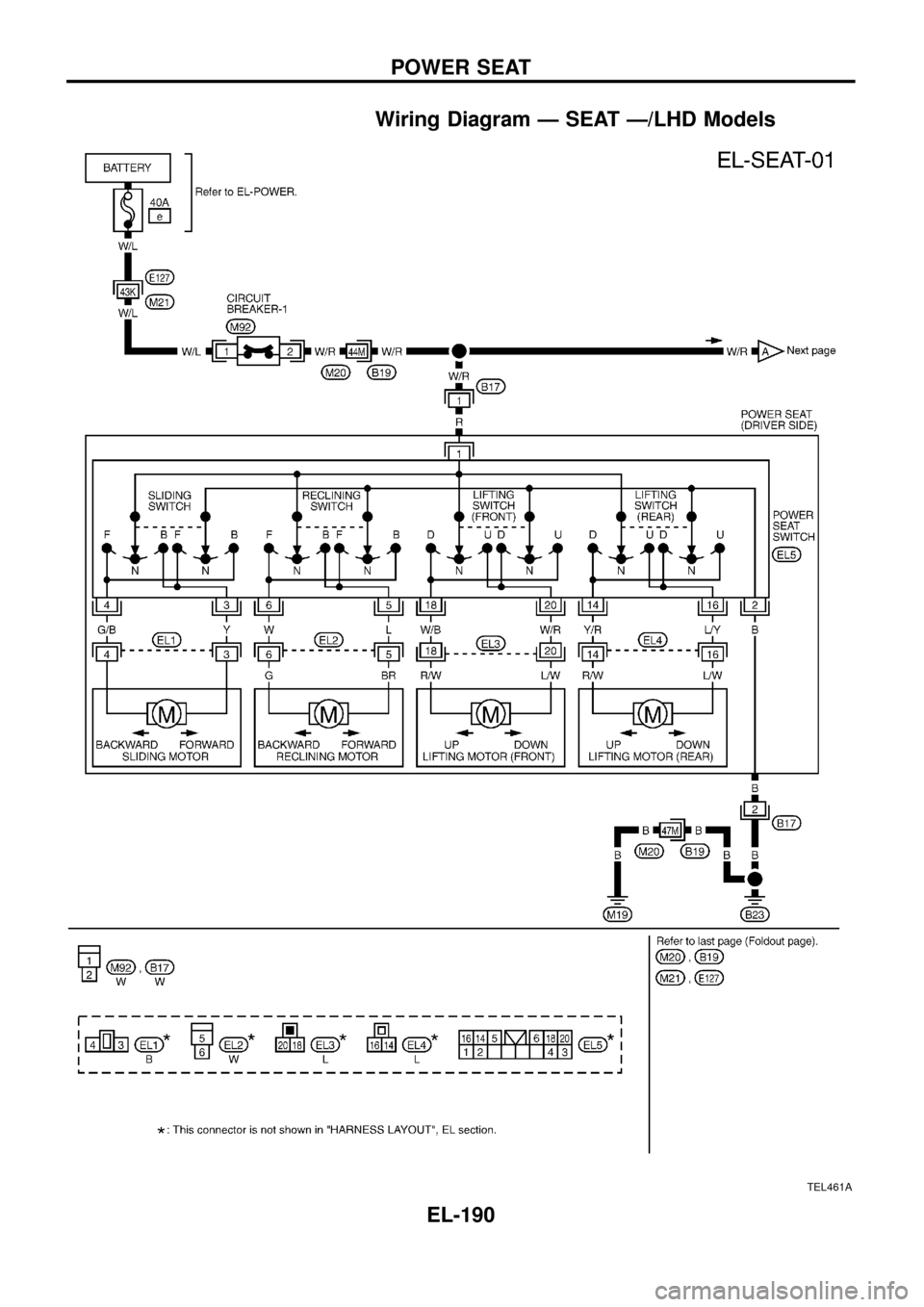

Wiring Diagram Ð SEAT Ð/LHD Models
TEL461A
POWER SEAT
EL-190
Page 195 of 326

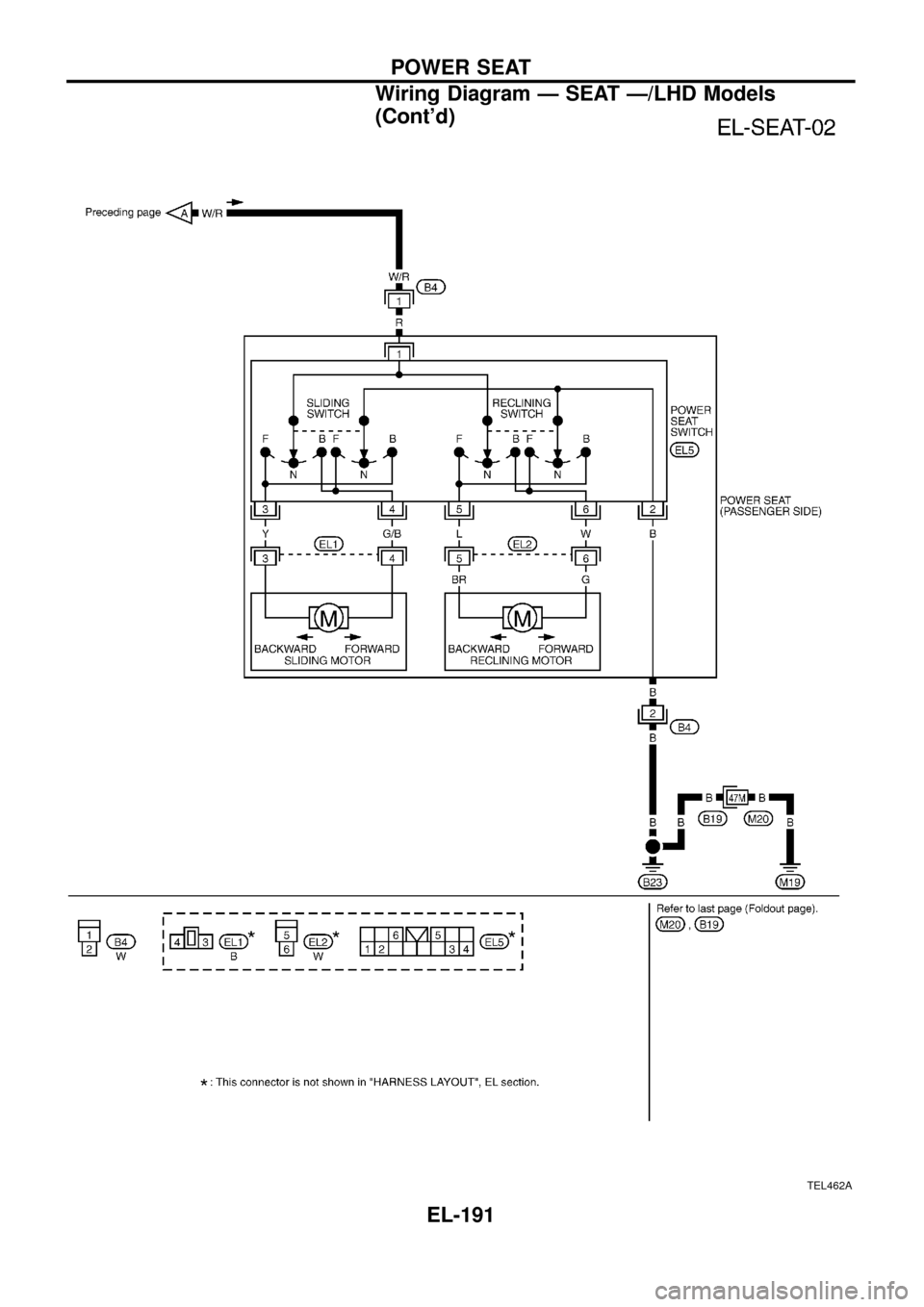

TEL462A
POWER SEAT
Wiring Diagram Ð SEAT Ð/LHD Models
(Cont'd)
EL-191
Page 196 of 326

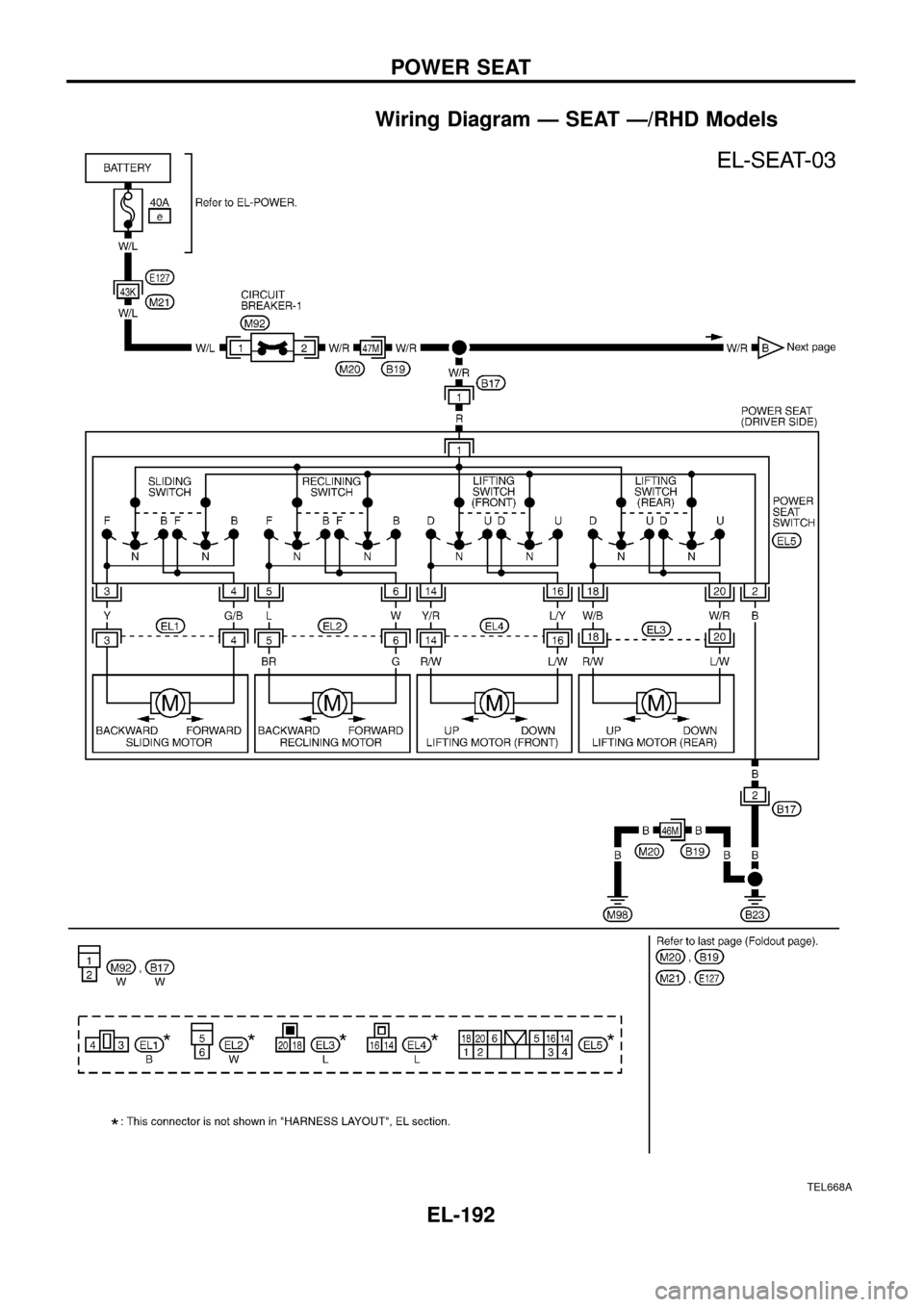

Wiring Diagram Ð SEAT Ð/RHD Models
TEL668A
POWER SEAT
EL-192
Page 197 of 326
TEL669A
POWER SEAT
Wiring Diagram Ð SEAT Ð/RHD Models
(Cont'd)
EL-193
Page 198 of 326

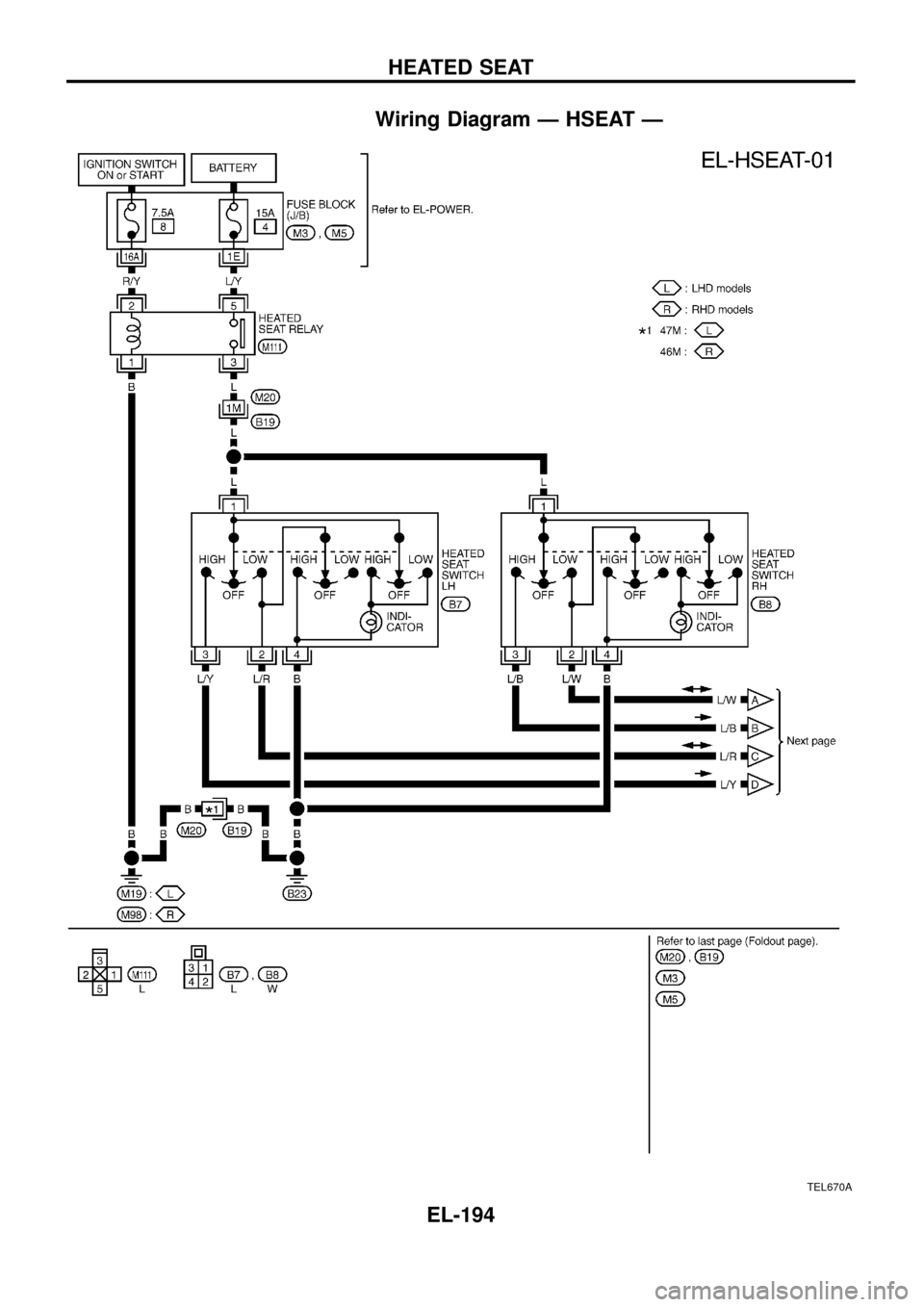

Wiring Diagram Ð HSEAT Ð
TEL670A
HEATED SEAT
EL-194
Page 199 of 326

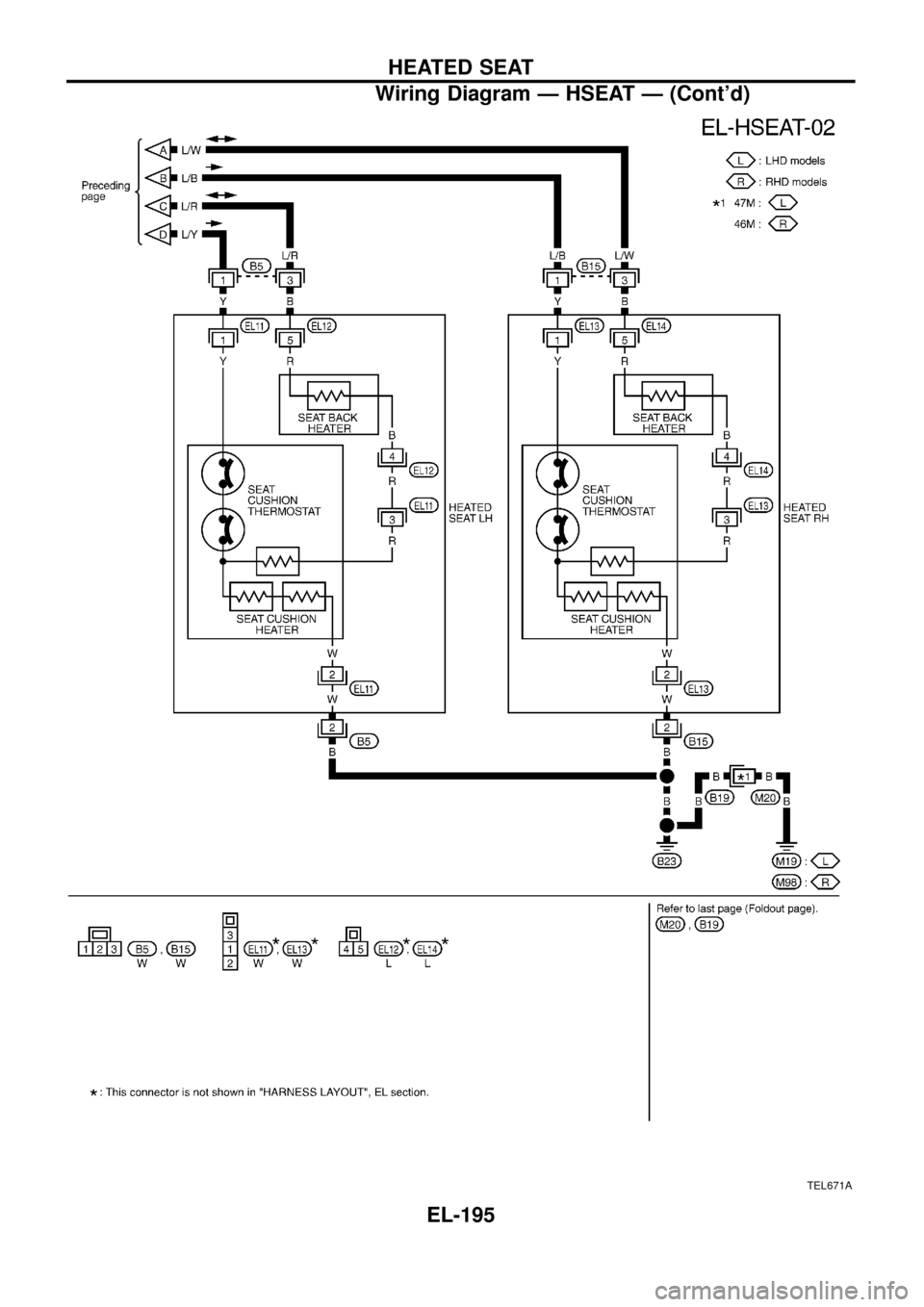

TEL671A
HEATED SEAT
Wiring Diagram Ð HSEAT Ð (Cont'd)
EL-195
Page 202 of 326

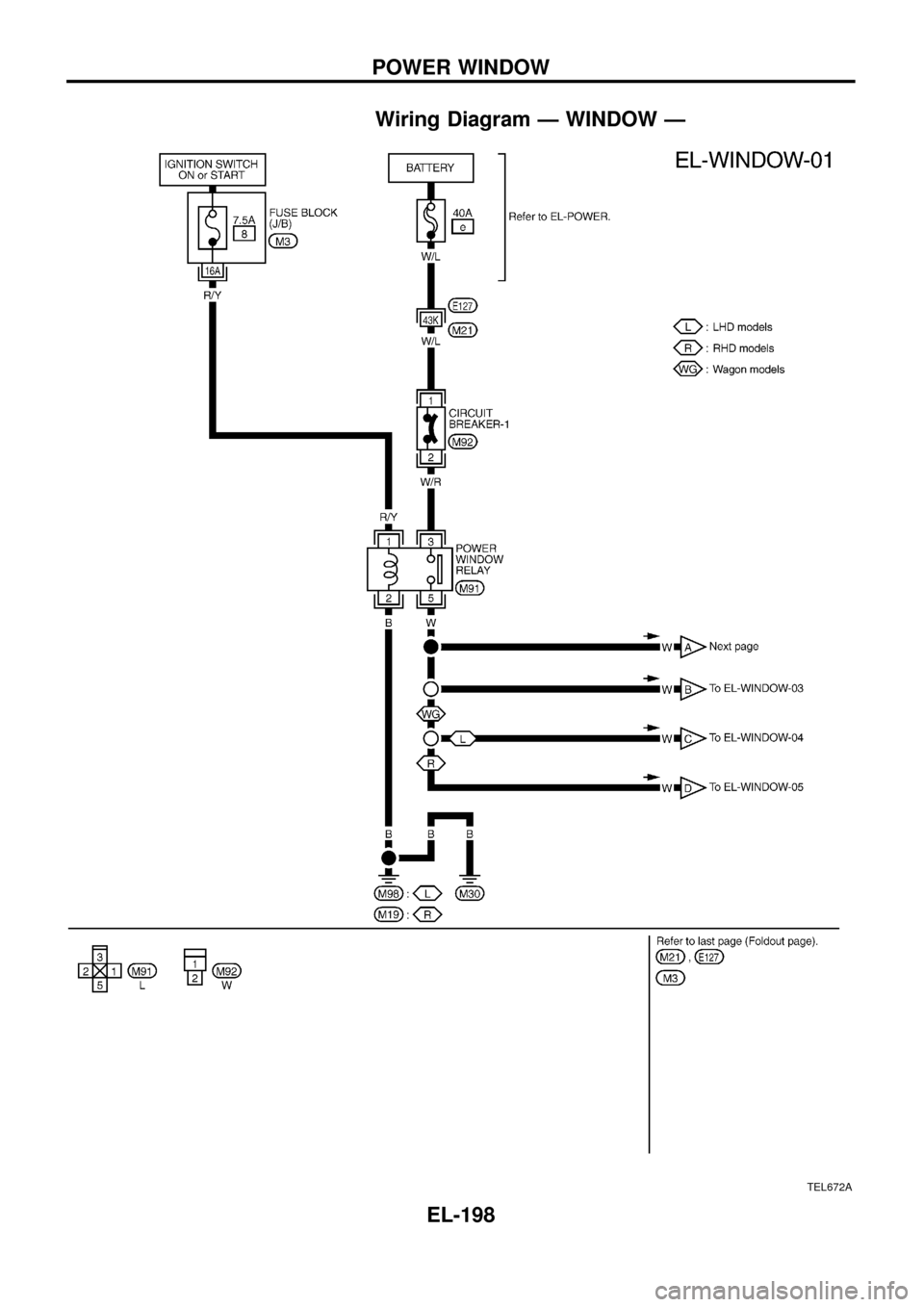

Wiring Diagram Ð WINDOW Ð
TEL672A
POWER WINDOW
EL-198
