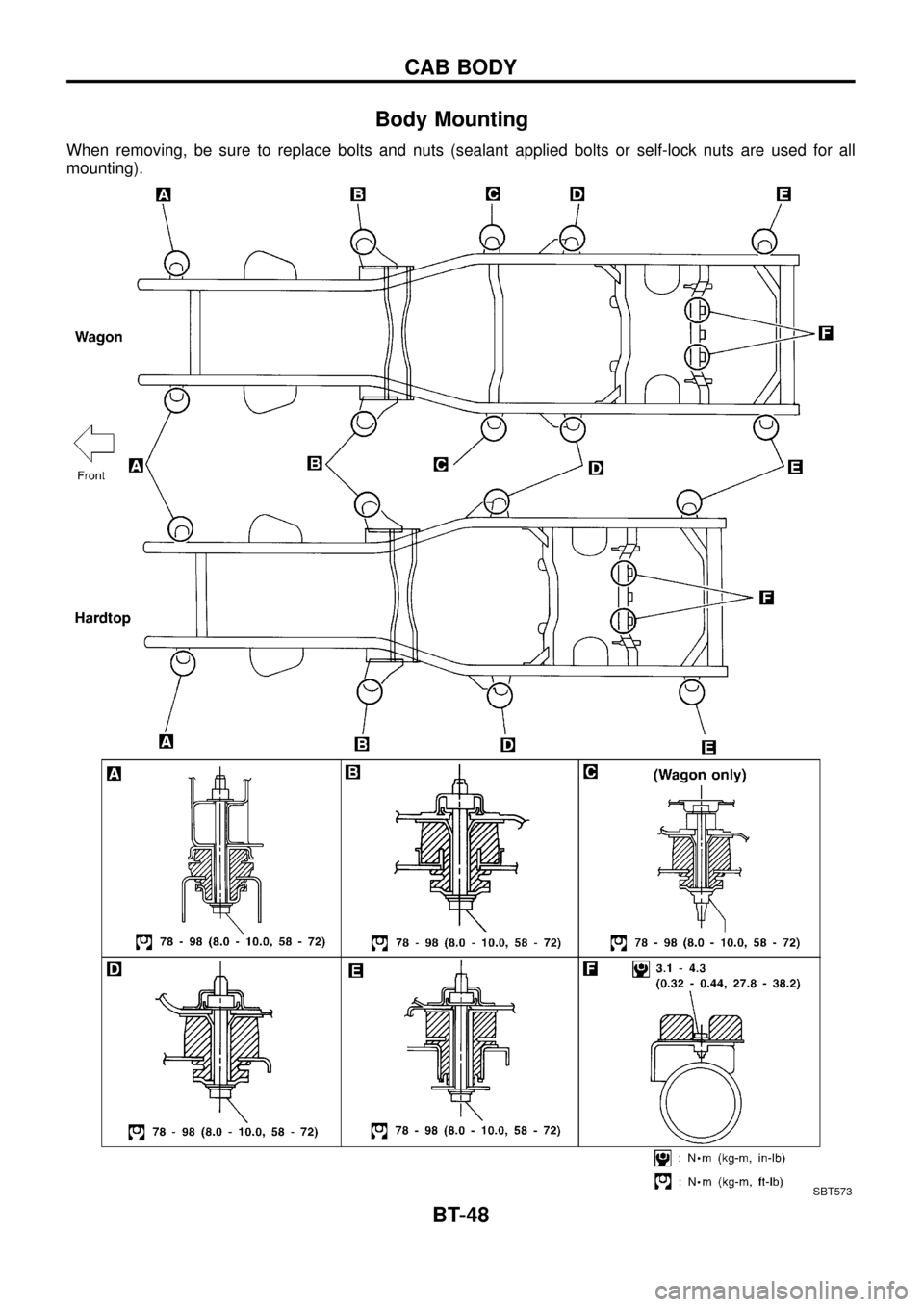

Body Mounting
When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all
mounting).
SBT573
CAB BODY
BT-48
Page 50 of 55
+All dimensions indicated in ®gures are actual ones.
+When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.
+When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
+Measurements should be taken at the center of the mounting holes.
+An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.
+The coordinates of the measurement points are the distances measured from the standard line of ``X'', ``Y''
and ``Z''.
Engine Compartment
MEASUREMENT
SBF874GD
SBT560
BODY ALIGNMENT
BT-49
Page 51 of 55

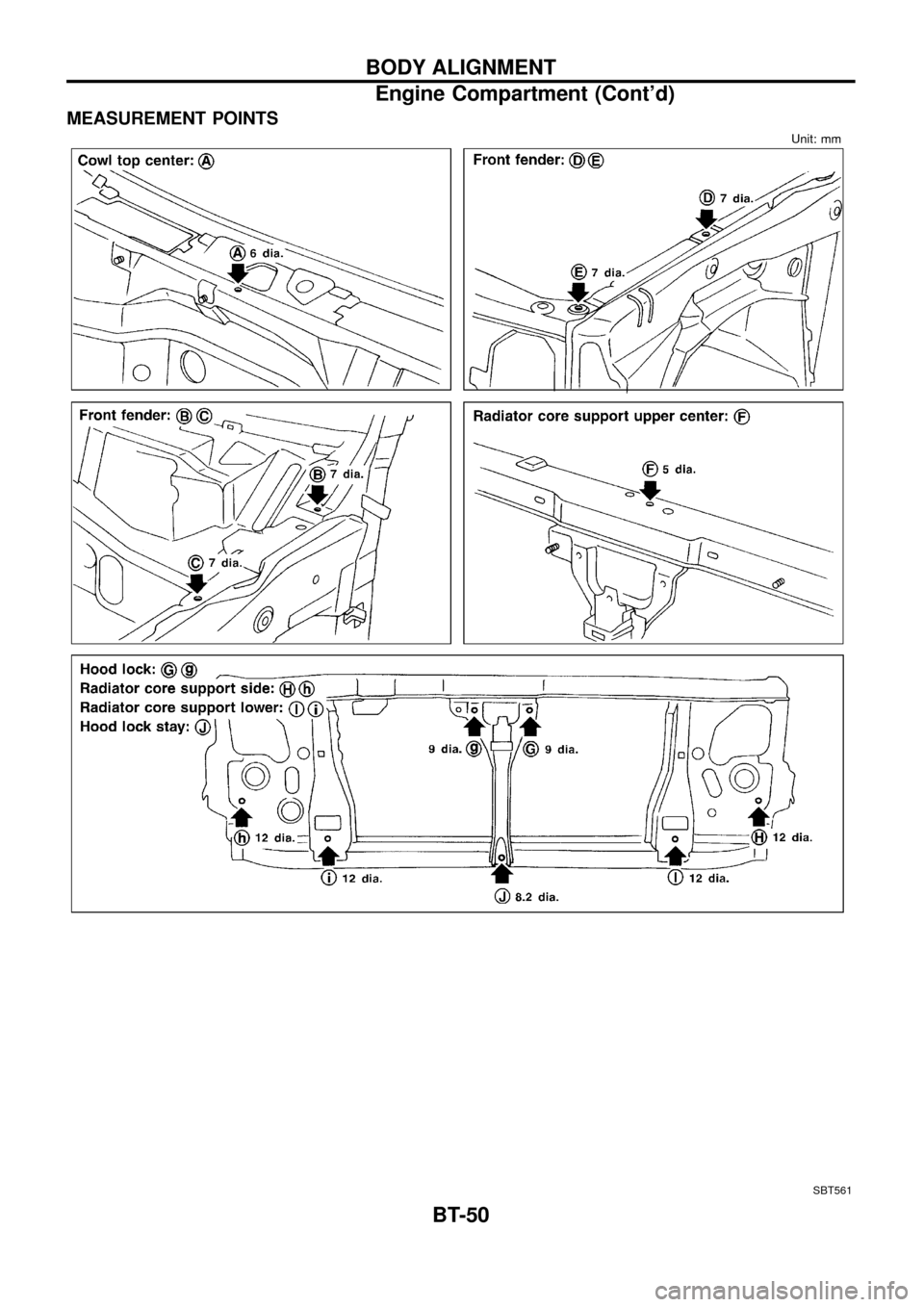

MEASUREMENT POINTS
Unit: mm
SBT561
BODY ALIGNMENT
Engine Compartment (Cont'd)
BT-50
Page 52 of 55

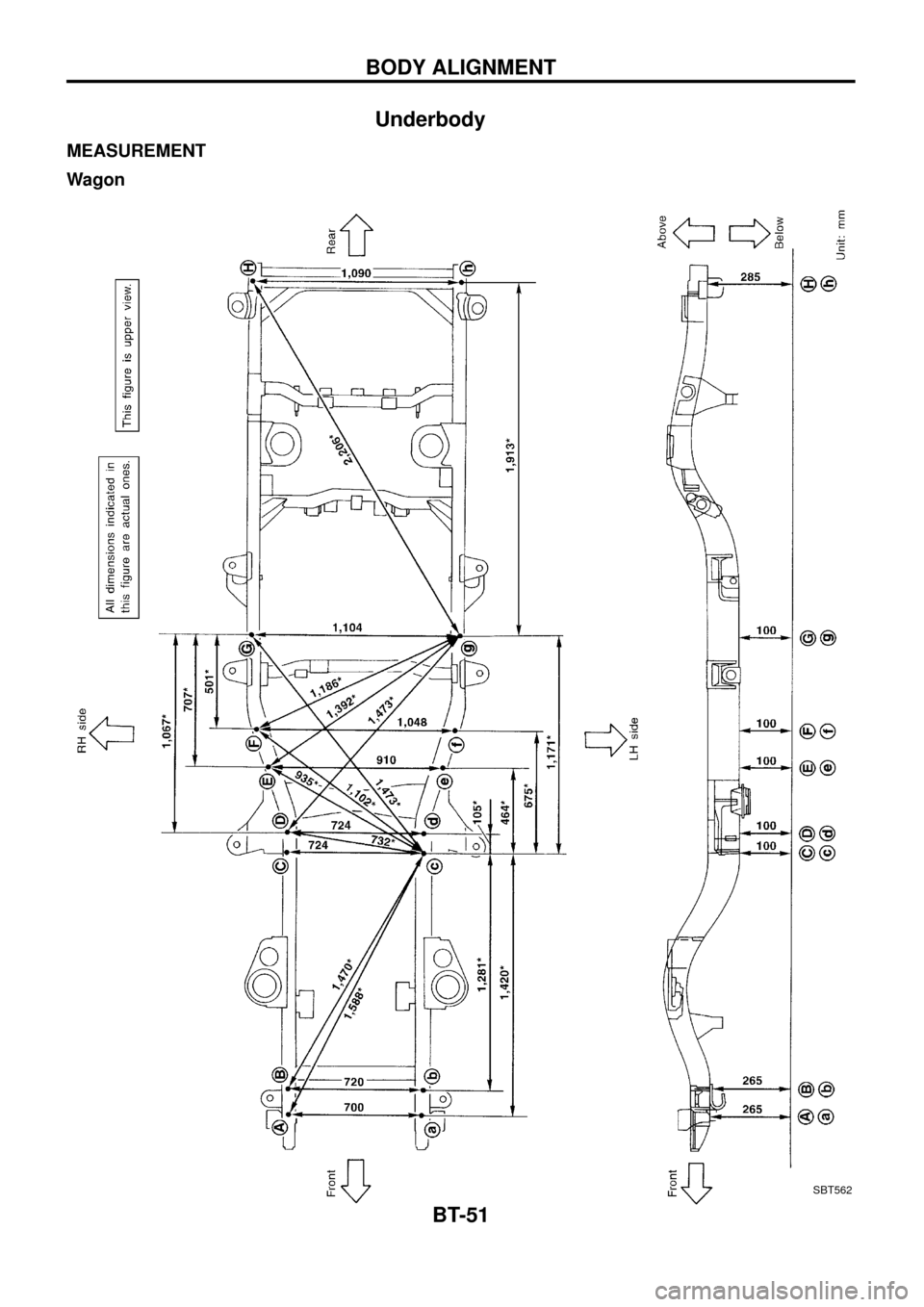

Underbody
MEASUREMENT
Wagon
SBT562
BODY ALIGNMENT
BT-51
Page 53 of 55

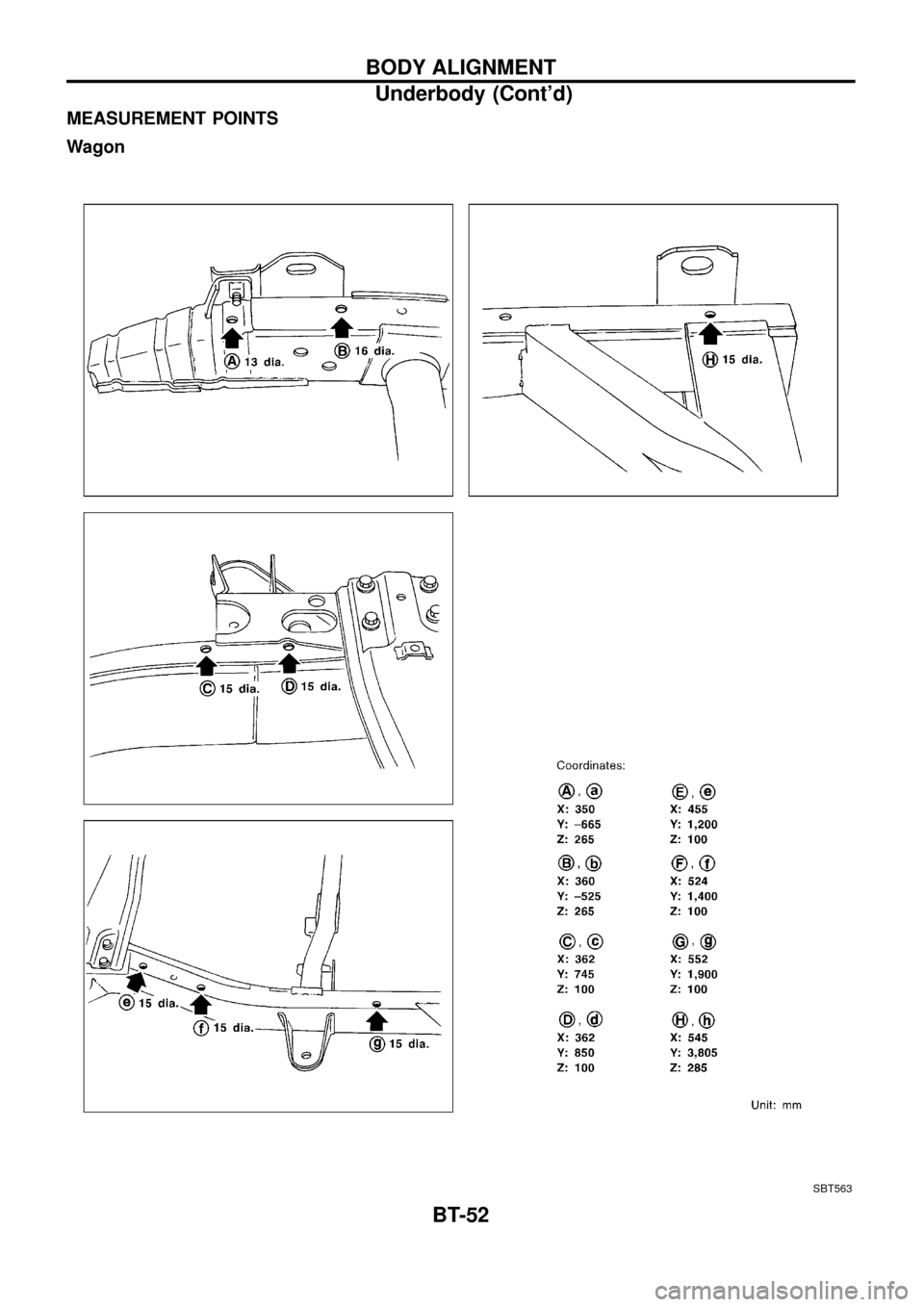

MEASUREMENT POINTS
Wagon
SBT563
BODY ALIGNMENT
Underbody (Cont'd)
BT-52
Page 54 of 55

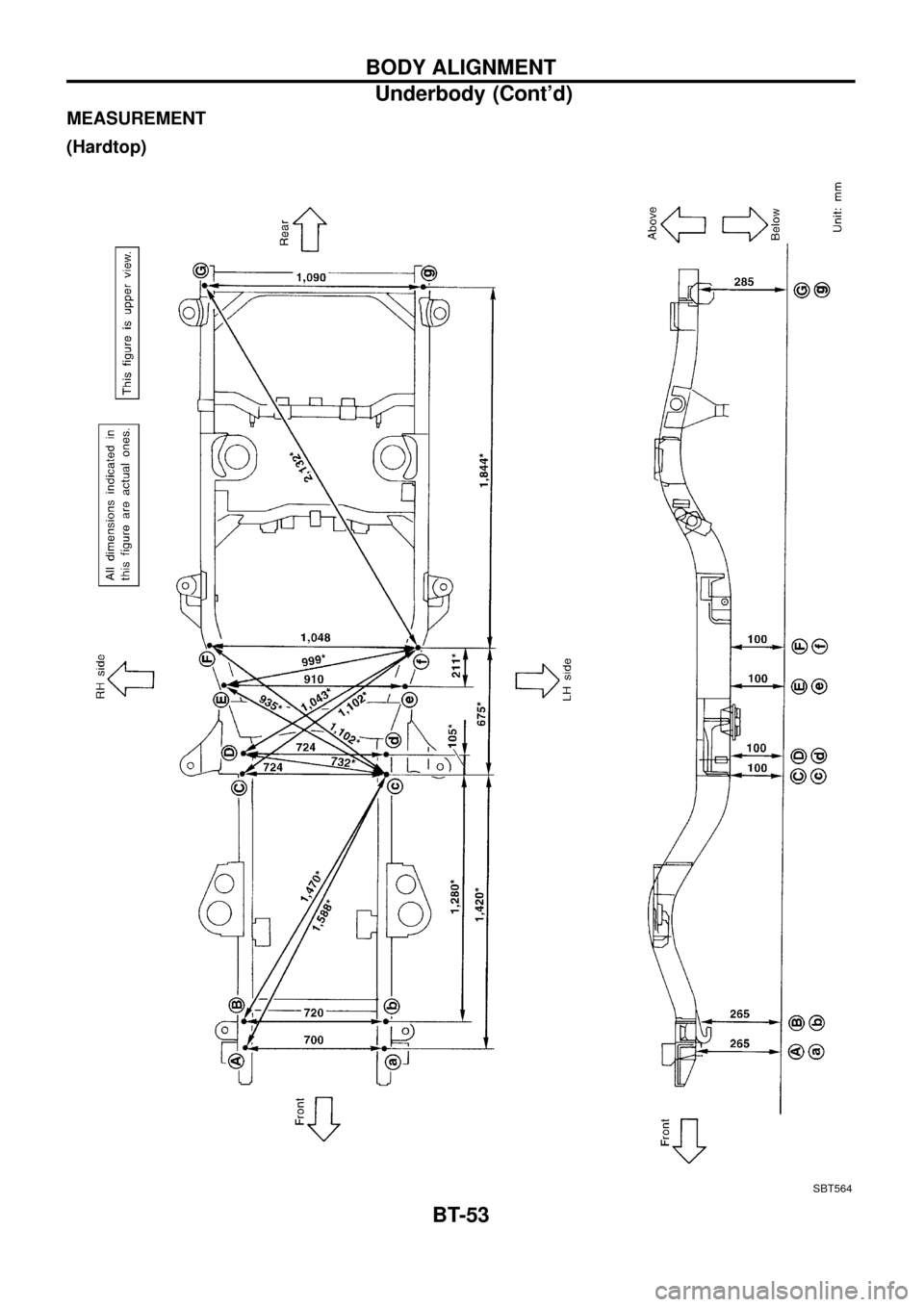

MEASUREMENT
(Hardtop)
SBT564
BODY ALIGNMENT
Underbody (Cont'd)
BT-53
Page 55 of 55

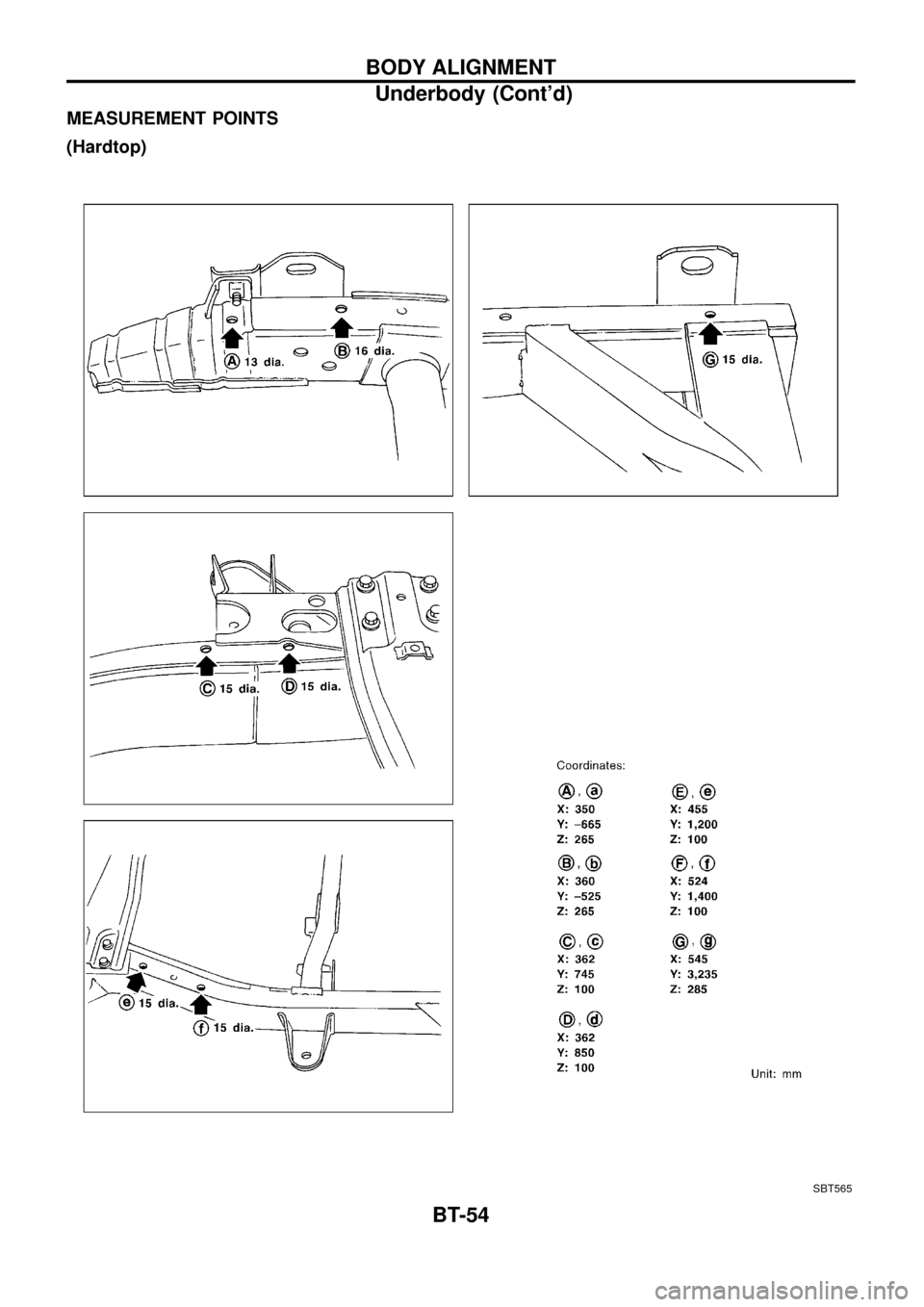

MEASUREMENT POINTS
(Hardtop)
SBT565
BODY ALIGNMENT
Underbody (Cont'd)
BT-54
